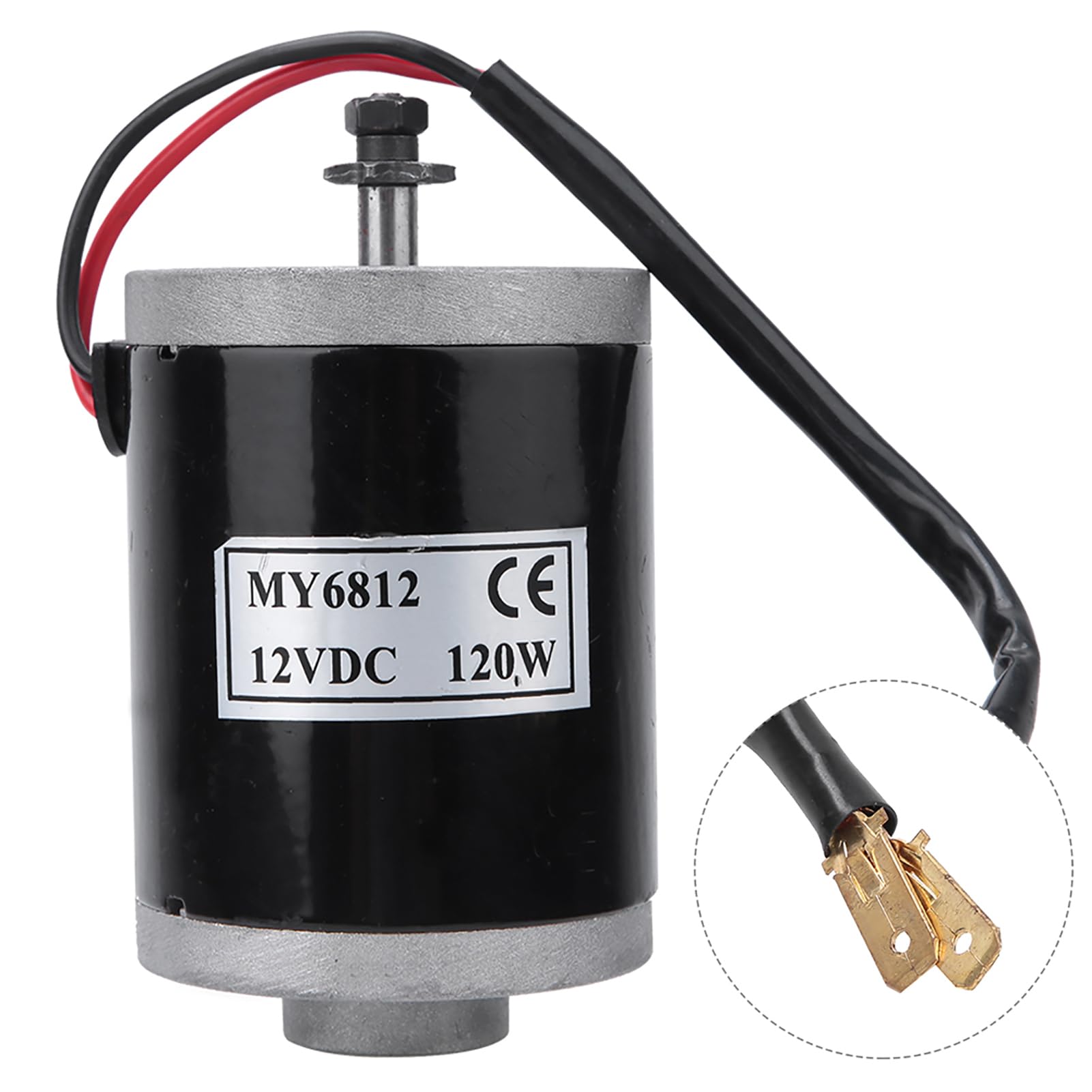

KooingTech DC Motor Electric Scooter Motor MY6812 120W 12V Scooters
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•High Starting Torque: When DC brushed motor starts, due to the action of brushes and commutator, dc motor can provide large starting torque, suitable for some application scenarios that require large starting torque(Torque rating is 0.56 nm)
•Wide Range of Speed Regulation: You can adjust the DC voltage, electric motor can easily adjust the speed of DC brushed motor, so that electric bike motor can adapt to different working requirements, and this small motor is more convenient to use
•Product Specification: MY6812 12v dc motor for bike has a rated power of 120W, rated voltage of 12V, rated current <8.5A, rated speed of 2500±5% RPM, maximum speed of 3500±5% RPM, and noload current <0.9A
•12 Volt Motor Size: The electric scooter motor has a length of 100 mm, a diameter of 68 mm, a shaft length of 28 mm, a shaft diameter of 8 mm, the distance between the two fixed holes of the scooter motor is 36 mm, and the sprocket is a 7 tooth sprocket for the 25H
•Wide Range of Applications: Our brushed dc electric motor is mainly used in scooters, electric cars, rated voltage range up to 36V DC. The motor for electric scooter load capacity about 120kg, weight about 1.1kg
