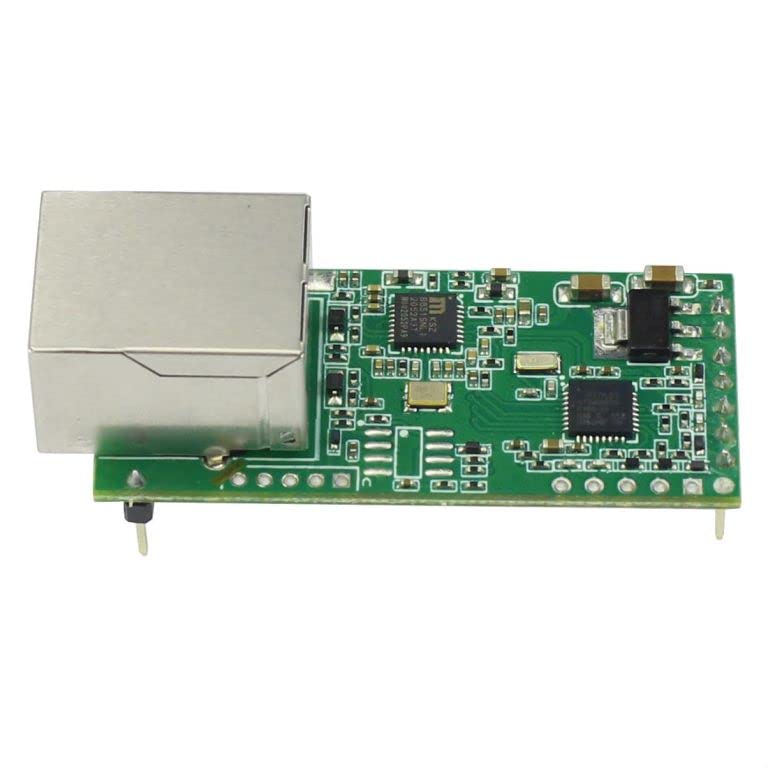

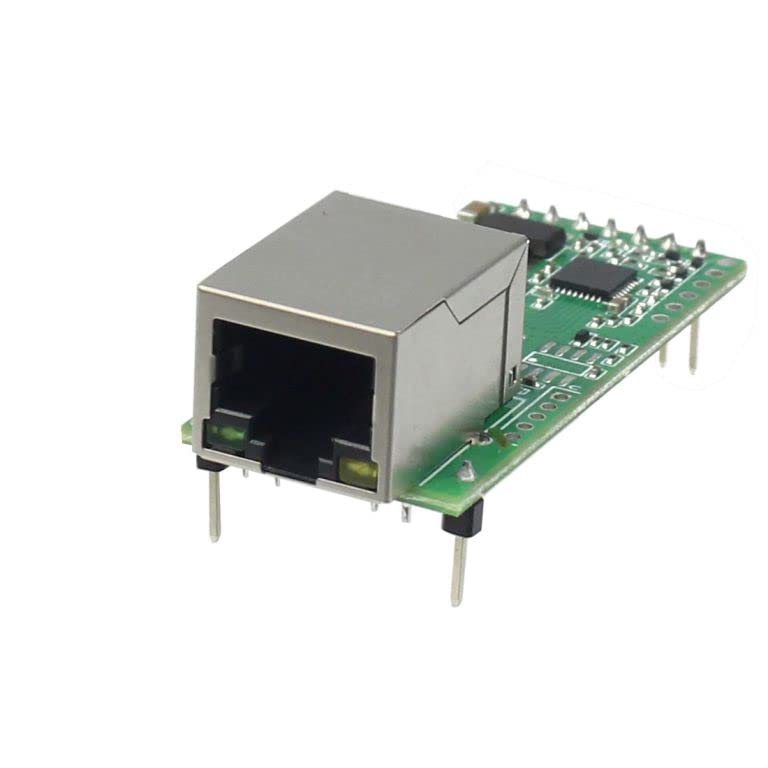

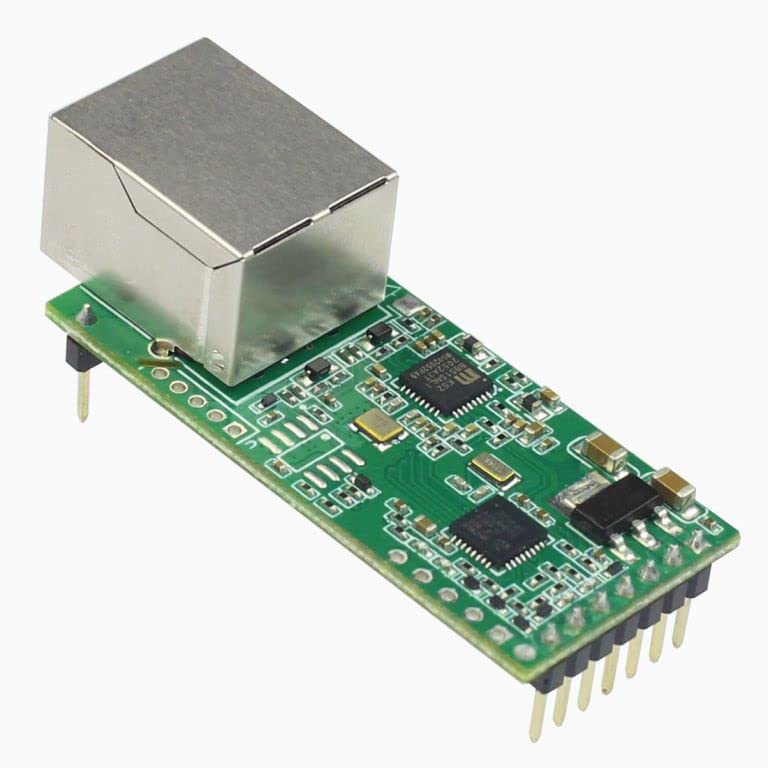

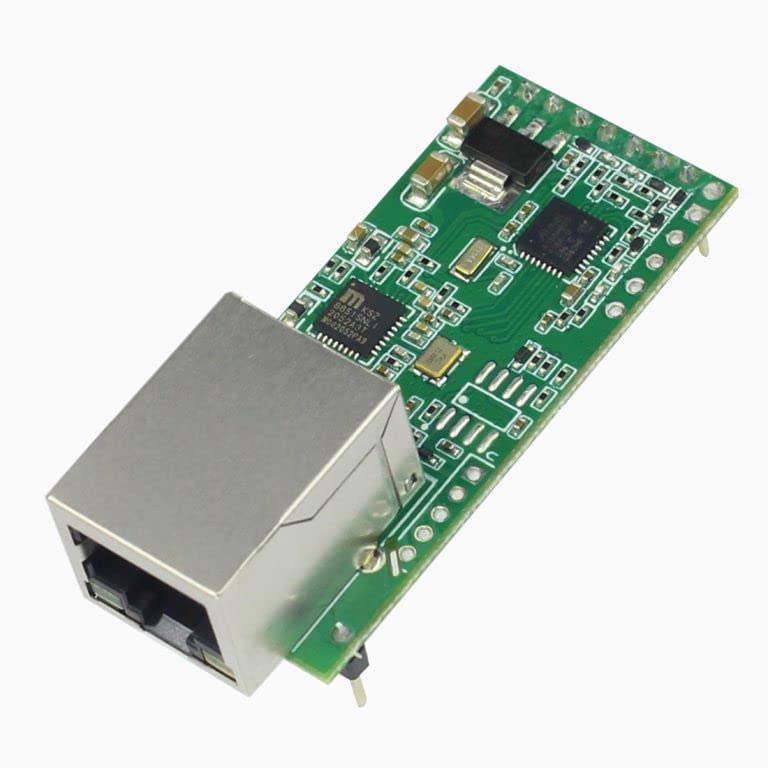

JMT Tiny Serial Ethernet Converter USR-TCP232-T2 Module Serial UART TTL to Ethernet TCPIP Module Support DHCP and DNS Upgraded (20pcs)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Can realize data bidirectional transparent transmission between serial TTL and RJ45 Port. USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed, and high efficiency.
•Can transmit data transparently between TCP/IP and TTL, and it can also be applied in RS232/ RS485 by level shift circuit.
•DHCP &DNS, automatically obtain an IP address and query IP address through serial setting protocol. Set parameters through webpage and serial AT command. Upgrade firmware via network. Auto-MDI/MDIX, RJ45 port with 10/100Mbps.
•Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space. Work mode: TCP Server, TCP Client, UDP Client, UDP Server, httpsD Client. Support virtual serial port and provide corresponding software USR-VCOM.
•Heartbeat package mechanism to ensure connection is reliable, put an end to dead link. User-defined registration package mechanism, check connection status and use as custom packet header
