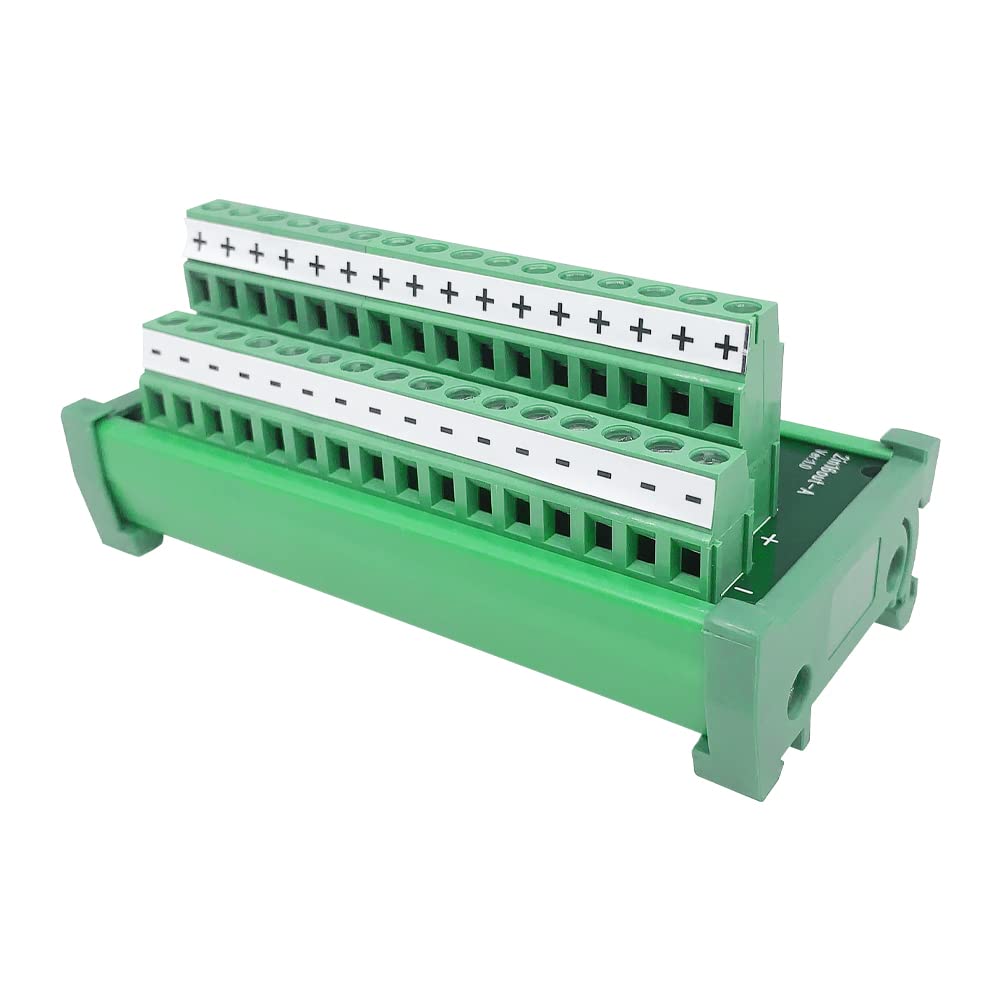

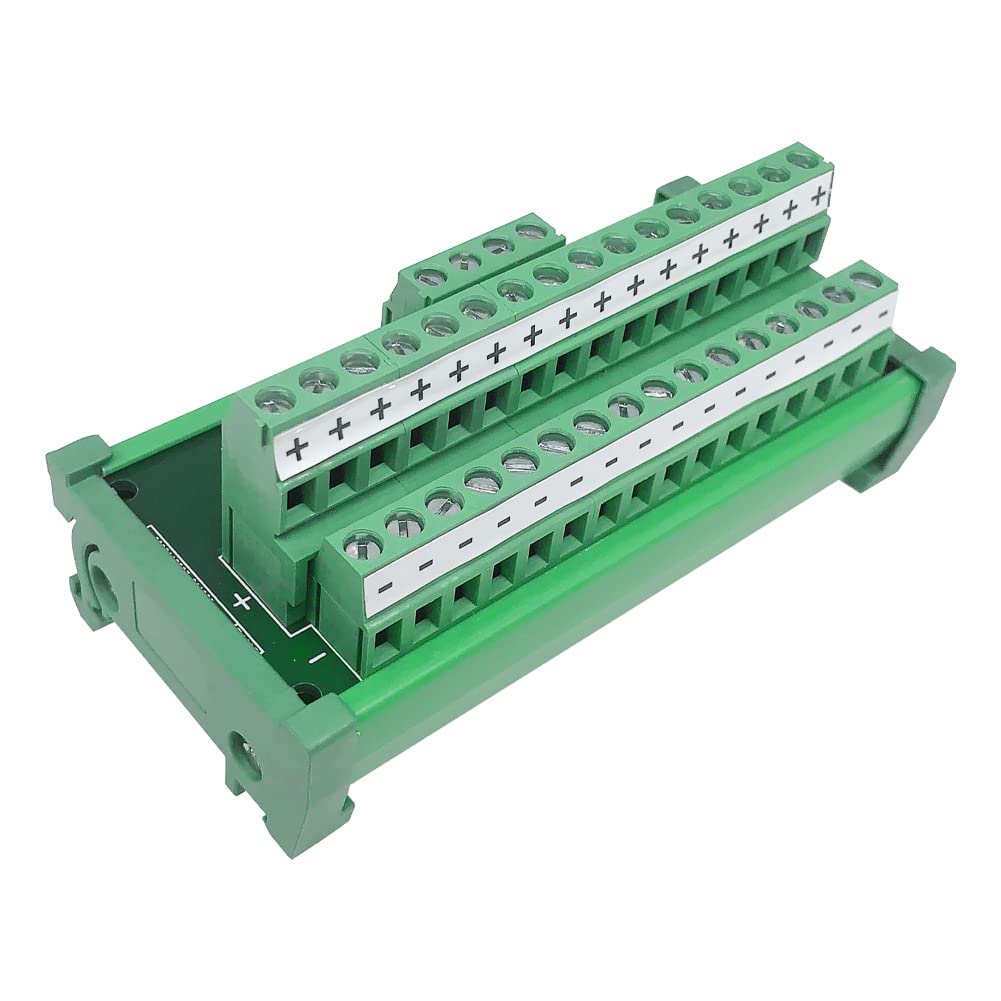

Jienk Screw Terminal Block Power Distribution Module, 25A DIN Rail Mounting Terminal Block Distribution Breakout Board for PLC Servo Power Amplifier (2 in 16 Out)

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•25Amp 240V 2x16 position terminal block distribution module. Support for multiple module extension connections. Maximum Voltage: 240V, Maximum Current Rating 30A(Single circuit branch current less than 8A).
•Input terminals (+,-): pitch: 5.08mm/0.2", wire size 22~12AWG, stripping length 8mm, Metric M3 slotted screw.
•Output terminals: Pitch 5.0mm/0.2", Wire range 22AWG ~ 12AWG(0.5mm²~2.5mm²）.

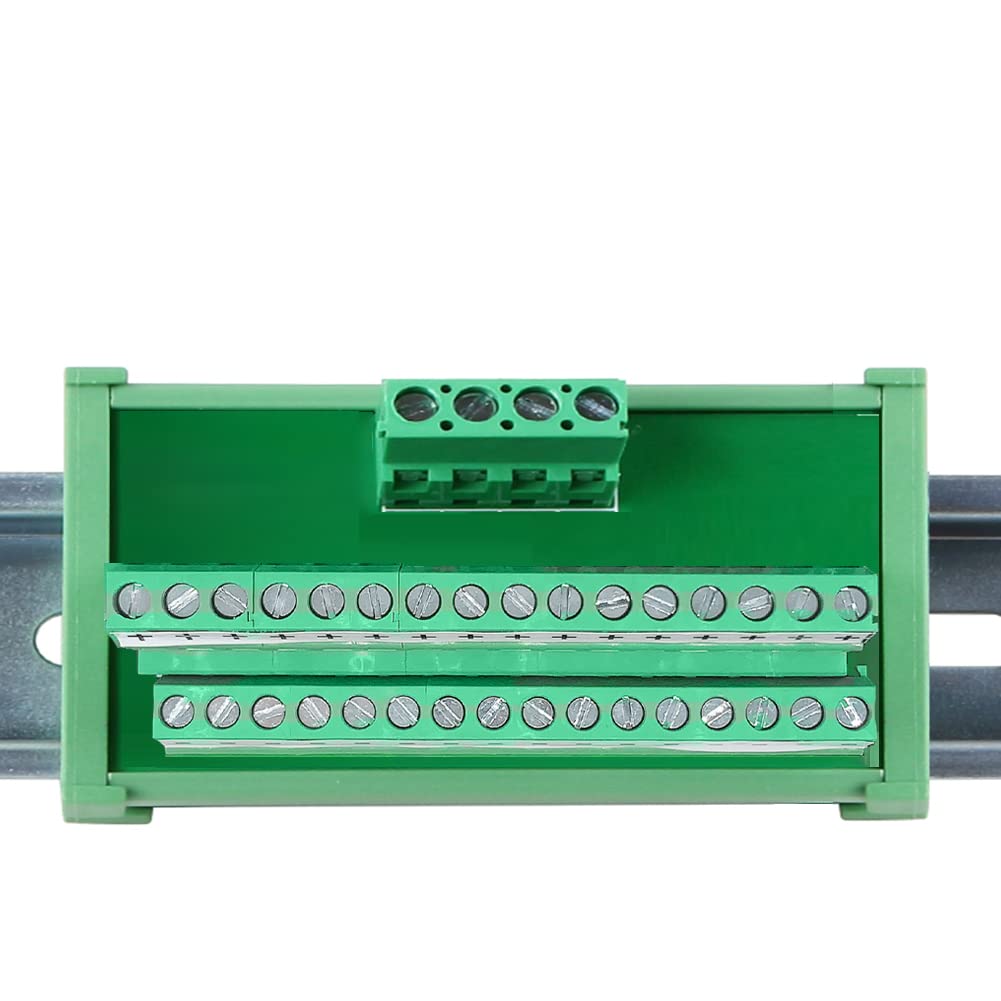

•Din rail mountable - for DIN C45 width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
•This power distribution module, widely used in PLC, servo, DIN track installation, power amplifier, Home electrical, etc.

From USA

NewJienk

Jienk Screw Terminal Block Power Distribution Module, 25A DIN Rail Mounting Terminal Block Distribution Breakout Board for PLC Servo Power Amplifier (2 in 16 Out)

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•25Amp 240V 2x16 position terminal block distribution module. Support for multiple module extension connections. Maximum Voltage: 240V, Maximum Current Rating 30A(Single circuit branch current less than 8A).
•Input terminals (+,-): pitch: 5.08mm/0.2", wire size 22~12AWG, stripping length 8mm, Metric M3 slotted screw.
•Output terminals: Pitch 5.0mm/0.2", Wire range 22AWG ~ 12AWG(0.5mm²~2.5mm²）.
•Din rail mountable - for DIN C45 width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
•This power distribution module, widely used in PLC, servo, DIN track installation, power amplifier, Home electrical, etc.
