JHEMCU GSF405A-BMI 4-in-1 F4 Flight Controller AIO 1-2S ESC 5A Built-in ELRS Receiver 2.4GHz

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

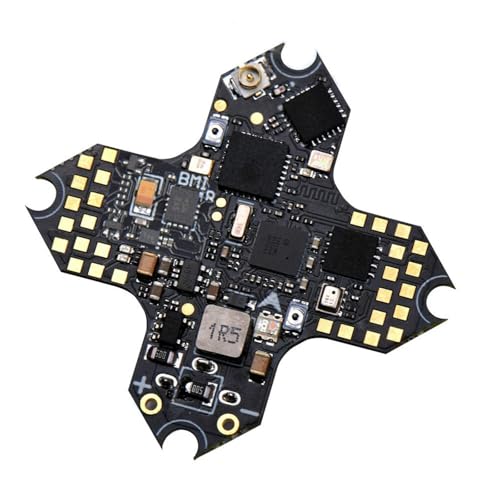

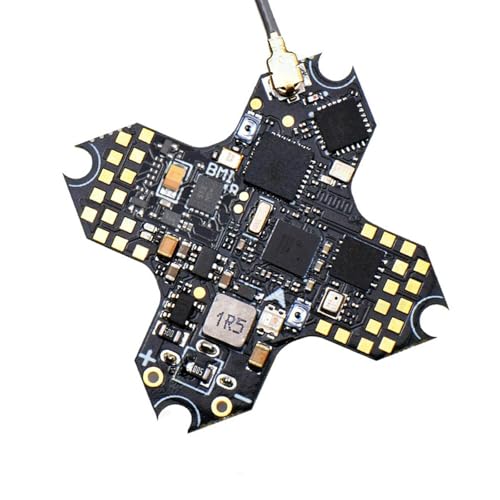

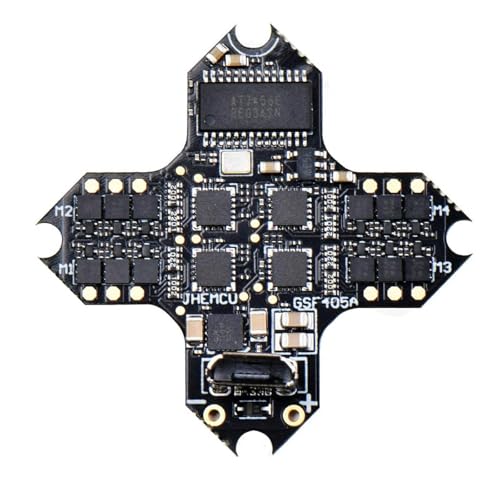

•JHEMCU GSF405A-BMI is a 1-2S F4 AIO that integrates a 4in1 brushless ESC and an ELRS 2.4G receiver. It has 5 serial ports (UART1, UART2, UART3, UART4, UART6), one I2C port, and one SBUS interface (The serial port used by SBUS is RX2), the built-in ELRS receiver is the UART1 port, there is a WS2812 LED light on the board, and the WS2812 interface is reserved. Built-in black box 8MB and barometer, with buzzer interface and camera interface. 5V power supply camera interface is reserved on the board

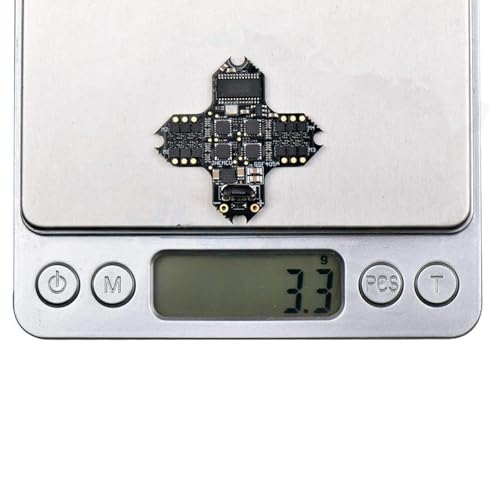

•Flight Controller Specifications: CPU: STM32F405 Gyroscope/Accelerometer: BMI270 OSD: AT7456E Barometer: BMP280 Black box: 8MB IIC: support BEC: 5V UART: UART1 (ELRS), UART2 (external RC), UART3, UART4, UART6 USB: micro usb Size: 25.5x25.5mm M2 Receiver: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX Support programmable LEDs such as WS2812 Support buzzer Built-in voltage, current sensor Firmware: Betaflight_ 4.3.0_STM32F405.HEX (JHEF405PRO) Weight: 3.3g
•Receiver Specifications: Protocol: ELRS (ExpressLRS) Frequency: 2.4GHZ Working Agreement: CRSF(Betaflight) Firmware: JHEMCU_EP24S_2400_RX-2.2.0.bin
•ESC Specifications: Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Input voltage: 1S-2S Lipo Continuous current: 5A Firmware: BLHELI_S S_H_50_REV16_7.HEX

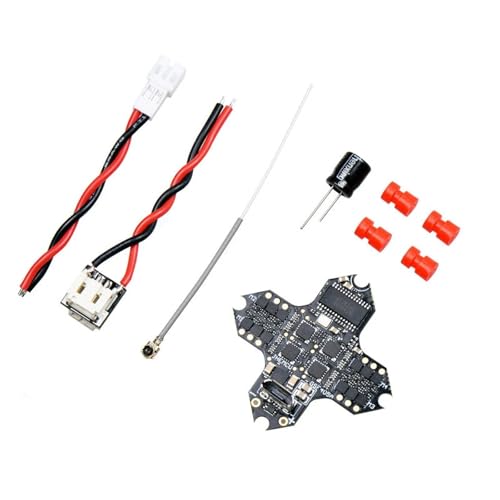

•Package Contents: 1x GSF405A-BMI board 1x 2.4G Antenna 1x 2.0MM plug wire 1x 470UF/10V capacitor 4x M2*6.5MM shock-absorbing ball 1x 2S series board
