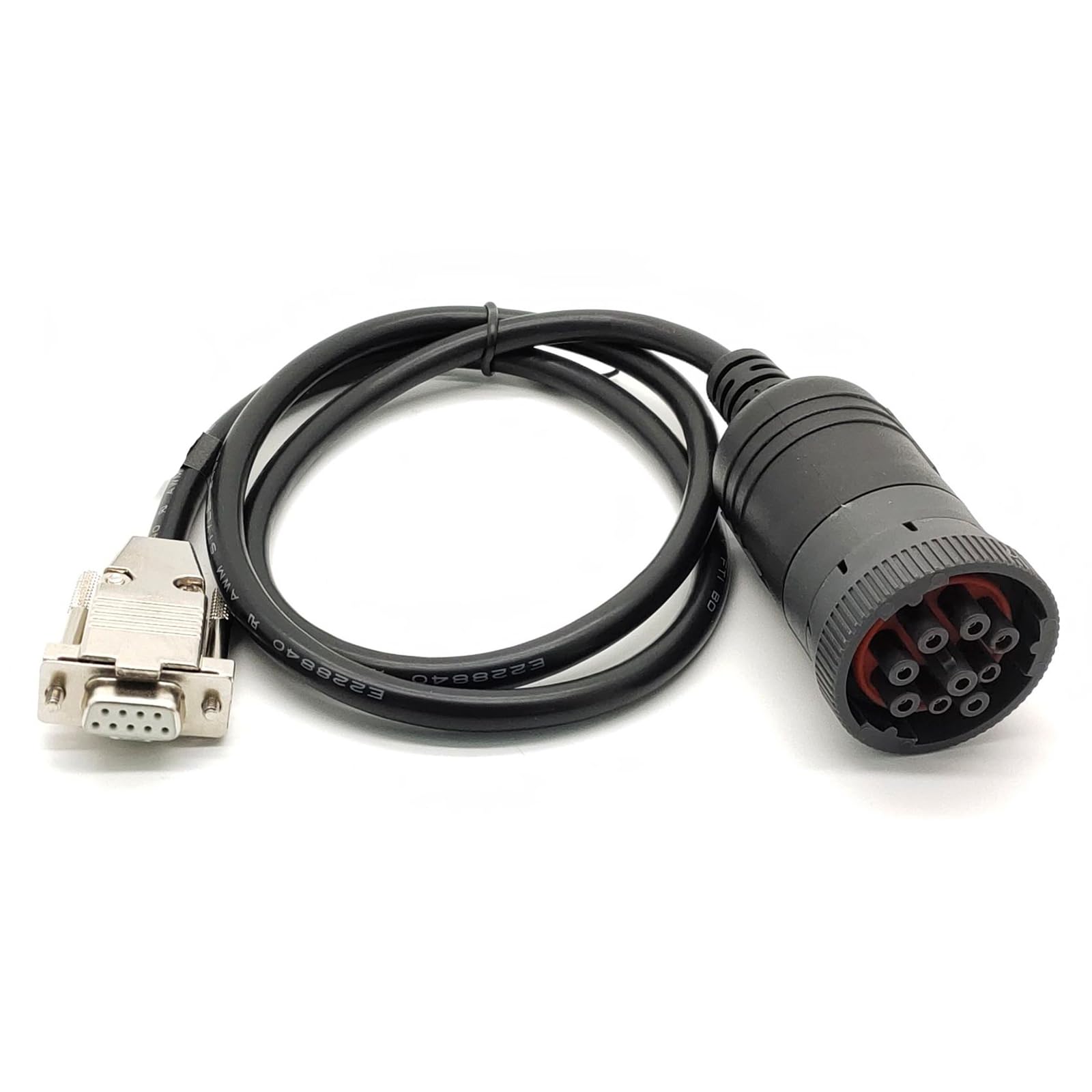

J1939 Deutsch 9Pin Connector to DB9 Female CAN Cable，DB9 to J1939 CAN Bus Diagnostic Adapter Cable for Heavy Duty Vehicles 1Meter
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•CAN J1939 Deutsch Adapter Cable;DB9 To J1939 Connector Cable;J1939 to DB9 Adapter Cable ; Expansion of Diagnostic Interface,CAN SAE J1939;Truck Diagnostic Tool; 1Meter
•Suitable for heavy-duty truck maintenance technicians and vehicle networking R&D engineers, used for CAN data acquisition and ECU diagnosis of trucks, buses, and construction machinery
•Supports standard J1939 protocol, designed specifically for CANedge data loggers; Built in multi-layer shielding layer to resist electromagnetic interference, ensuring zero loss in signal transmission; High compatibility interface suitable for mainstream heavy equipment such as Caterpillar and Cummins

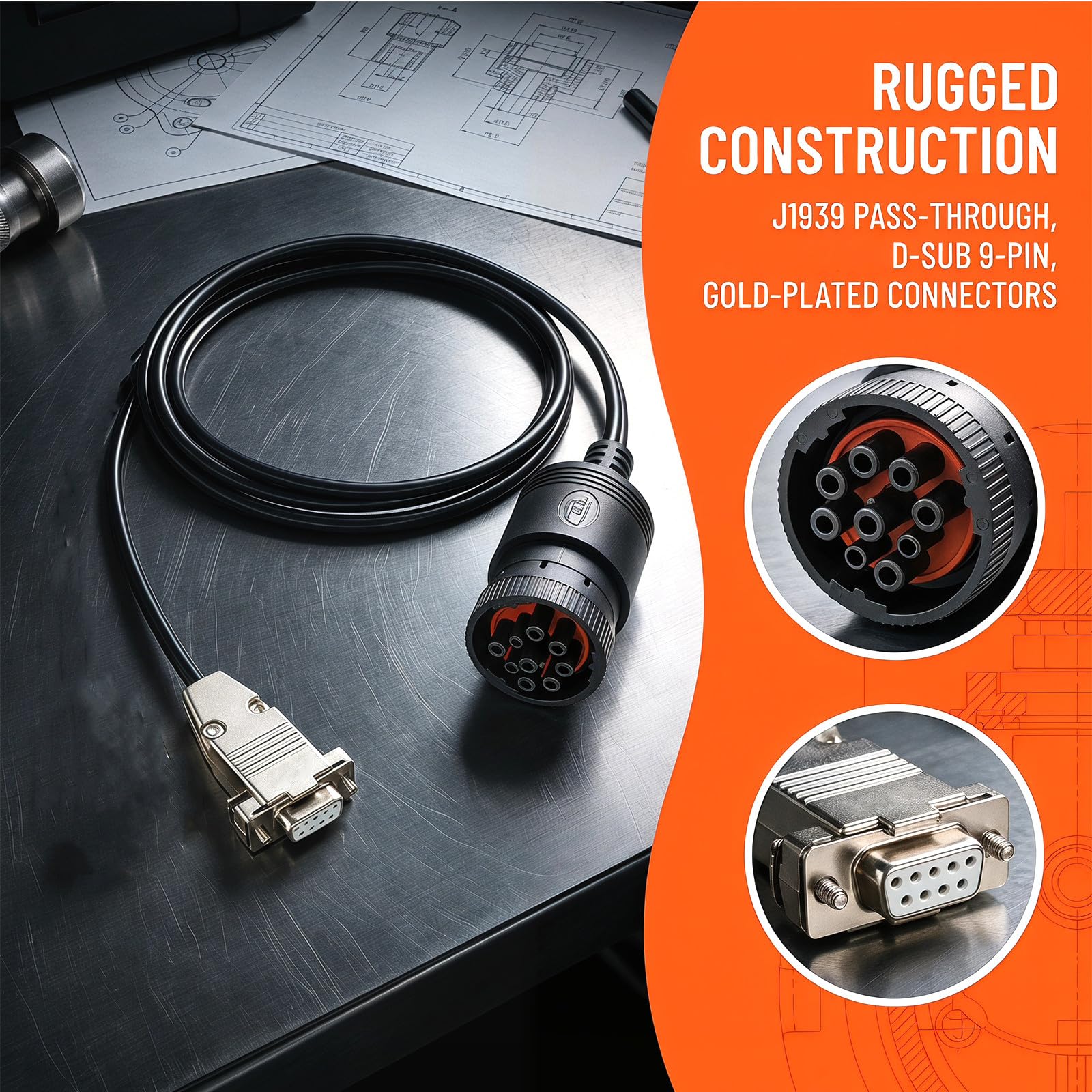

•The interface adopts gold plating technology, which is resistant to pulling, inserting, and oxidation; The Deutsch connector housing is made of high-temperature resistant engineering nylon, which is sturdy and slip resistant; DB9 end is equipped with double-sided metal hand screws, and the wire is made of flame-retardant PVC outer coating
•[Usage]: 1 Align the Deutsch 9-pin male head with the vehicle OBD diagnostic port (usually green or black interface) and rotate it to lock it; 2. Connect the DB9 female head on the other end to the D-Sub 9 interface of the CAN recorder or OBD scanner; 3. Rotate the long screws on both sides of DB9 clockwise until they are completely fixed; 4. Turn on the vehicle ignition switch and read the SAE J1939 data stream in real-time through the terminal connection
