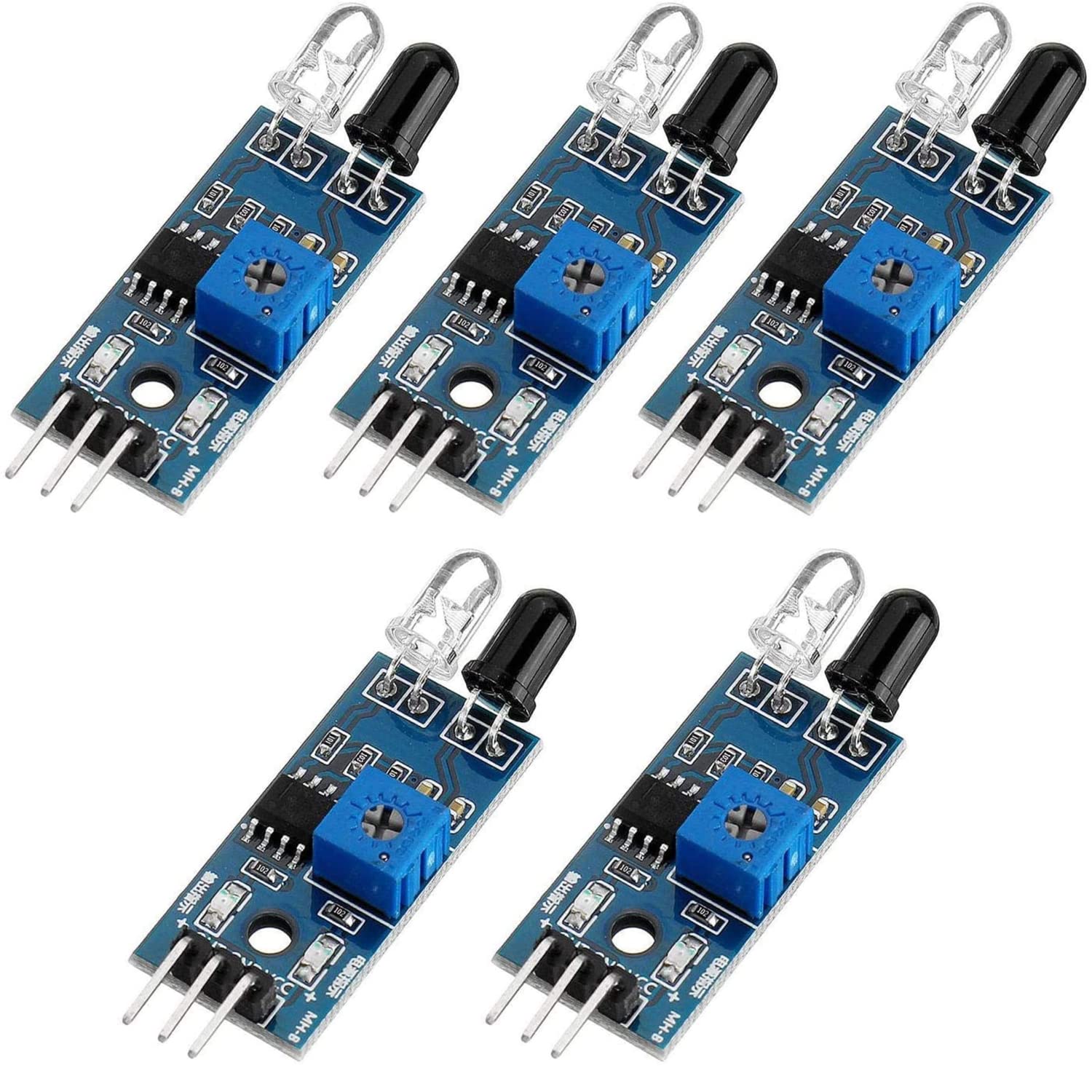

IR Avoidance Sensor, 5Pcs IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot 3- Reflective Photoelectric for Arduino Smart Car Robot
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

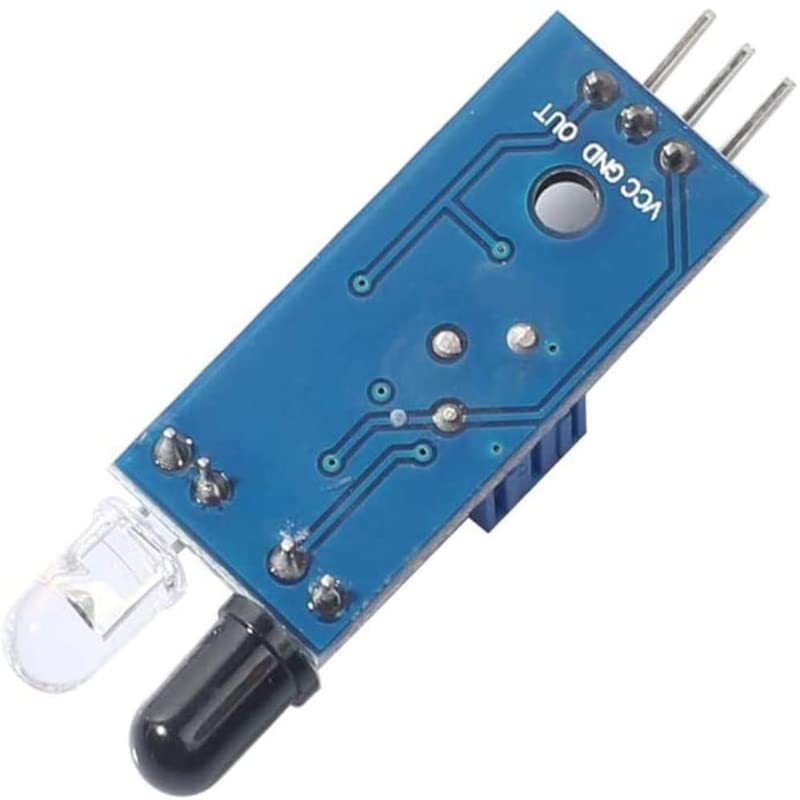

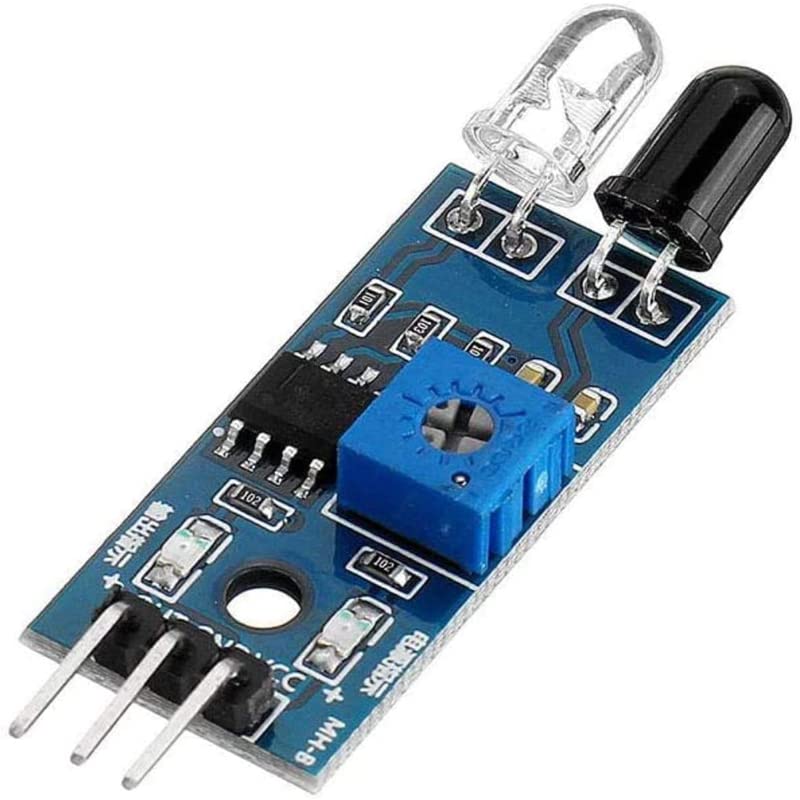

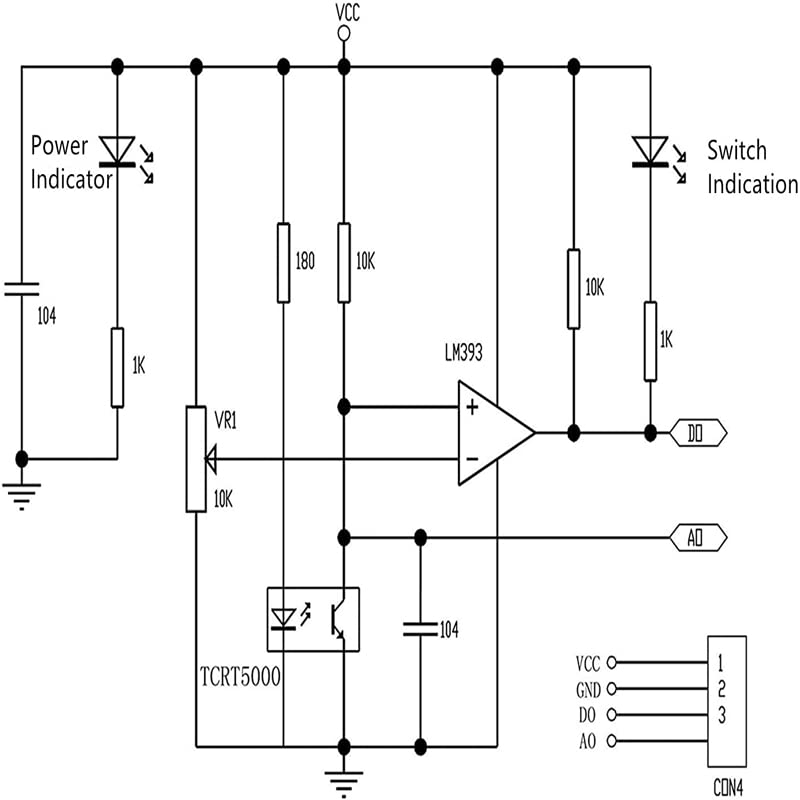

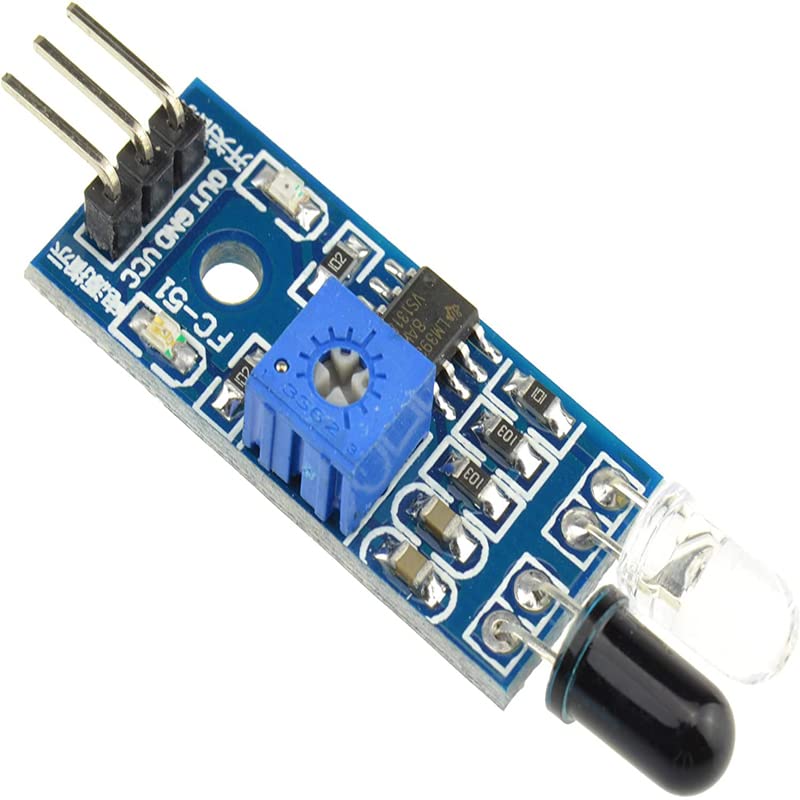

•The sensor module has strong ability to adapt to ambient light. It has a pair of infrared transmitting and receiving tubes. The transmitting tube emits infrared light of a certain frequency.
•Sensor module output port OUT can be directly connected with the microcontroller IO port can also directly drive a 5V relay; connection mode: VCC-VCC; GND-GND; OUT-IO.
•Signal output interface outputs a digital signal (a low-level signal). The detection distance can be adjusted by the potentiometer knob. The effective range is 2 to 30cm and the working voltage is 3.3V.5V.
•The sensor's detection distance can be adjusted by a potentiometer, has small interference, is easy to assemble, and is easy to use.
•Application:widely used in robot obstacle avoidance, avoidance car, line count, and black and white line tracking and many other occasions.
