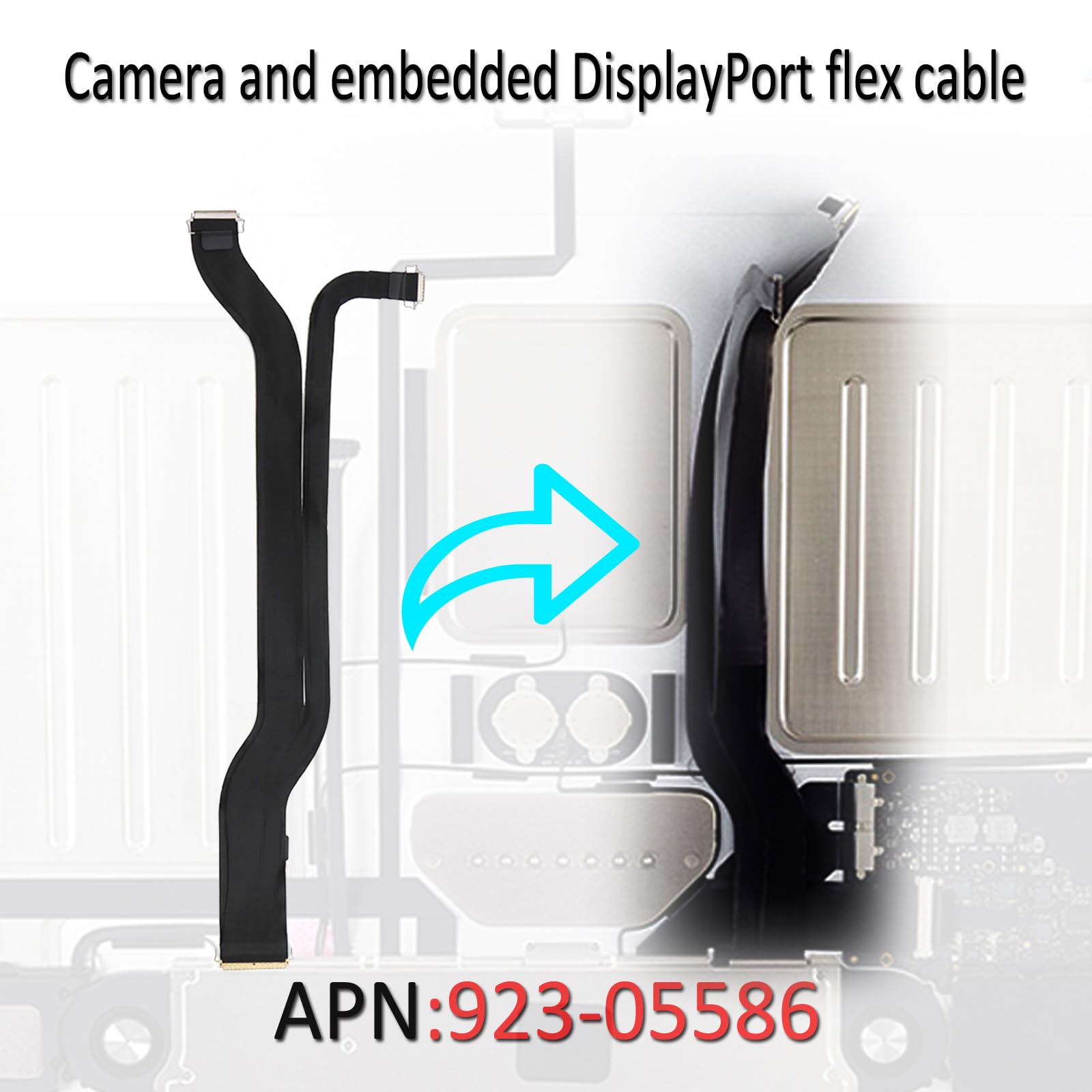

iPartsleader Camera and Embedded DisplayPort (eDP) LVDs LCD Display Screen Flex Cable for iMac 24-inch 2-Ports/4-Ports A2438/A2439 (M1,2021) and A2873/A2874 (M3,2023)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【Compatible Models】Do 𝗡𝗼𝘁 𝗙𝗶𝘁 to Any Other iMac Models,𝗢𝗡𝗟𝗬 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 to iMac 24-inch 2-Ports/4-Ports A2438/A2439 (M1,2021) and A2873/A2874 (M3,2023) , it do not fit to iMac M4 Model.

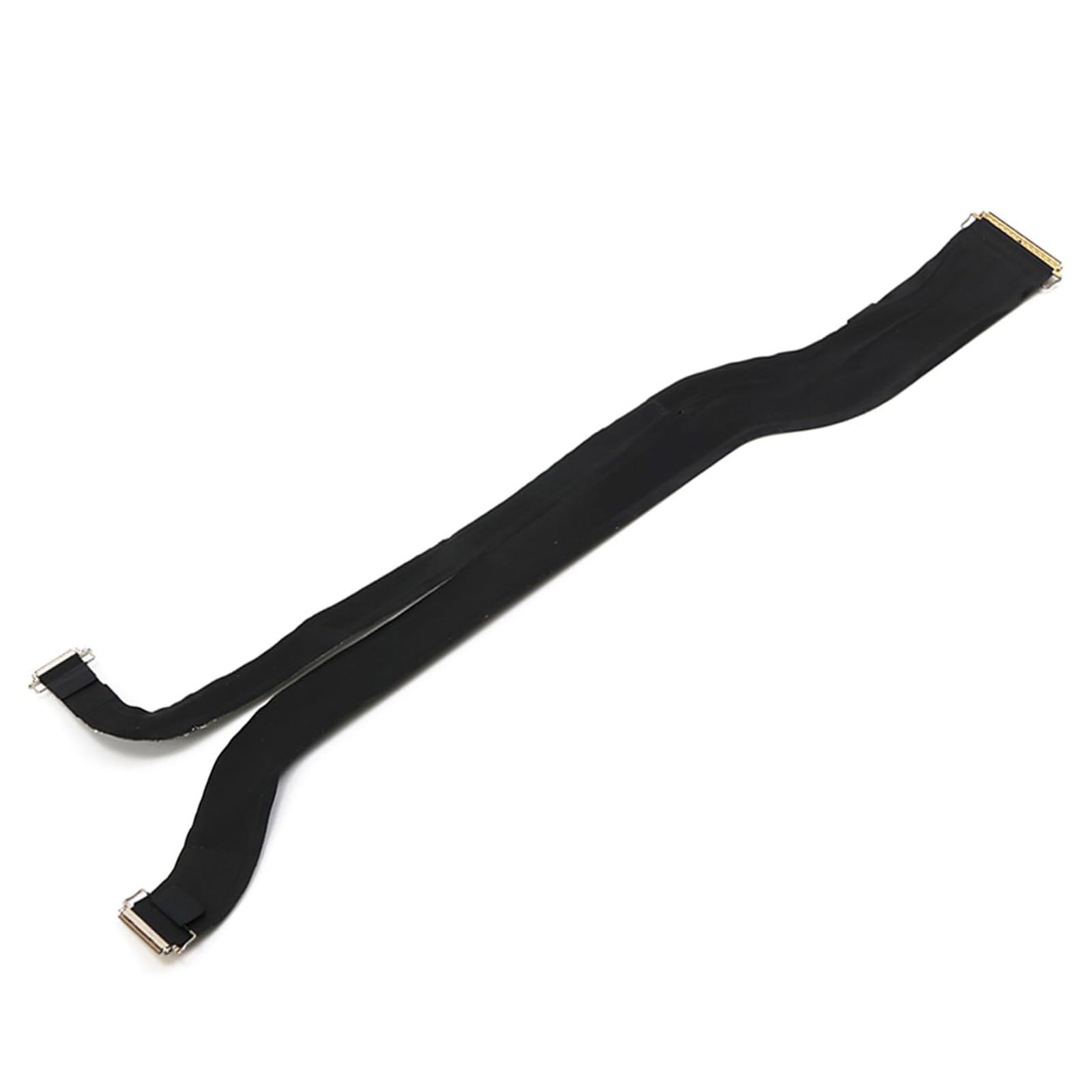

•【What's Include】1Piece* Camera and embedded DisplayPort Flex Cable (𝗔𝘂𝘁𝗵𝗲𝗻𝘁𝗶𝗰/Genuine Like New/Pulled out in Good Conditions,Not a 3rd Part Made)

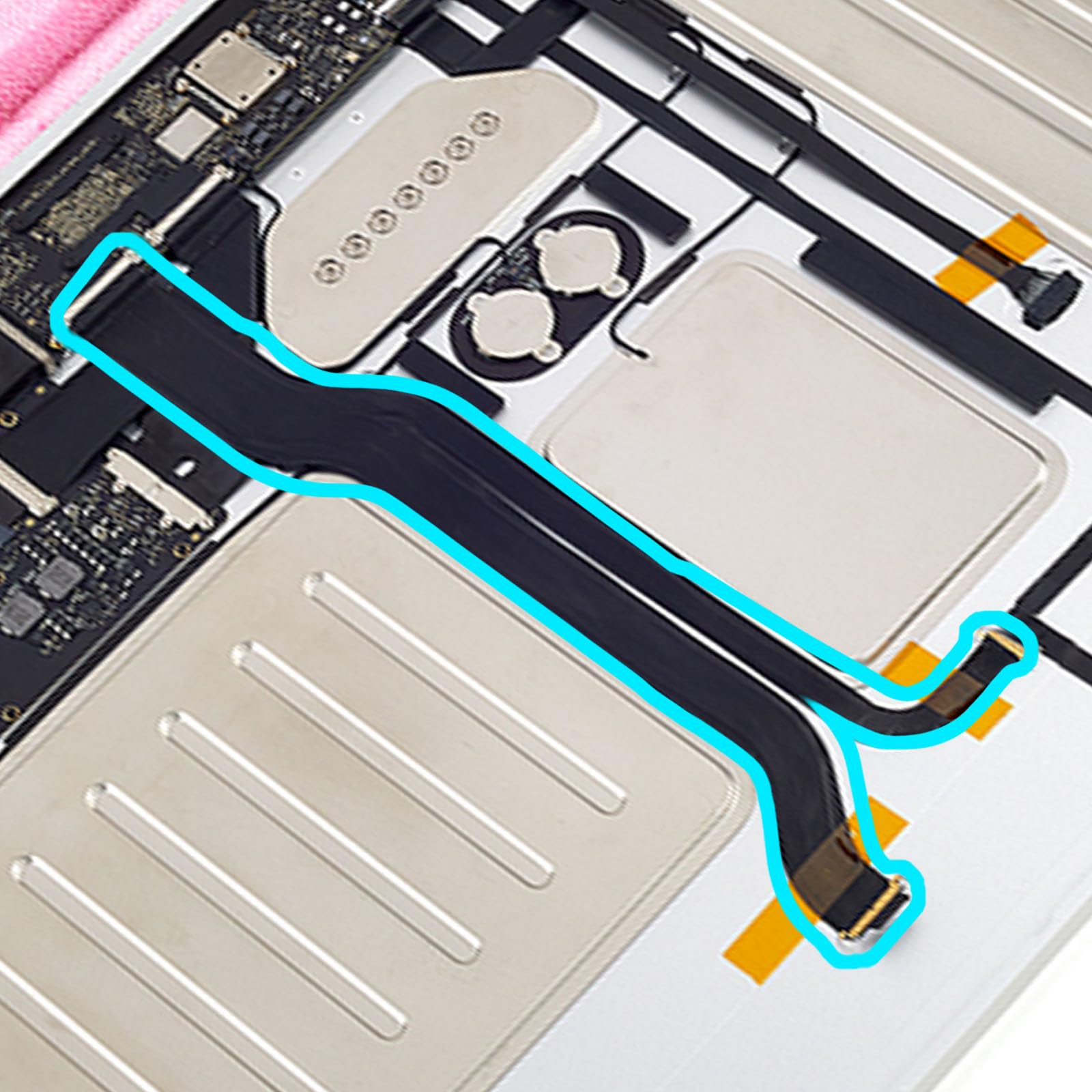

•【Functions & Architecture】Unified Data Highway: This specialized flex ribbon serves as a dual-purpose bridge, simultaneously transmitting high-bandwidth video data and FaceTime camera signals over a single space-saving link.eDP Video Signaling: The Embedded DisplayPort (eDP) protocol channels the raw 4.5K resolution video feed from the M1 logic board directly into the LCD timing controller.Camera & Sensor Feed: It routes the 1080p FaceTime HD camera video stream, hardware green indicator light status, and Ambient Light Sensor (ALS) environmental data back to the M1 Image Signal Processor (ISP)
•【Common Failure】The "Horizontal Lines" Defect: A widespread hardware issue involves the appearance of permanent dark or gray horizontal lines across the display panel after 1 to 2 years of daily operation.Voltage & Heat Degradation: Investigations show the screen ribbon array sustains high workloads (~50V) at peak brightness. Combined with tight internal spacing and thermal output, this degrades the contacts over time.Intermittent Blackouts or Static: Physical movements or minor shifts to the computer can trigger sudden screen flickering, video static, or instant system shut-offs due to loose internal pin contact
•【Repairability】Difficult Adhesive Barrier: Repairability is highly restricted because you must slice open the factory foam adhesive holding the front display glass to the aluminum housing just to reach the cable.High Collateral Risk: Safely detaching the screen glass from the underlying fragile LCD panel is incredibly risky. Amateur technicians regularly crack or permanently ruin the 4.5K display panel during teardown.The "Irreparable" Diagnosis: If the failure resides at the internal panel flex-bond layer rather than the modular eDP cable, a cheap cable swap won't work. The entire $600+ LCD assembly must be completely replaced
•【Pro-Tips for Technicians】Use official manuals: Review the official App-le iMac Repair Manual before attempting to pop the cable locking bar and slide it straight out.Manage Thermal Stress: Advise users to lower screen brightness slightly below maximum or use automated sleep timers to mitigate internal high-voltage heat stress on the sensitive eDP traces.Precision Pizza-Cutter Tool: When cutting open the display, use a specialized iMac opening wheel. Never push tools deeper than a few millimeters to completely avoid slicing into the camera flex array near the upper bezel.
