Ingcool 4G/3G/GNSS HAT Module for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH,Jetson Nano, Based on SIM7600A-H, 4G/GNSS Module Support LTE CAT4 up to 150Mbps for Data Transfer, etc.
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

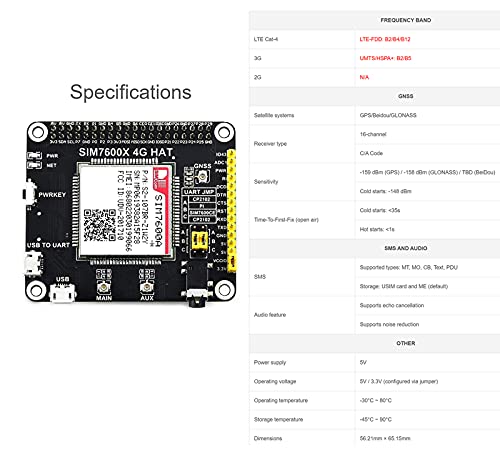

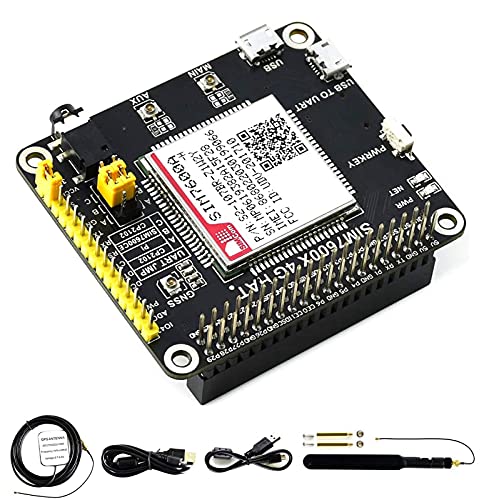

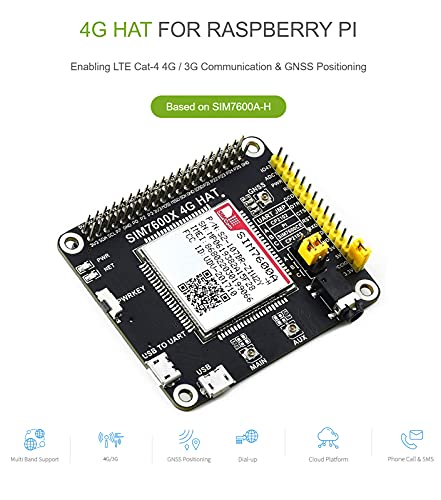

•SIM7600A-H 4G HAT is a 4G/3G communication and GNSS positioning module, supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption

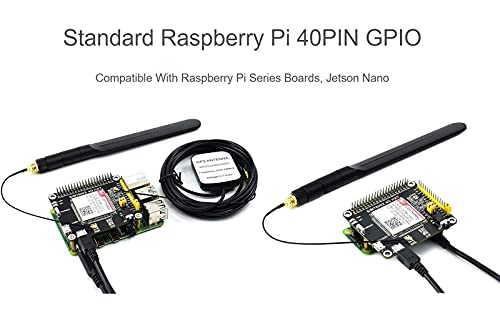

•Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH series boards, Compatible with Jetson Nano, SIM7600A-H 4G module control pins can connect with host boards like Arduino/STM32
•Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning

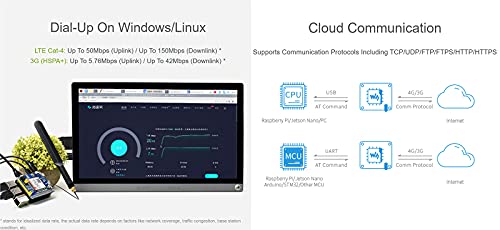

•Connect the 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc.
•Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
