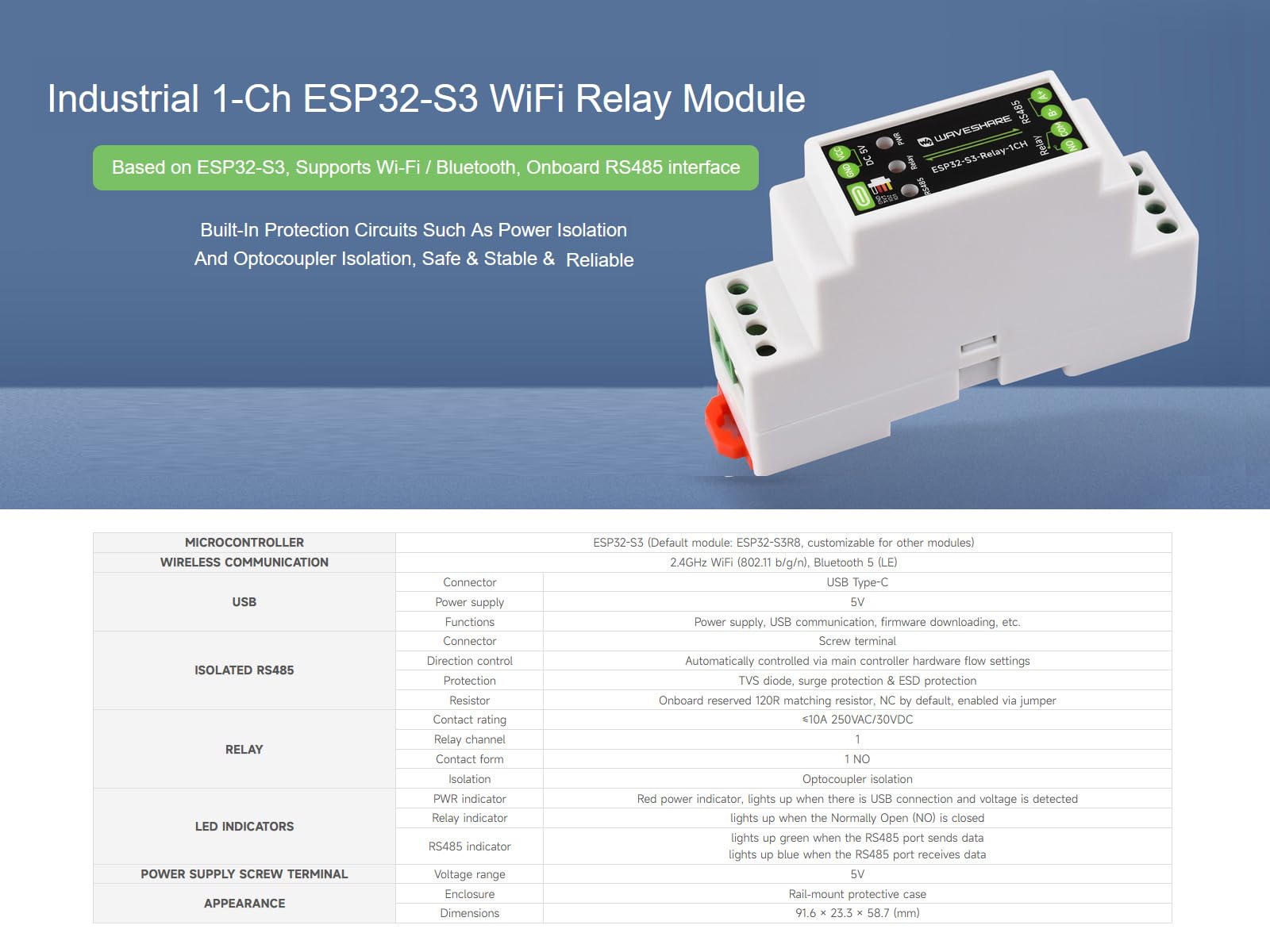

Industrial 1-Ch ESP32-S3 WiFi Relay Module, Supports RS485/WIFi/Bluetooth Control, Contact Rating of Relay up to 10A 250VAC/30VDC, with Multiple Isolation Protection Circuits, Rail-Mount Case
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Industrial 1-Channel ESP32-S3 WiFi Relay Module, based on ESP32-S3 microcontroller with 32-bit LX7 dual-core processor, capable of running at 240 MHz, integrated 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE) dual-mode wireless communication

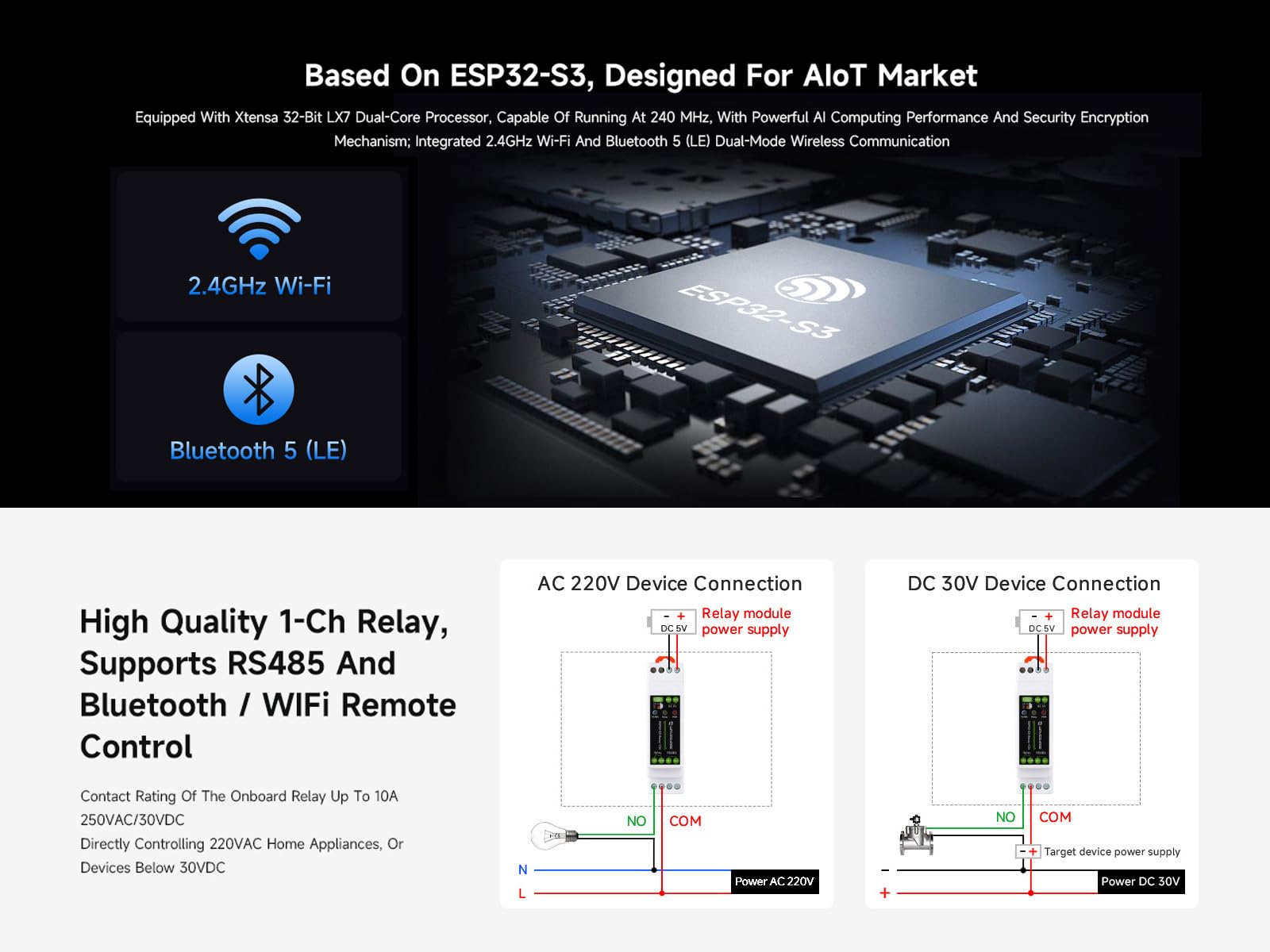

•Onboard high quality 1-Ch relay, supports RS485 and Bluetooth / WIFi remote control, contact rating of the onboard relay up to 10A 250VAC/30VDC, directly controlling 220VAC home appliances, or devices below 30VDC
•Onboard isolated RS485 interface for connecting to various RS485 Modbus industrial modules or sensors. Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard RTC chip supports scheduled tasks. Onboard power supply screw terminal supports 5V power supply only

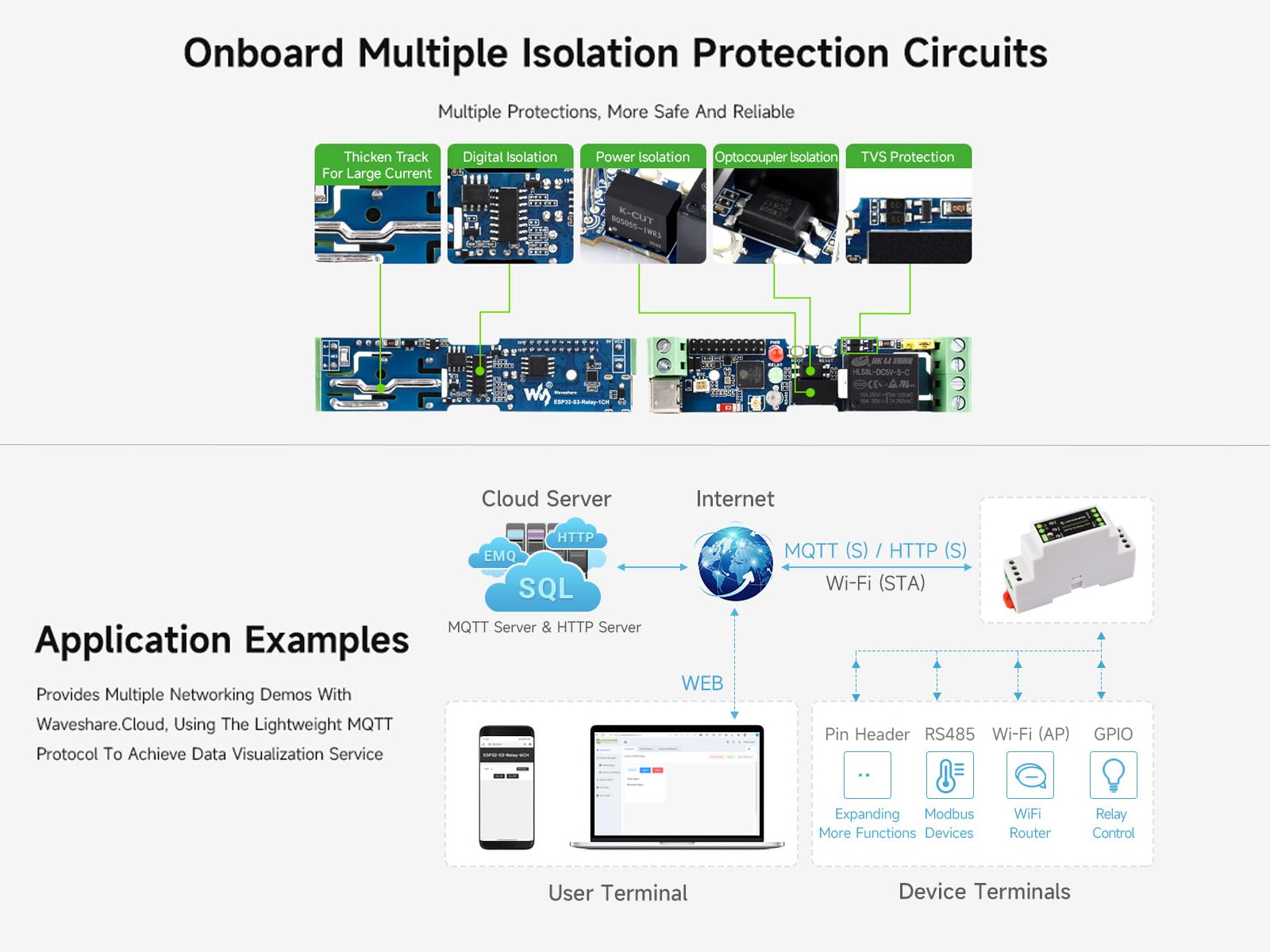

•Onboard optocoupler isolation, digital isolation, unibody power supply isolation, TVS protection, thicken track for large current multiple isolation protection circuits

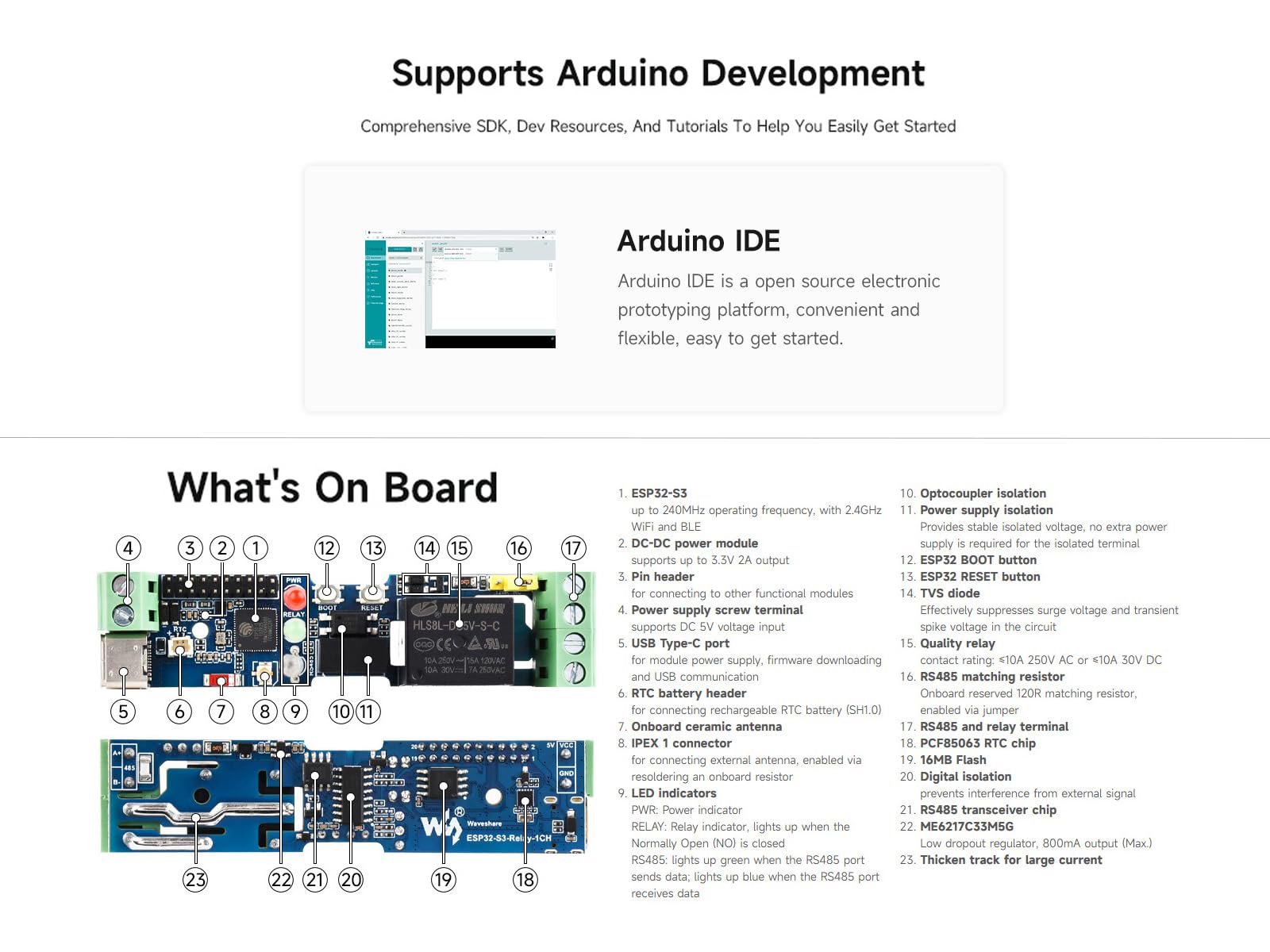

•Onboard RS485 TX/RX indicators for monitoring the operating status of the module. Rail-mounted protective case, easy to install. Supports Arduino IDE development, online Dev Resources, and tutorials are provided, feel free to contact us if you need
