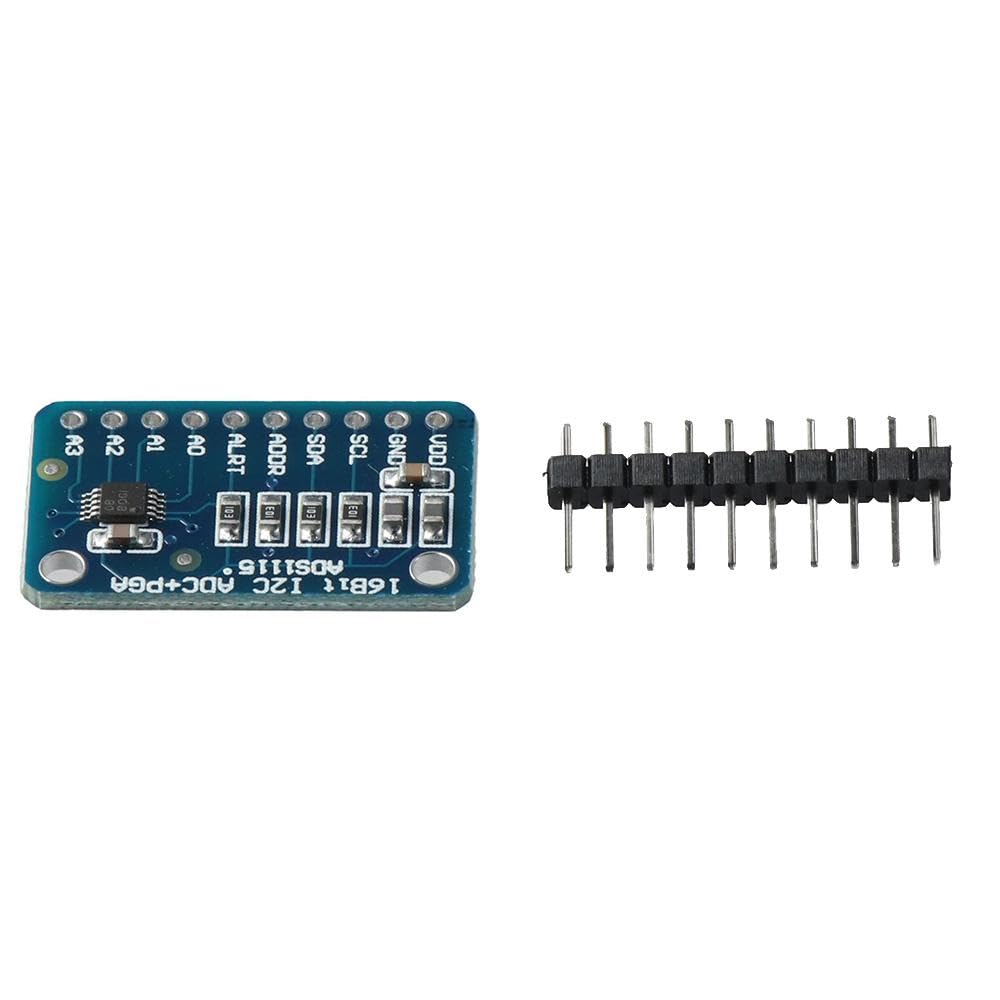

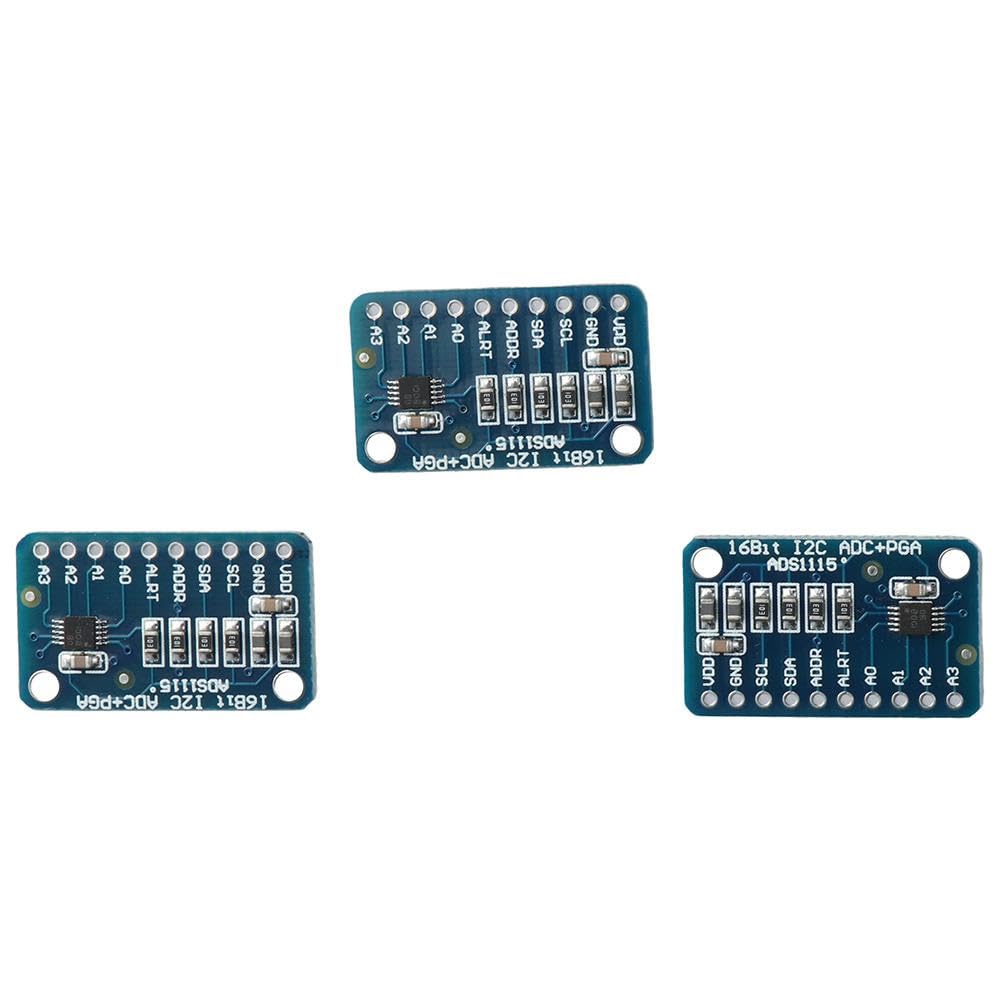

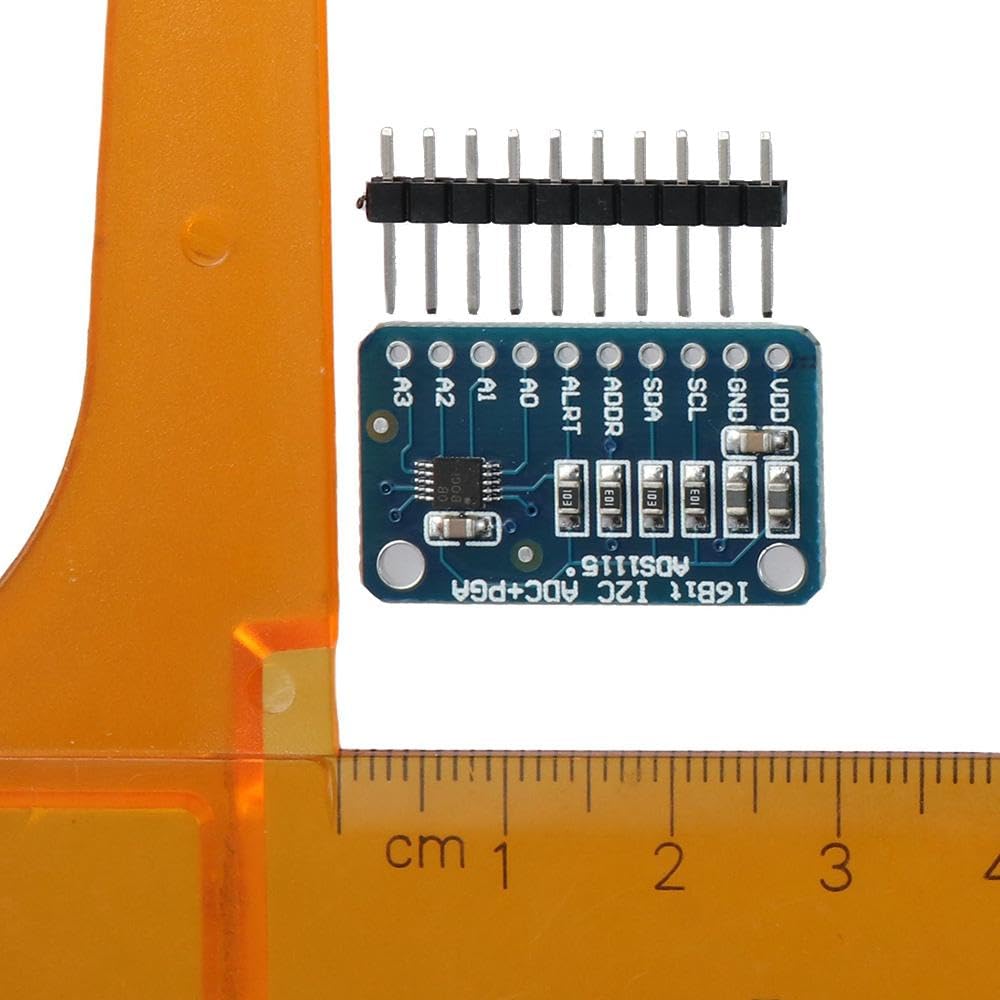

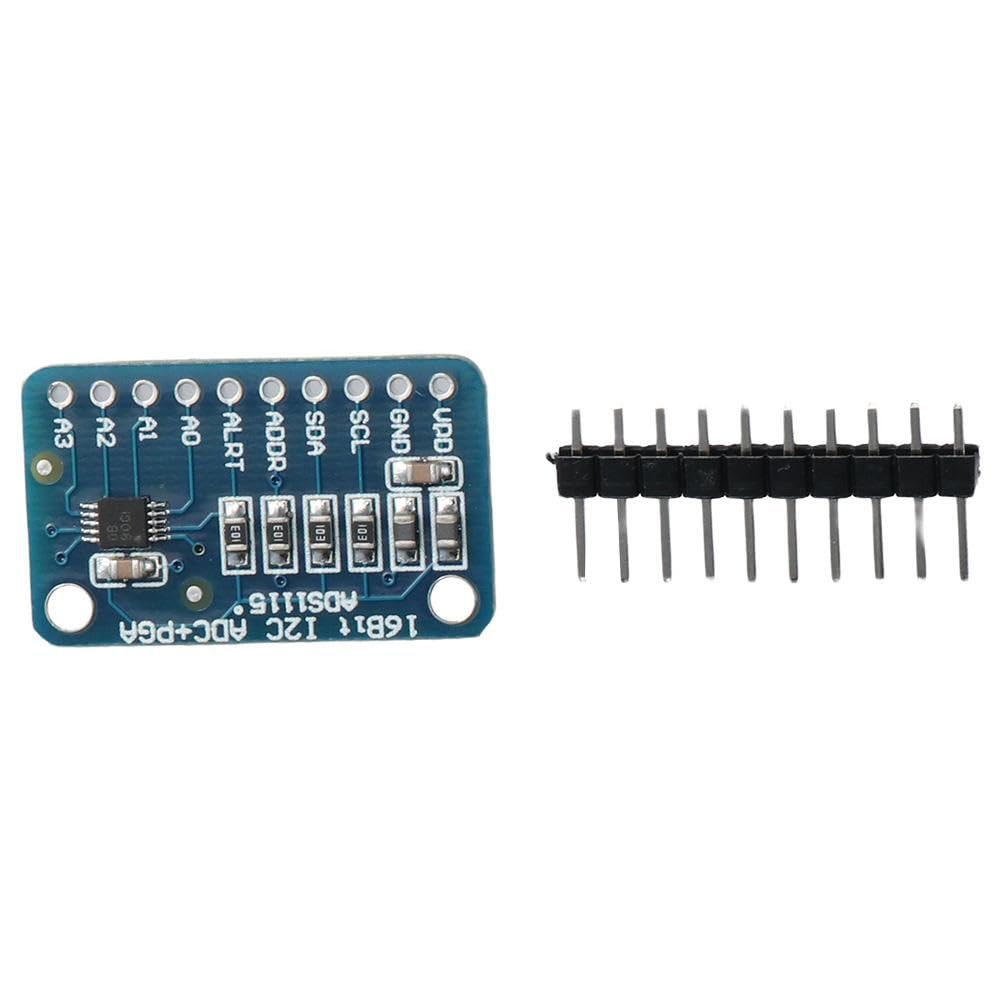

HOBBYIN ADC Module 3PCS 4 Channel High Precision 16 Byte ADS1115 Module I2C IIC Pre-Soldered Development Board ADC Development Board Module
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•1. High-precision ADC: The ADS1115 provides 16-bit precision at 3300 samples/second over I2C, making it ideal for microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC.
•2. Multiple input configurations: The chip can be configured as 4 single-ended input channels or two differential channels, providing flexibility in input configurations.
•3. Programmable gain amplifier: The ADS1115 includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range.
•4. Breakout board: The chip comes on a breakout board with ferrites to keep the AVDD and AGND quiet, making interfacing easy.
•5. Easy to use: Interfacing is done via I2C. Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller's I2C port and run the example code to start reading data.
