High Output Invader-Style Guitar Humbucker Pickups Ceramic Magnet for Electric Guitar Neck & Bridge Set (Black)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•It is the standard style of a 5-line pickup, high-output punk, suitable for guitar, metal and other heavy metal rock styles.

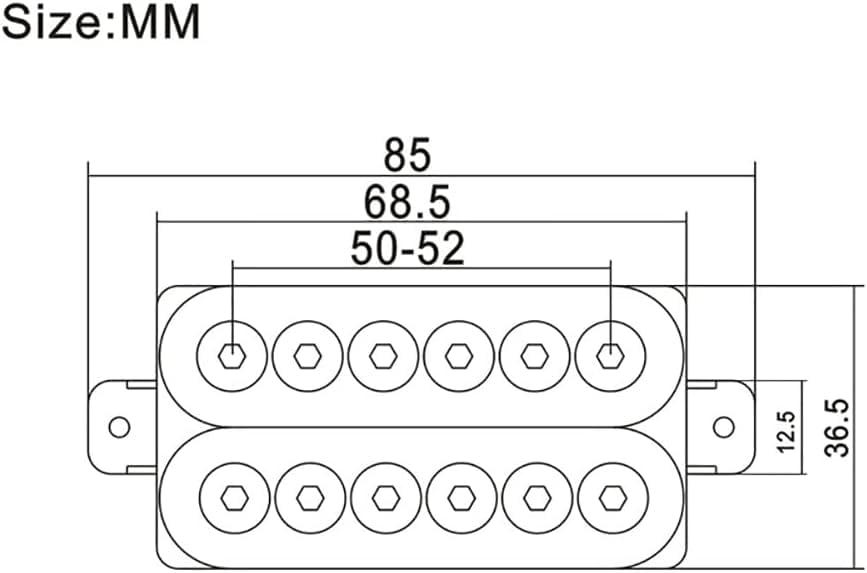

•Drop-In Fit: 52mm bridge + 50mm spacing for Fender, Gibson, and other standard guitars—no mods needed.

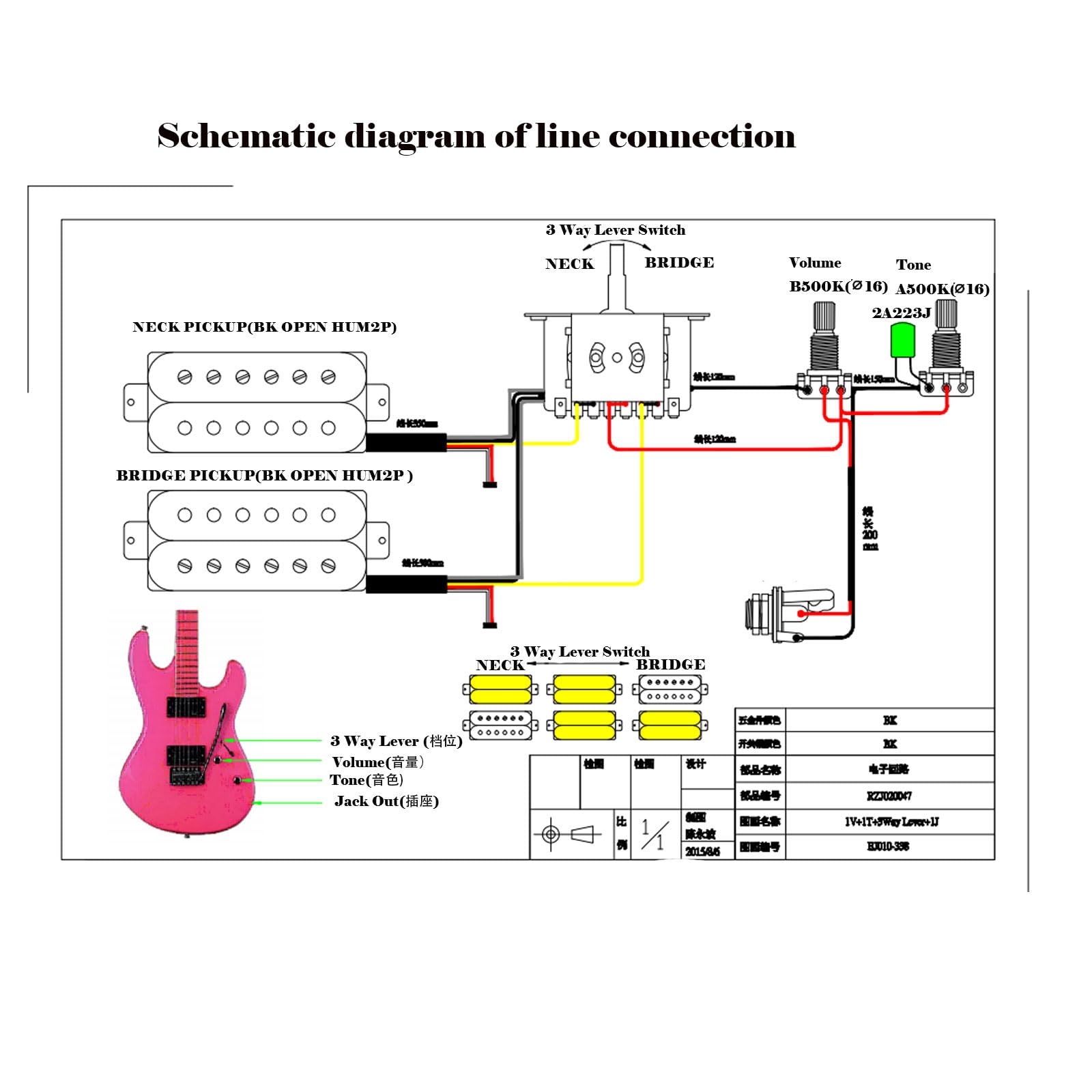

•Wiring method: Black and Bare were pre-soldered together for the ground, green and white were pre-soldered for the coils, and red was by itself for the hot signal out. The two colored wires that come soldered together are for coil splitting, if not splitting, simply fold it over and seal exposed wire so its protected from ground out on interior electronics. Install the same as existing wiring to pot or switch.
•Dynamic Voice Control: Tweak pole piece height via umbrella-head screws for brighter attack or smoother sustain.
•The complete package includes：1 x Pair of Guitar Humbucker Pickup 4 x Mounting screws 4 x Spring
•The complete package includes：1 x Pair of Guitar Humbucker Pickup 4 x Mounting screws 4 x Spring
