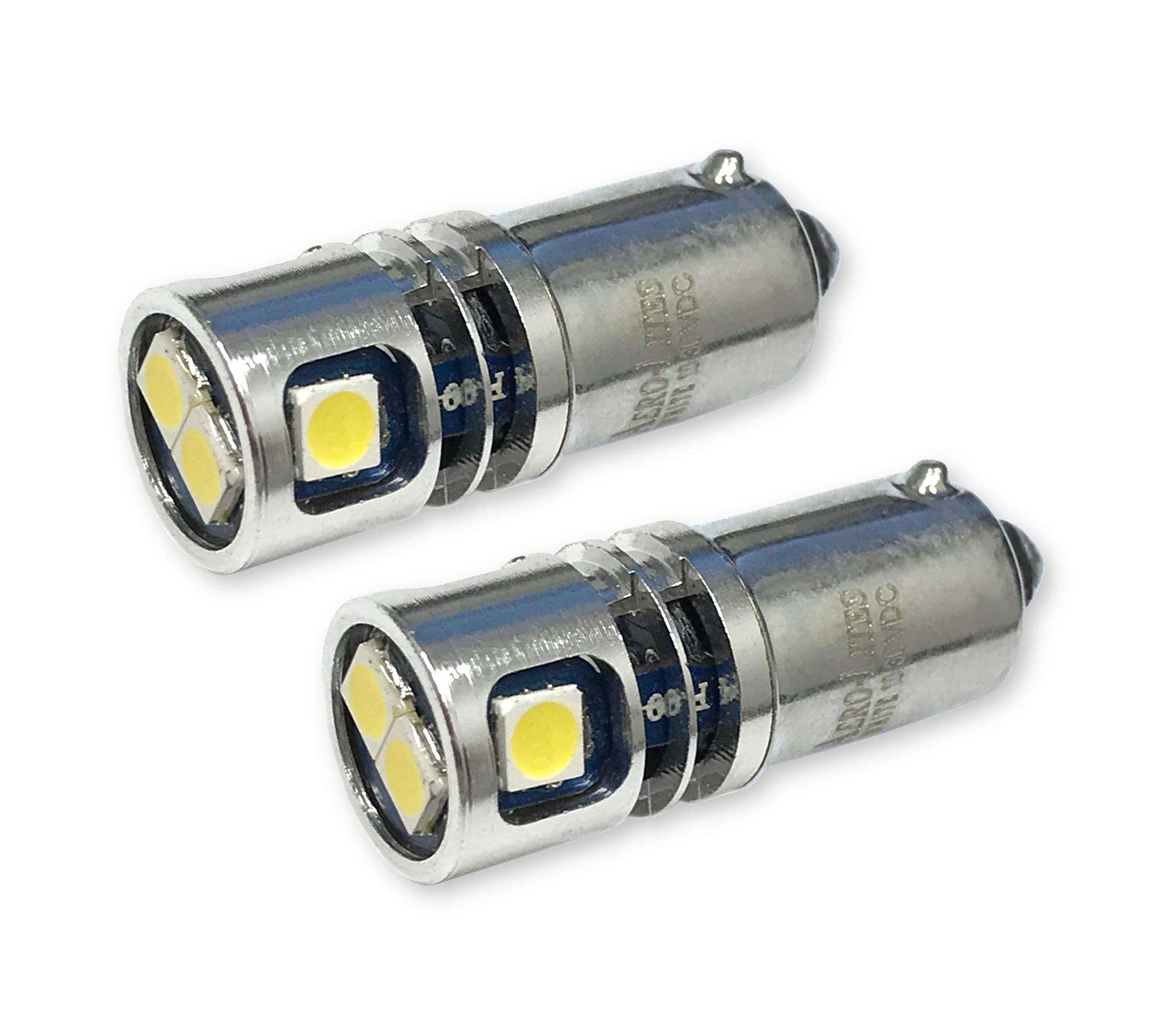

High Output 12/28VDC BA9S T3-1/4 Miniature Bayonet Base LED Replacement Bulb | Replaces Bulbs 12V: 1414 1416 1813 1816 1895 | 28V: 313 1495 1819 1820 1864 757 (2-Pack; Pure White)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

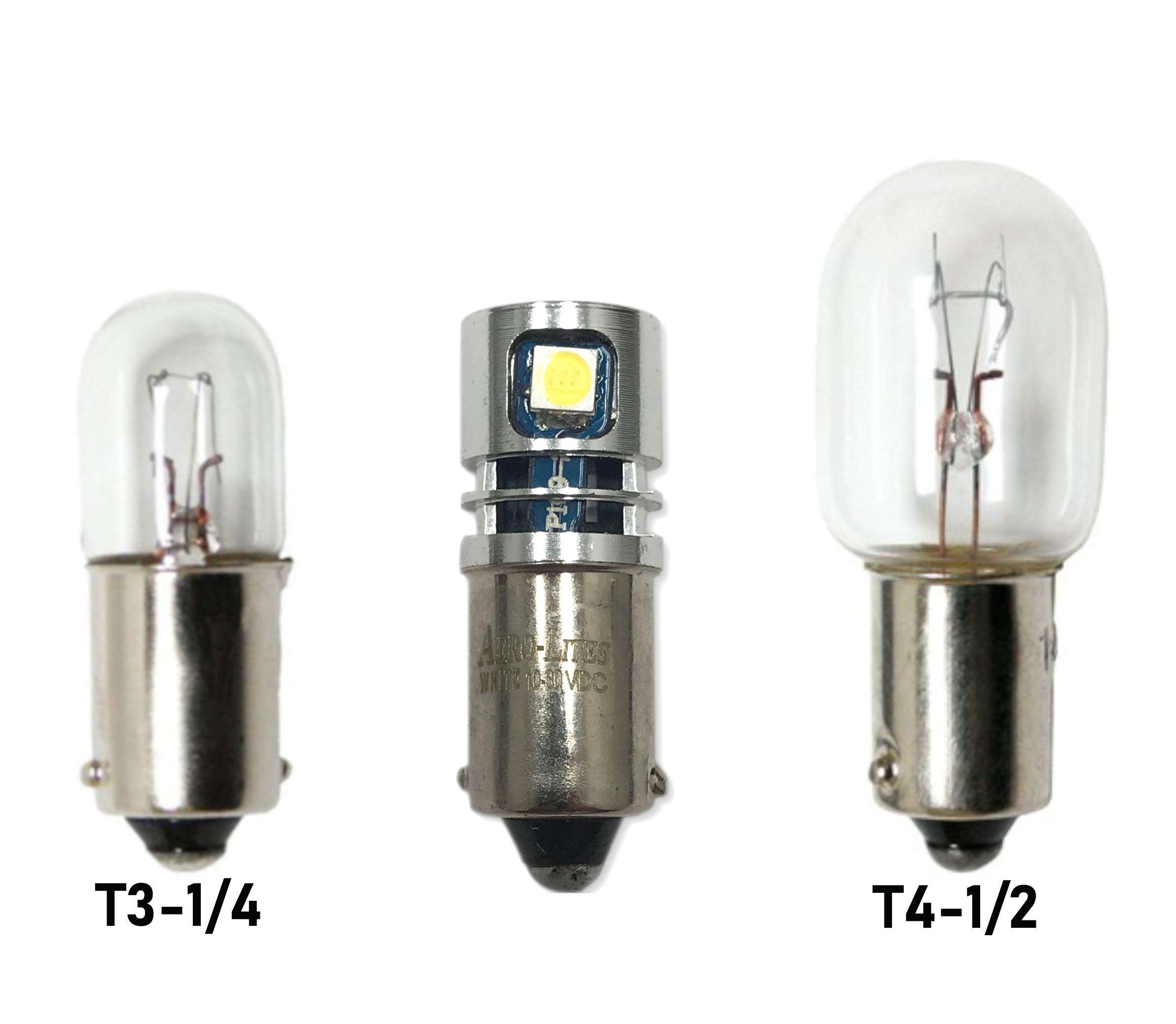

•COMPATIBILITY: Direct LED replacement for 12 and 28-volt tubular shape T3-1/4 miniature bayonet BA9S base filament/incandescent bulbs

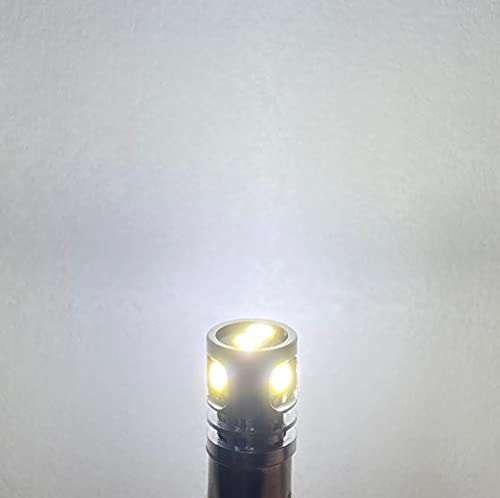

•EXTREME PERFORMANCE: Features aluminum chassis for maximum cooling and maximum light output at over 220 effective lumens. Many times brighter than filament bulbs.
•ELECTRICAL PARAMETERS: Input Voltage Range: 10-30VDC; Current Draw: 130mA @12.8VDC; 65mA @ 28VDC; Actual Wattage: 1.66watts (equivalent filament wattage: 12.5watts) ; Polarity: Non-bias (positive or negative ground compatible); Dimming: PWM dimmers only.
