new | HDSUNWSTD SDI 4x1 Switch 4 Channels SDI Signal to A SDI Signal Channel Support Full-HD SDI Signal Input and Output
Brand : HDSUNWSTD
new | HDSUNWSTD SDI 4x1 Switch 4 Channels SDI Signal to A SDI Signal Channel Support Full-HD SDI Signal Input and Output
Brand : HDSUNWSTD
₹ 15,563.00 M.R.P :₹ 25,938.00
40% OFF
₹ 15,563.00
M.R.P :₹ 25,938.00
40% OFF
✔ In Stock
*Prices subject to change due to market. The price shown in the checkout is the guaranteed price. ₹ 15,563.00 M.R.P : ₹ 25,938.00
40% OFF
₹ 15,563.00
M.R.P : ₹ 25,938.00
40% OFF
✔ In Stock
Check Delivery Availability
Available Checking...
Quantity:
1
7 days Replacement
Secure Transaction
Free delivery
Manufacturers Warranty
Top Brand
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Secure Payments
Safe and Trusted Checkout
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Condition
New
Asin
B0725CPQJF
Category
Electronics
Subcategory
Video Converters
Leafcategory
CE
Connector Type
BNC
Origin
USA
Brandname
HDSUNWSTD
Height
1
Length
1
Width
1
Weight
2
Product Details

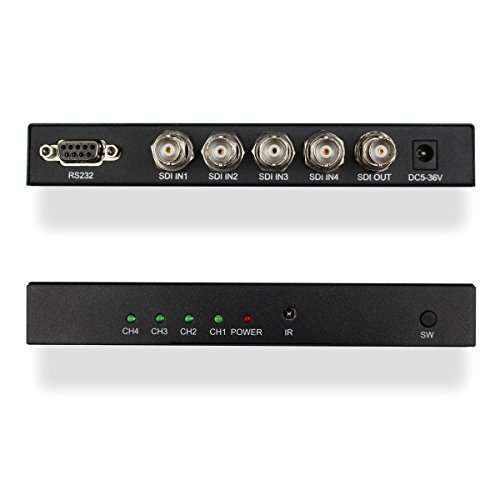

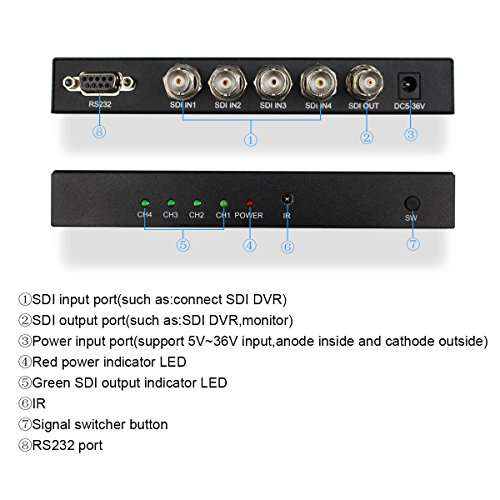

SDI input port:BNC SDI×2 or ×4(depends on the mode of the device) SDI output port:BNC SDI×1
Switches four SDI signals to one SDI monitors simultaneously, that makes you are able to choose any one of them
SDI standard:Compatible SMPTE 424M,SMPTE 292M and SMPTE 259M-C
SDI signal format:SD-SDI HD-SDI 3G-SDI
SDI speed:143-2970MB/S
Product Ranking
#695 in Video Converters
Product Description
Feature:
This product is a SDI (Serial Digital Interface) switcher,it can switch 2 or 4 channels of SDI signal to a SDI signal,and it support Full-HD SDI signal input and output,it also very easy to be use with high stability and reliability.And it is widely used at all the TV station and other work place,safe security monitoring,training venue and so on.
Specification:
SDI input resolution: 480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60HZ/1080P@24@25@30@50@60Hz/
SDI output resolution: 480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080p@24@25@30@50@60Hz SDI signal output range:800mVp-p

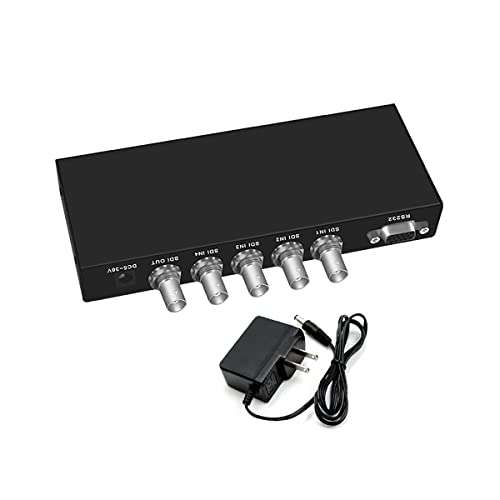

Package Contents:
1x SDI 4x1 Switch .
1xUS Power adapter.
1x User manua .
Product Description
Feature:
This product is a SDI (Serial Digital Interface) switcher,it can switch 2 or 4 channels of SDI signal to a SDI signal,and it support Full-HD SDI signal input and output,it also very easy to be use with high stability and reliability.And it is widely used at all the TV station and other work place,safe security monitoring,training venue and so on.
Specification:
SDI input resolution: 480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60HZ/1080P@24@25@30@50@60Hz/
SDI output resolution: 480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080p@24@25@30@50@60Hz SDI signal output range:800mVp-p
Package Contents:
1x SDI 4x1 Switch .
1xUS Power adapter.
1x User manua .
