HangTon Cognex Cable, M12 12 Pin Female Right Angle to Open for in-Sight 7000 9000 DataMan Reader Checker Baumer Encoder Sensor, 40M
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•24V power IO cable for Cognex In-Sight 2000 7000 9000 2800 3800 7000Gen2 D900 / Checker 201 202 4G / DataMan 260 280 300 360 380 370 470 580 series vision system camera sensor and reader, part number CCB-PWRIO-01
•Power and I/O cable for SICK machine vision CLV62x, for Hikrobot Id7000 id5000 code reader, for Banner sensor I/O barcode vision, for Keyence IV3 sensor, fro Baumer encoder sensor, for Omron Microscan MicroHAWK V430-F F430-F barcode reader, for Microscan HAWK MV-4000 camera / QX-870 scanner and more vision system with M12 12-pin connector
•M12 12-pin A-coding flying lead 24V DC power, general purpose IO, acquisition trigger, and RS-232 cable, 40 meter

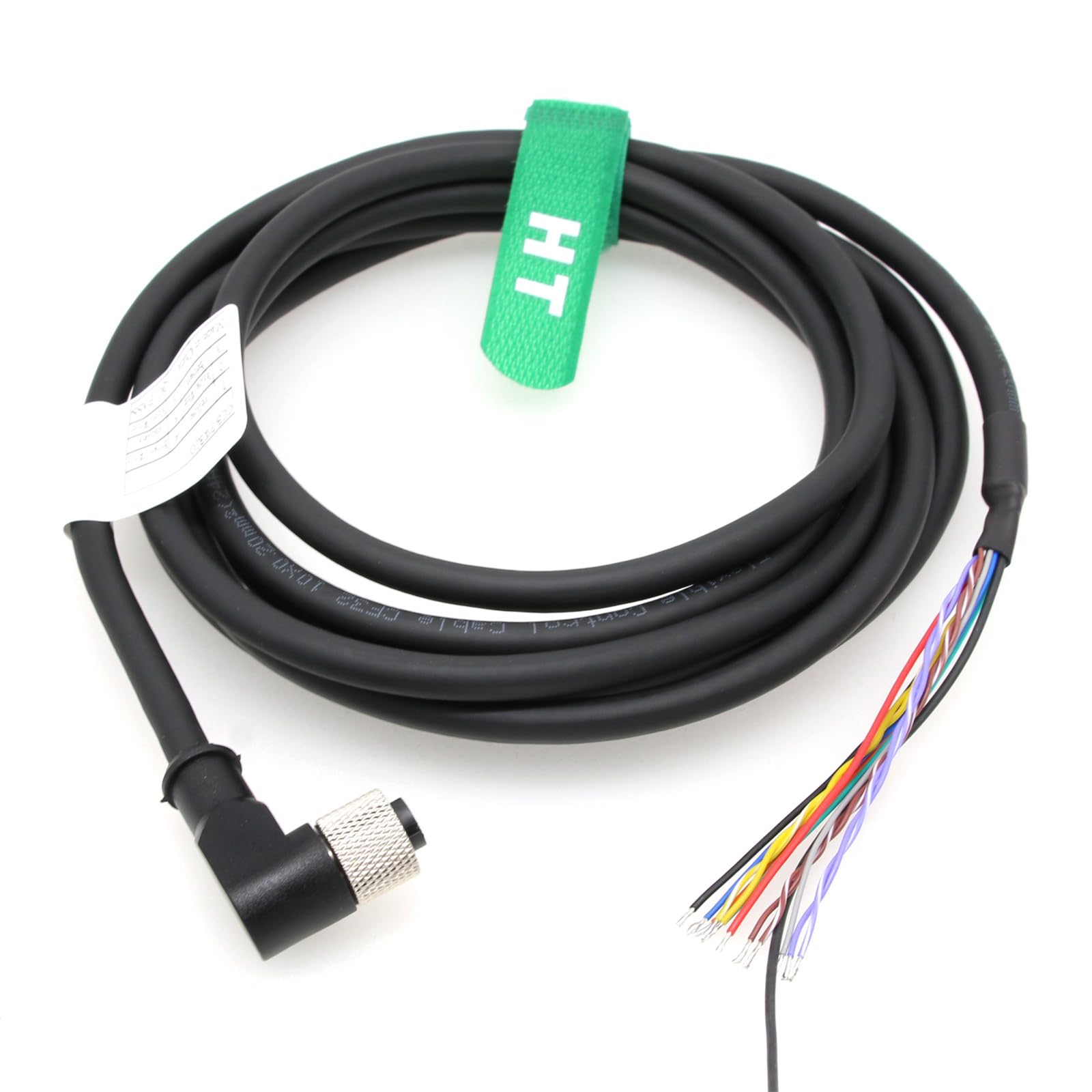

•The cable has M12 A-coding 12-pin female plug connector right angle 135-degree on one end, and 12-core bare wire (also called pigtail open flying leads) on the other. Gold-plated contacts, nickel plated brass shell, waterproof, solid and durable connection. Connector with thread locking, anti-vibration, easy quick connect and disconnect

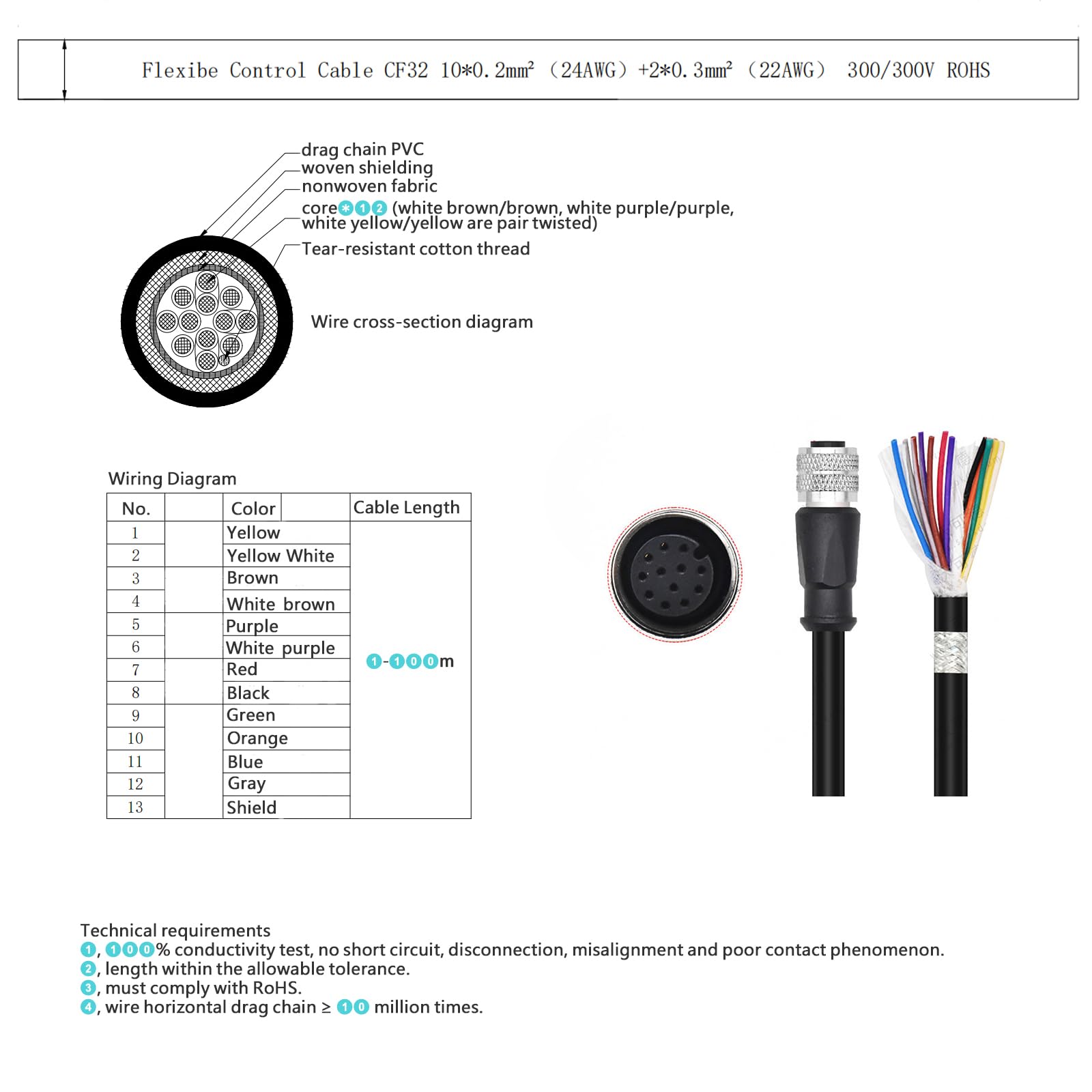

•Cable with braided shielded layer, good EMC, provides shielding from electromagnetic disturbance. 23AWG wire outer diameter 7mm. High-flex heavy-duty shielded cable. Cable features: oil-resistant flame-resistant torsion- resistant and heat-resistant. Low friction black PVC material used for sheath. Cable comes with label that shows wire color correspond to each pin
