NewGLOTRENDS
GLOTRENDS PA54L Quad M.2 NVMe to PCIe 5.0 X16 Adapter Without PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool (PCIe Bifurcation Motherboard is Required)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

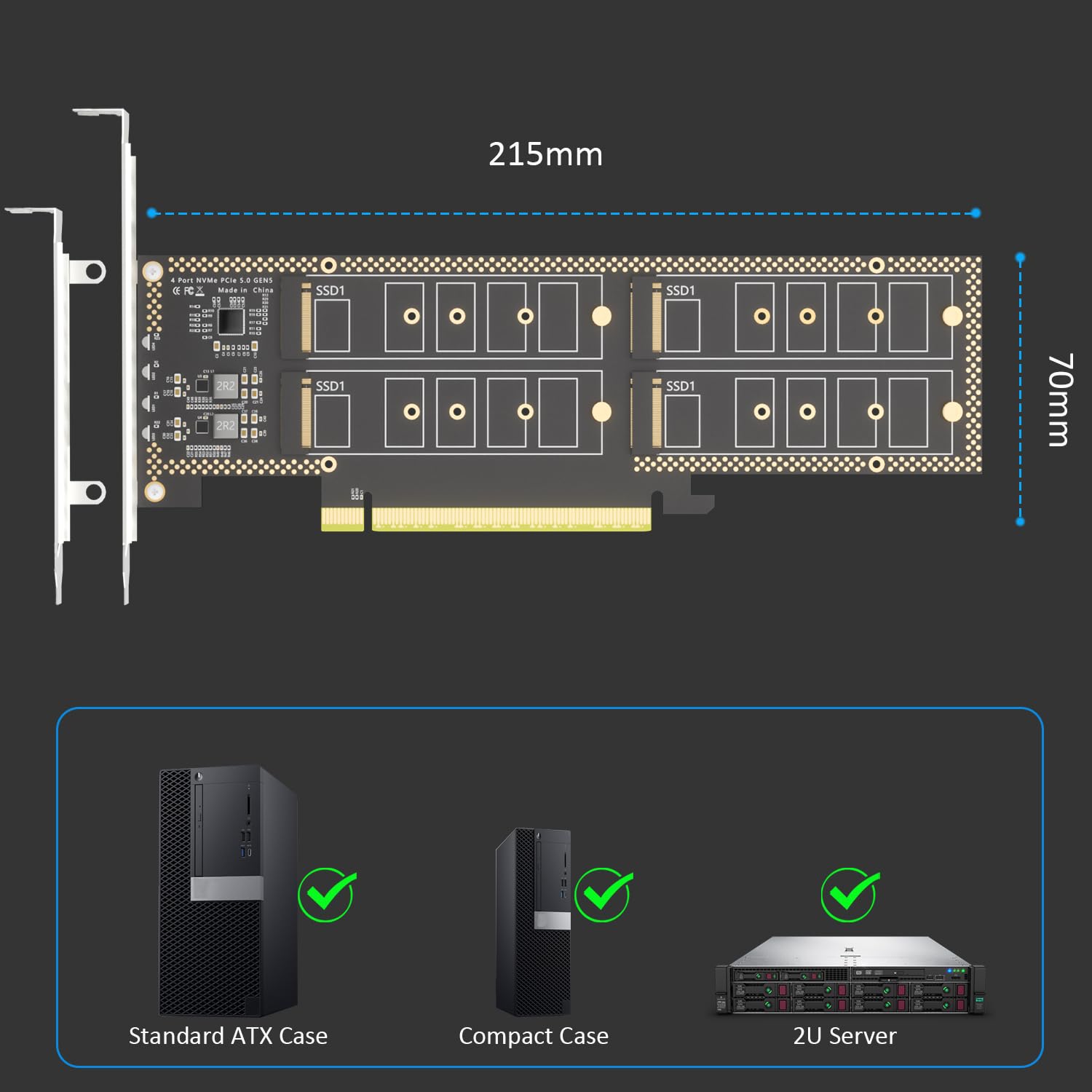

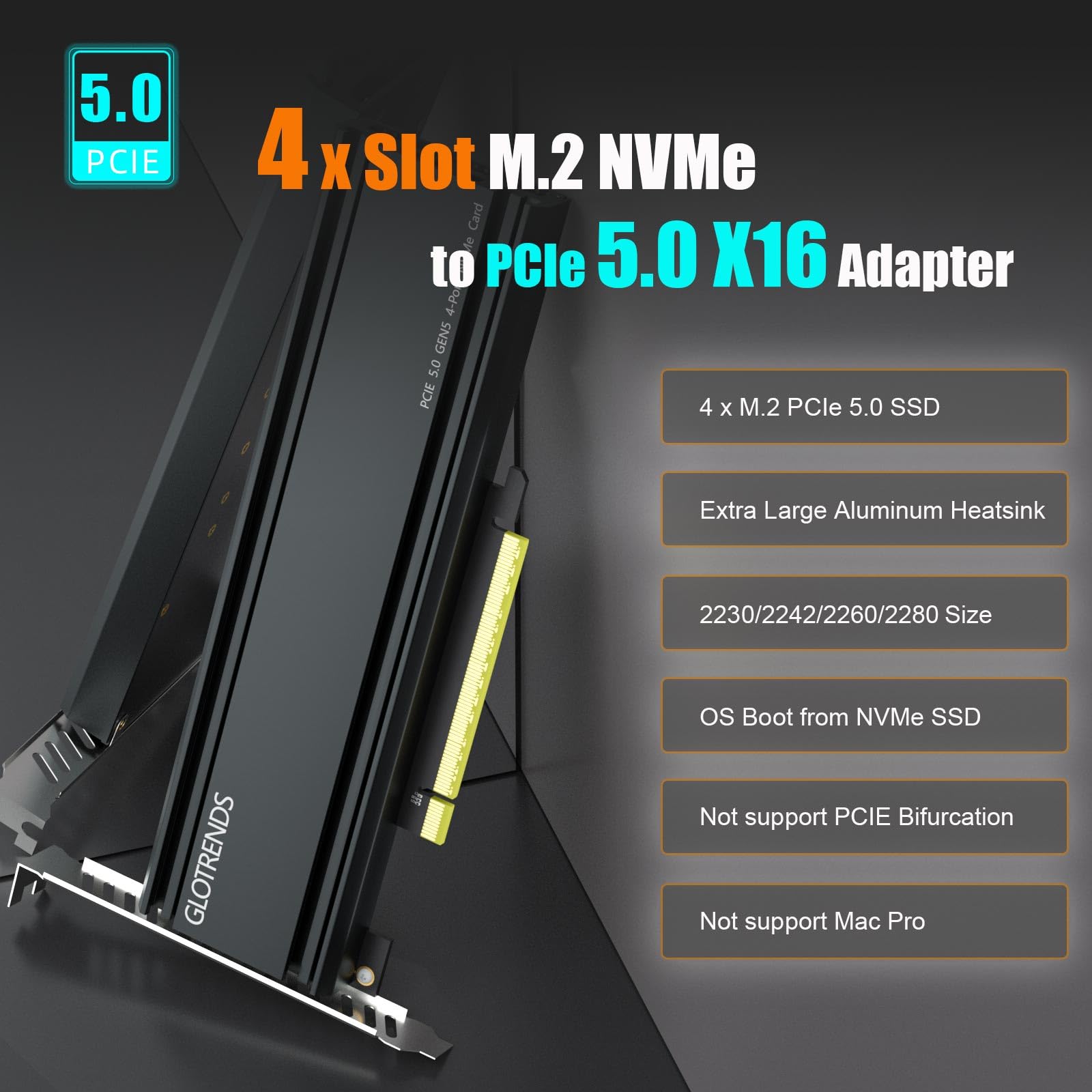

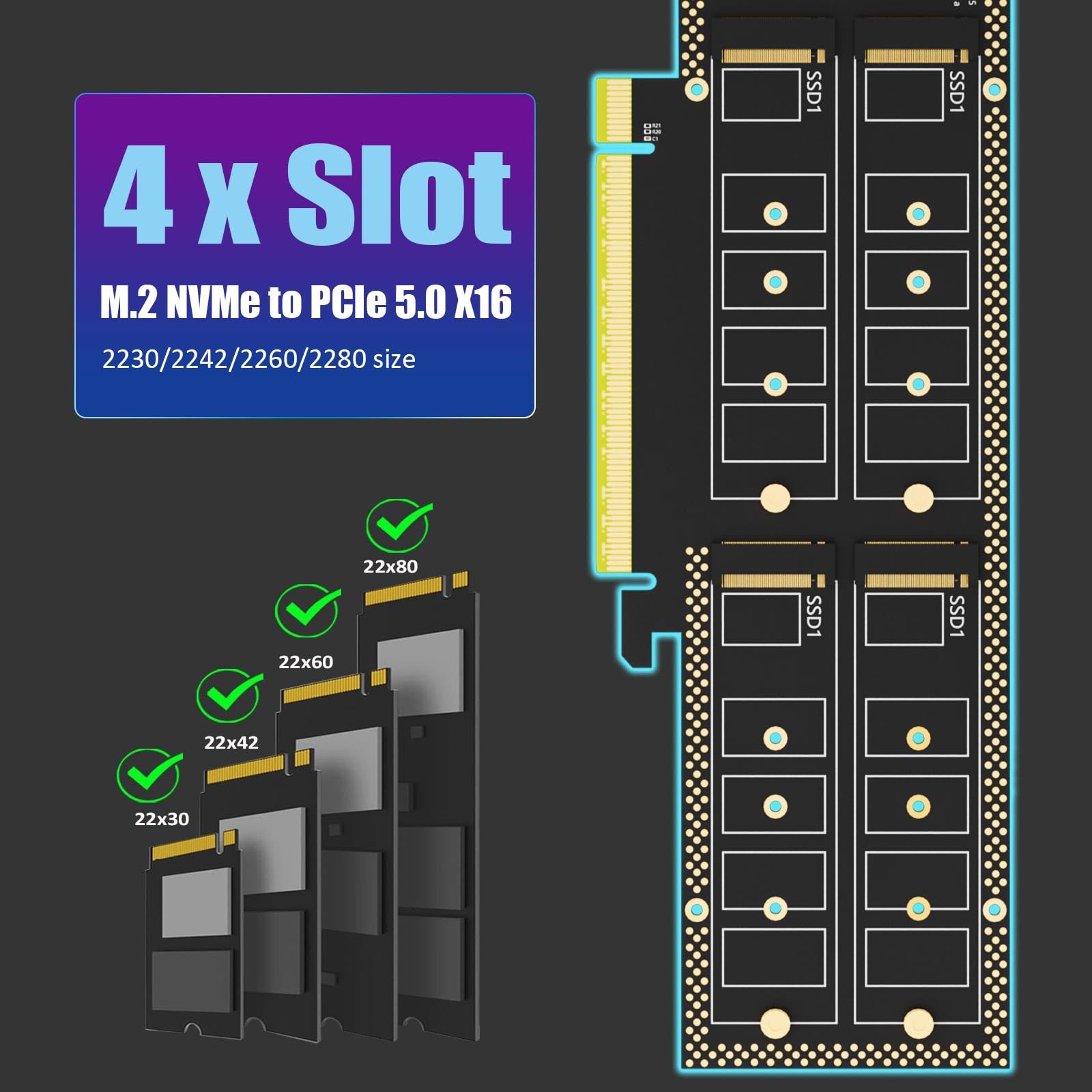

•4-slot M.2 NVMe to PCIe 5.0 X16 adapter card - expands 4x M.2 NVMe Key M slot via a PCIe 5.0 x16 interface, delivering up to 512Gb/s bandwidth. Support 2230/2242/2260/2280 M.2 NVMe SSDs. Regular and Low-profile Bracket.
•Supports software RAID configuration (no hardware RAID). Easily set up via Windows/Linux/macOS. Note: Intel’s RAID-on-CPU (VROC) requires a separate license purchase.
•Set the PCIe Bifurcation mode of the corresponding PCIe slot in the BIOS, support X4X4X4X4 or Hyper M.2 X16 mode (Note: X8X4X4 or X4X4X8 mode can only recognize 3 x NVMe SSDs.)
•Important: This adapter does not support PCIe bifurcation, so a motherboard with this feature is required. Without it, only the NVMe-1 port will recognize the NVMe SSD. Before purchase, check your motherboard manual's PCIe expansion slot section or contact us directly.

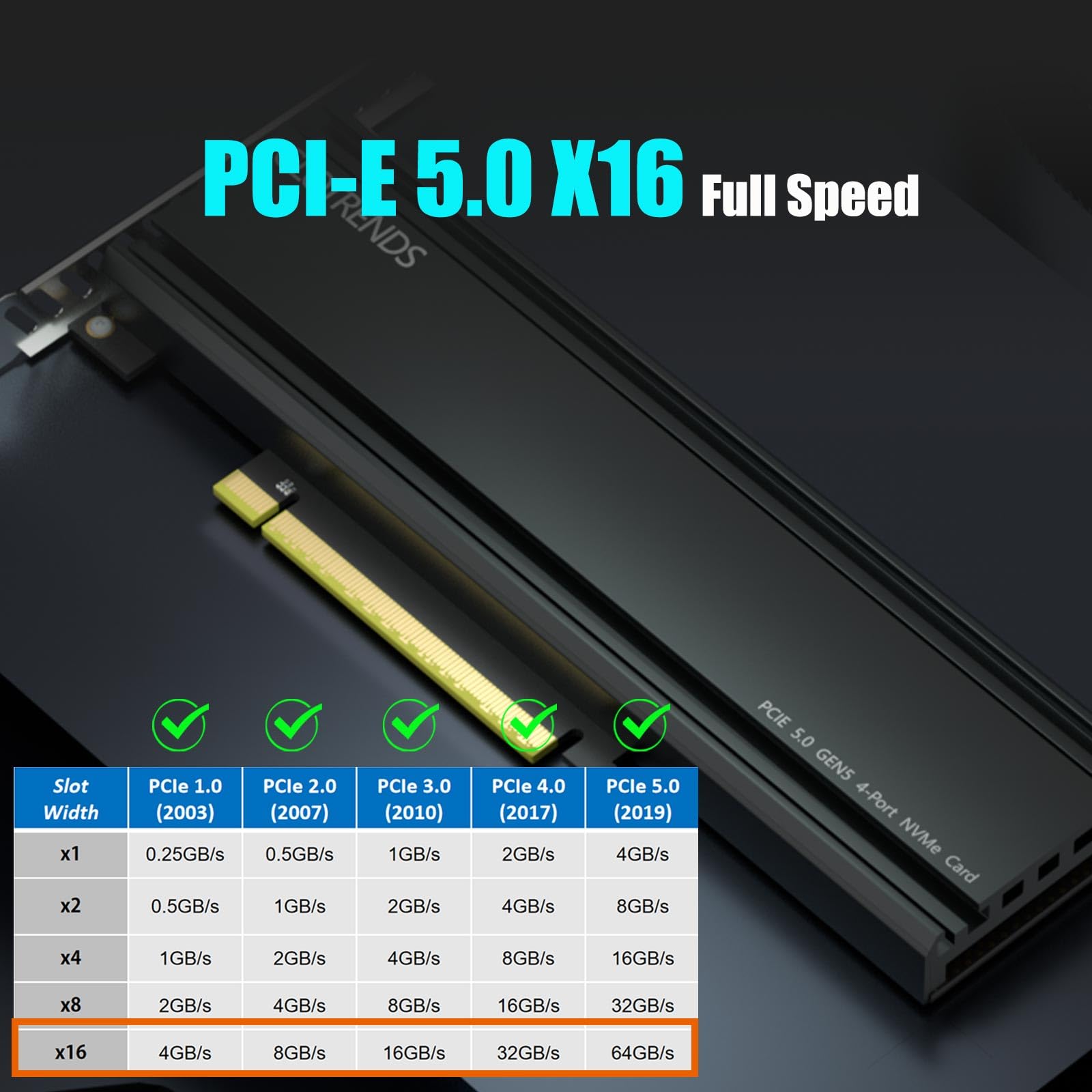

•Full PCIe 5.0 x16 performance (512Gbps) requires all components to support PCIe 5.0: CPU, motherboard’s PCIe slot, and M.2 NVMe SSD. Note: Intel 12th Gen and older CPUs do not support PCIe 5.0.
•Enables OS booting from M.2 NVMe SSDs – requires OS reinstallation and BIOS/UEFI configuration. Note: Legacy motherboards may only support storage use (non-boot functionality).
•Plug-and-play support for Windows 11/10/8/Linux/macOS (Windows 7 not supported). Note: New M.2 NVMe SSDs must be initialized and formatted before system recognition.
