Geekworm X708 UPS HAT for Raspberry Pi, X708 V2.0(Max 5.1V 6A) UPS HAT& Power Management Board with Power Loss Detection & Safe Shutdown & Auto Power On Function Compatible with Raspberry Pi 4B/3B+/3B
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

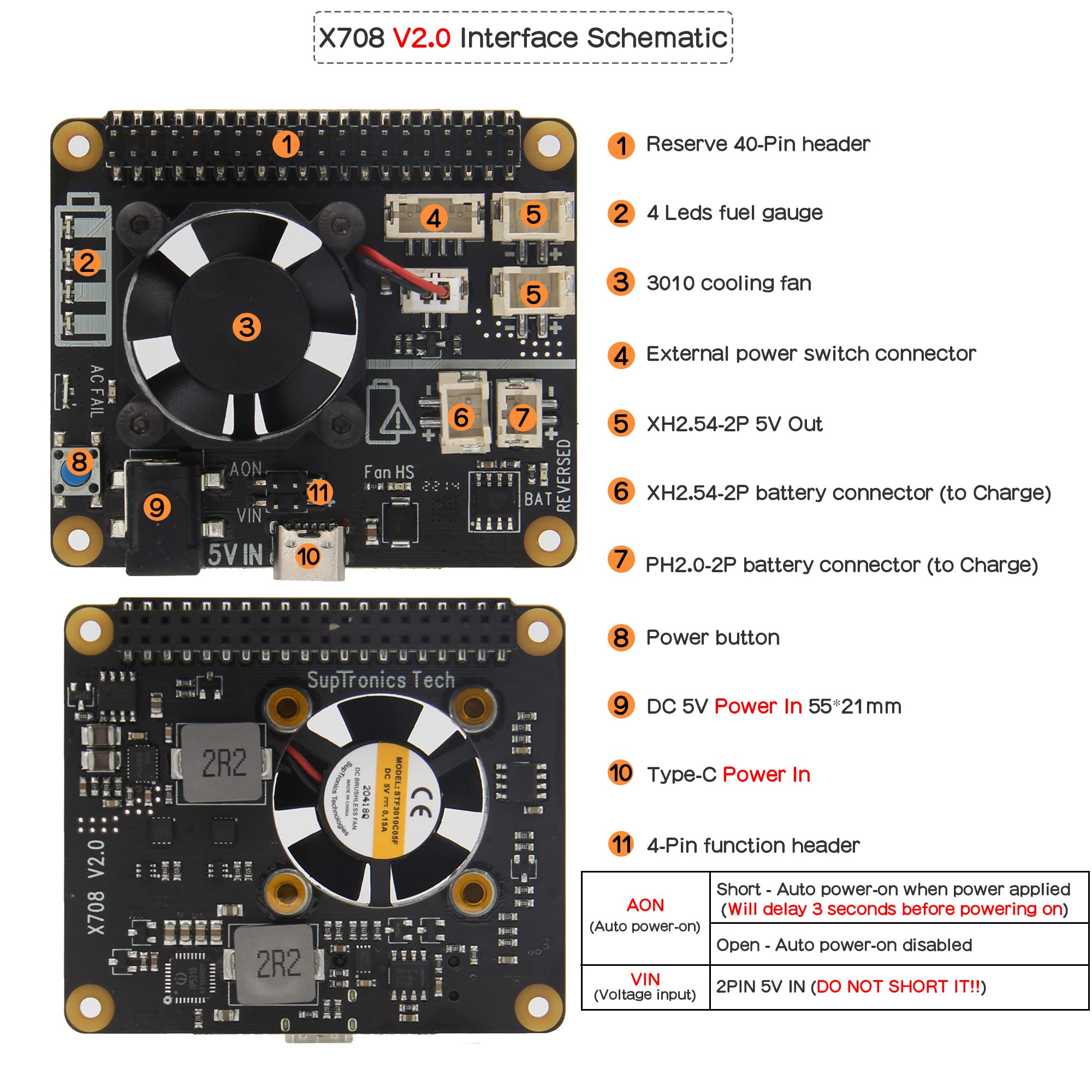

•[Function]X708 provides UPS function such as Power Loss Detection(PLD), Automatic Safe Shutdown(ASD), Auto Power On(AON) etc., DC 5V Max. 6A output;Document pls refer to geekworm WiKi search X708;
•[Compatibility&Cooling]Compatible with Raspberry Pi 4 Model B, Raspberry Pi 3B+/3B/2B/ B+; With cooling fan for heat dissaption of your Raspberry Pi, no need extra cooling solution.
•[How to Power&Specifications]Power supply via Type-C socket: 5Vdc ±5%, ≥3A; Via DC power jack: 5Vdc ±5%, ≥4A; UPS output : 5.1V ±5% Max 6A; UPS charging current: 1.8~2.2A / 2.3~3.2A; Terminal Battery Voltage : 4.24V;Recharge Threshold : 4.1V; Battery: 3.7V Lithium Battery

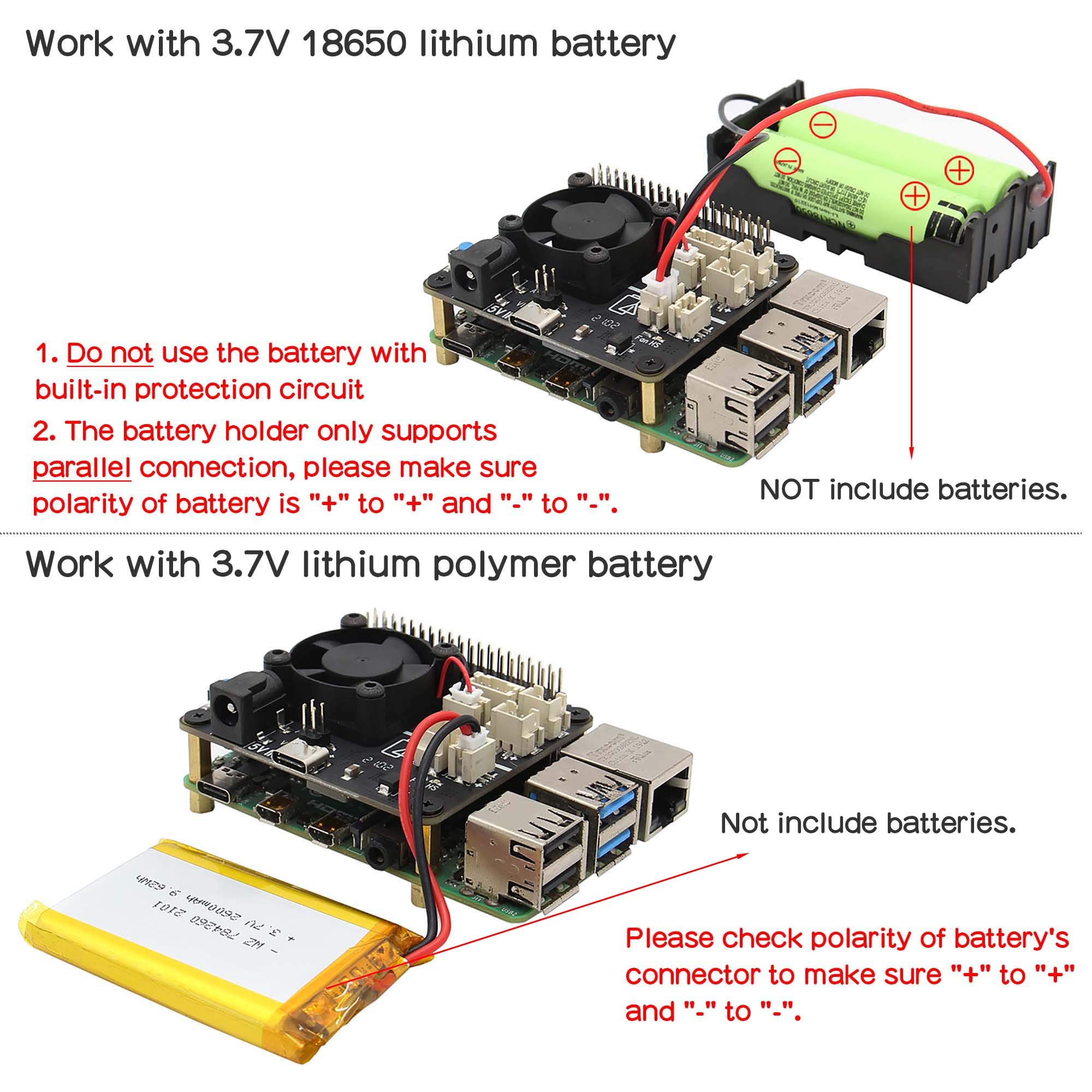

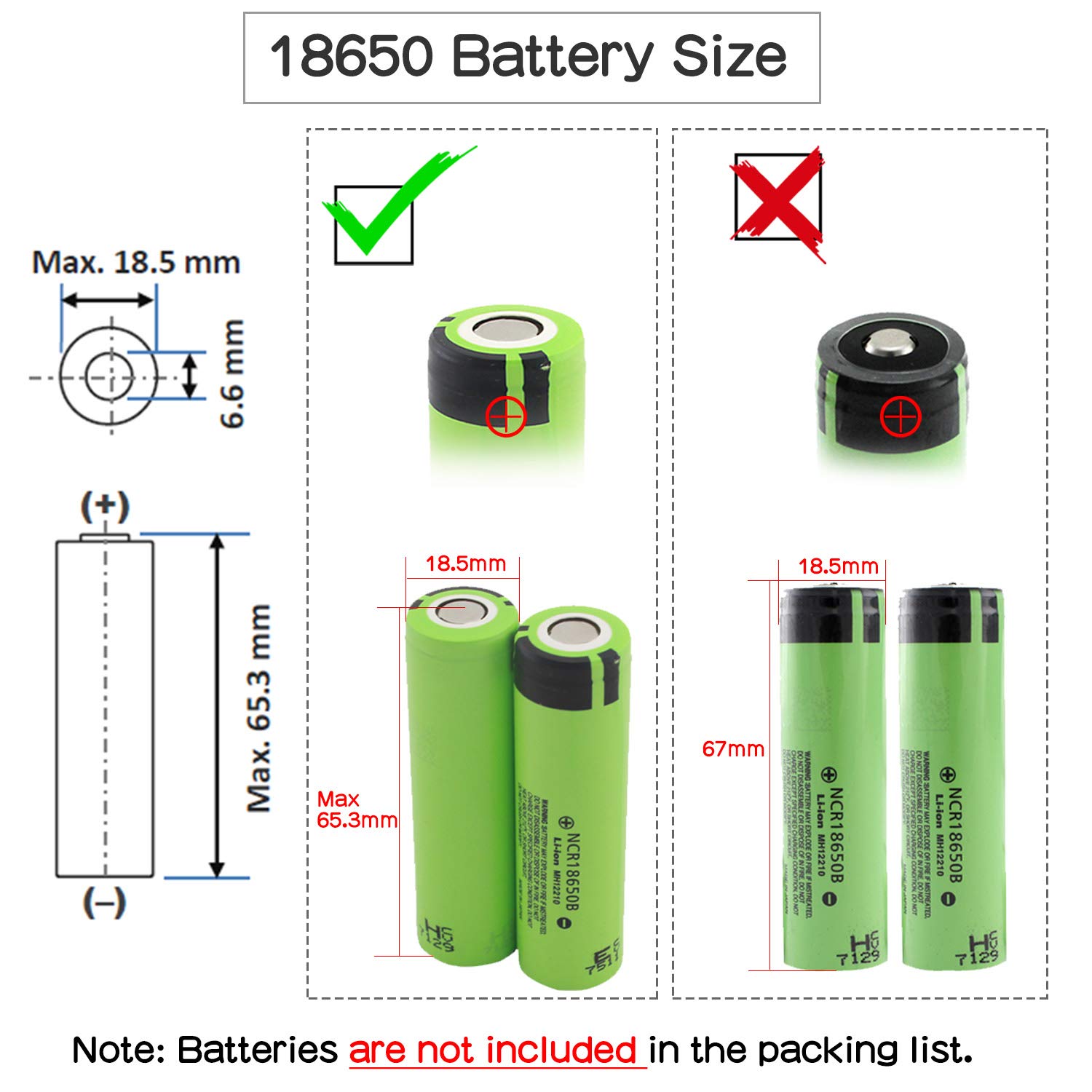

•Reserved two kind battery port (XH2.54 and PH2.0), supports 3.7V lithium battery and 3.7V lithium polymer battery, No capacity limit, only request 3.7V lithium battery (No include lithium battery) ; Add more battery, pls refer to X708-A1 8-cell Battery Holder(ASIN: B08L5W8NJ3) or X728-A2(ASIN: B08B5SW3TF)
•[Case for X708]Match metal case for Raspberry Pi 4 and X708, refer to X728-C1(ASIN: B09Z6C64NN), X728-C1 does not support X708-A1/X728-A2. X825-C8 case does not support X708.
•Important note: the script must be installed first for the product to work properly!!!
