Geekworm X1301 Video Capture CSI-2 Adapter+Case+H509 Passive Cooler+PD 27W Power Supply Support Video Input Up to 1080P 60fps for Raspberry Pi 5
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Compatible With: Compatible with Raspberry Pi 5 Only

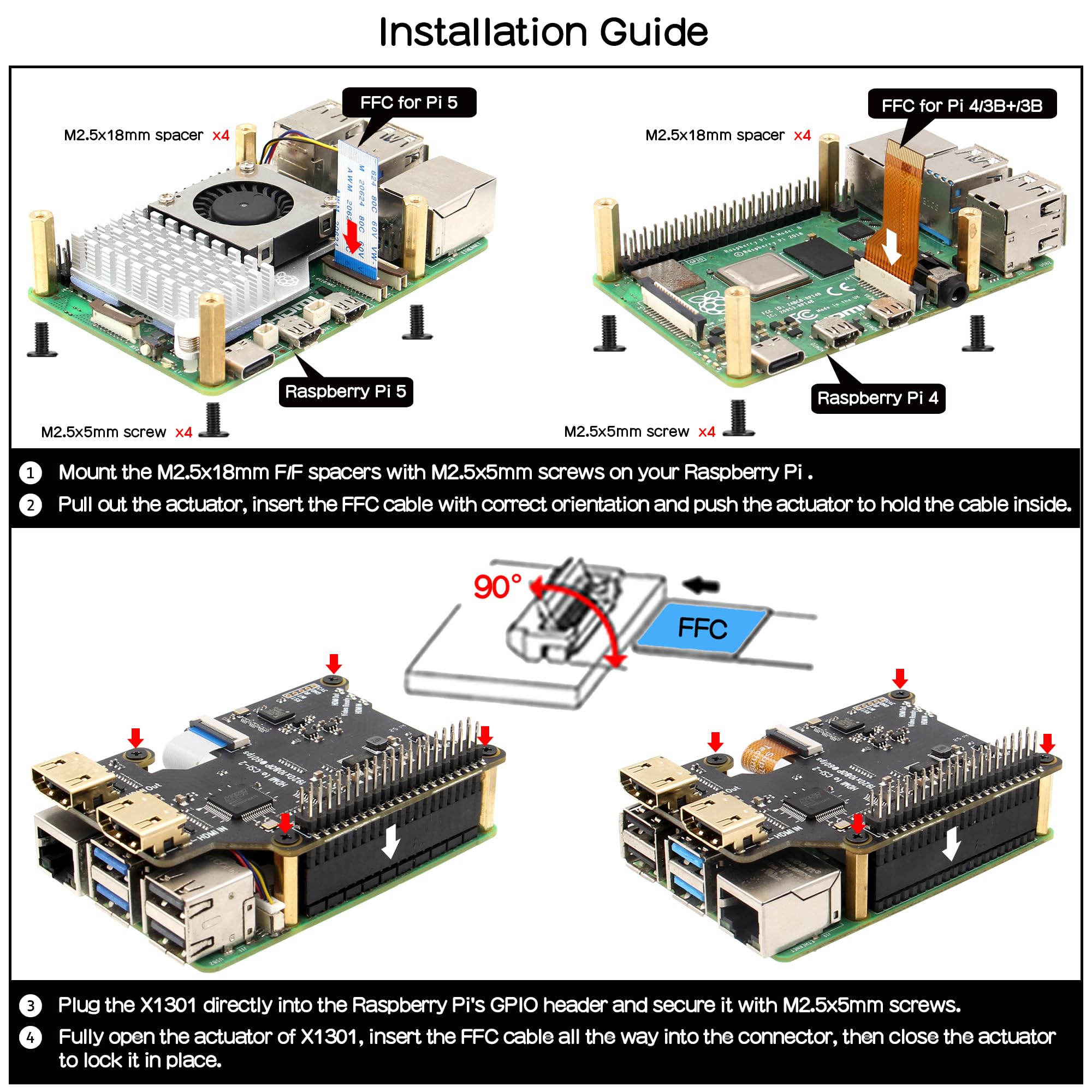

•User Manual: Google Geekworm Wiki search X1301/H509 for software and hardware guide

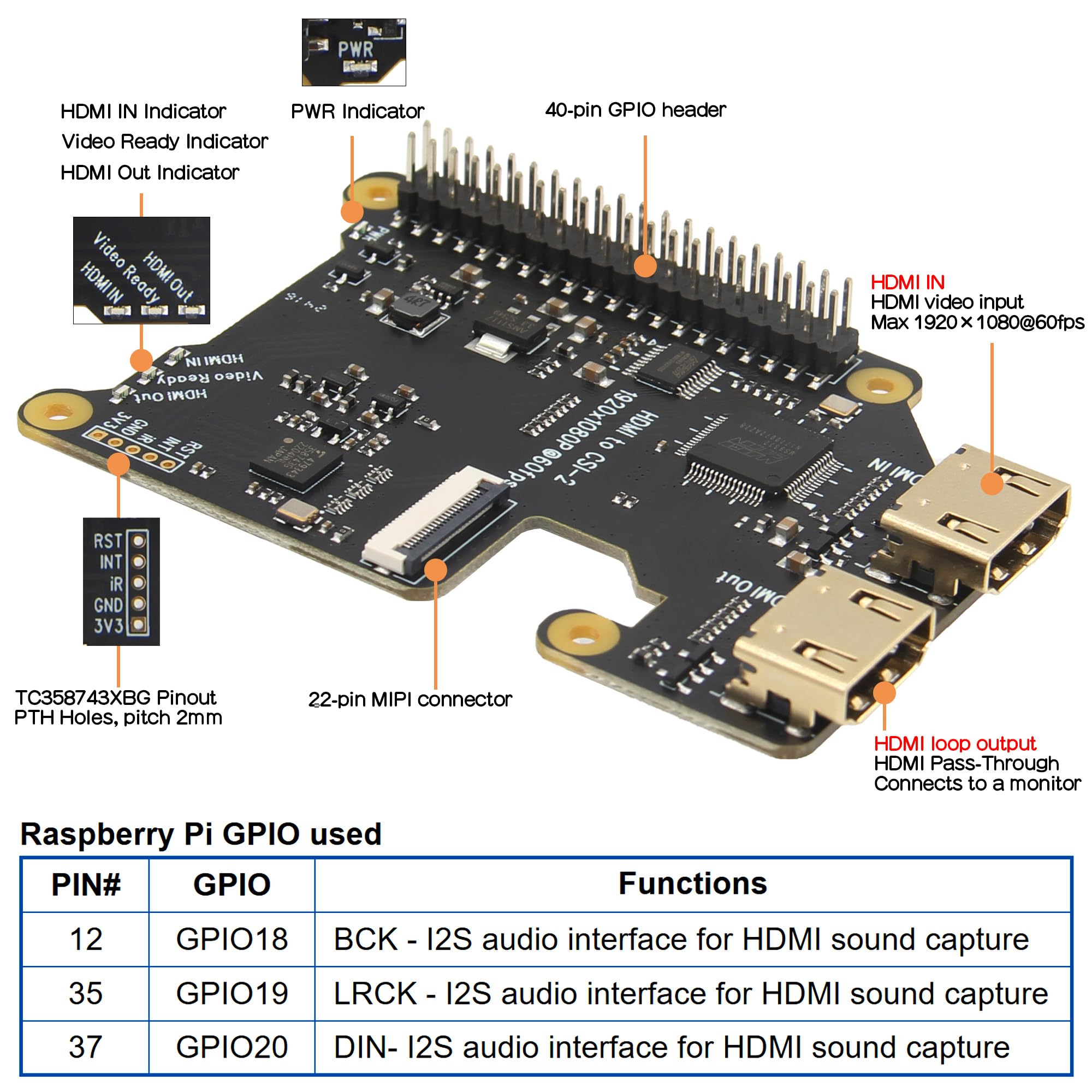

•The X1301 CSI-2 bridge with I2S audio interface for Raspberry Pi is equipped with the TC358743XBG bridge chip and a one-to-two active digital video splitter chip, enabling support for high-definition video input and pass-through up to 1080P at a refresh rate of 60 fps. Model: X1301

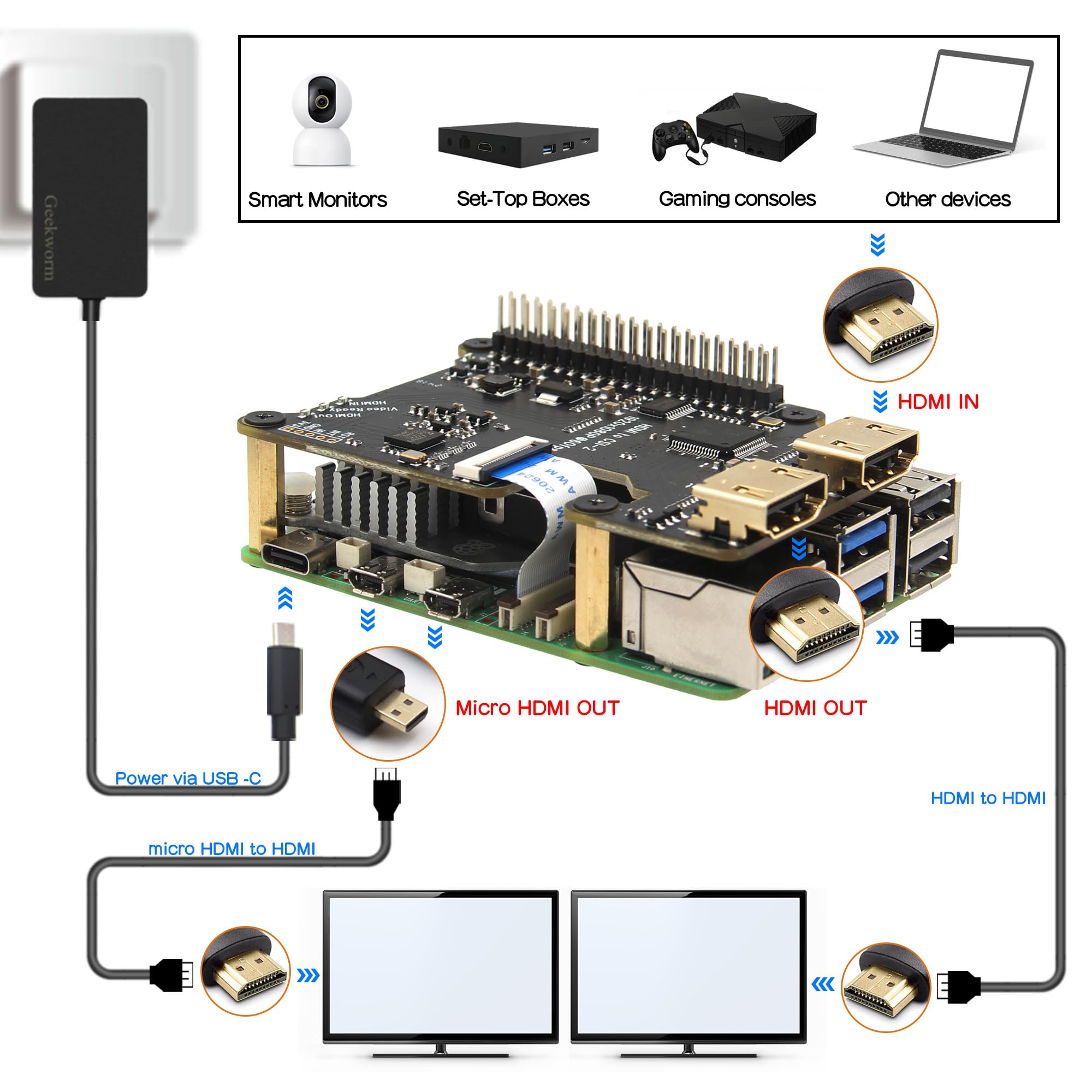

•Supports Video Pass-Through for local video display; Supports MIPI CSI-2 with 4 data lanes, each with speeds of up to 1 Gbps per lane
•Packing List: 1x X1301 CSI-2 Adapter, 1x X1301-C1 Metal Case, 1x H509 Passive Cooler; 1x PD 27W Power Supply-US plug
