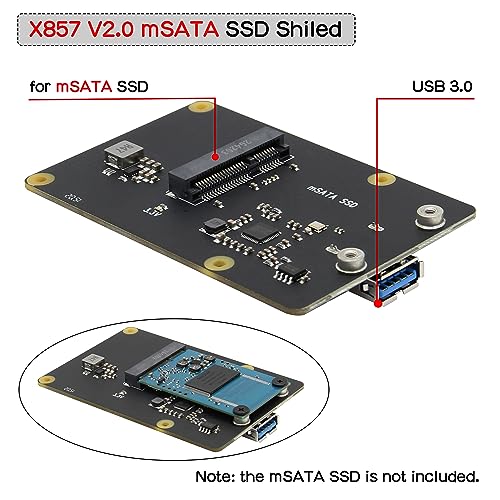

Geekworm for Raspberry Pi 4 mSATA SSD Adapter X857 V2.0, mSATA SSD Expansion Board USB3.0 Module Compatible with Raspberry Pi 4 Model B UASP Supported ONLY
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•√[Important] Strongly recommend to use 5.8G WiFi AP instead of 2.4G wifi AP, according to the feedback if use the external USB device (like mouse, keyboard, display) or use X857-C3 metal case(ASIN:B08VJ6P48B ), the system maybe unstable or not boot from the SSD. Also MUST format the new SSD before use.

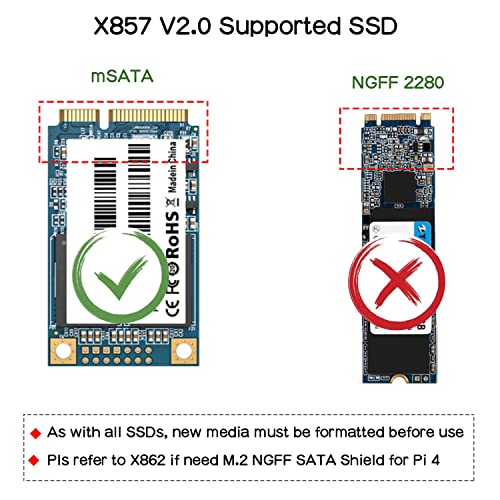

•√X857 V2.0 mSATA adapter only design for Raspberry Pi 4 Model B(1GB/2GB/4GB/8GB), UASP supported for Pi 4, NOT support TRIM, Supports up to 1TB mSATA interface SSD hard disk.

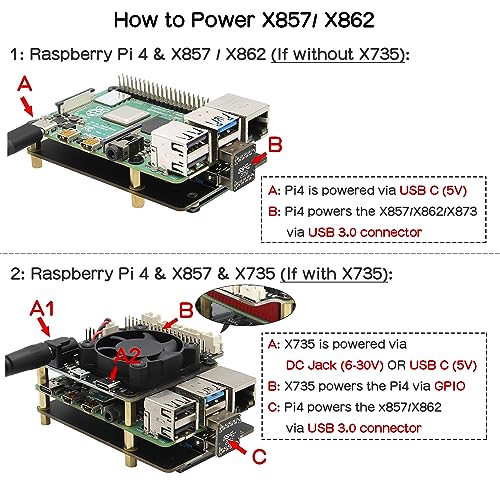

•√ How to power RPi 4&X857 V2.0: 5Vdc +/-5% , Powered by Raspberry Pi 4 Type-C Power In port; √ How to power RPi 4&X857 V2.0& X735: 5Vdc +/-5% , Powered by X735 Type-C or DC5525 Jack Power In port; Recommend to use Geekworm UL listed 5V 4A Type-C power adapter (ASIN:B09J856PND).

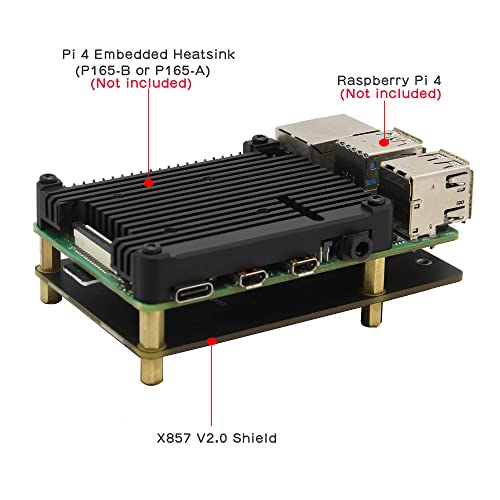

•√ Matching metal case for RPi 4&X857 V2.0&X735/X708, pls refer to X857-C3 Case(ASIN:B08VJ6P48B ), BUT note the power control switch should be connect to X735(ASIN:B07R45W1LN)/X708(ASIN:B08DNRYM4Y), there is no PWR port for external power switch on X857 V2.0.
•√ Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying, refer to Geekworm WiKi search(Does_the_X825/X855_support_USB_boot)
