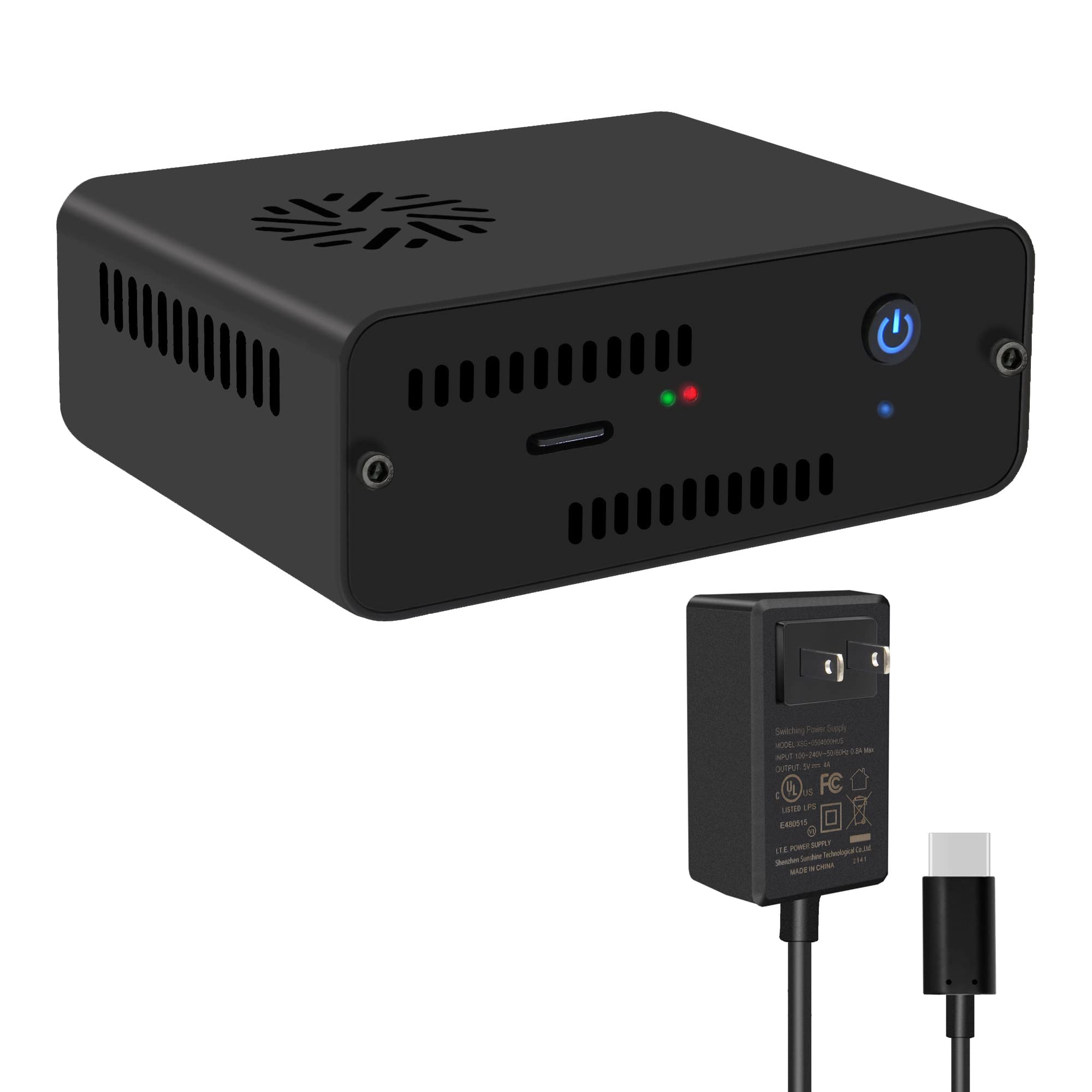

Geekworm NASPi V2.0 2.5 inch SATA HDD/SSD NAS Storage Kit + 20W 5V 4A Power Supply with Safe Shutdown Function for Raspberry Pi 4 Model B(Not Include Raspberry Pi 4)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Geekworm NASPi offering an easy and fast way to create your home media center and building NAS or Web server for your raspberry pi 4 with a 2.5 inch SATA HDD/SSD.

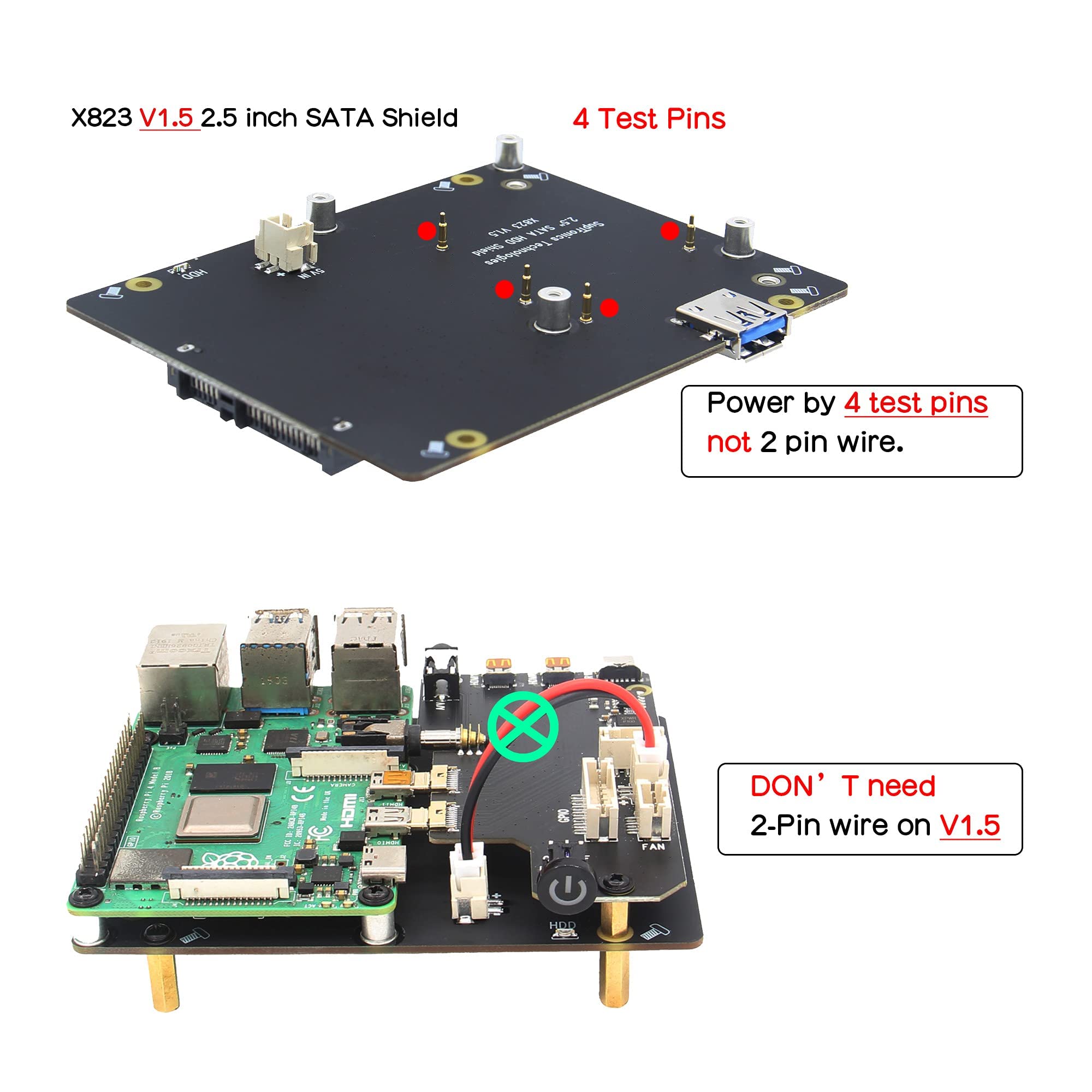

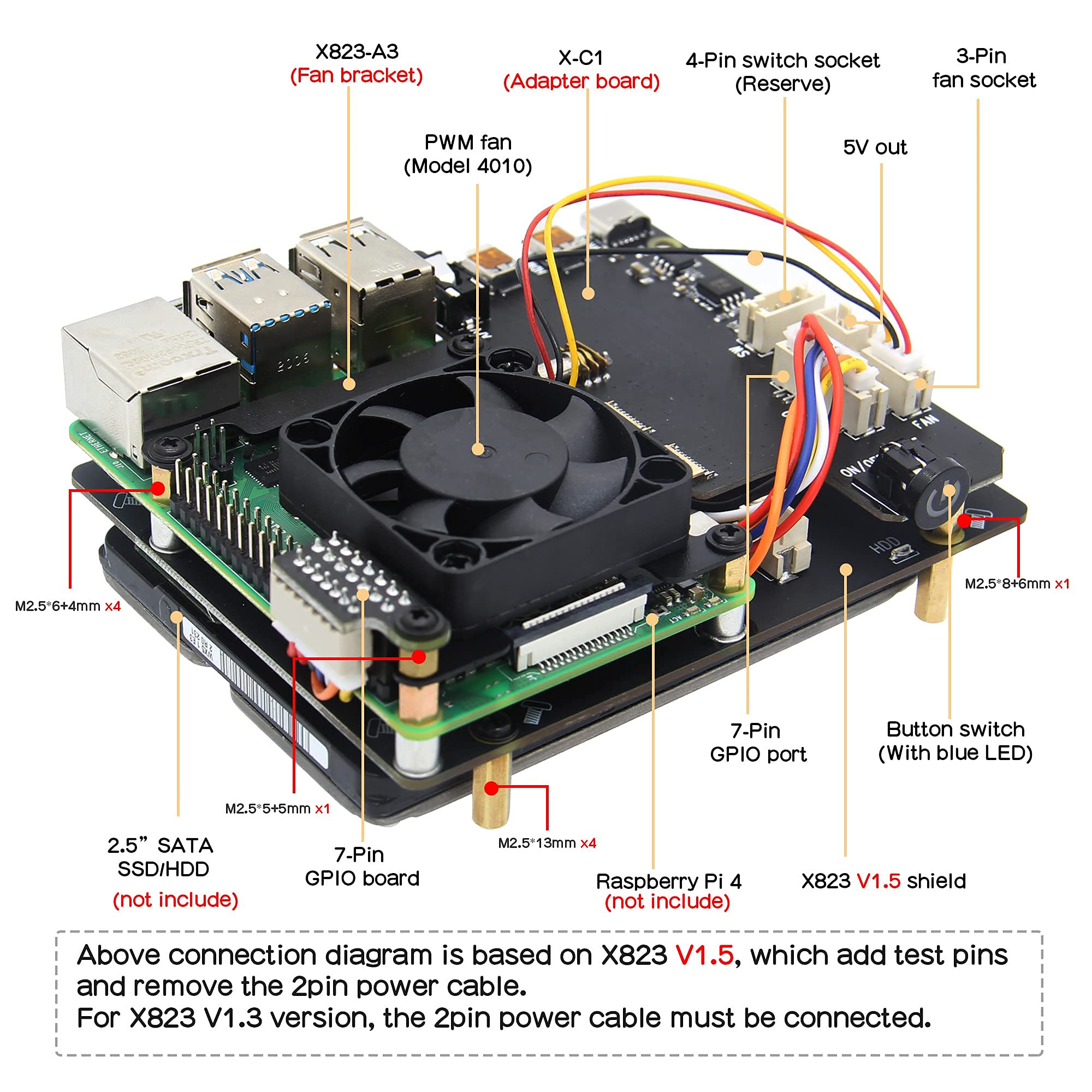

•NASPi is composed of three parts: X823 storage shield, X-C1 adapter board, heat dissipation system(include X823-A3 metal fan bracket and 4010 PWM fan), and they will be packed into a ALU-case to get a complete NASPi;
•How to Power: 5Vdc +/-5% , ≥4A (Via Type-C Port of X-C1); Recommend to use Geekworm UL listed 5V 4A Type-C power adapter (ASIN:B09J856PND).
•SSD Thickness Description: NASPi supports SSD with a thickness not exceeding 9.8mm, most 2.5" HDD/SSD on the market are only 7mm thick.
•How to Make the PWM Fan Work: PWM fan needs a PWM signal to start working, so need to install shell script (refer to above wiki), If the fan does not work in third-party OS, only remove the yellow wire of fan to let the fan run immediately.
