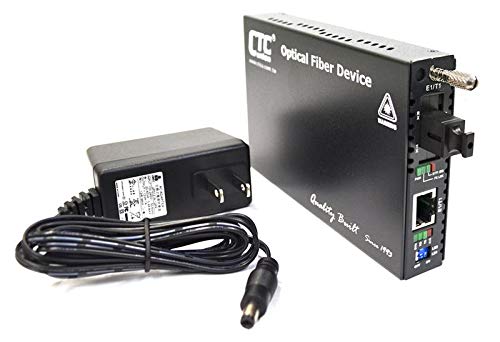

FRM220-E1-T1R-SC02A - T1 RJ45 100ohm (and E1 120ohm) to Single Strand BiDi Tx:850nm/Rx:1310nm Multi-Mode Fiber Media Converter (T1 Modem), 2Km
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
Safe and trusted checkout with major payment methods
4.5/5 · 379 reviewsTrustpilot
•Standards: T1: ITU-T G.703, G.704, G.706, G.732, G.823, AT&T TR-62411, ANSI T1.403; Interfaces: RJ48c 100ohms balanced T1 or RJ48c 120ohms balanced E1 connector and single SC connector 155M fiber port
•Operating wavelength: Tx:850nm/Rx:1310nm (A type BiDirectional, must be matched with B type model for a working pair); Operating distance: 2Km on 50/125um or 62.5/125um fiber; Optical connector: single SC connector
•Front LEDs: Power, Fiber Link, E1/T1 SIG, Test mode; Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
•Temperature: 0~60C (Operating); 0~70C (Storage); Humidity: 10~90% non condensing; Consumption: less than 5W
•Dimensions(WxDxH): 88mm x 155mm x 23mm; Weight: 210g (without AC adapter); Compliance: CE, FCC Class A, LVD, RoHS; MTBF: 65,000 hours
