FOTRIC TK6 Thermal Imaging Camera, 384 x 288 IR Resolution , 2 | Shop The World
From USA
NewFOTRIC

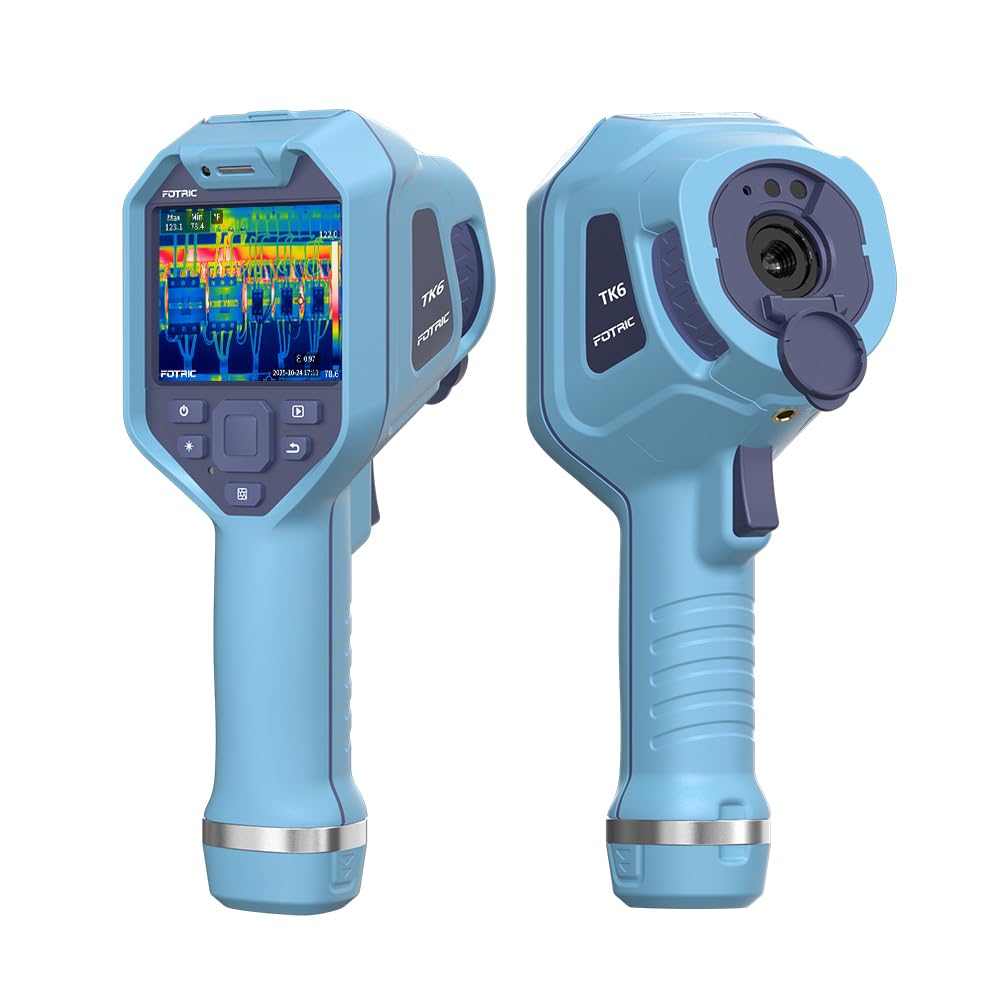

FOTRIC TK6 Thermal Imaging Camera, 384 x 288 IR Resolution , 25° *19° FOV, Manual Focus Thermal Imager with 5MP Visual Camera for Building, Electrical Inspections, -4°F to 1022°F, 3.5" Touch Screen
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

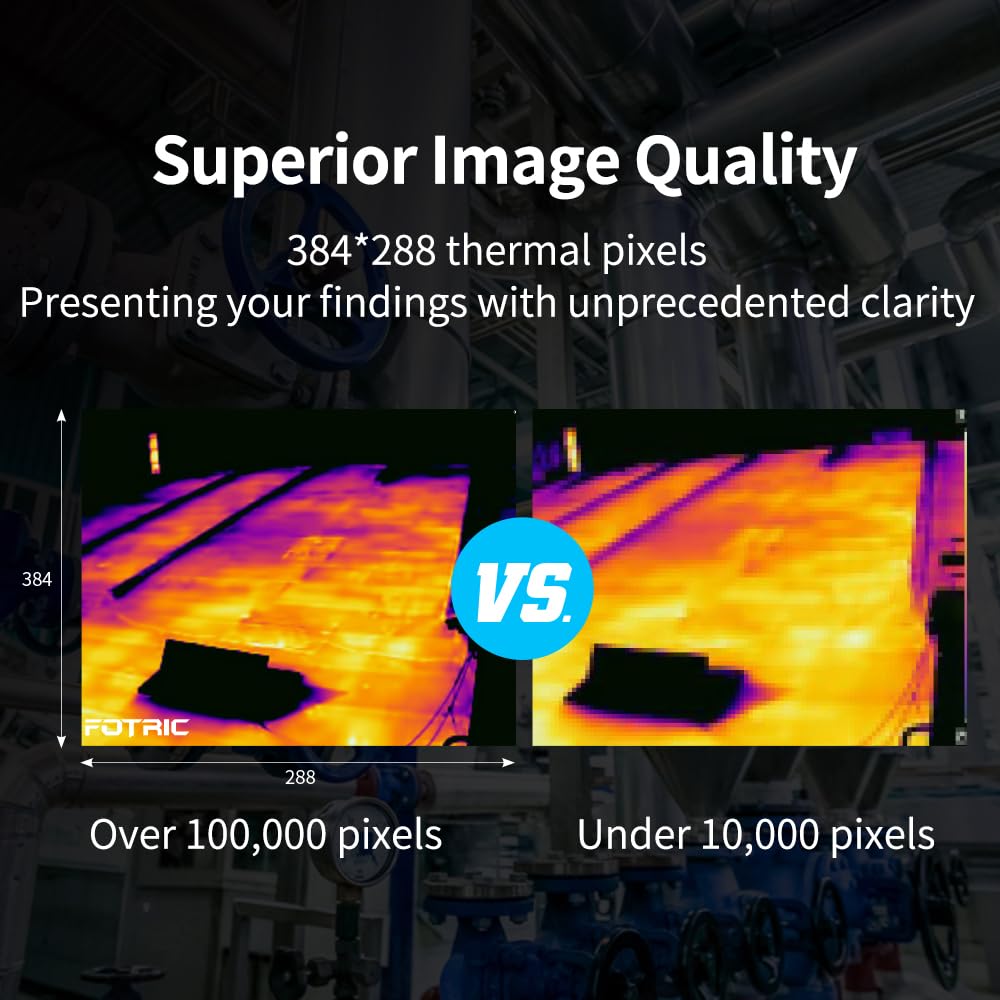

•【Professional-Grade Thermal Imaging】FOTRIC TK6 combines a true 384×288 infrared detector (110,592 real pixels) with ceramic sensor packaging, ensuring durability, accuracy, and reliability in demanding industrial environments. In the thermal imaging industry, 384×288 and above defines the professional class—below this range, most products rely on interpolated or algorithmic “up-res” methods that simulate higher resolution rather than capturing it.

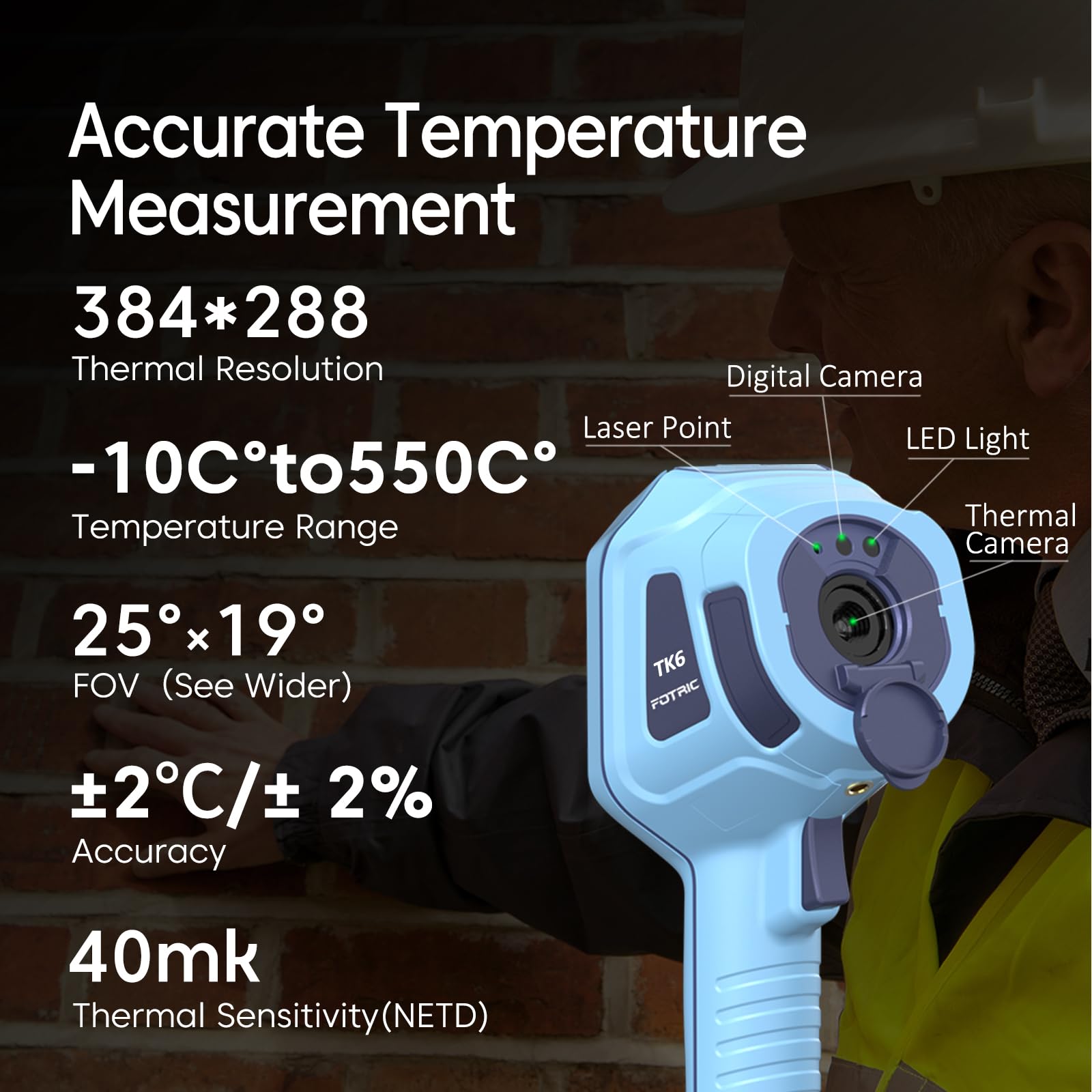

•【High Precision】At its core, the TK6 employs a 17 µm pixel-pitch detector, larger than the 12 µm sensors commonly used in budget models. The result is a stronger signal-to-noise ratio and sharper, higher-contrast thermal images, especially when detecting subtle temperature differences.TK6 with 40mK thermal sensitivity detects temperature differences as subtle as 0.04°C, ideal for pinpointing electrical hotspots, heat leaks, electrical faults or building faults.

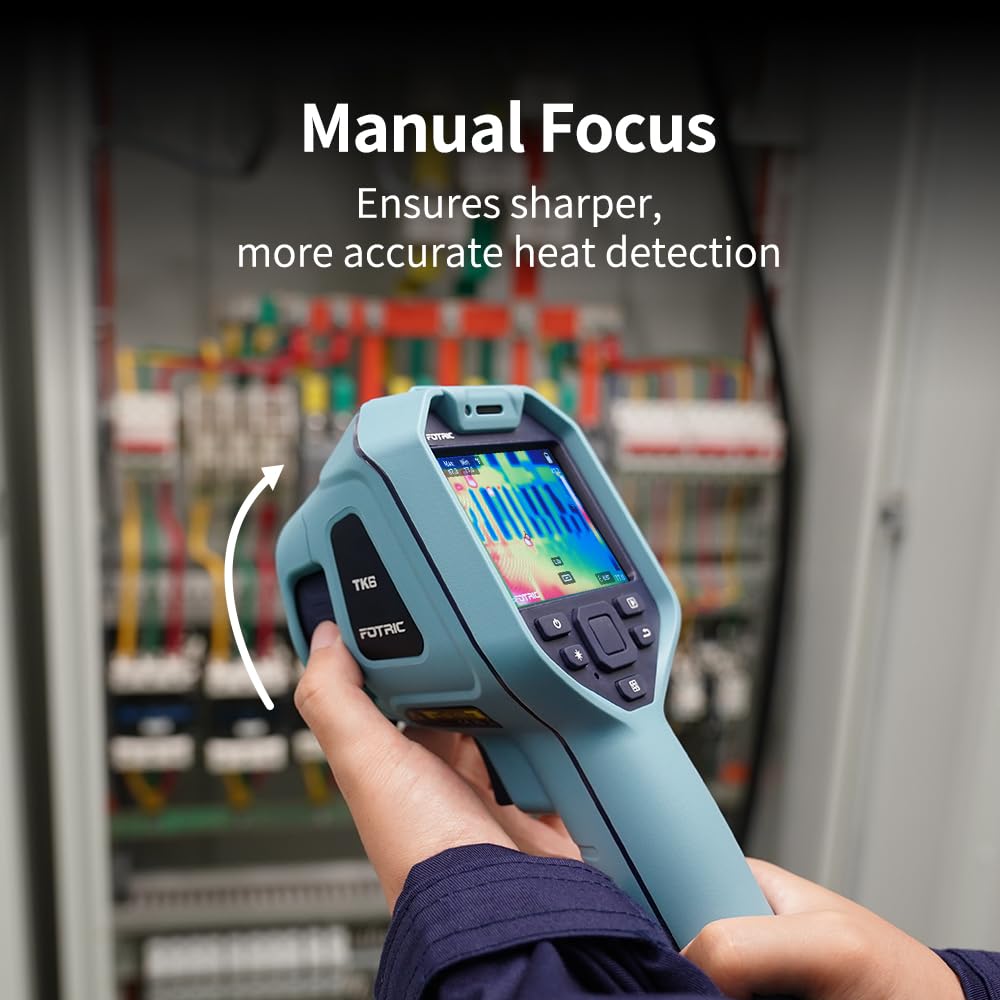

•【Manual Focus】Its manual focus lens—a hallmark of professional imagers—enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings whether the target is near or far. In contrast, “focus-free” entry-level cameras can only measure accurately at one fixed range.

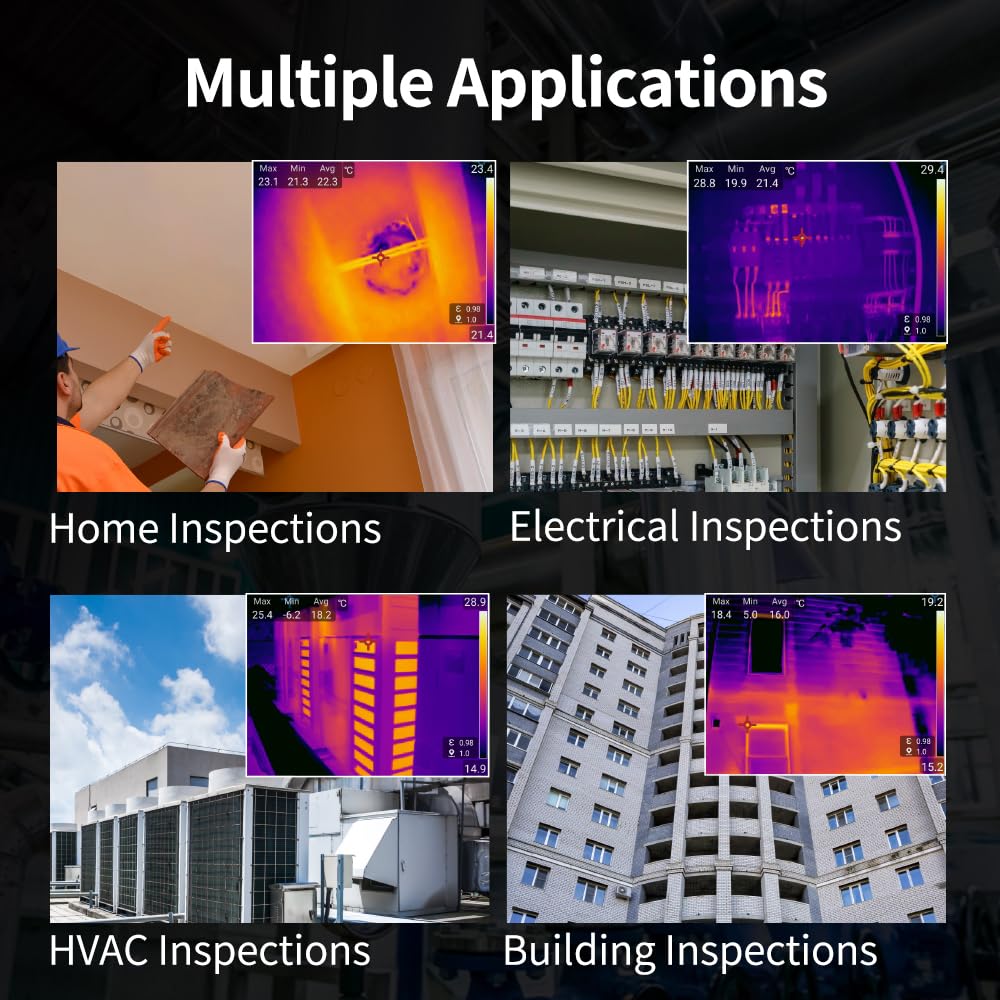

•【Smart Tools for Faster Diagnostics】Auto hot/cold spot tracking, adjustable emissivity, and real-time color alarm for temperature thresholds. Perfect for:1 Electrical Inspections: Locate overloaded circuits or faulty connections.2 HVAC Inspections: Identify refrigerant leaks or ductwork inefficiencies.3 Building Inspections: Detect moisture intrusion or energy loss behind walls.4 Home Inspections:Floor heating problems, house leaks, sewer blockages.5 PCBA Inspections: Use the manual focus function to detect abnormal temperature distribution in components,clear images can still be captured at a distance of 10 cm.
•【Image Mode & TWB Feature】TK6 thermal imager has 4 image mode:Infrared Image,T-DEF Fusion,Picture-in-Picture,Digital Camera.TWB essentially re-scales the palette ribbon based on the number of pixels in representing each temperature range. Consequently, the temperature distribution of the entire image is more clearly laid out for the inspector.
•【Portable & Rugged Design】The thermal camera comply with IP54-rated against dust and water splashes, with 2m drop resistance (tested to IEC 60068-2-32). The 3.5" touchscreen and 5MP visual camera ensure clear documentation in bright sunlight or dark spaces.Record JPG thermal images to the 32GB TF card, includes 1 piece of battery,4+ hours of continuous use removable 5000mAh Li-ion battery, USB Type-C fast charging (2.5 hrs to full) . Weighs just 1.59 lbs (0.72 kg).
