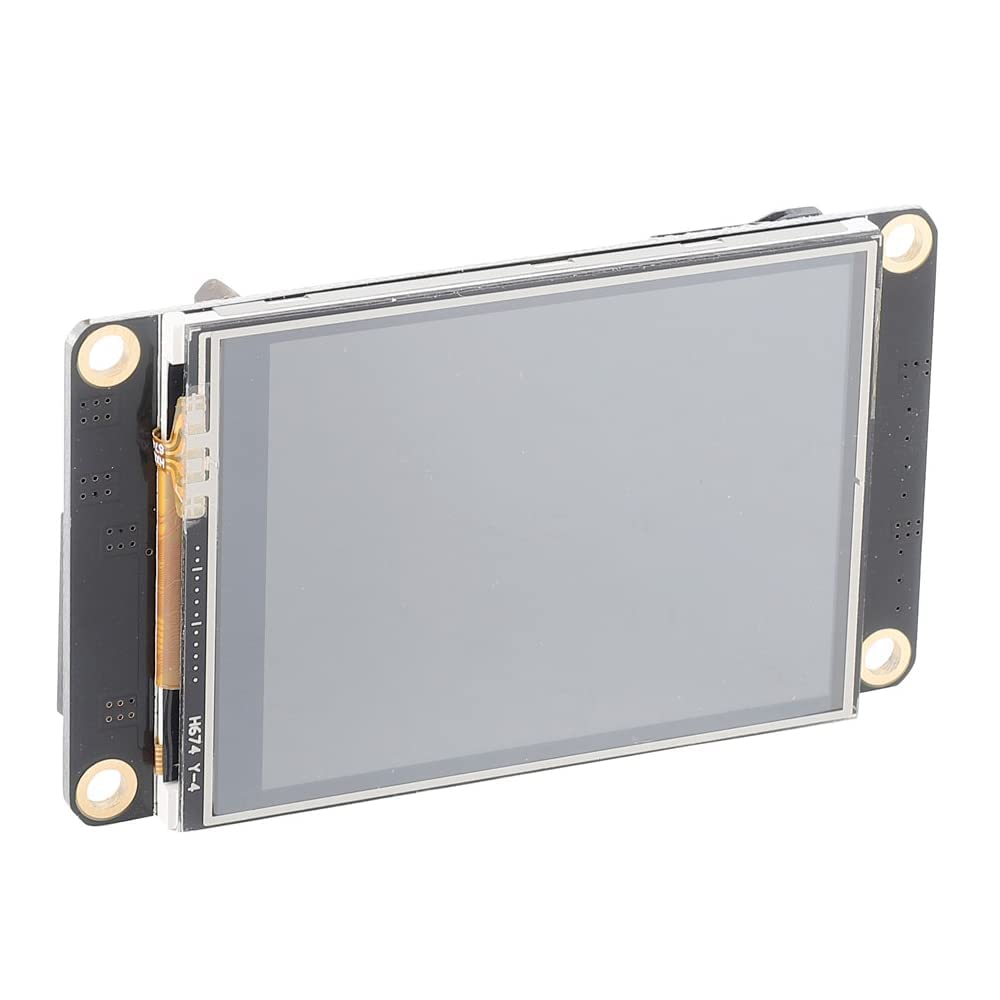

Ferwooh English Nextion Enhanced 2.4'' HMI USART UART Serial TFT Touch Display Module Screen Panel (NX3224K024)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a person and a process, machine, application or device. Nextion is mainly used in the IoT or consumer electronics sector. It is the best solution to replace the traditional LCD and LED nixie tubes.
•It consists of a hardware part and a software part. The Nextion TFT board uses only one serial port for communication. It saves users the hassle of wiring. As a solution to this situation, Nextion editor has bulk components like buttons, text, progress bar, slider, dashboard, etc. to enrich the interface design and drag-and-drop.

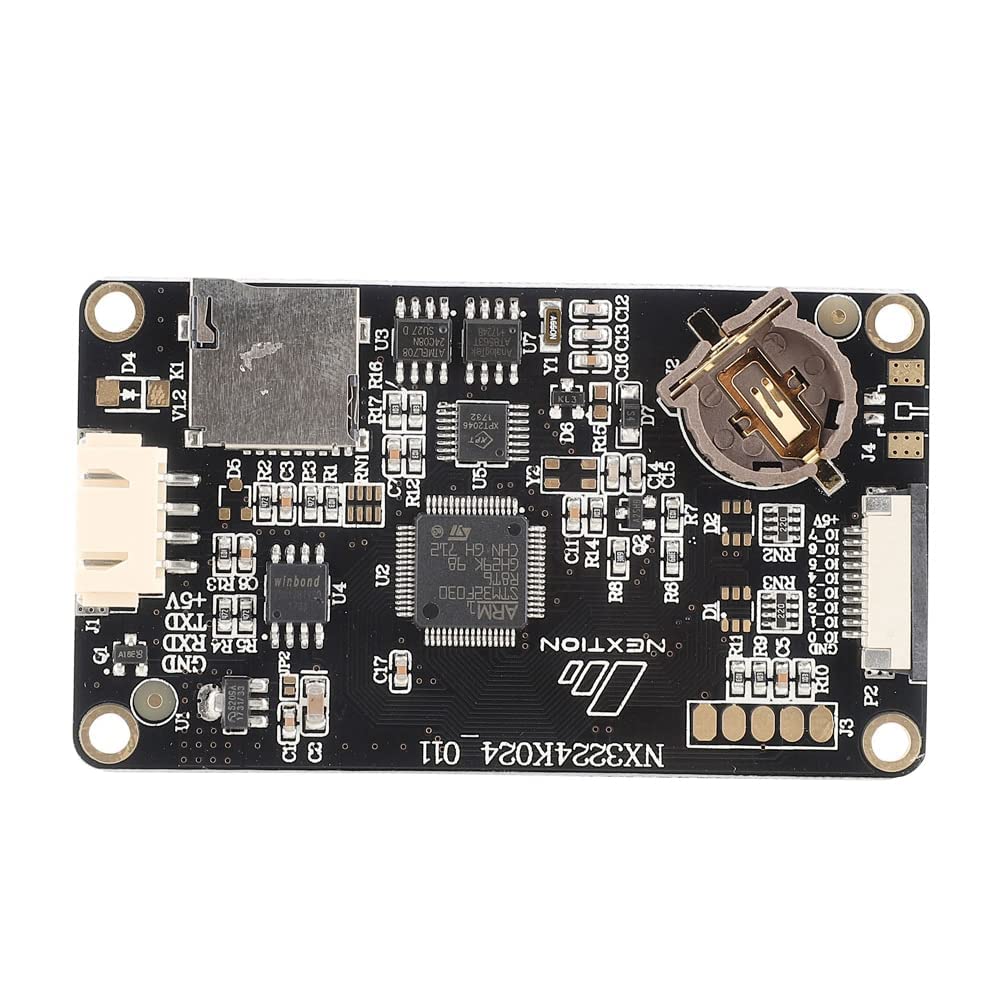

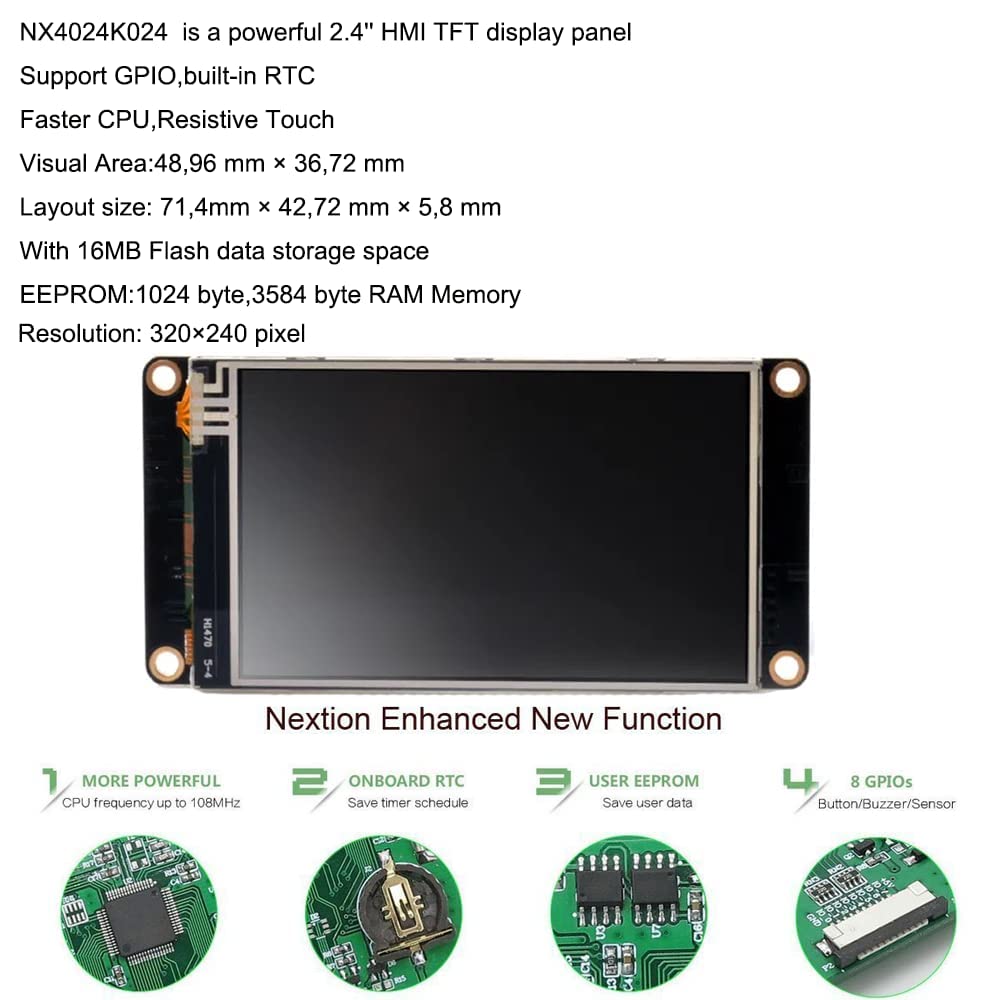

•Compared to the basic version 2.4", Nextion Enhanced 2.4" offers new features: support for integrated RTC, data storage in flash memory, GPIO, larger flash memory capacity and faster CPU. With 1024 bytes EEPROM, 3584 bytes RAM, 16MB flash memory, 320×240 resolution, visible area: viewing area: 48.96mm × 36.72mm, layout size: 71.4mm × 42.72mm × 5.8mm, color : 65K ( 65536) colors.

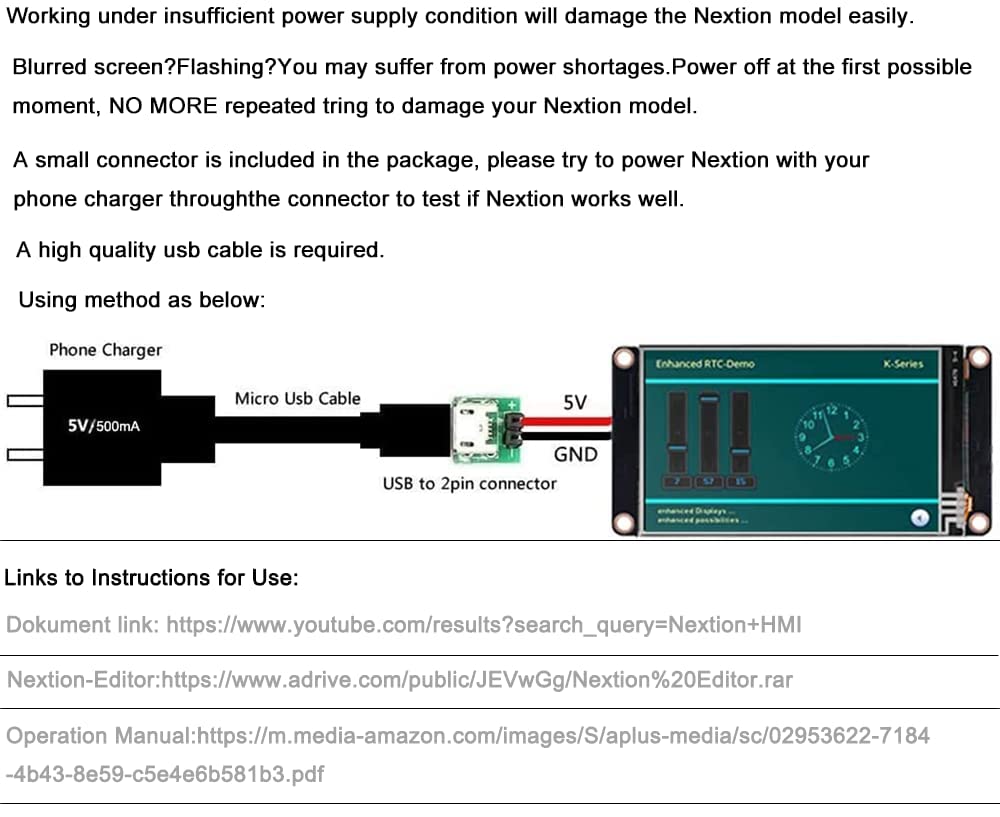

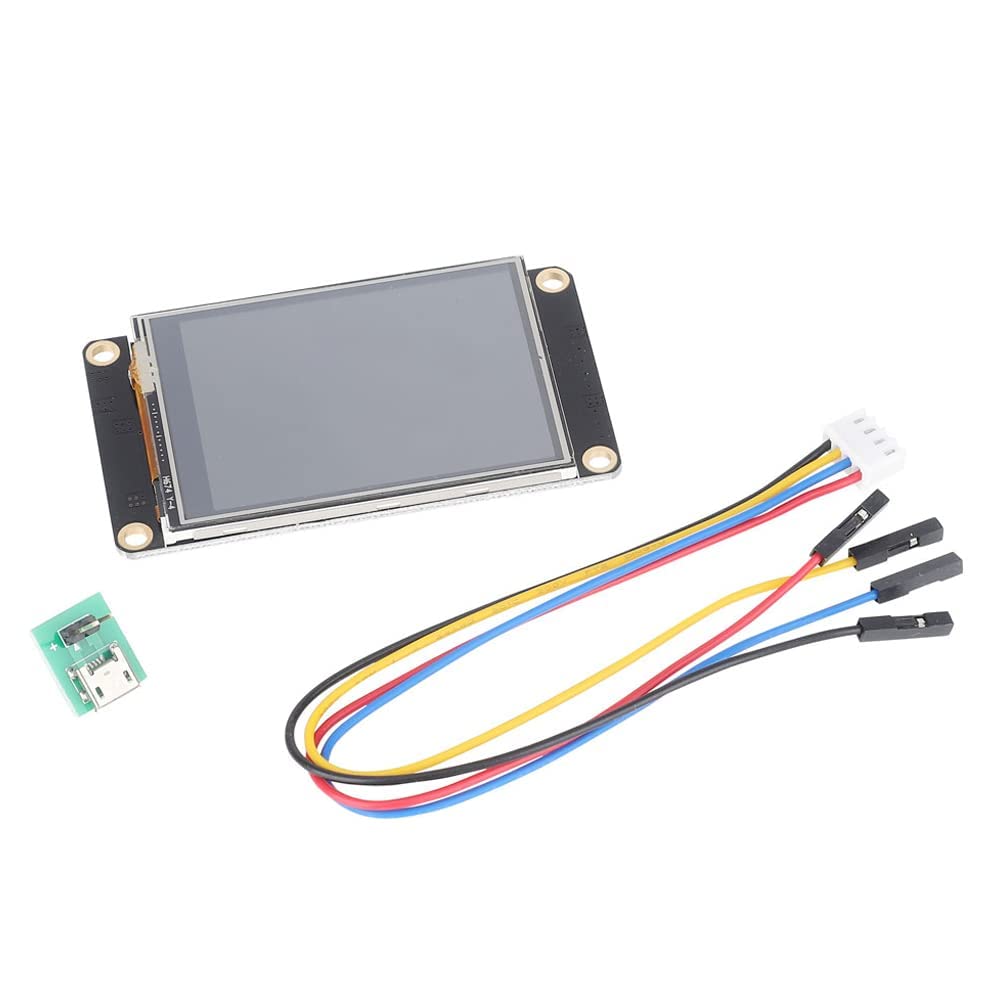

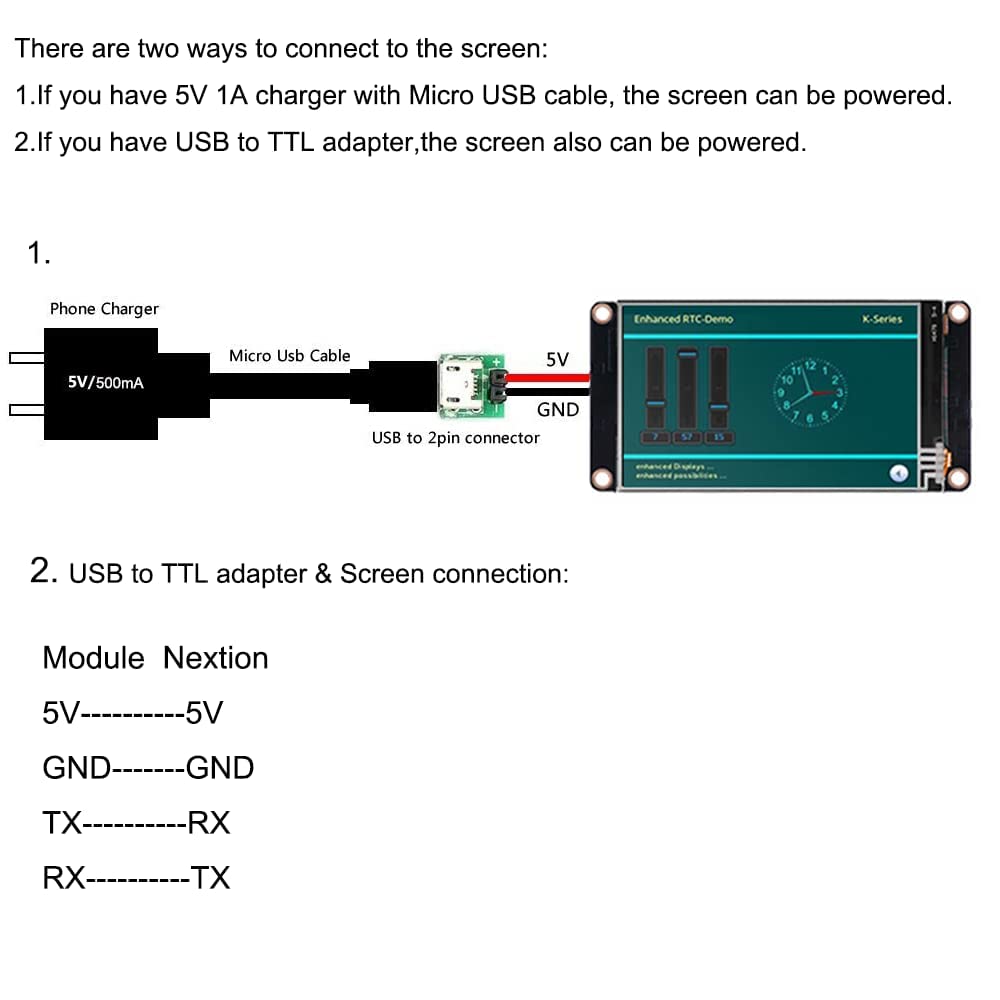

•Figures shows two different test methods: 1. You can use the micro USB port to power. To do this, use the USB port and the included 4P cable. 2. You can use a USB to TTL adapter to connect to the display.
•There may be an error in the Nextion HMI file. If you power it from a Micro USB port, the Nextion display may incorrectly show the T Series (Basic Series). Please supply it with a CR1220 battery (not included) and connect a 4p cable. The next screen shows the K Series (Extended Series).
