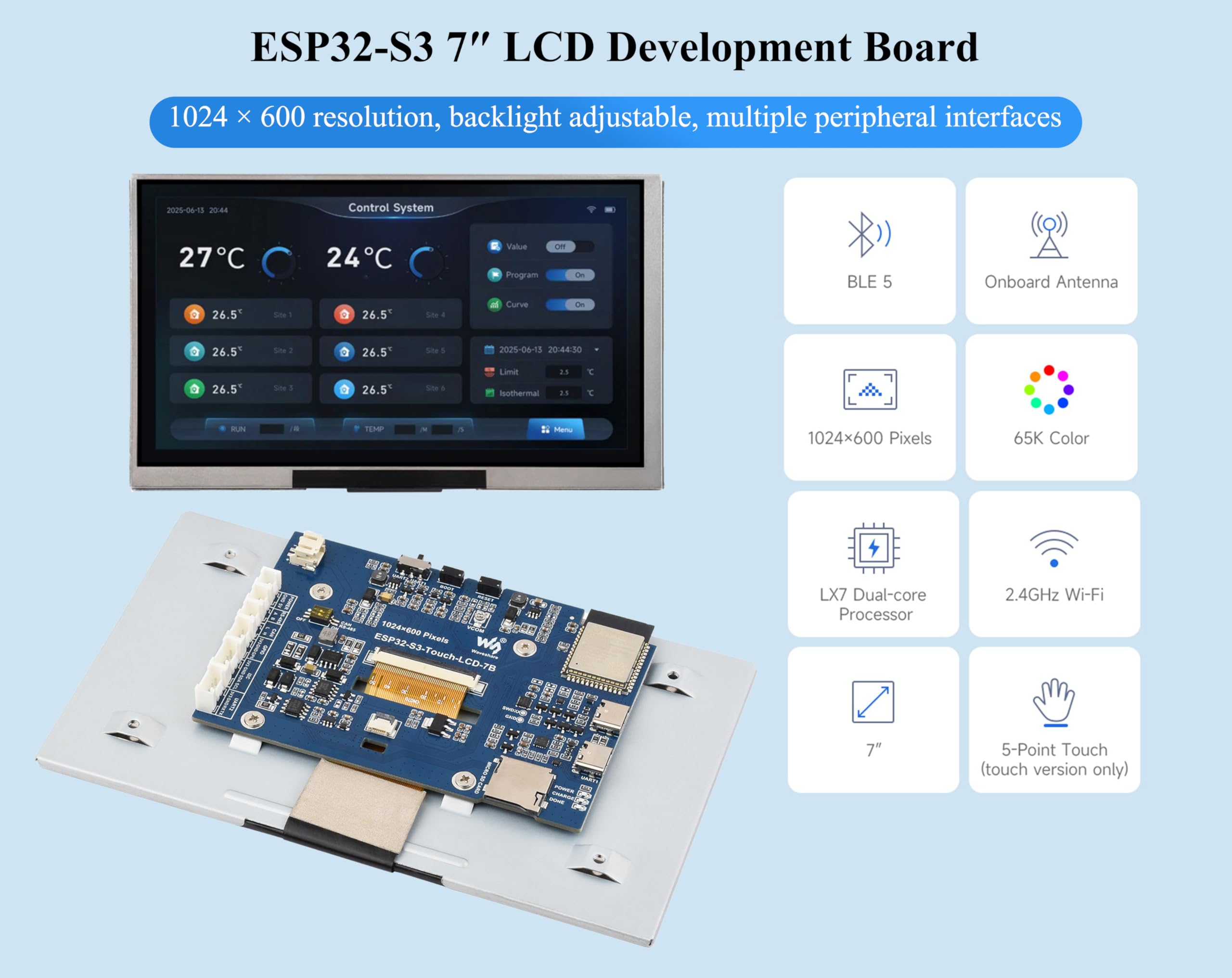

ESP32-S3 7inch Display Development Board, ESP32 with Display, 1024×600, 32-bit LX7 Dual-Core Processor, Up to 240MHz, Supports WiFi & Bluetooth, with Onboard Antenna, Multiple Peripheral Interfaces
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•This product is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.
•Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.

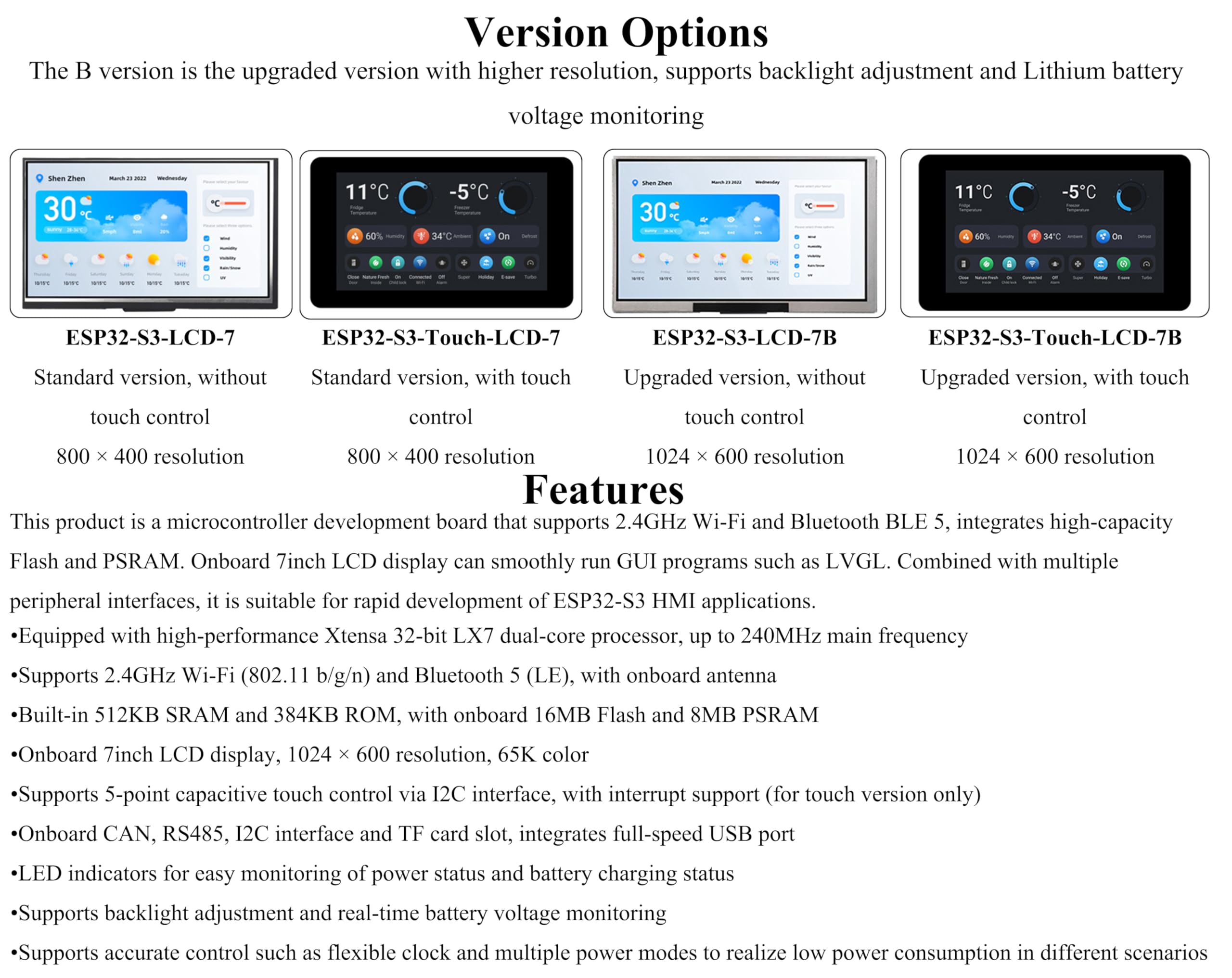

•Onboard 7inch LCD display, 1024 × 600 resolution, 65K color. IPS Display Panel, excellent display performance, 170° viewing angle. ( This Version 7inch LCD is without Touch Function)

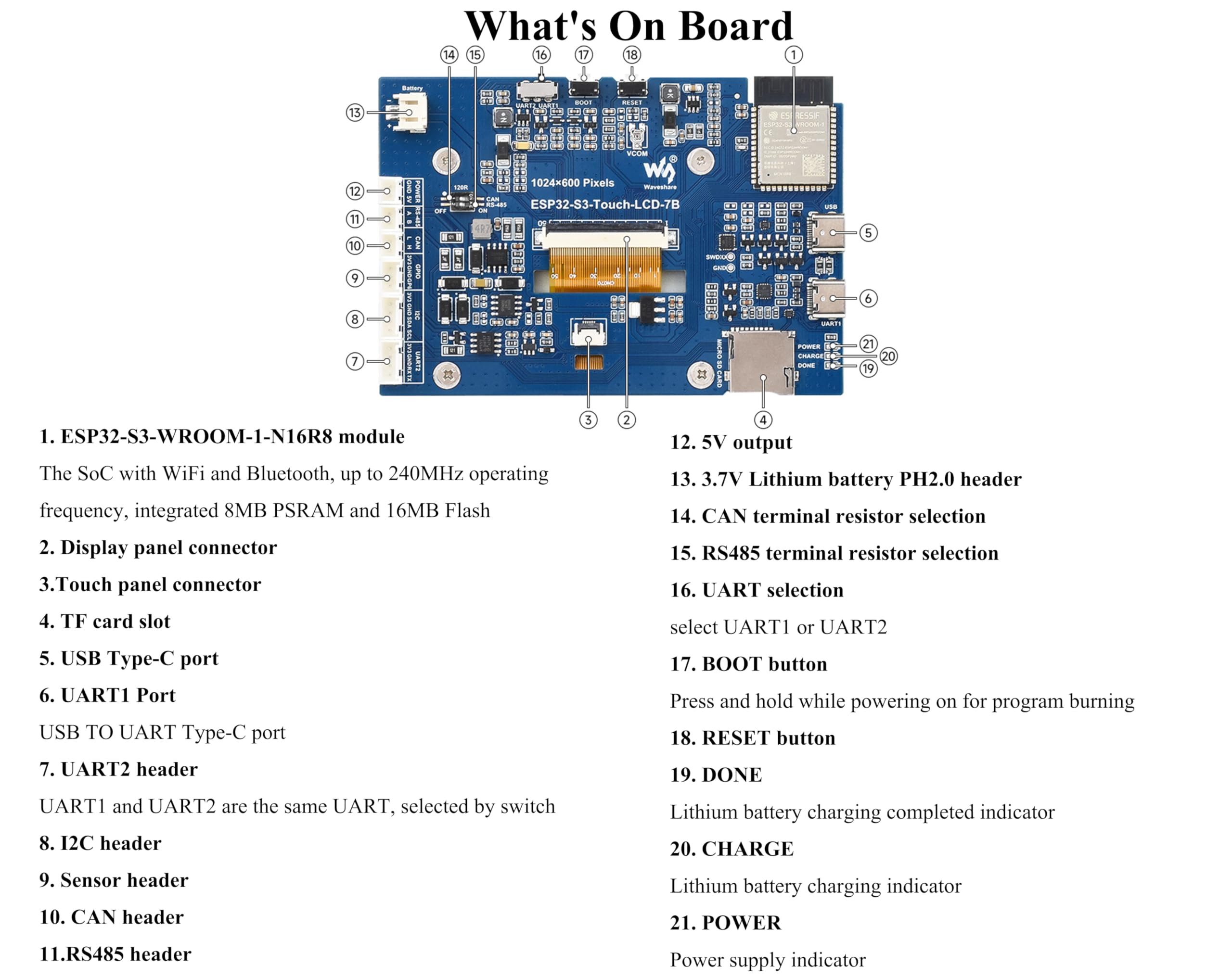

•Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port. Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces. LED indicators for easy monitoring of power status and batt-ery charging status.
•Supports backlight adjustment and real-time battery voltage monitoring. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios.
•Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/wj7v91
