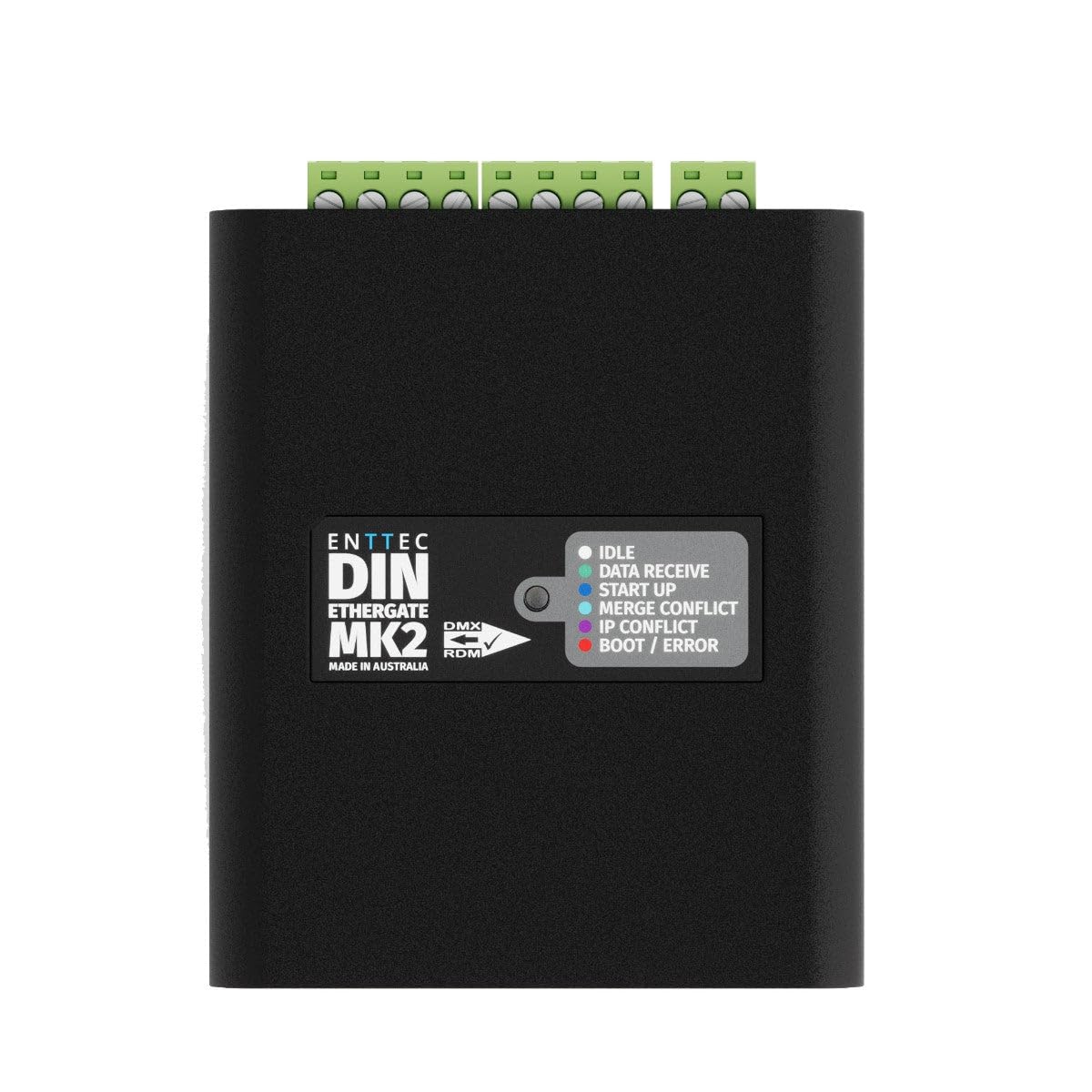

ENTTEC DIN Ethergate Mk2 POE 71031 2 Universe Bi-Directional Ethernet to Dual DMX RDM Converter, DMX500K Compatible
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Easy web page configuration: The configuration is managed through the localhost web interface to simplify commissioning and updates as well as to allow the DIN Ethergate Mk2 to be configured from any computer on your network.
•Flexible power options: Power the DIN Ethergate using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input. NOTE: when daisy-chained in series, only the first device will receive PoE. Subsequent devices require PoE injector individually to be powered via an Ethernet port.

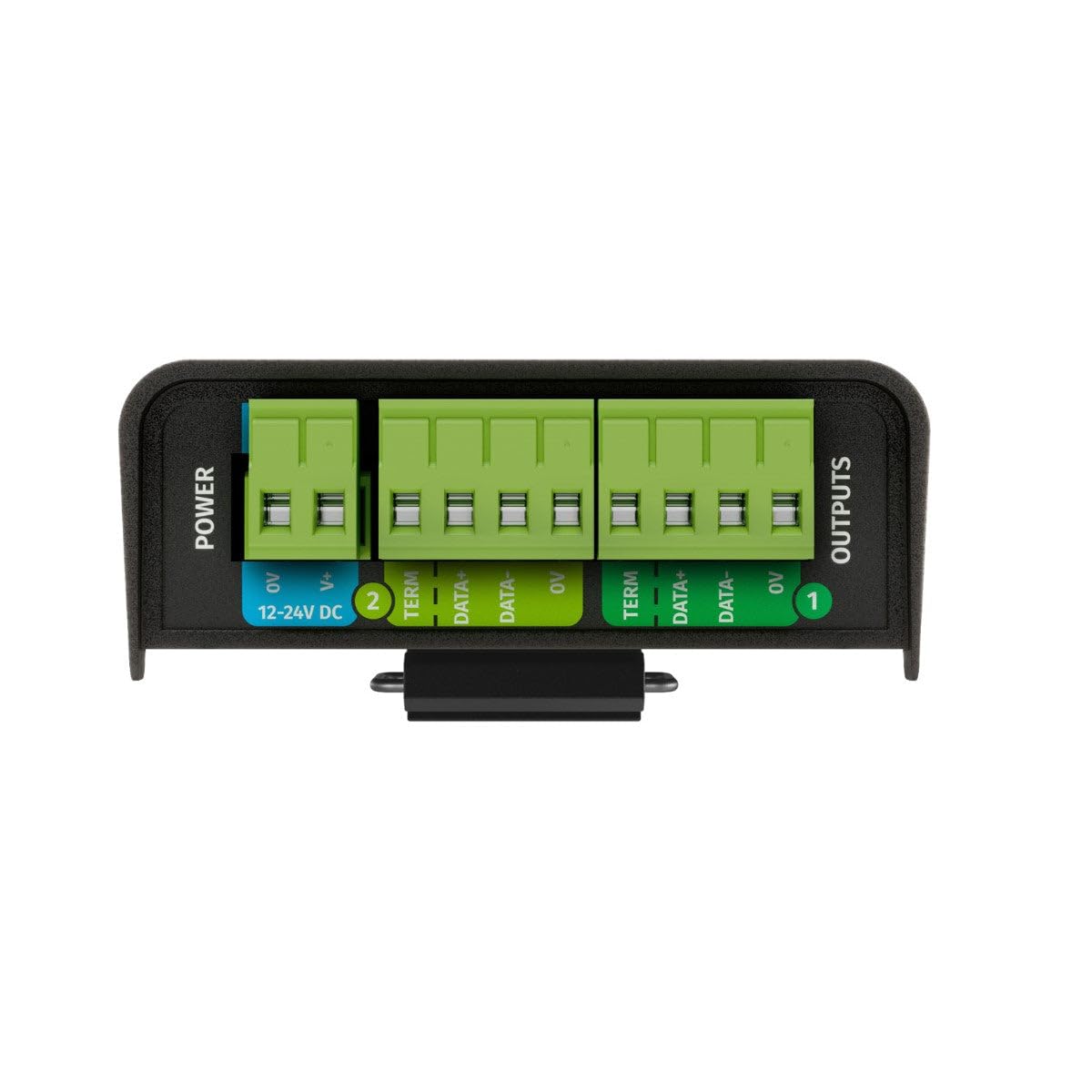

•Time-saving + installer-friendly: Our Ethernet to DMX converter is packed with installer-friendly features including pluggable terminal connectors and inbuilt DMX termination to simplify wiring. Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the web interface to troubleshoot your installation. Upon receiving power, the device is ready to go within seconds.
•Sync mode: All ENTTEC Ethernet hardware accepts sACN Sync as well as ArtSync to fully synchronize Art-Net data for all output ports and across your installation when receiving Art-Net from the same source.

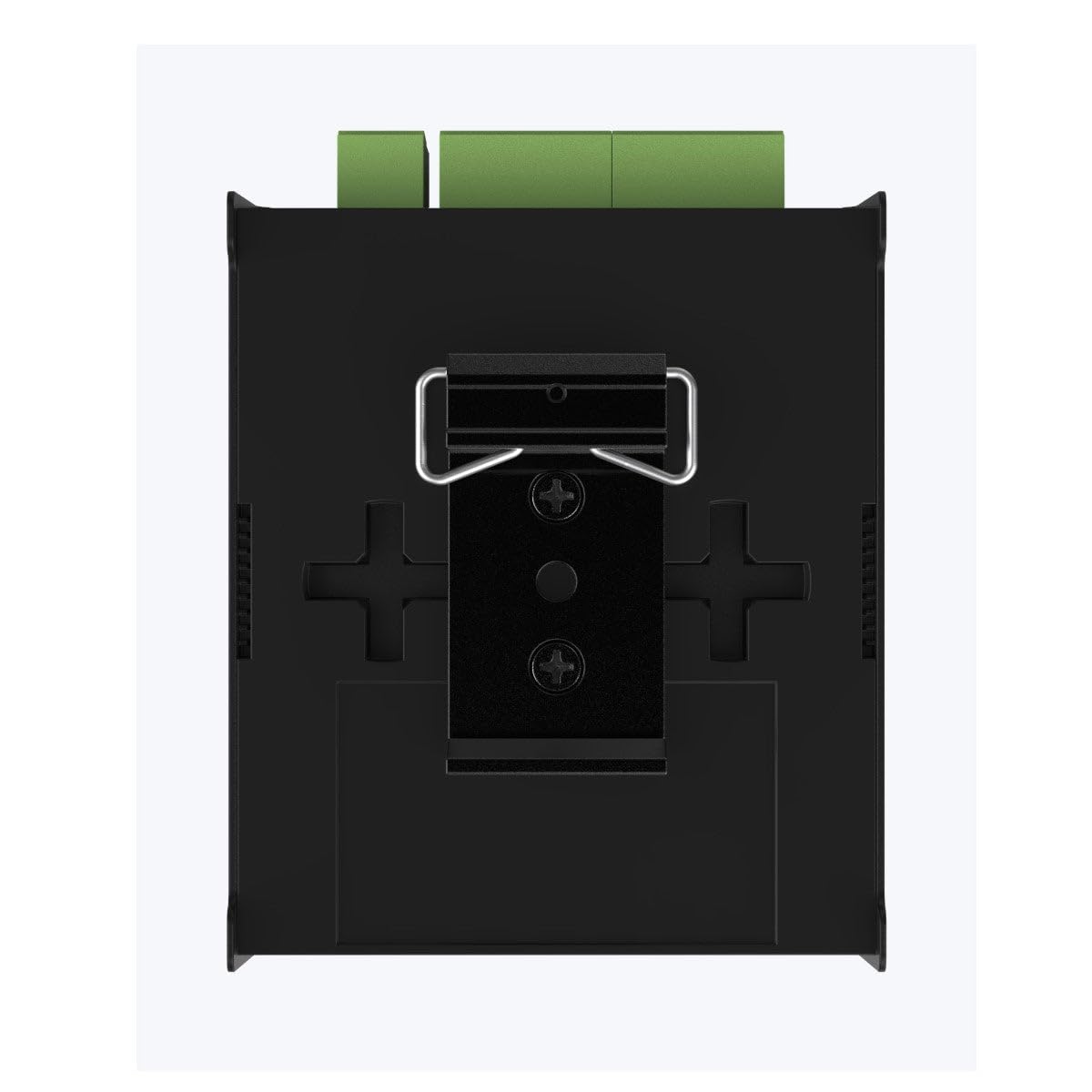

•Choice of mounting options: Featuring a 4-DIN-module electrically-insulated housing, the DIN Ethergate MK2’s slim form includes a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.
•Overdrive Mode: Output data at a higher transmission rate (500Kbps) to control of up to 2 Universes per port for DMX500K-compatible fixtures. IMPORTANT: DMX500K is incompatible with standard DXM512-A fixtures and does not conform to ANSI E1.11 – 2024. Do not use Overdrive Mode with unsupported fixtures. ENTTEC’s DMX Neon Flex is a compatible fixture supporting Overdrive Mode.
