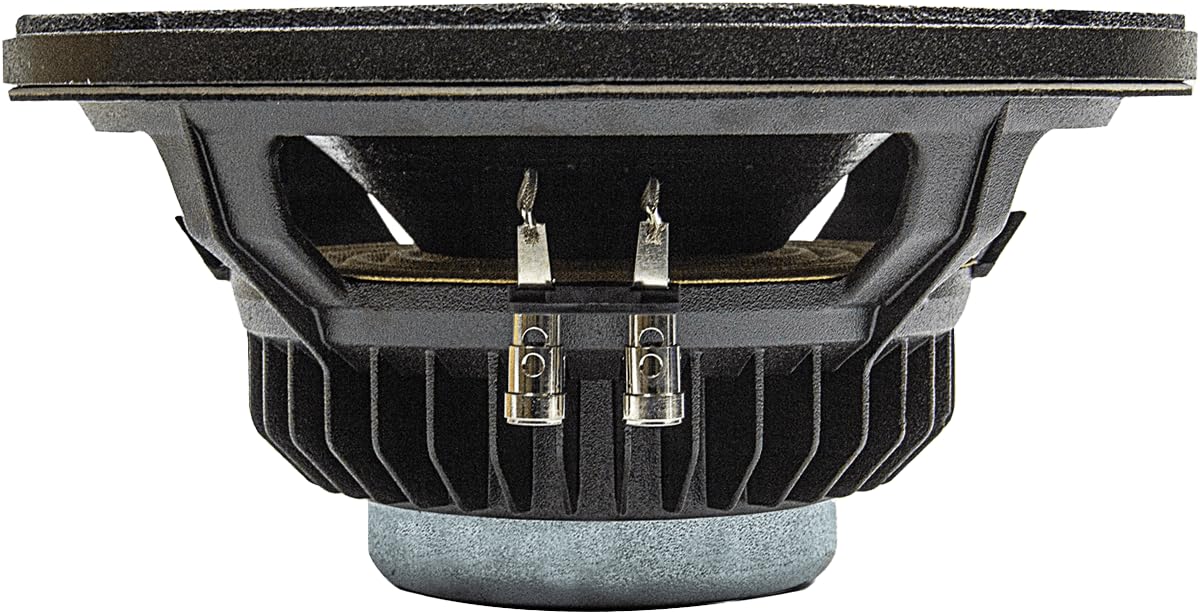

Eminence CannaBass CB3010N-8 10-inch HP Bass Guitar Speaker 450 Wrms 900 Watts Peak 8 Ohm Neodymium 3-in Voice Oil Vented Fiberglass

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•SPECIFICATION
•Nominal Basket Diameter : 10", 254 mm
•Nominal Impedance* : 8 Ω
•Power Rating* :
•Program Power : 900 W
•Watts : 450 W
•Resonance : 41.62 Hz
•Usable Frequency Range : 43 Hz - 3.4 kHz
•Sensitivity* : 94 dB
•Magnet Weight : 11 oz.
•Gap Height : 0.365", 9.27 mm
•Voice Coil Diameter : 3", 76.2 mm
•THIELE & SMALL PARAMETERS (1)
•Resonant Frequency (fs) : 41.62 Hz
•DC Resistance (Re) : 5.62 Ω
•Coil Inductance (Le) : 0.62m H
•Mechanical Q (Qms) : 7.95
•Electromagnetic Q (Qes) : 0.25
•Total Q (Qts) : 0.25
•Compliance Equivalent Volume (Vas) : 55.22 liters / 1.95 cu.ft.
•THIELE & SMALL PARAMETERS (2)
•Peak Diaphragm Displacement Volume (Vd) : 244.23 cc
•Mechanical Compliance of Suspension (Cms) : 0.28 mm/N
•BL Product (BL) : 17.22 T-M
•Diaphragm Mass Inc. Airload (MMs) : 51.42 grams
•Efficiency Bandwidth Product (EBP) : 163.48
•Maximum Linear Excursion (Xmax) : 6.48 mm
•Surface Area of Cone (Sd) : 376.9 cm2
•Maximum Mechanical Limit (Xlim) : 14.16 mm
•MOUNTING INFORMATION
•Vented : Acceptable
•Driver Volume Displaced : 64.68 cu.in. / 1.06 liters
•Overall Diameter : 10.25", 260.35 mm
•Baffle Hole Diameter : 9.12", 231.65 mm
•Front Sealing Gasket : Yes
•Rear Sealing Gasket : Yes
•Mounting Holes Diameter : 0.28", 7.112mm
•Mounting Holes B.C.D. : 9.73", 247.14mm
•Depth : 4.25", 108 mm
•Net Weight : 7.1 lbs, 3.22 kg
•Shipping Weight : 8.9 lbs, 4.04 kgs
•MATERIALS OF CONSTRUCTION :
•Coil Construction : Inside/Outside copper voice coil
•Coil Former : Fiberglass former
•Magnet Composition : Neodymium magnet
•Core Details : Vented core
•Basket Materials : Cast Aluminum Basket
•Cone Composition : CBD treated paper cone
•Cone Edge Composition : Cloth cone edge
•Dust Cap Composition : Hempylene paper dustcap
