new | Electronic Load Tester, 150W 200V 20A USB Load Tester, Adjustable Constant Current Electronic Load Battery Capacity Tester Module
Brand : Hongzer
new | Electronic Load Tester, 150W 200V 20A USB Load Tester, Adjustable Constant Current Electronic Load Battery Capacity Tester Module
Brand : Hongzer

₹ 12,197.00
M.R.P :₹ 20,328.00

40% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 12,197.00
M.R.P : ₹ 20,328.00

40% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB083V42CTY
CategoryTools & Home Improvement
SubcategoryMulti Testers
LeafcategoryHome Improvement
MPNHongzeriuyqv8k9xe
Colorred
OriginUSA
BrandnameHongzer
Height1
Length1
Width1
Weight2
Product Details
【SAFETY】This Battery Capacity Tester, LCD screen, display information comprehensively and clearly. The CPU fan can effectively dissipate the heat. Configuration of intelligent fan, which can dissipate the heat effectively and quietly. Load maximum power 150W, maximum voltage 200V, maximum current 20A. Over voltage, over current, and over pressure alarm can protect the module from damage effectively.
【SAFETY】This Battery Capacity Tester, LCD screen, display information comprehensively and clearly. The CPU fan can effectively dissipate the heat. Configuration of intelligent fan, which can dissipate the heat effectively and quietly. Load maximum power 150W, maximum voltage 200V, maximum current 20A. Over voltage, over current, and over pressure alarm can protect the module from damage effectively.
【SAFETY】This Battery Capacity Tester, LCD screen, display information comprehensively and clearly. The CPU fan can effectively dissipate the heat. Configuration of intelligent fan, which can dissipate the heat effectively and quietly. Load maximum power 150W, maximum voltage 200V, maximum current 20A. Over voltage, over current, and over pressure alarm can protect the module from damage effectively.
【USED WIDELY】This multifunction constant current electronic load can measure voltage, current, power, battery capacity, impedance, temperature, energy, time. Test various batteries, DC power supply, and charging data lines.
【SPECIFICATION】Voltage measurement range: 0.00V ~ 200V, Resolution accuracy: 0.01V. Current measurement range: 0.00A ~ 20A, Resolution accuracy: 0.01A. Refresh time: > 500mS / times Measurement rate: about 0.5 times / sec.
【OVER VOLTAGE OVER CURRENT SET THE ALARM MODE】Show alert interface to remind the user. Overpressure Reminder Setting range: 1 ~ 200V. Low voltage reminder setting range: 0 ~ 190V. Overflow Reminder Set Range: 0.2 ~ 100A.
【PRODUCT MANUAL】Please turn down the knob to the end counterclockwise before using, and then turn up slowly. Please pay attention to your safety when the voltage is more than 36V. Several tested power supply can not be connected simultaneously. The current adjustment knob should be regulated slowly.
What's Inside The Box ?
inc
Product Ranking
#1582 in Multi Testers
#889358 in Tools & Home Improvement
Product Description
Specification:
Input Interface / Output Interface: 100A High Current Bite Screw Stud
Voltage measurement range: 0.00V ~ 200V, Resolution accuracy: 0.01V
Current measurement range: 0.00A ~ 20A, Resolution accuracy: 0.01A
Capacity accumulation range: 0 ~ 999.999Ah, Resolution accuracy: 0.01Ah
Power accumulation range: 0 ~ 9999.9Wh, Resolution accuracy: 0.01Wh
Power measurement range: 0000.00 ~ 150W, Resolution accuracy: 0.01W
Impedance measurement range: 1 ~ 999.9Ω, Resolution accuracy: 0.01 Ω
Temperature measurement range: 0 ~ 99 ℃, Resolution accuracy: 1 ℃
Timing maximum time: 999 hours 59 minutes 59 seconds, Resolution accuracy: 1 second
Timing measurement reminder settings: countdown 24 hours, any value can be set
Small current standby to remind the threshold parameters and timing: <2W / 0.5 hours; > 0.5W begin timing
Power supply: 4 ~ 30V range of DC voltage
Refresh time: > 500mS / times
Measurement rate: about 0.5 times / sec
Over voltage Over current Set the alarm mode: Show alert interface to remind the user

Note:
1. Please turn down the knob to the end counterclockwise before using, and then turn up slowly.
2. Please pay attention to your safety when the voltage is more than 36V.
3. Several tested power supply can not be connected simultaneously.
4. The current adjustment knob should be regulated slowly.

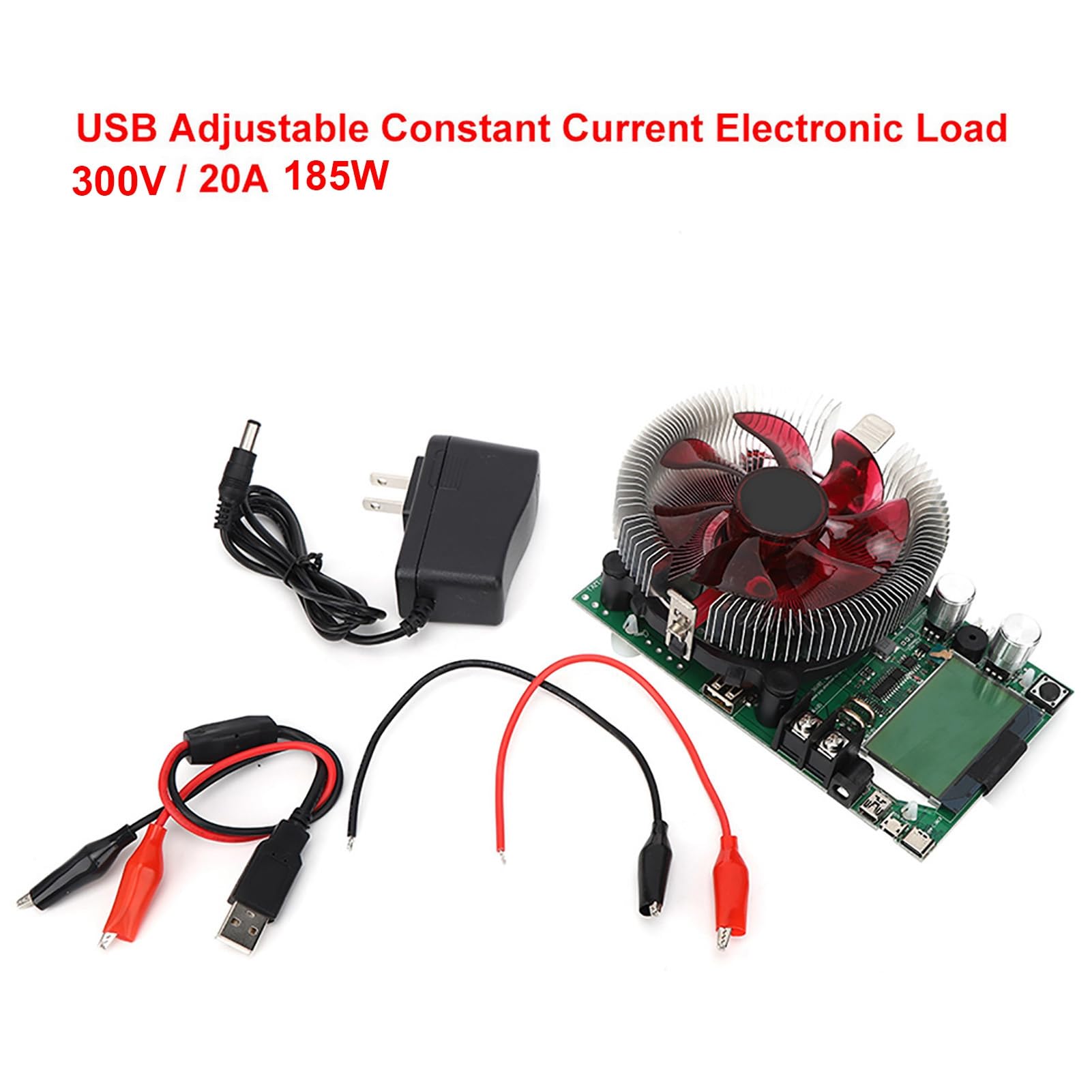

Package Include:
1 x Adjustable Constant Current Electronic Load
1 x Charger
2 x Crocodile Clip

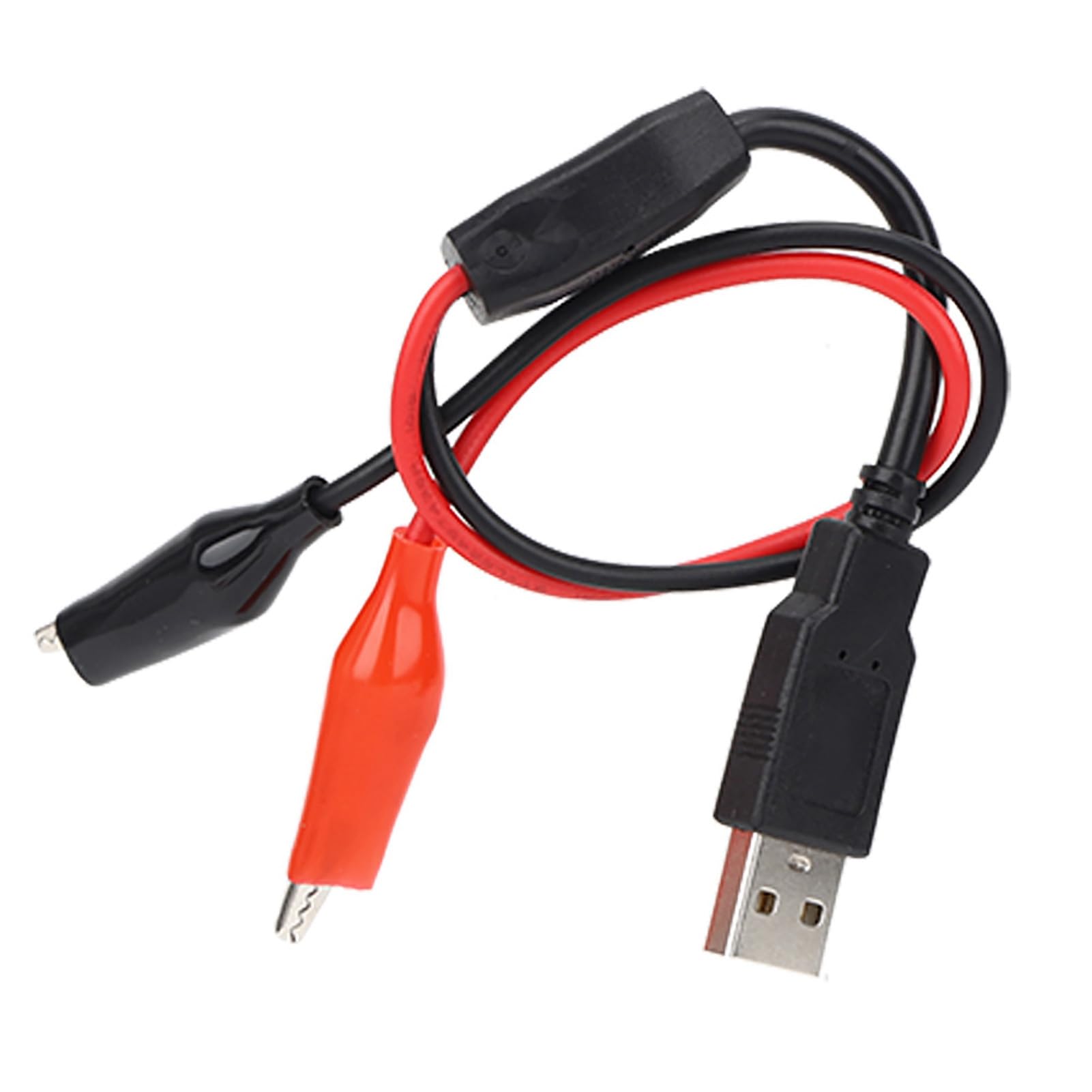

1 x USB Crocodile Clip
(Other items in the picture are NOT included)
Product Description
Specification:
Input Interface / Output Interface: 100A High Current Bite Screw Stud
Voltage measurement range: 0.00V ~ 200V, Resolution accuracy: 0.01V
Current measurement range: 0.00A ~ 20A, Resolution accuracy: 0.01A
Capacity accumulation range: 0 ~ 999.999Ah, Resolution accuracy: 0.01Ah
Power accumulation range: 0 ~ 9999.9Wh, Resolution accuracy: 0.01Wh
Power measurement range: 0000.00 ~ 150W, Resolution accuracy: 0.01W
Impedance measurement range: 1 ~ 999.9Ω, Resolution accuracy: 0.01 Ω
Temperature measurement range: 0 ~ 99 ℃, Resolution accuracy: 1 ℃
Timing maximum time: 999 hours 59 minutes 59 seconds, Resolution accuracy: 1 second
Timing measurement reminder settings: countdown 24 hours, any value can be set
Small current standby to remind the threshold parameters and timing: <2W / 0.5 hours; > 0.5W begin timing
Power supply: 4 ~ 30V range of DC voltage
Refresh time: > 500mS / times
Measurement rate: about 0.5 times / sec
Over voltage Over current Set the alarm mode: Show alert interface to remind the user

Note:
1. Please turn down the knob to the end counterclockwise before using, and then turn up slowly.
2. Please pay attention to your safety when the voltage is more than 36V.
3. Several tested power supply can not be connected simultaneously.
4. The current adjustment knob should be regulated slowly.

Package Include:
1 x Adjustable Constant Current Electronic Load
1 x Charger
2 x Crocodile Clip
1 x USB Crocodile Clip
(Other items in the picture are NOT included)
