EC Buying 4Pcs PD QC AFC Fast Charge Decoy Trigger Module USB-PWR Module Supports 5V 9V 12V 15V 20V Fixed Voltage Output
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Fast charging support protocols: PD2.0/PD3.0, QC2.0/QC3.0, AFC
•Support voltage: Support inducing 5V, 9V, 12V, 15V, 20V voltages (voltage stepping not supported)

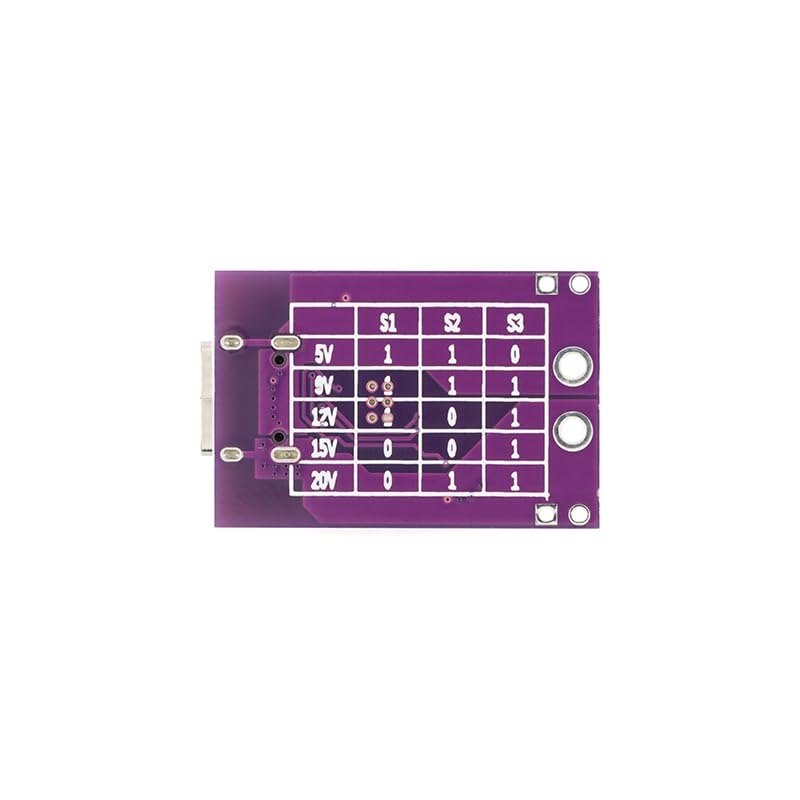

•Voltage regulation method: According to the table on the back of the board, adjust the dial switch to control the voltage output

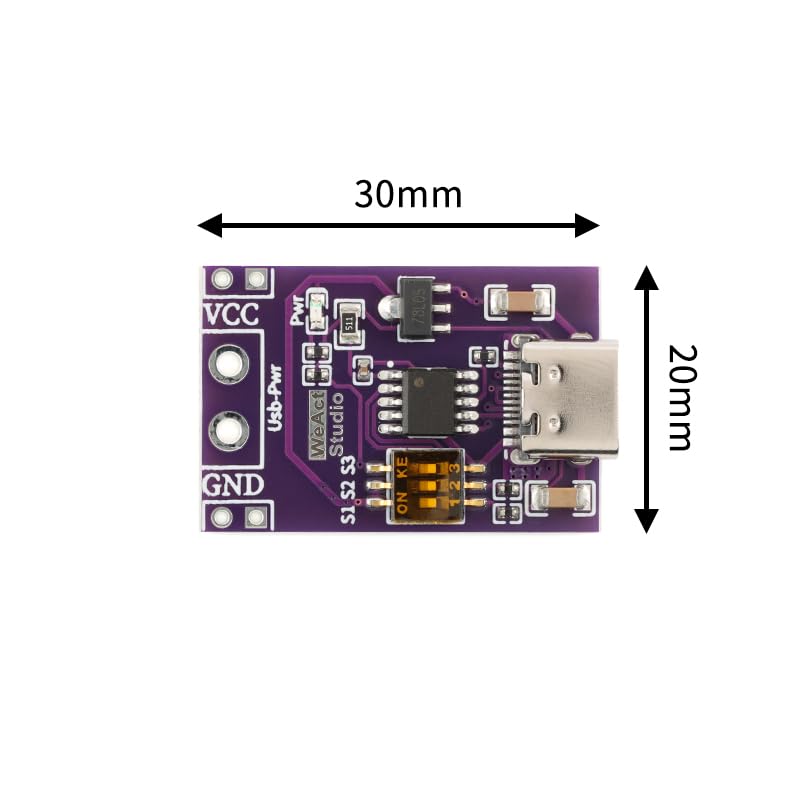

•Size: 30 * 20mm/1.18 * 0.79inch
•Note: 1. After adjusting the dial switch, as there is no voltage indicator light, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit. 2. If the dial switch is not adjusted according to the table, the module will output any of the above voltages.
