DWWTKL DIN Rail Mount Bracket for UNO Project UNO CH340 and R3 Terminal IO Extension Kit Compatible with Arduino IDE
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•This product is used for Arduino Uno CH340 as the main control, providing reliable connection and IO expansion with Proto Screw Shield, and mounting the 4-channel 5V relay module onto the DIN rail, expanding its application range to DIY project and education, the industrial control field.

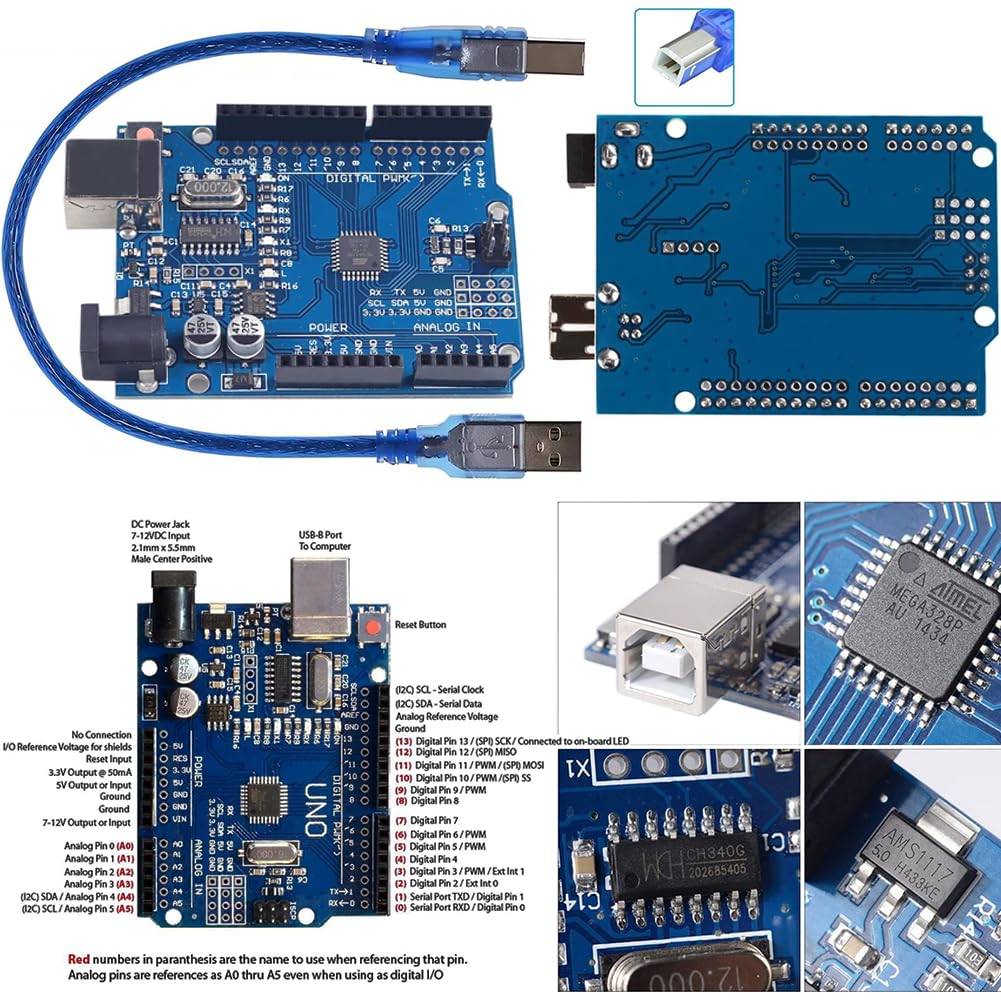

•The UNO R3 board with ATmega328P and CH340G chip is compatible with Arduino UNO R3, and comes with straight pin headers and a USB cable.

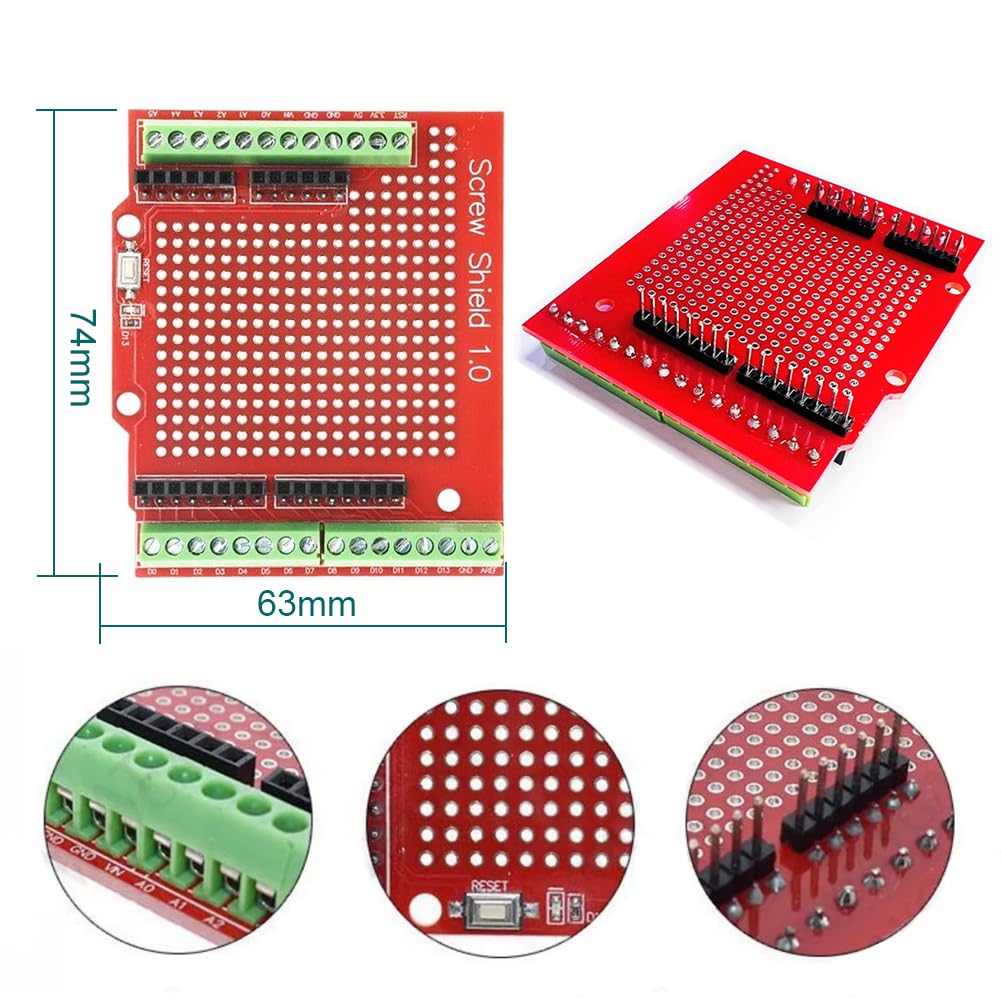

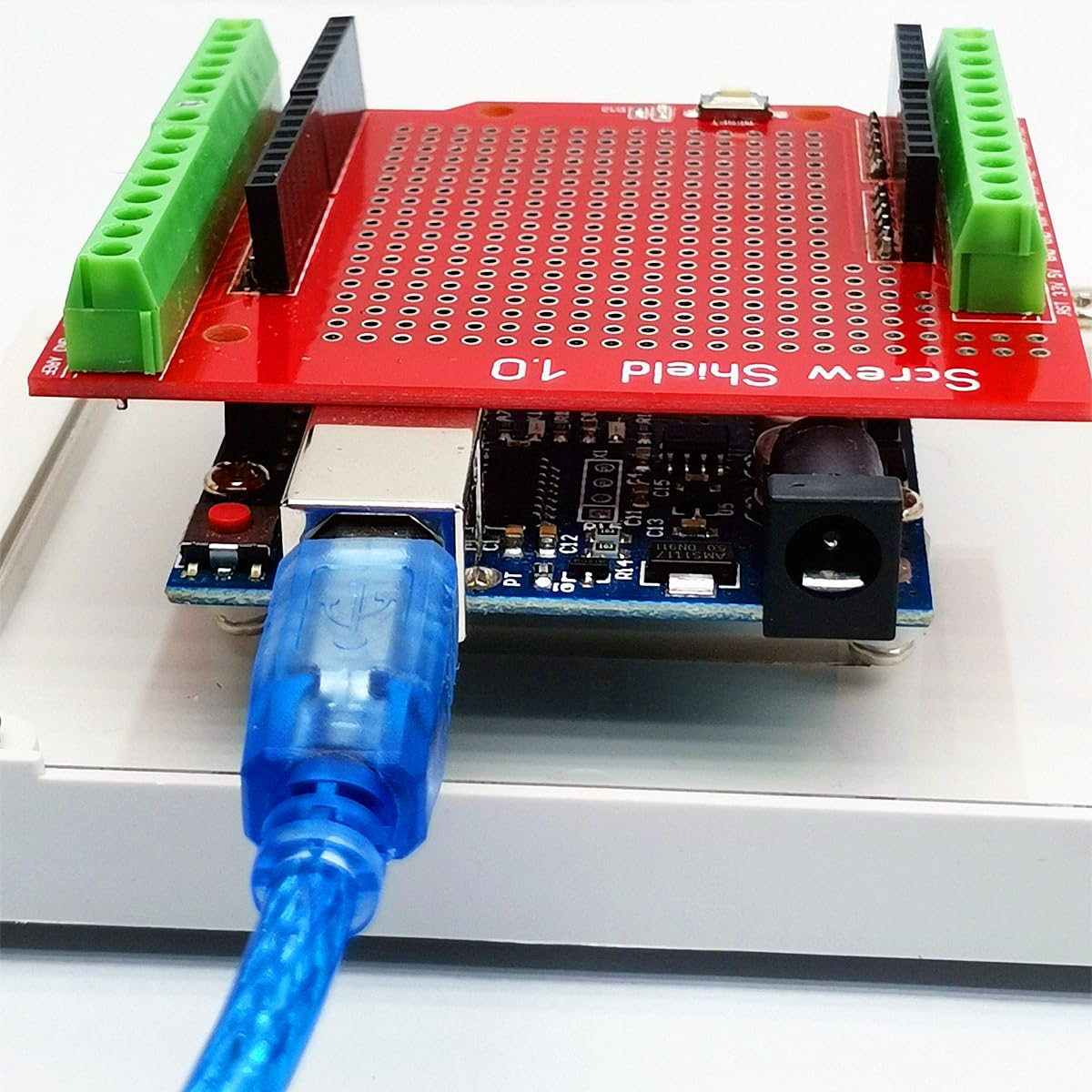

•Proto Screw Shield V1.0 Assembled is a prototype expansion board for UNO R3, providing IO screw terminals for convenient port connections, using high-quality 3.81 screw terminals, reliable, convenient, and durable. It can be combined with Proto Shield and used as a prototype expansion board. The prototype expansion area has double-sided PCB pinhole connections, components can be soldered on both sides, and there are SMD pads on the back for easy wire connections. The middle part can accommodate a small breadboard for convenient experimentation.
•The high-quality DIN rail feed-in ensures stable installation and can support a 35mm wide DIN rail. It supports horizontal mounting. The bracket is made of engineering ABS plastic, very lightweight, and highly durable.

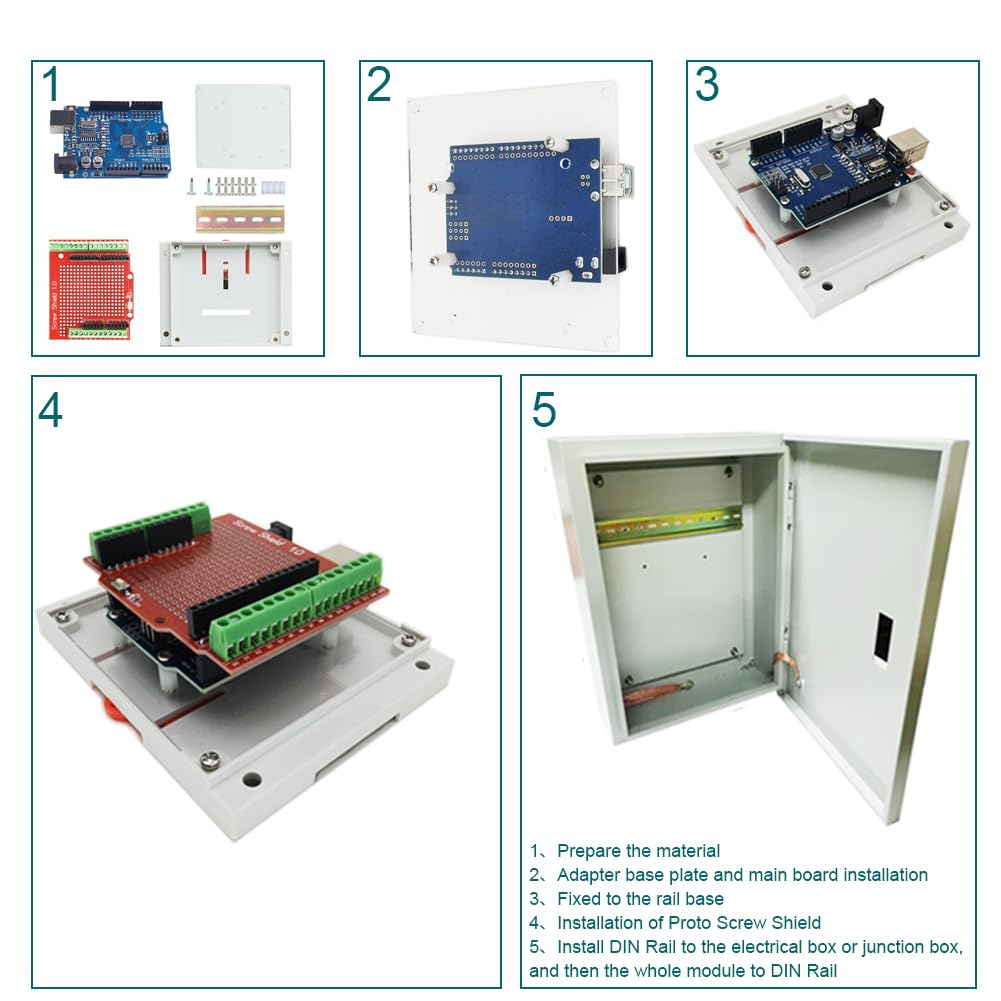

•The package includes: 1 plastic bracket, 1 100mm DIN rail, 12 pan head screws M3x5mm, 2 installation screws, 1 circuit board adapter, 1 Arduino Uno CH340, and 1 Proto Screw Shield V1.0 Assembled.
