Duct Mounting Temperature Humidity Sensor HVAC, Hospitals, Lab | Shop The World
From USA
NewAce Instruments

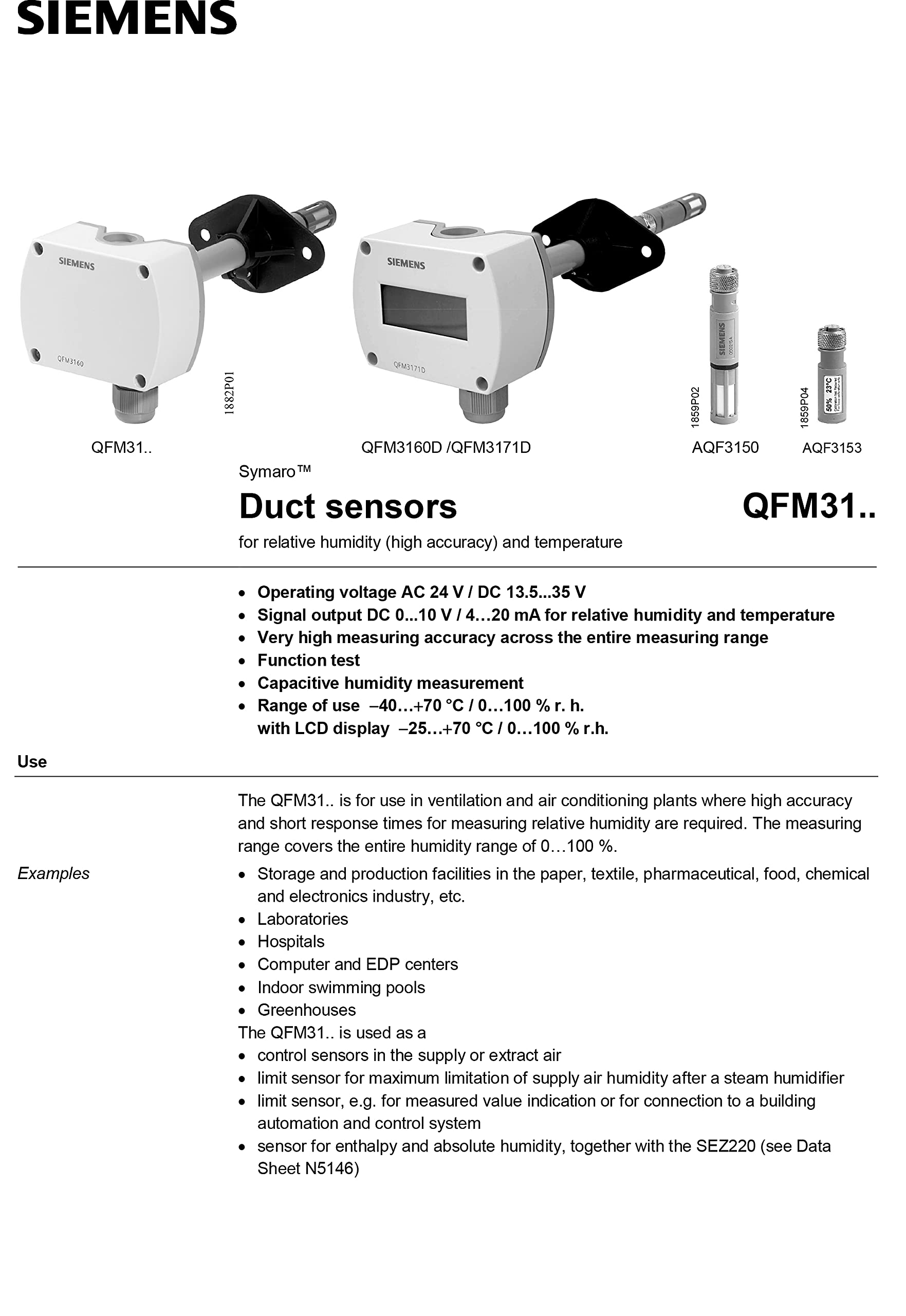

Duct Mounting Temperature and Humidity Sensor for HVAC, Hospitals, Laboratories, Cleanrooms, Computers and EDP Centres with Calibration Certificate Model: QFM3171D (with Display)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

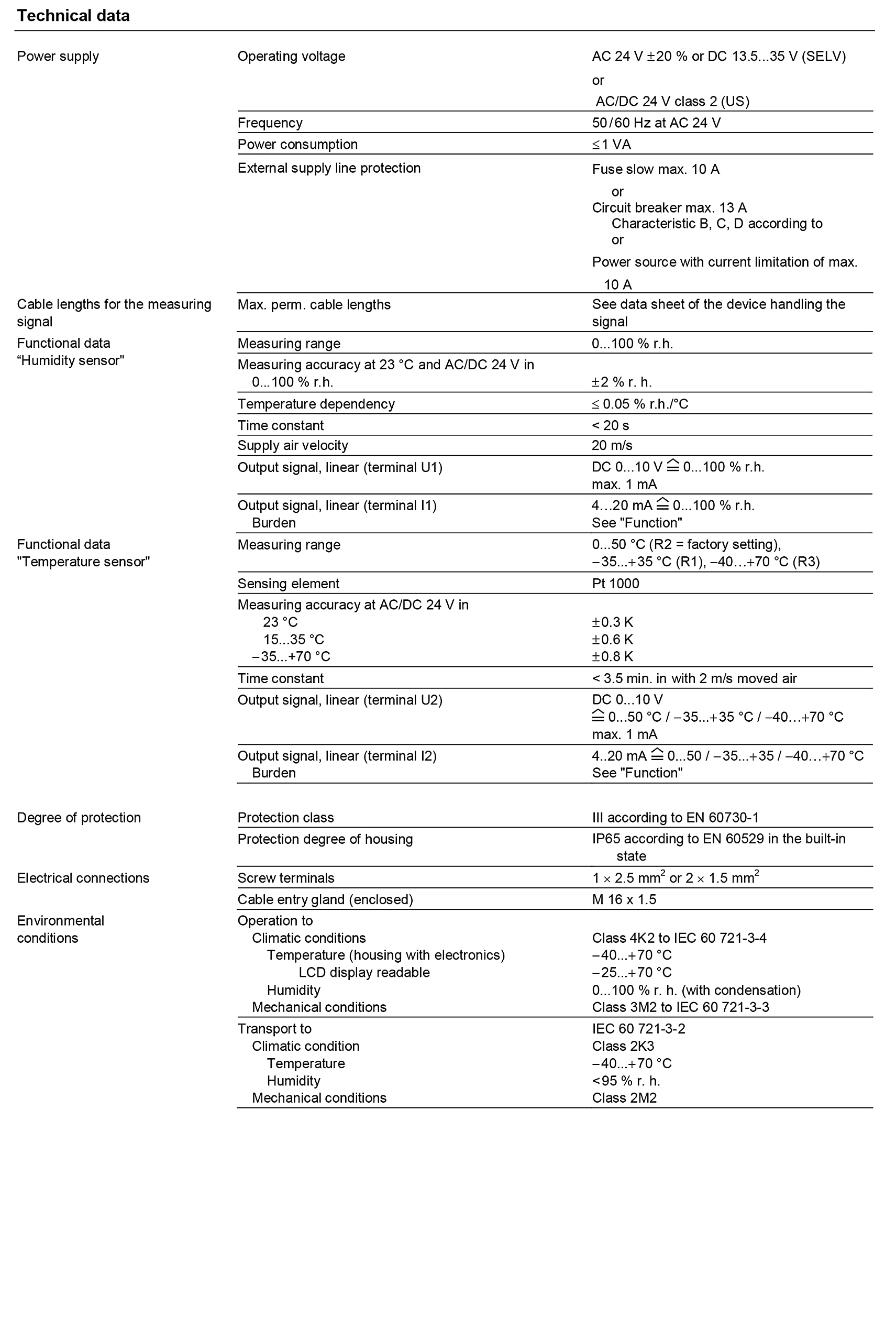

•Features: Very high measuring accuracy across the entire measuring range
•Function test
•Capacitive humidity measurement
•Signal output DC 0-10 V / 4-20 mA for relative humidity and temperature
•Range of use -40 to +70 °C / 0 to 100 % r. h.
•Temperature Range: Range: -31°F to 95°F / -35°C to 35°C; Accuracy: At 23°C: ±0.3 K; At 15 to 35°C: ±0.6 K; At -35 to +70°C: ±0.8 K
•Relative Humidity Range: 0 to 100% RH; Accuracy: At 0-100% r.h.: ±2 % r.h.
•Display: Clear LCD Display
•Operating Temperature: housing with electronics: -40 to +70°C; LCD display readable: -25 to +70 °C
•Operating Humidity: 0 to 100 % r.h. (with condensation)
•Signal Output Temperature: DC 0 to 10 V
•Siganl Output Humidity : DC 0 to 10 V
•Degree Of Protection(housing): IP65
•Immersion Lenth: 90 to 206 mm
•Time Constant: Humidity: 20s, Temperature: < 3.5 min. in with 2 m/s moved air
•Dimensions: 80 x 88 x 39 mm
•Connection Electrical: Screw terminals
•Weight: 0.225 kg.
•Supply Scope: 1 Unit Duct Sensor, Connecting Screw, Mounting Flange and Instruction Manual.
•Applications: Storage and production facilities in the paper, Texttile, Pharmaceutical,Food, Chemical, Electronics Industry, Laboratories, Hospitals, Computer and EDP Centres.
