Dual Gigabit Ethernet Base Board for Raspberry Pi Compute Module 4 Lite/EMMC Series Module,with ETH/CSI/DSI/RTC/HDMI/Micro SD/USB Interfaces

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

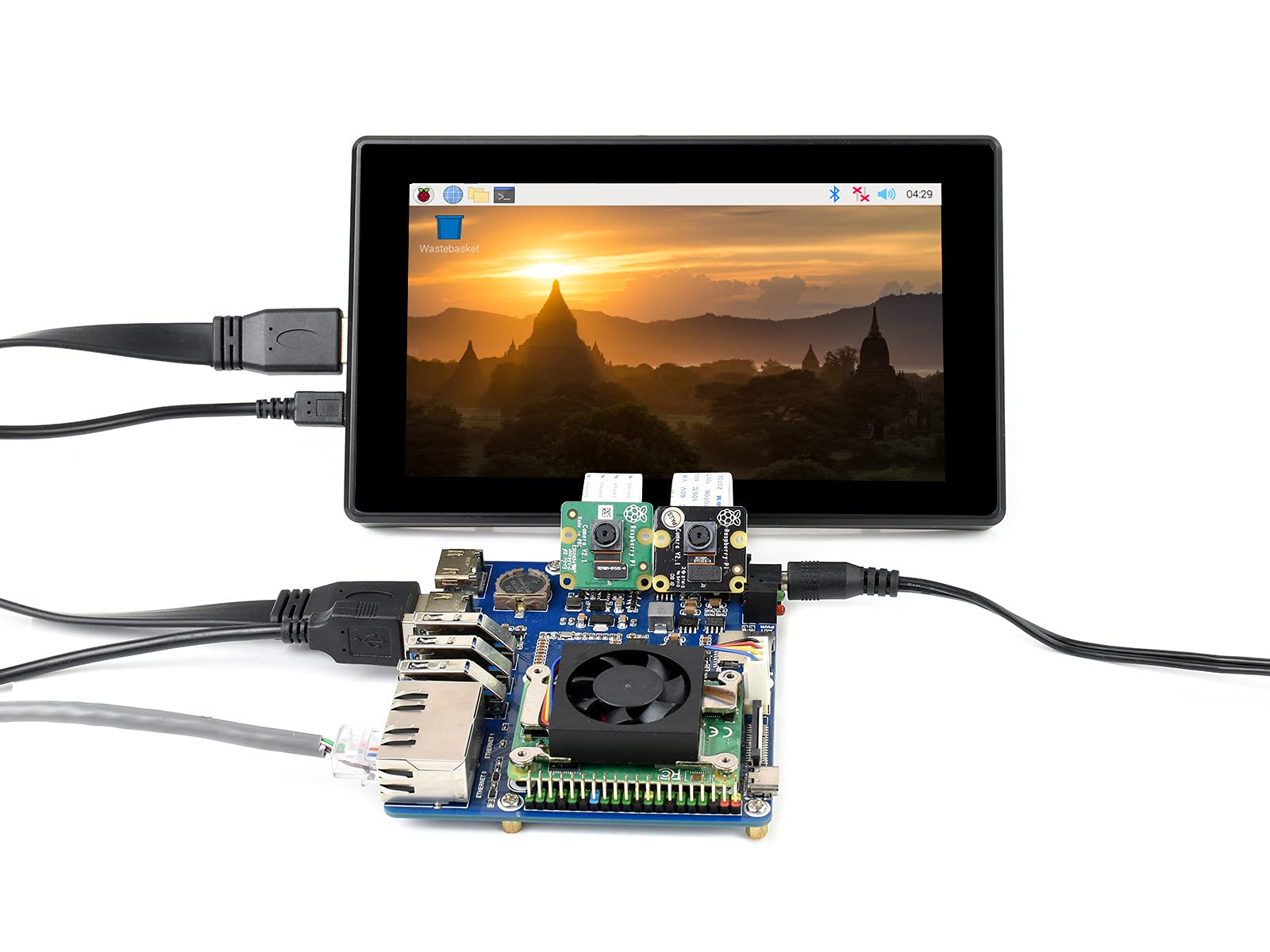

•Powerful Ethernet Capability: Dual Gigabit Ethernet Base for All Compute Module 4 Lite/eMMC series module boards, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products
•Connecting with Compute Module 4: standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header suitable for All Compute Module 4 Lite/eMMC series module boards.

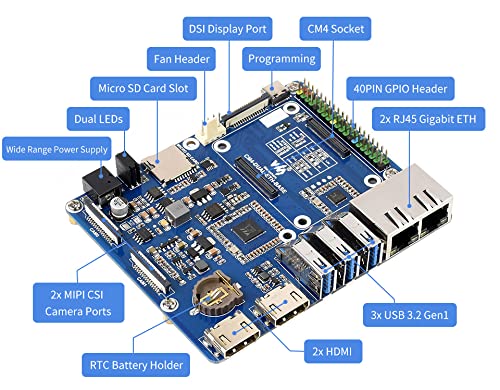

•Rich interfaces: providing interfaces including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB
•3x USB 3.2 Gen1, for connecting sorts of USB devices. 2x HDMI, supports 4K 30fps output. 2x MIPI CSI camera ports. dual RJ45 Gigabit Ethernet, 10/100/1000M compatible.
•Fan : 5V/12V, allows speed adjustment and measurement. RTC : Real-time clock with battery socket and ability to wake Compute Module 4.

Dual Gigabit Ethernet Base Board for Raspberry Pi Compute Module 4 Lite/EMMC Series Module,with ETH/CSI/DSI/RTC/HDMI/Micro SD/USB Interfaces

Dual Gigabit Ethernet Base Board for Raspberry Pi Compute Module 4 Lite/EMMC Series Module,with ETH/CSI/DSI/RTC/HDMI/Micro SD/USB Interfaces
