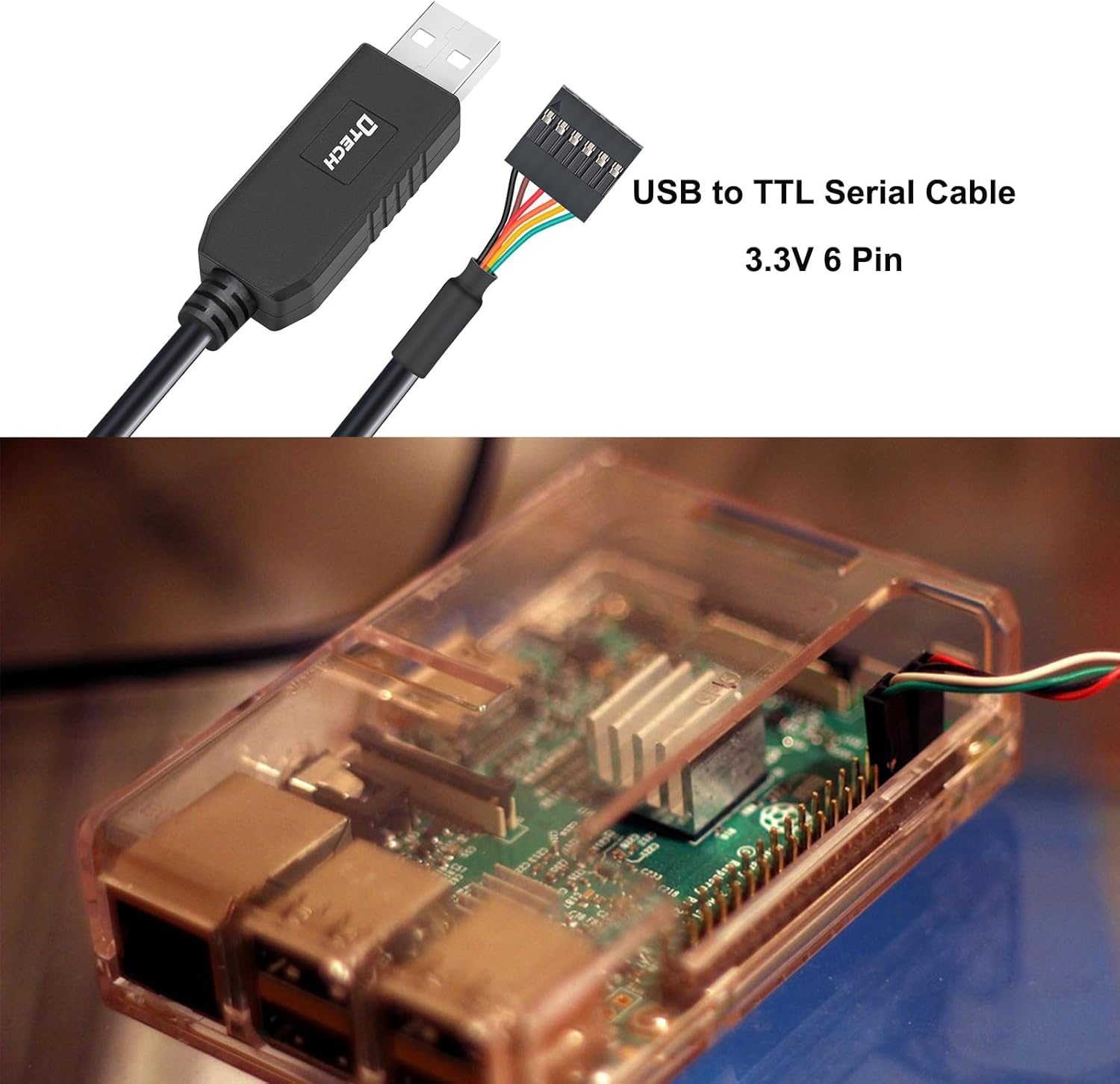

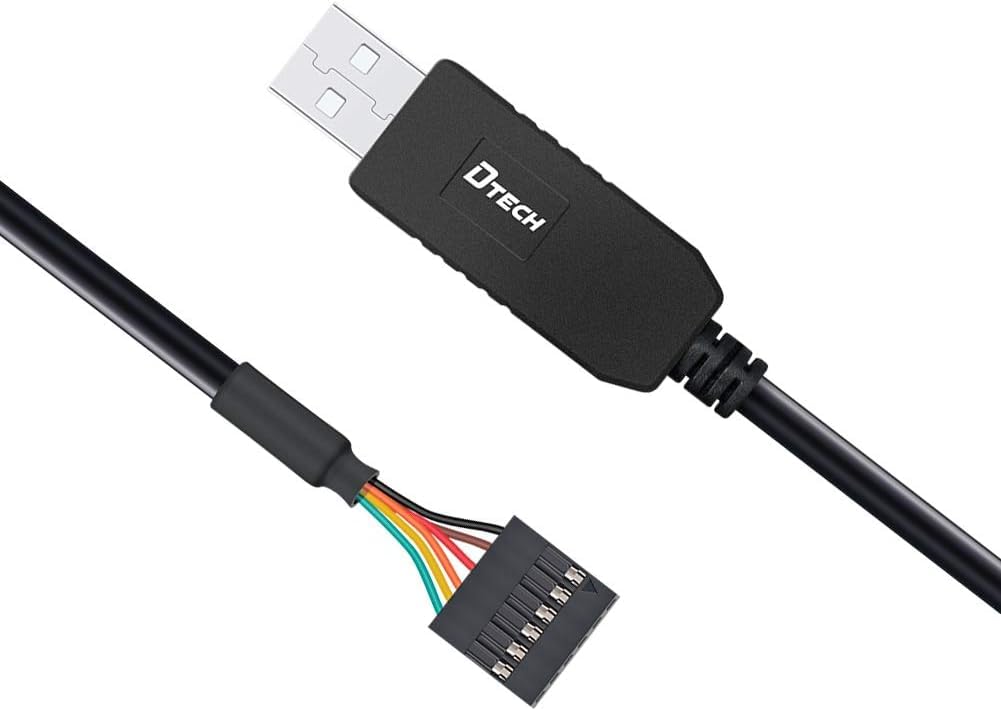

DTECH USB to TTL Serial Cable 3.3V 6 Pin UART Adapter Debug Cord Compatible with Windows 11 10 8 7 Linux MAC OS Genuine FT232RL Chip 6Pin 3v3 Level Signal 2.54mm Dupont Female Header (1M)
•3 ft short USB to TTL serial adapter with 6 pin 0.1” pitch female socket header connects devices with 3.3 V logic level UART signals interface to a laptop via USB 2.0 port (232r-3v3)

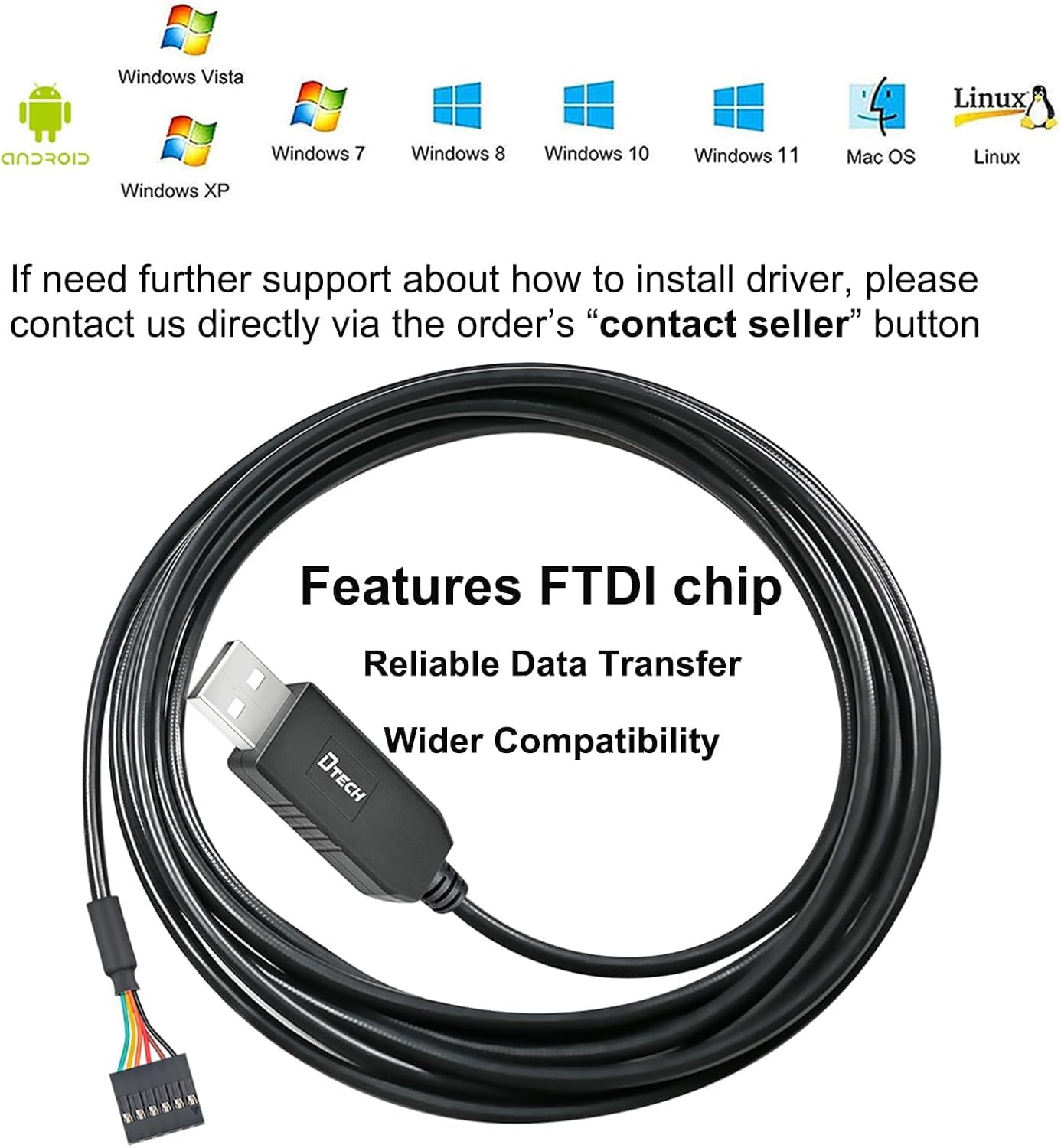

•3.3v TTL to USB cable is built with a genuine FT232R chip module in USB 2.0 type A male terminal for wider compatibility and reliable data transfer rates (TTL-232R-3V3)

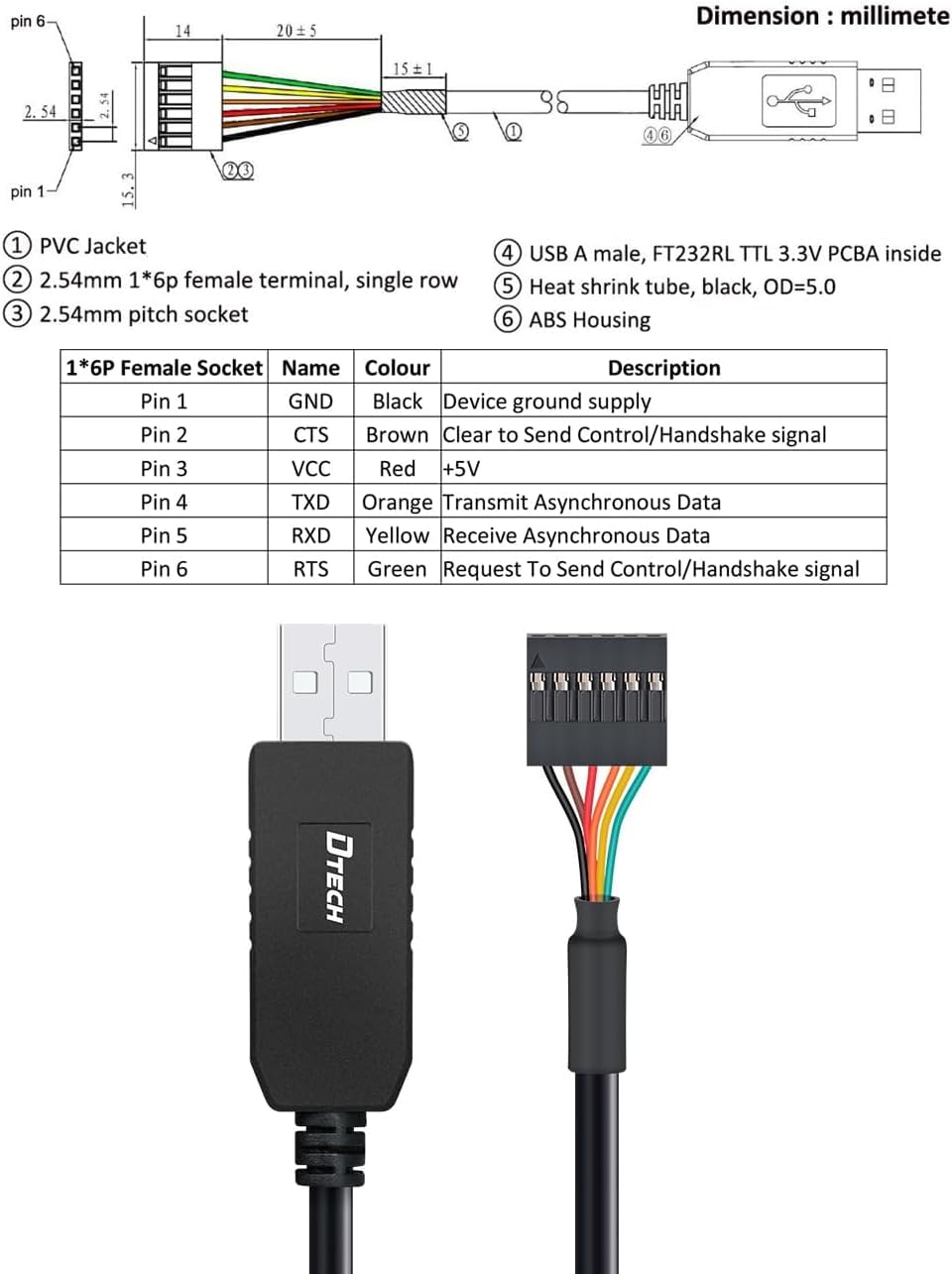

•3 feet USB to UART TTL serial cable 3.3 volt features 6 way outputs to provide access to Tx, Rx, RTS#, CTS#, VCC 5v and GND (power line provides 5V and data signal is at 3.3V)
•USB to TTL 3.3v built with FT232 FTDI chip on the PCB board has configurable internal EEPROM and 3V3 UART signals can be individually inverted by configuring the EEPROM
•USB-TTL converter chord is compatible with Windows 11, 10, 8, 8.1, 7, 2008/XP/Vista/CE, Mac OS, Linux; ideal USB 2.0 debug data communication cord for Vendor ID re-write, mini computer, router, printer, GPS, set top box, transmitter, flash firmware on hard drive, video display terminal, etc
