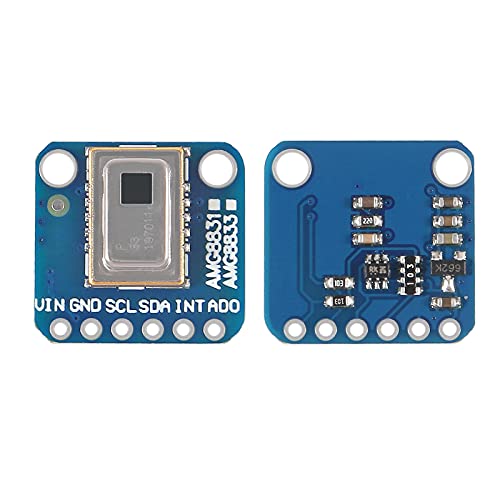

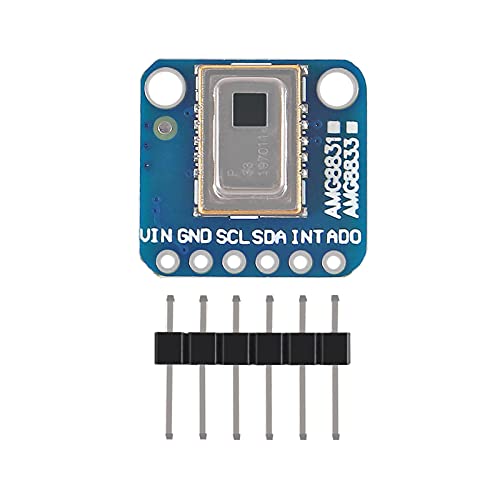

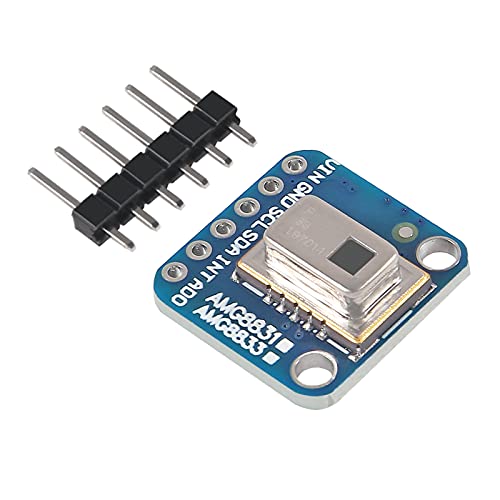

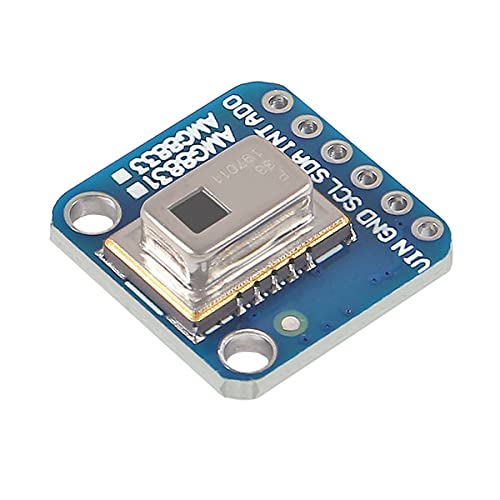

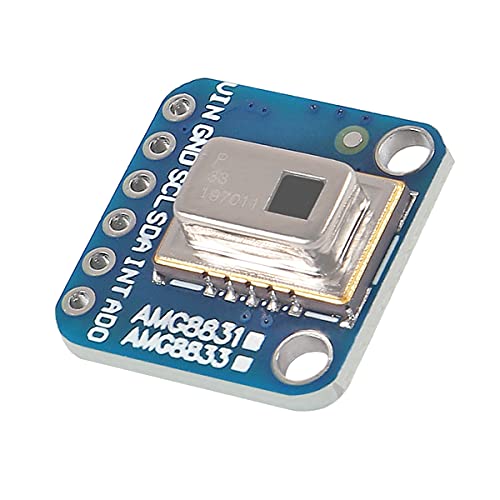

DORHEA AMG8833 8 * 8 IR Thermal Camera Sensor Breakout Imager Array Temperature Sensor Module Grid-Eye 8x8 Infrared Camera Module Array Board IIC I2C 3-5V for Raspberry Pi AMG-8833
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•AMG8833 of 8x8 thermal IR sensor, returns an array of 64 individual infrared temperature readings over I2C (default address 0x69, optional 0x68)
•The IR 8x8 sensor only supports I2C and has a configurable interrupt pin that can be triggered when any single pixel is above or below your set threshold.
•AMG8833 IR 8*8 thermal imager array temperature sensor module Simply supply power and connect the digital communication pins (I2C) to your motherboard, ESP8266, Raspberry Pi, etc.Perfect for creating your own human detector or mini thermal camera.
•AMG8833 compatible with both 5V and 3.3V power and logic.
•AMG8833 IR 8*8 Infrared sensor camera module can detect humans from a distance of up to 7 meters (23) feet. It is a perfect fit for creating your own human detector or mini camera.
