DORHEA 5Pcs YX5300 UART Control Serial MP3 Music Player Module | Shop The World
From USA
NewDORHEA

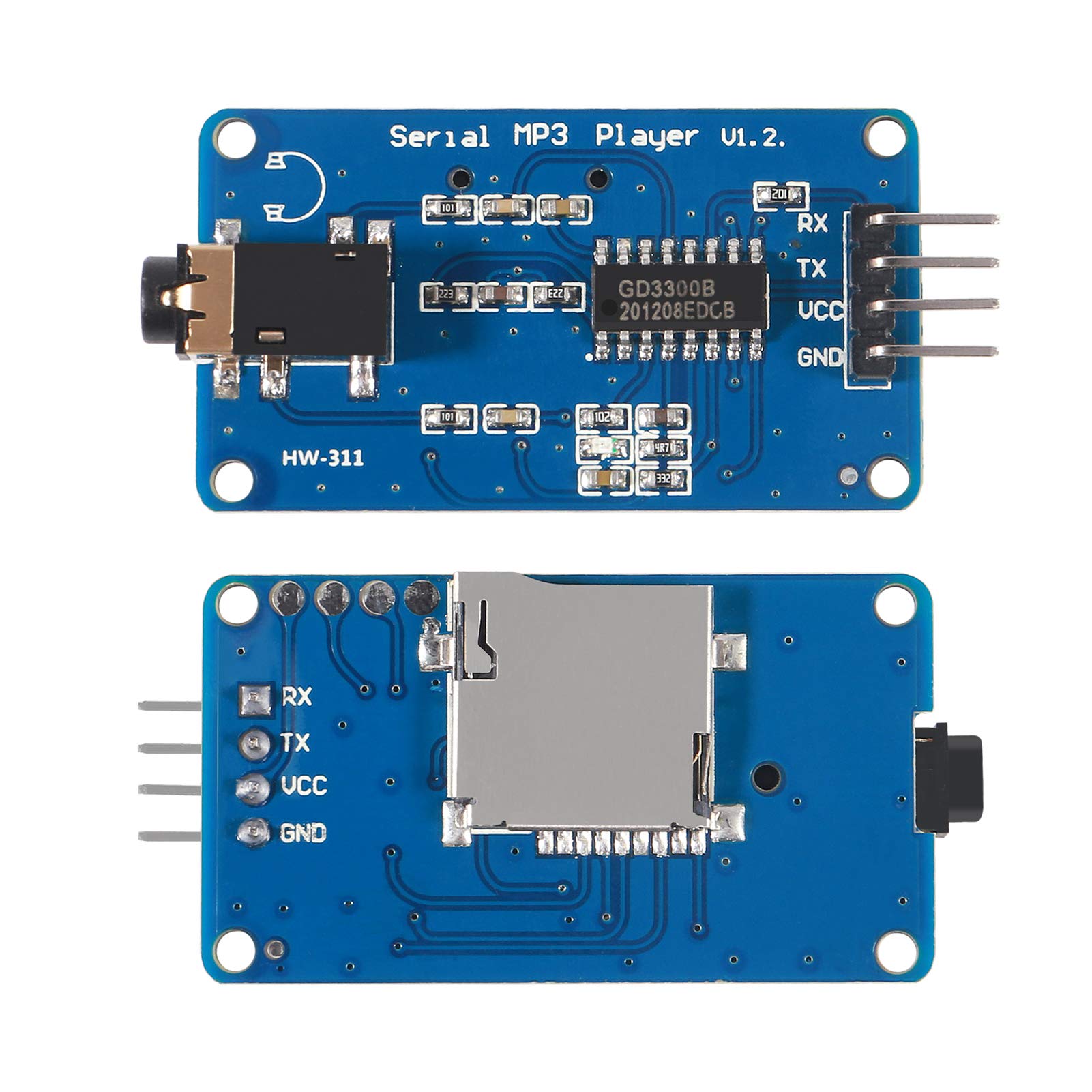

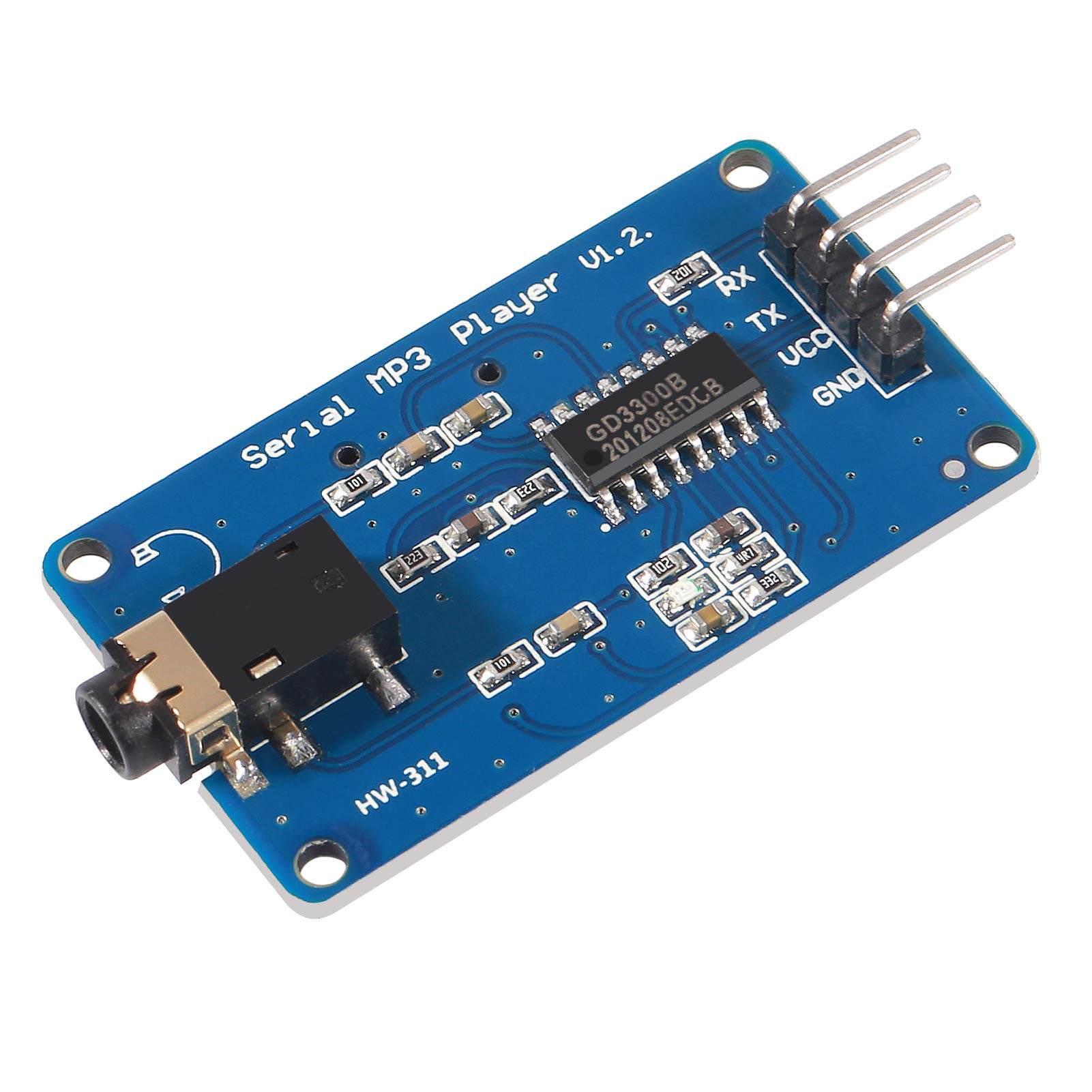

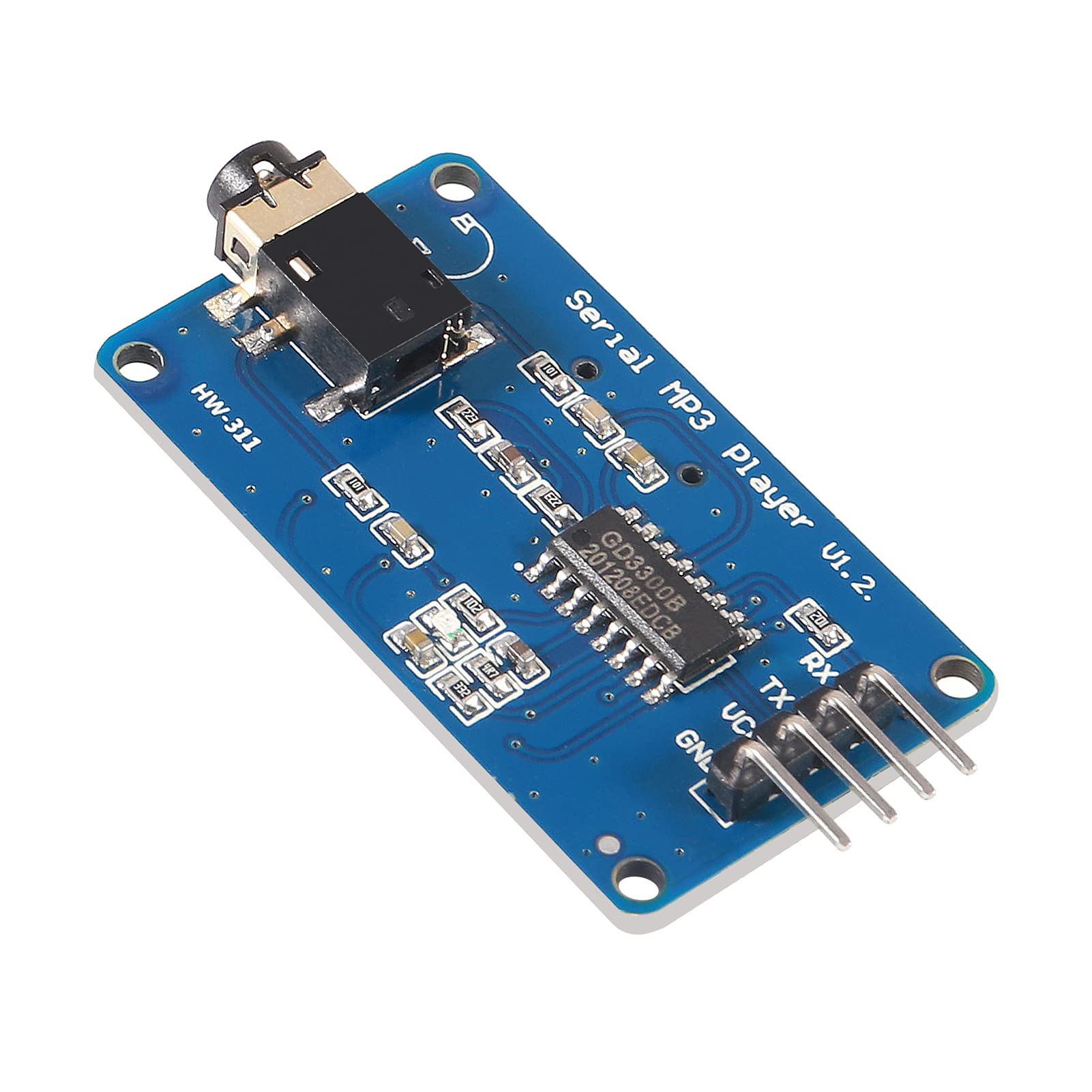

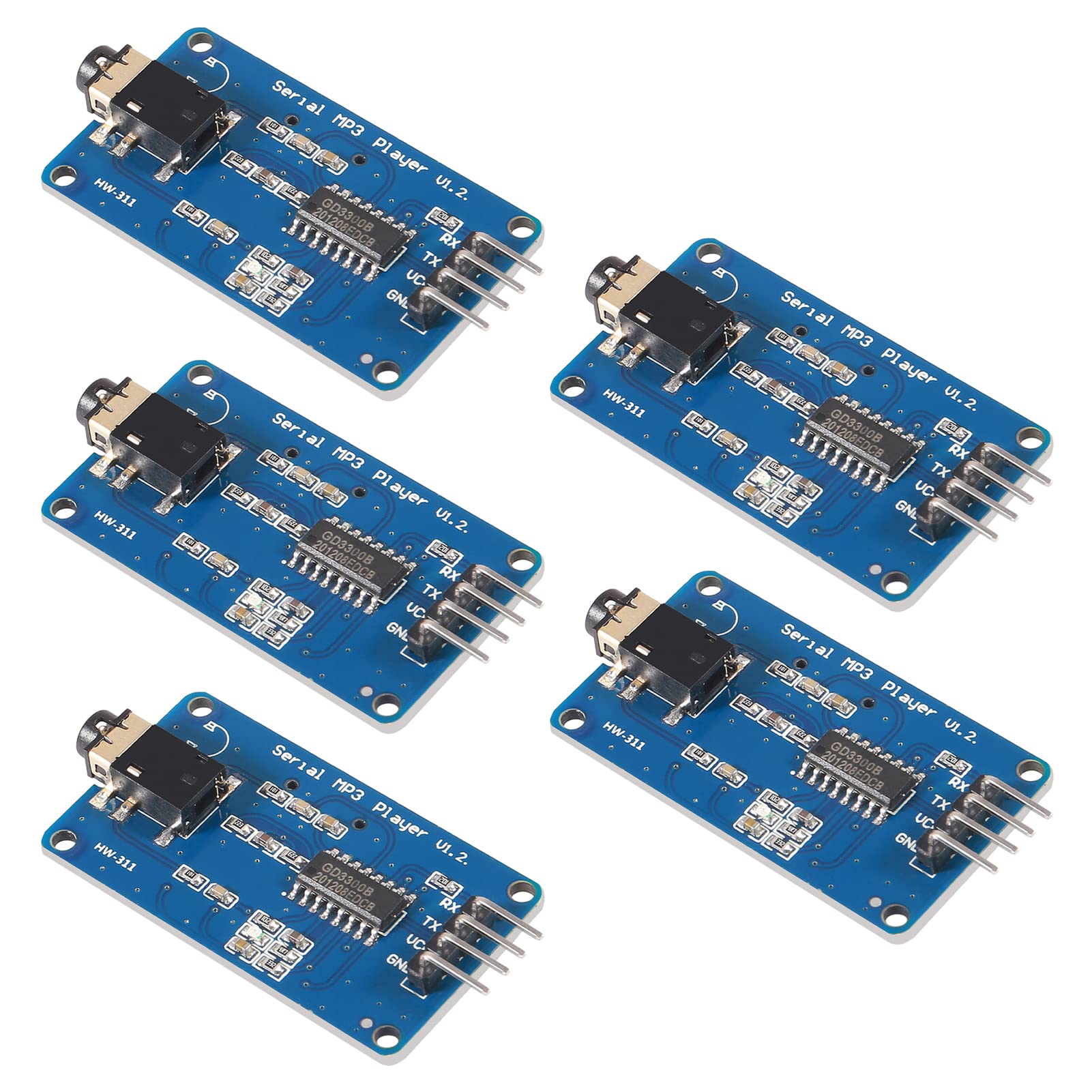

DORHEA 5Pcs YX5300 UART Control Serial MP3 Music Player Module Voice Serial Port UART Control Module with TF Card Slot for AVR/ARM/PIC
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•YX5300 is a voice module that provides a serial port, supported file formats: MP3/WAV
•The software supports the industrial-level serial communication protocol, using SPIFLASH, TF card or U disk as the storage medium
•No need for any burner, no software, USB directly burn FLASH, support micro SD card, micro SDHC card
•Through the simple serial port designation, you can complete the playback of the specified voice, and how to play the voice and other functions, without the cumbersome underlying operation, easy to use.
•Support sampling frequency (kHz):8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48, UART TTL serial control playback mode, baud rate is 9600bps. 30 class adjustable volume
