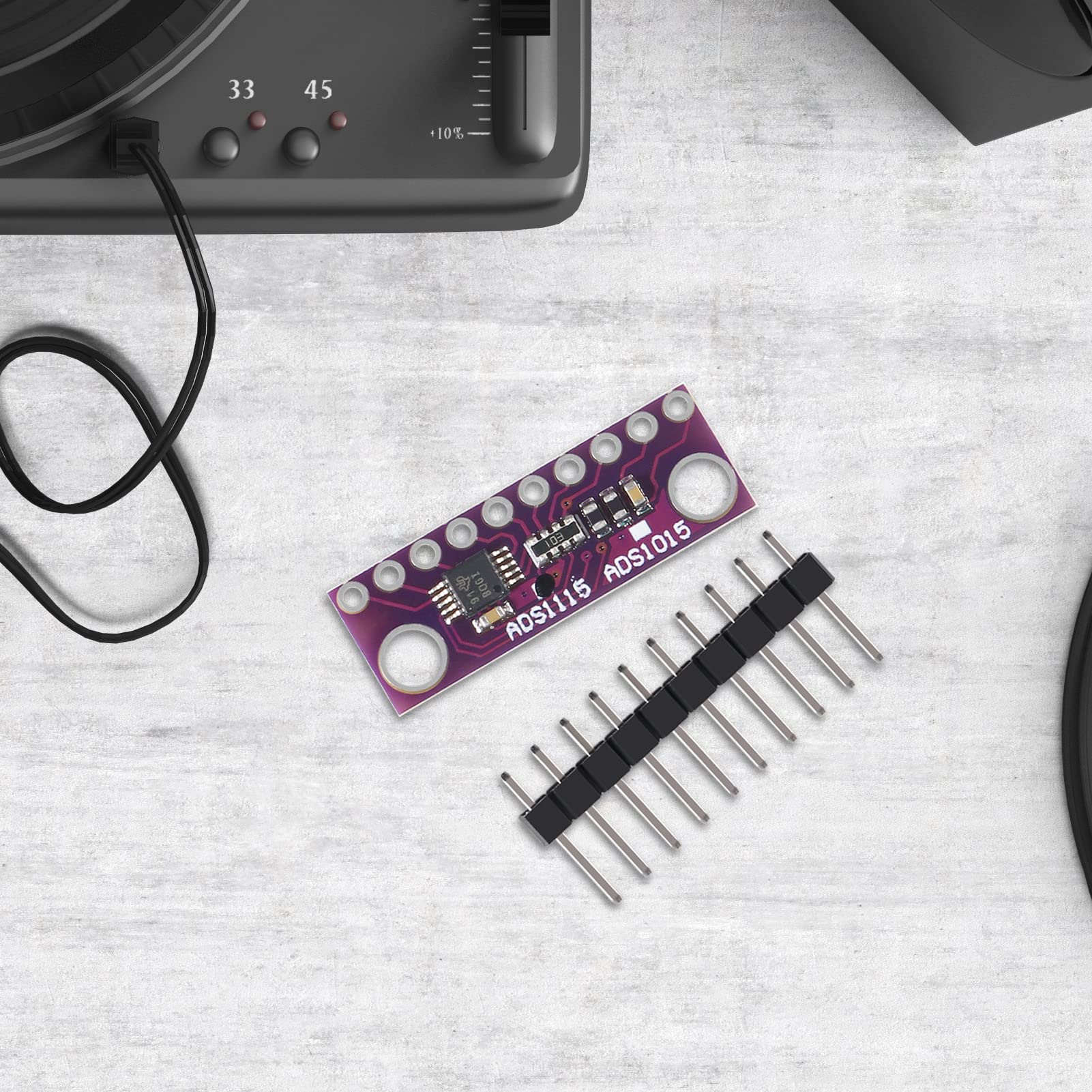

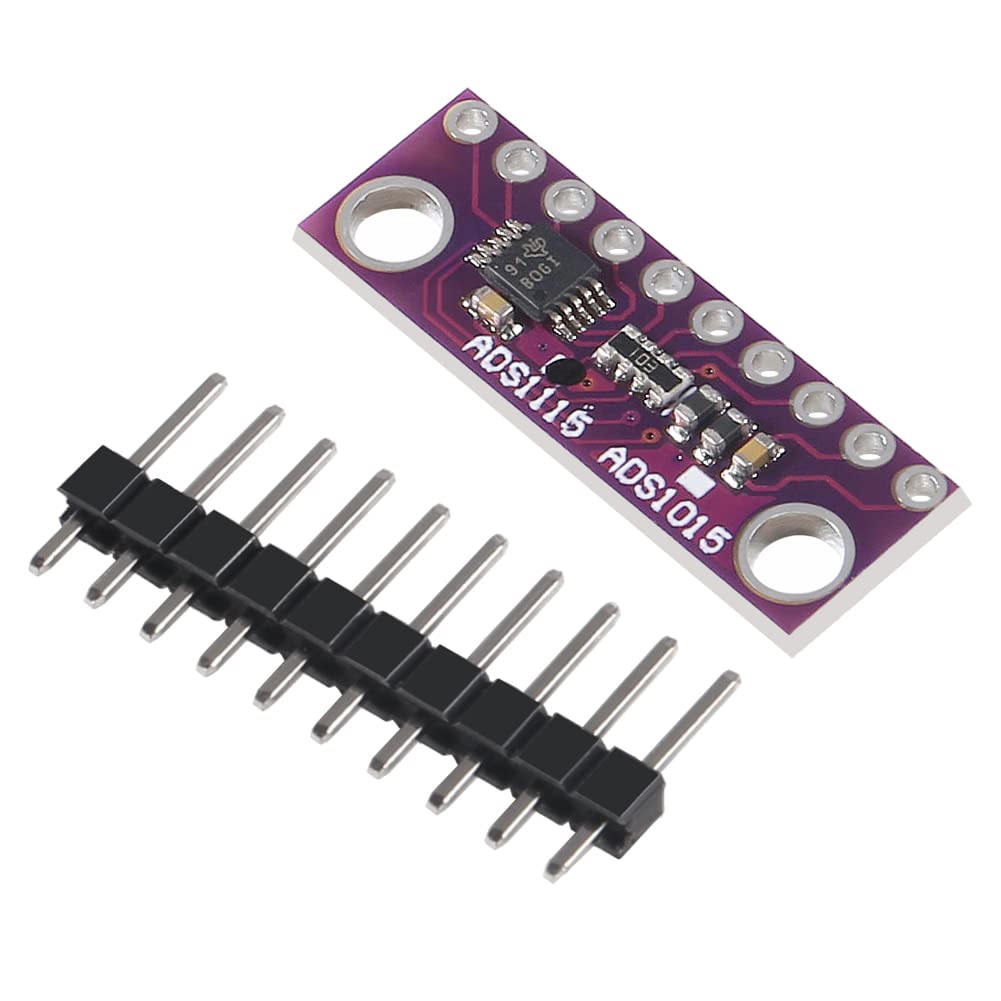

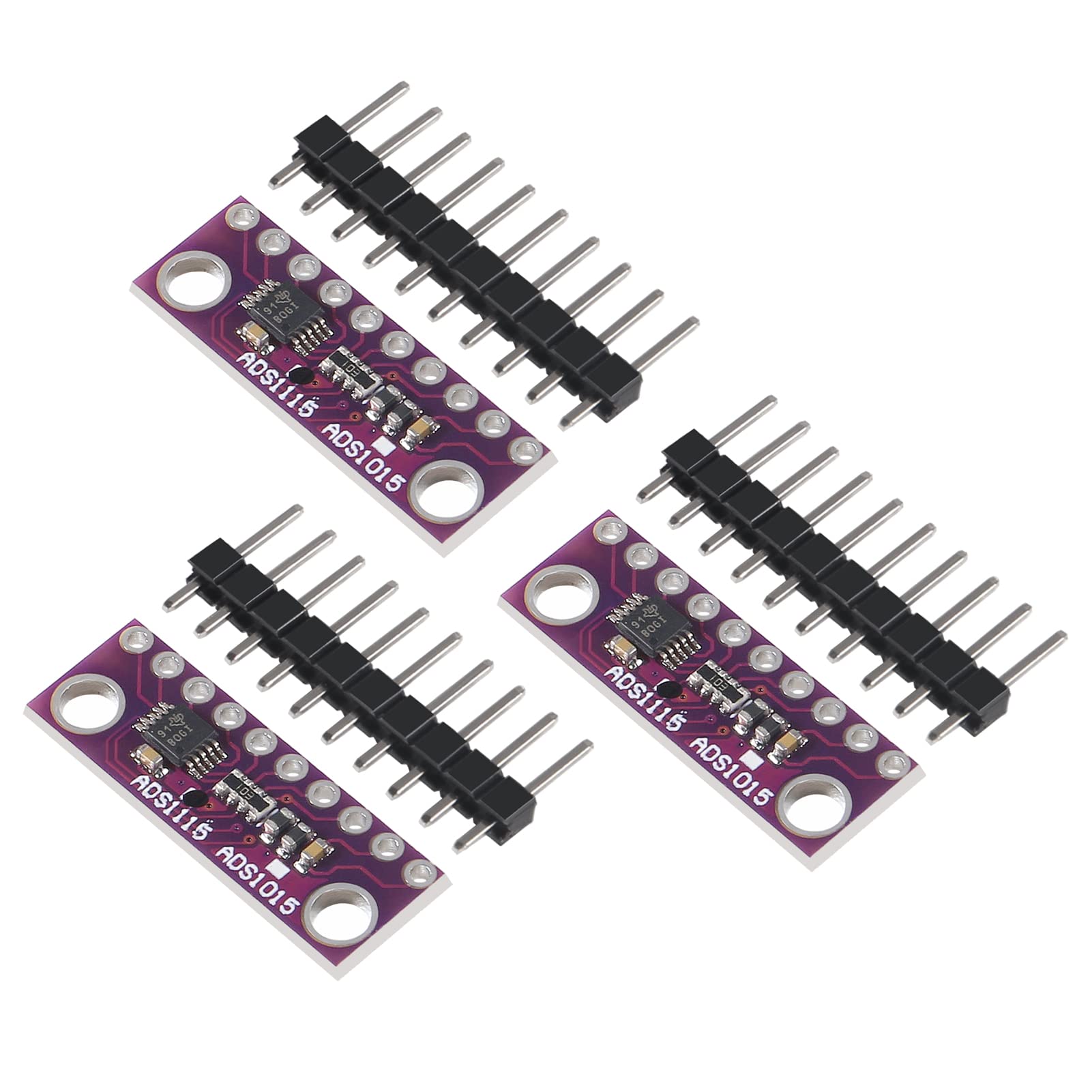

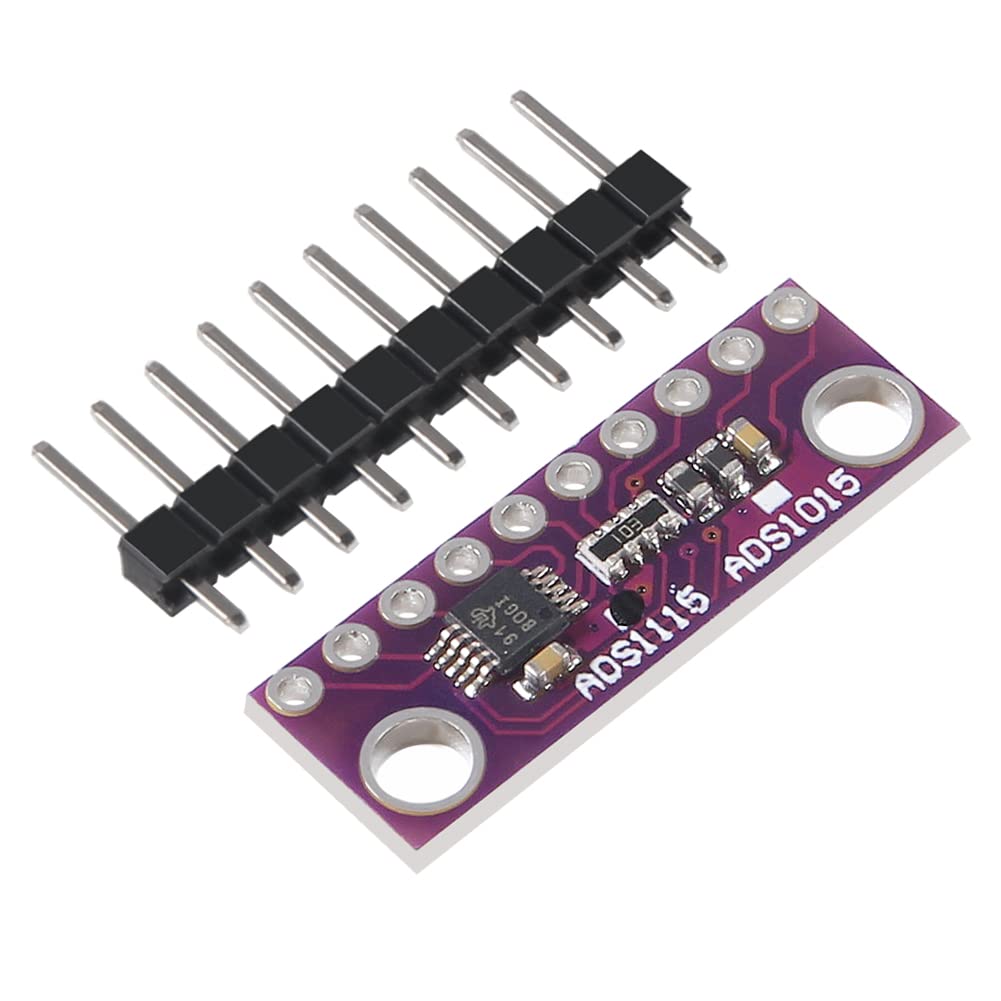

DORHEA 3PCS ADS1115 16 Bit Analog to Digital Development Board ADC Converter Module 4 Channel Board with Programmable Gain Amplifier 2.0V to 5.5V for Raspberry Pi
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115's connected on a single 2-wire I2C bus for 16 single ended inputs.
•For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C.
•The chip can be configured as 4 single-ended input channels, or two differential channels, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range.
•This 16 bit converter can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use.
•The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C.
