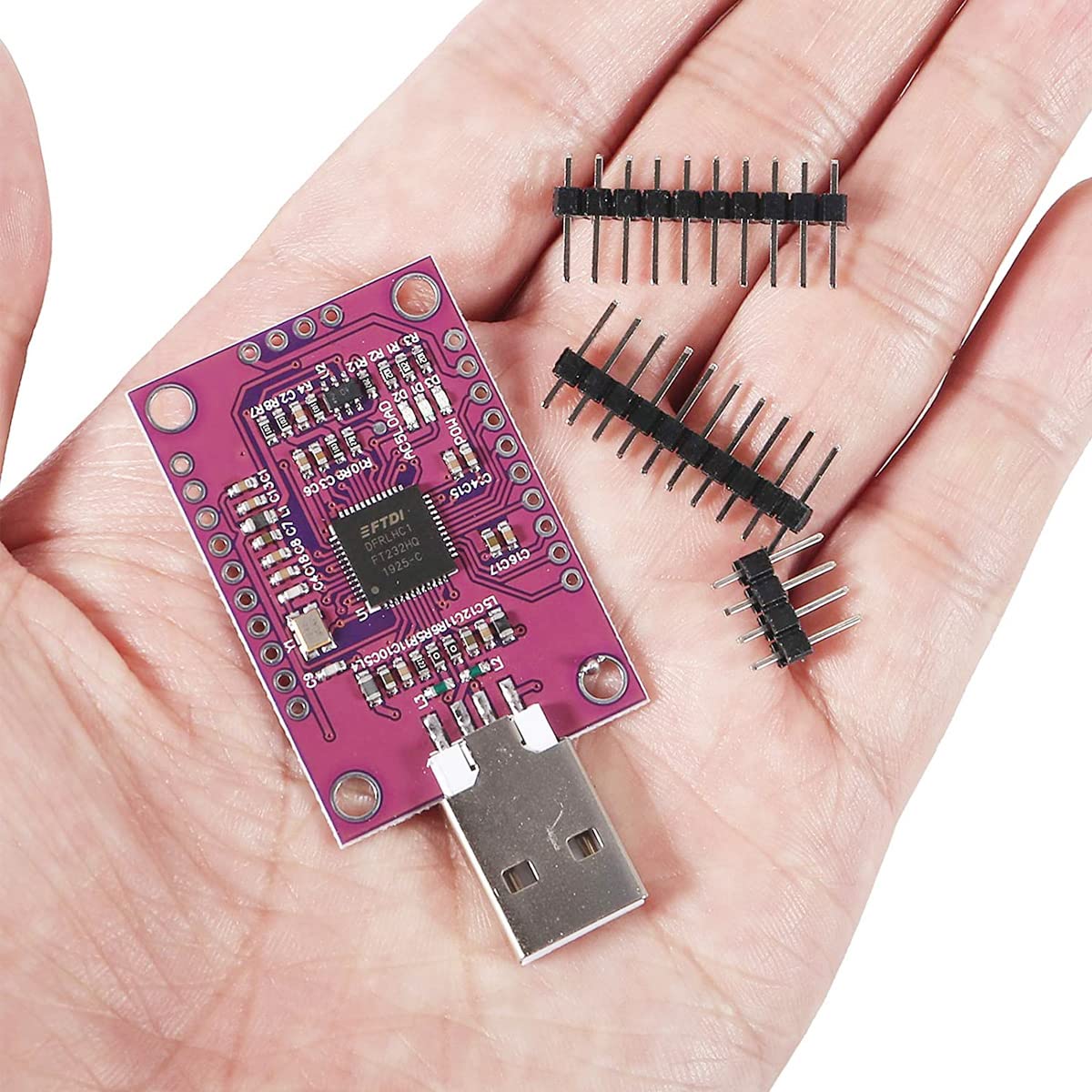

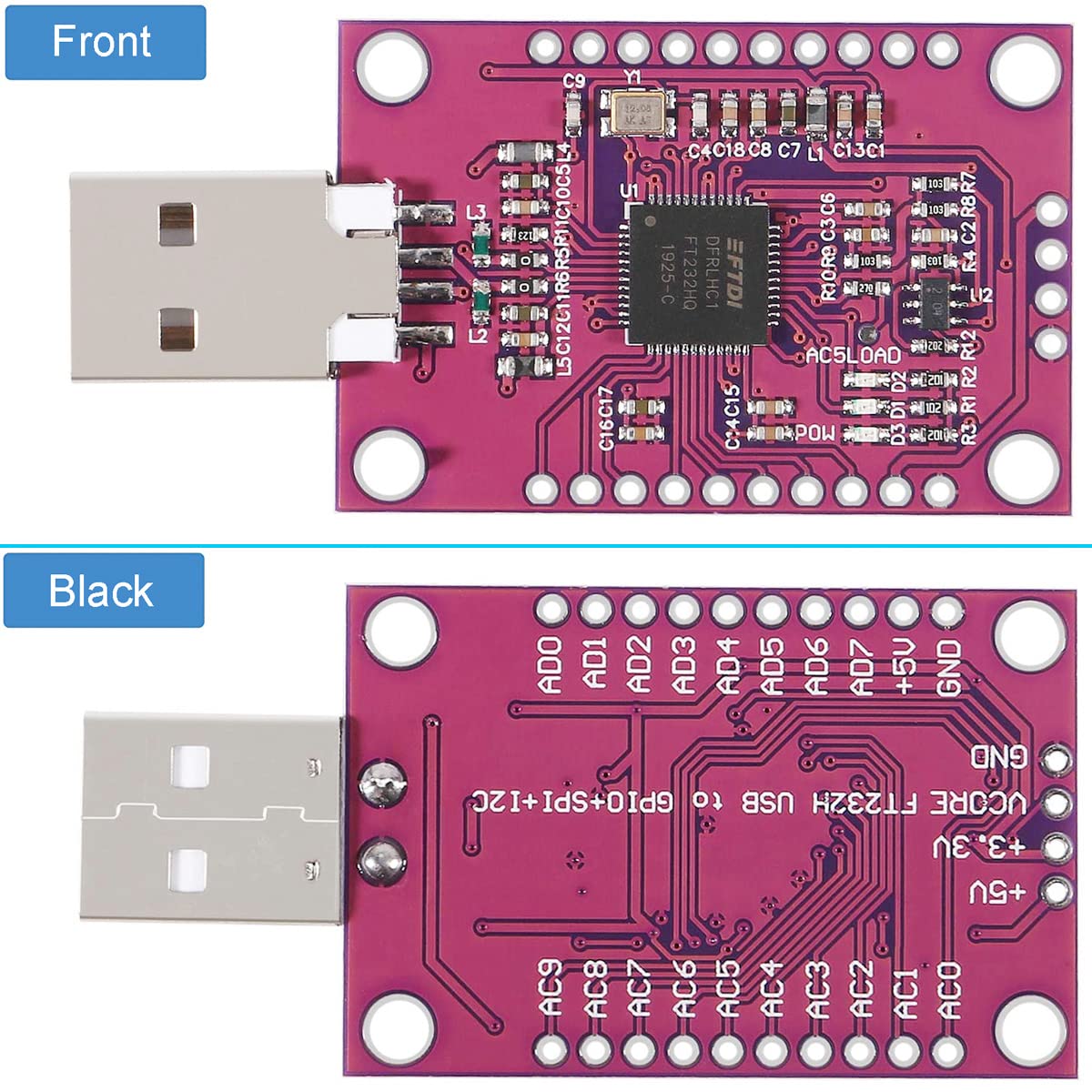

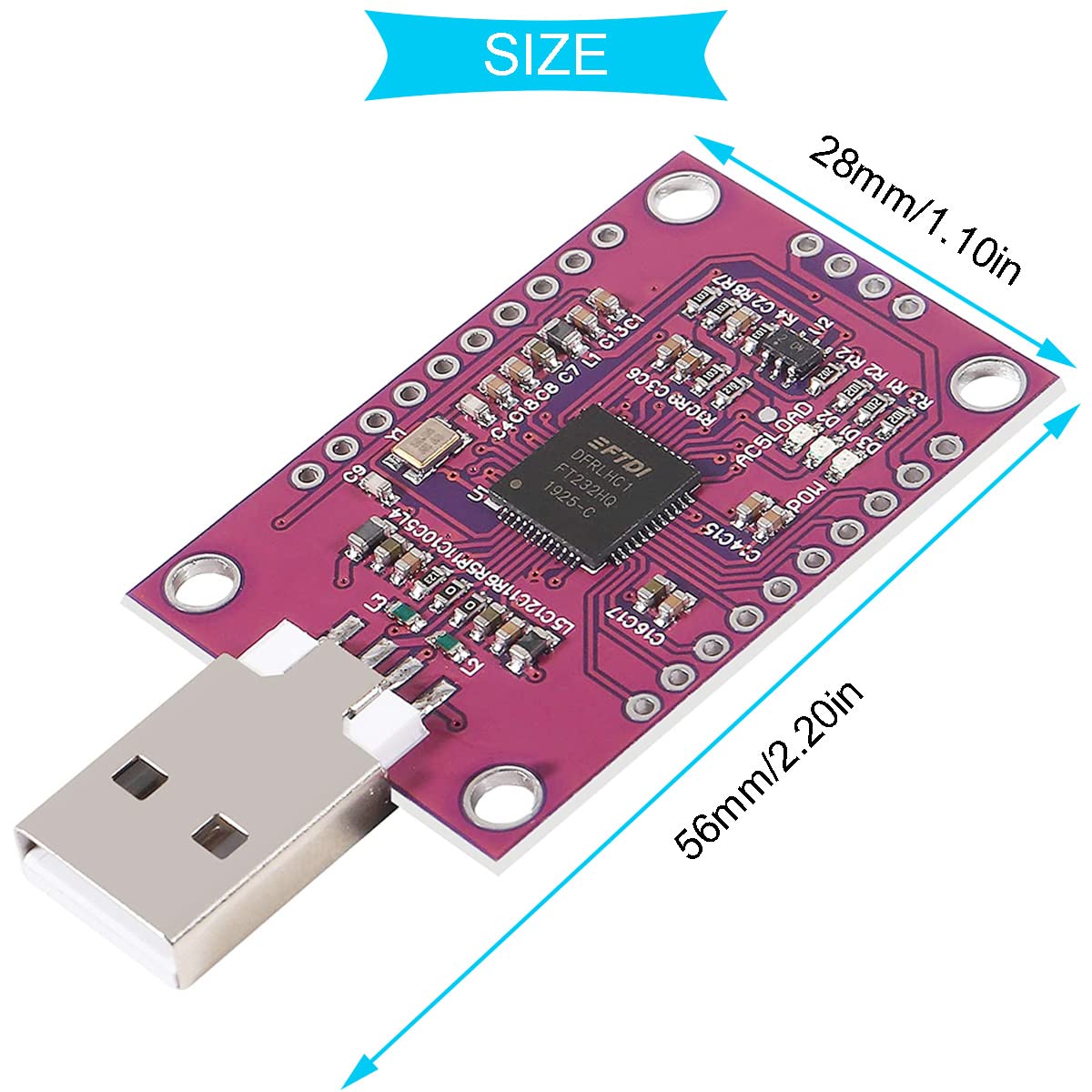

DKARDU FT232H High-Speed Multifunction Module CJMCU FT232H USB to JTAG UART/FIFO SPI/I2C Module,with pinheader USB Extension Cable Dupont Cable
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

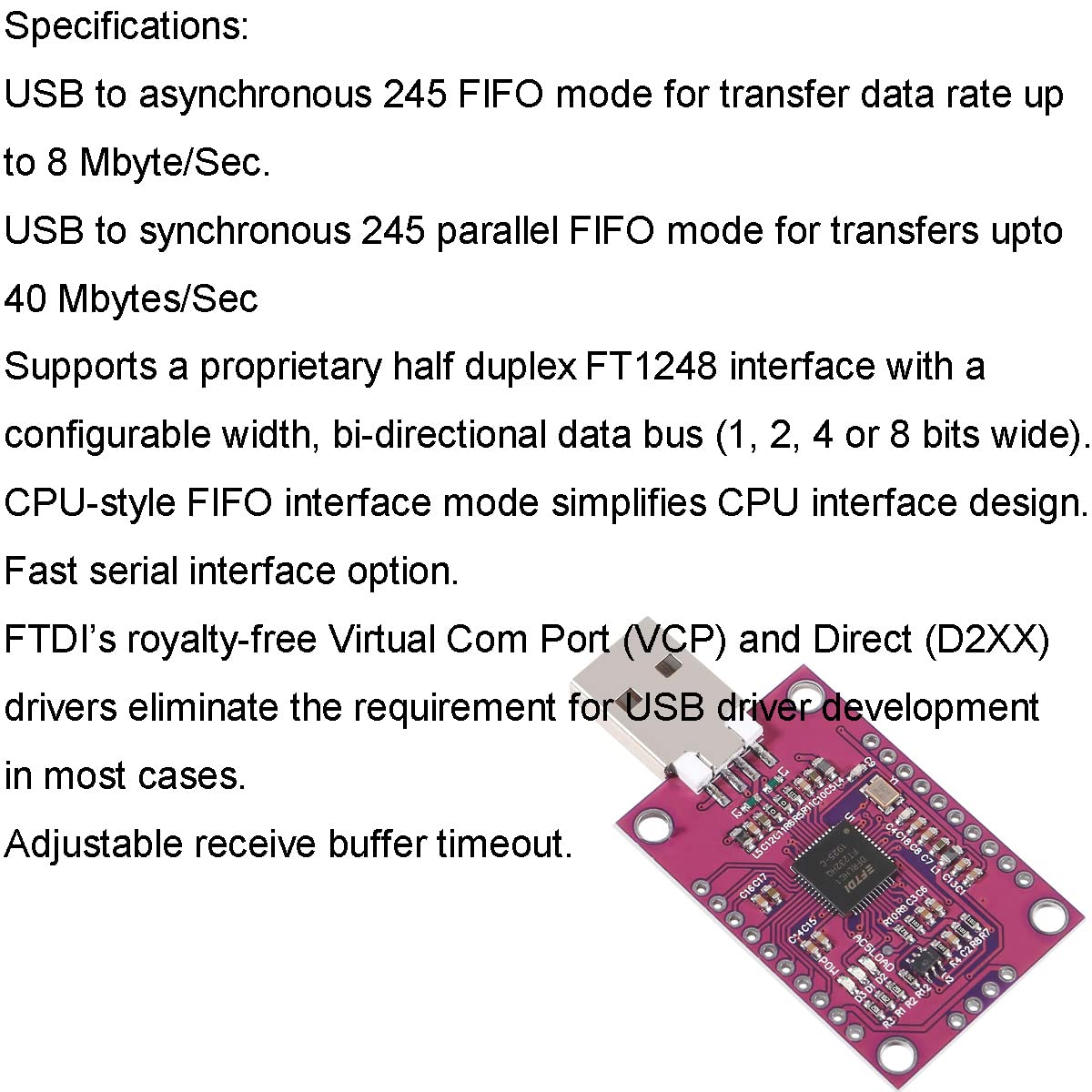

•Property: CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC.USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
•Features: It has the capability of being configured in a variety of industry standard serial or parallel interfaces.
•Convenience: Entire USB protocol handled on the chip. No USB specific firmware programming required.
•Synchronous serial: Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.
•High rate: UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
