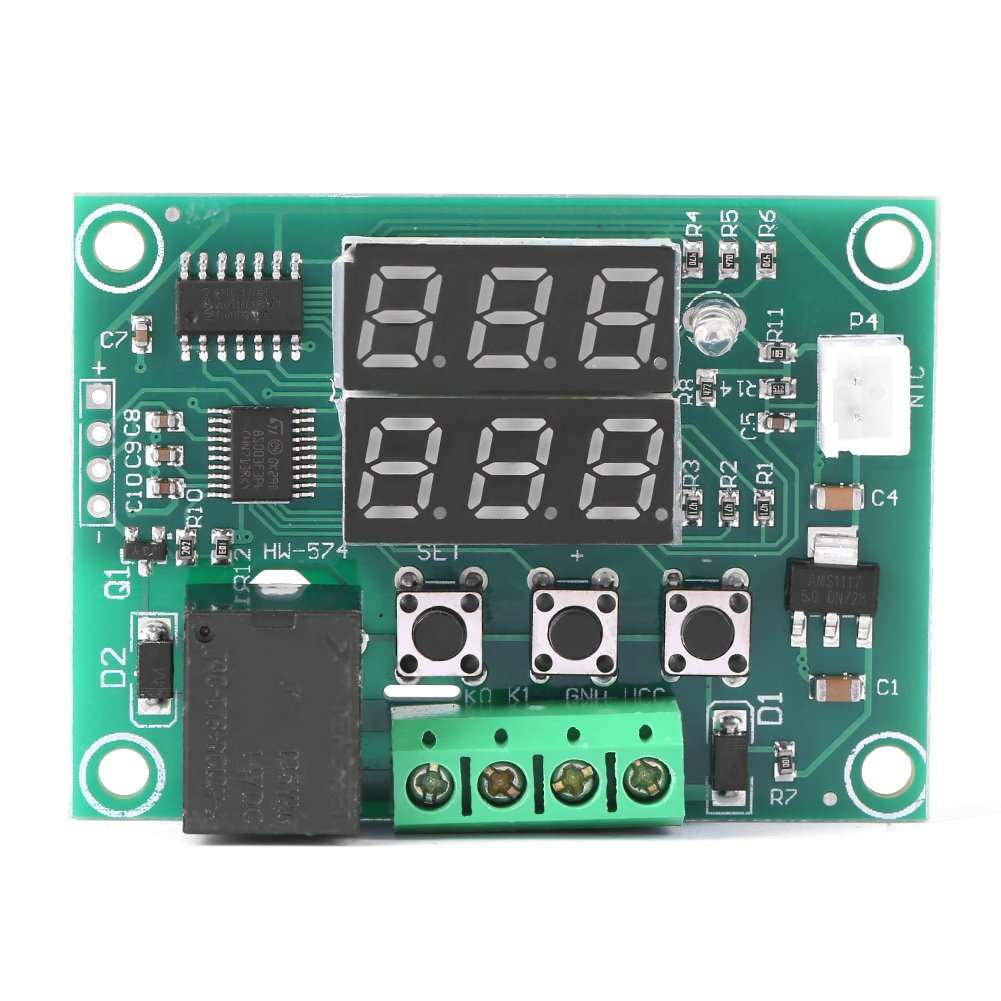

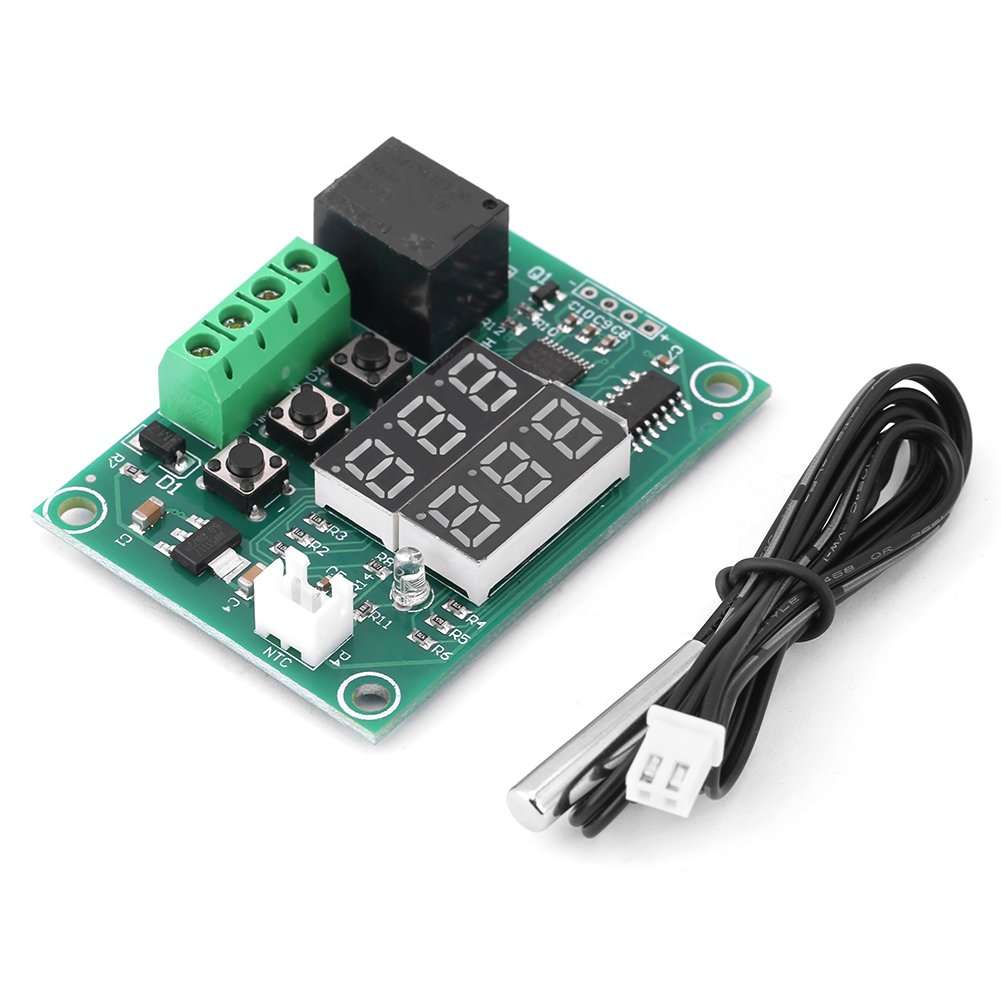

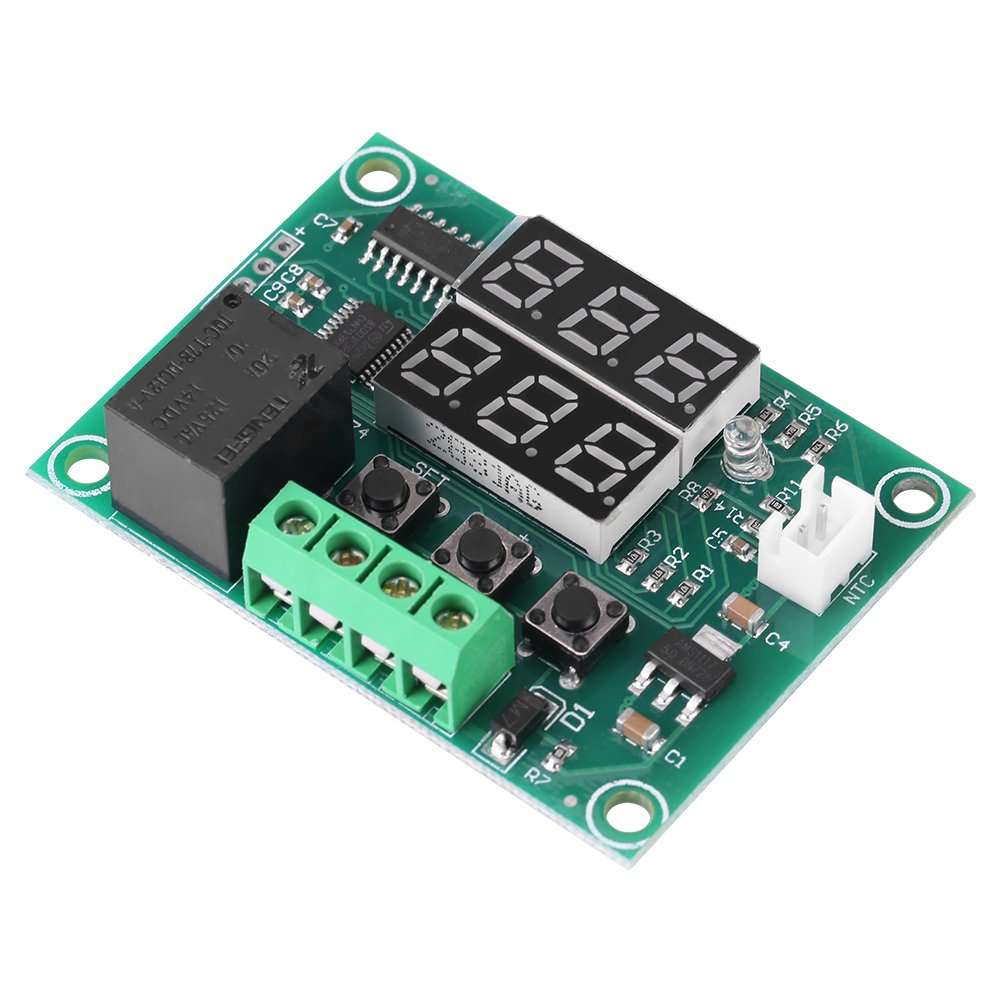

new | Digital Thermostat Module Micro DC 12V -50℃ to +110℃ Temperature Controller Board, Electronic Temperature Control Module Switch, 10A Relay Sensor Probe LED Display
Brand : Walfront
new | Digital Thermostat Module Micro DC 12V -50℃ to +110℃ Temperature Controller Board, Electronic Temperature Control Module Switch, 10A Relay Sensor Probe LED Display
Brand : Walfront

 3,232.00
M.R.P : 5,386.00

40% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
3,232.00
M.R.P : 5,386.00

40% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days   Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB078S2J7CY
CategoryIndustrial & Scientific
SubcategoryTemperature Controllers
LeafcategoryBISS
MPNWalfrontzmdbpvth1w
OriginUSA
BrandnameWalfront
Height0.39
Length1.97
Width1.57
Weight1
Product Details
LED Display Design: This Digital Thermostat Module is designed with dual-color LED display to offer a convenient and easy readable data.At the same time, it can also offers a convenient and control for you, it features with a high , high sensitive temperature control, and the Exactness can reach 0.1℃
LED Display Design: This Digital Thermostat Module is designed with dual-color LED display to offer a convenient and easy readable data.At the same time, it can also offers a convenient and control for you, it features with a high , high sensitive temperature control, and the Exactness can reach 0.1℃
Easy to Operate: This Temperature Controller Board adopts with screw terminals design for convenient and easy wiring, no need additional and complex tools, very convenient and easy to install and operate
to Use: This Digital Temperature Controller Board adopts with a higher sensitivity probe, which could not only provide a control, but also helpful for safety use. It is sealed with silicone, so it is more suitable for liquid temperature detection, more and for you

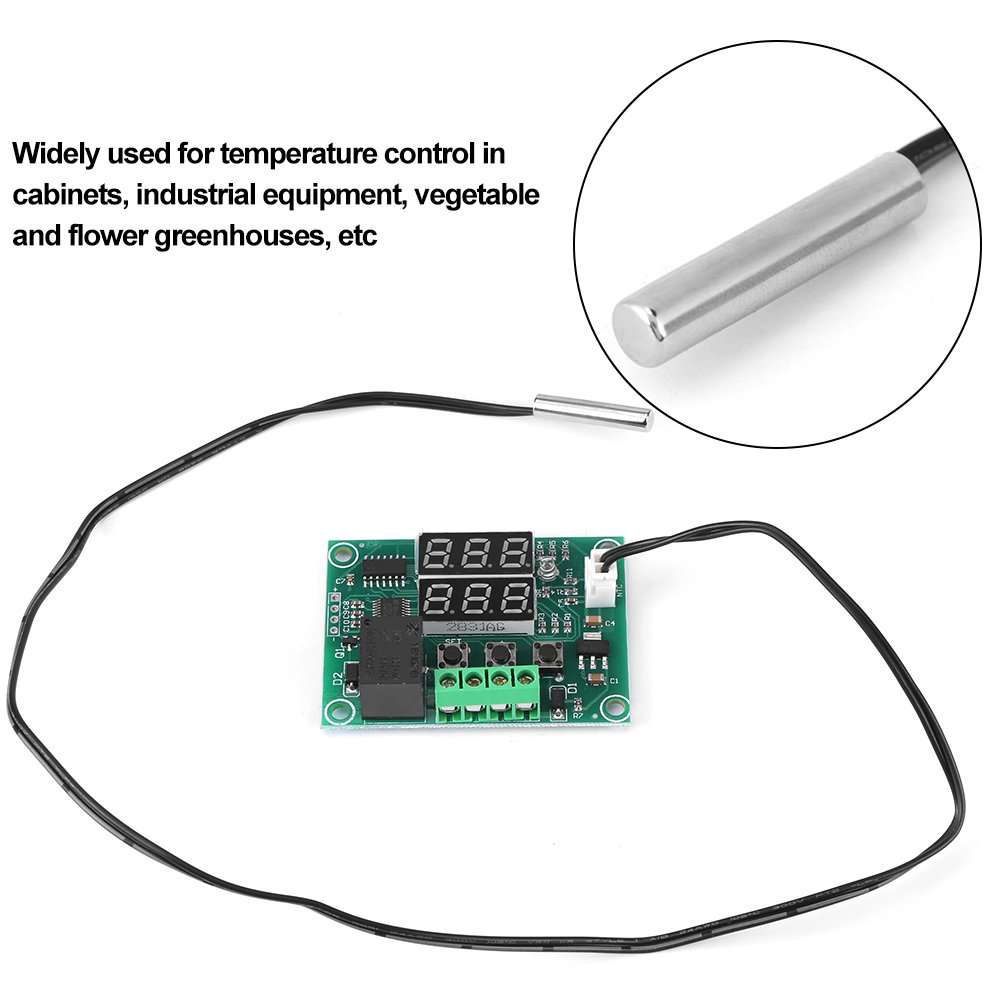

Multi-usage: This LED Display Digital Thermostat has widely applications during daily life, it can also works well under the temperature of -50℃ to +110℃, so it can be used under most , and it is widely used for temperature control in cabinets, industrial equipment, vegetable and flower greenhouses, and etc
Excellent Design: This Electronic Temperature Control Module features with various of functions to provide better performance. It supports temperature correction, temperature alarm and delayed start function, very intelligent design for you




Product Ranking
#1788 in Thermostat Controllers
#1260485 in Industrial & Scientific
Product Description


Specifications:


Control Range

-50℃~110℃

Control Exactness

0.1℃

Sensor Input

NTC10K water-resistant sensor L=0. 5M

Temperature Alarm

-49℃~110℃

Input Voltage

DC12V

Output Type

Relay output maximum. 10A

Return Difference Set

0.1~30℃

Delay Start

0~10minutes

Temperature Correction

-10℃~+10℃

Red Display
Measured Temperature
Green Display
Setting Temperature



Instruction:

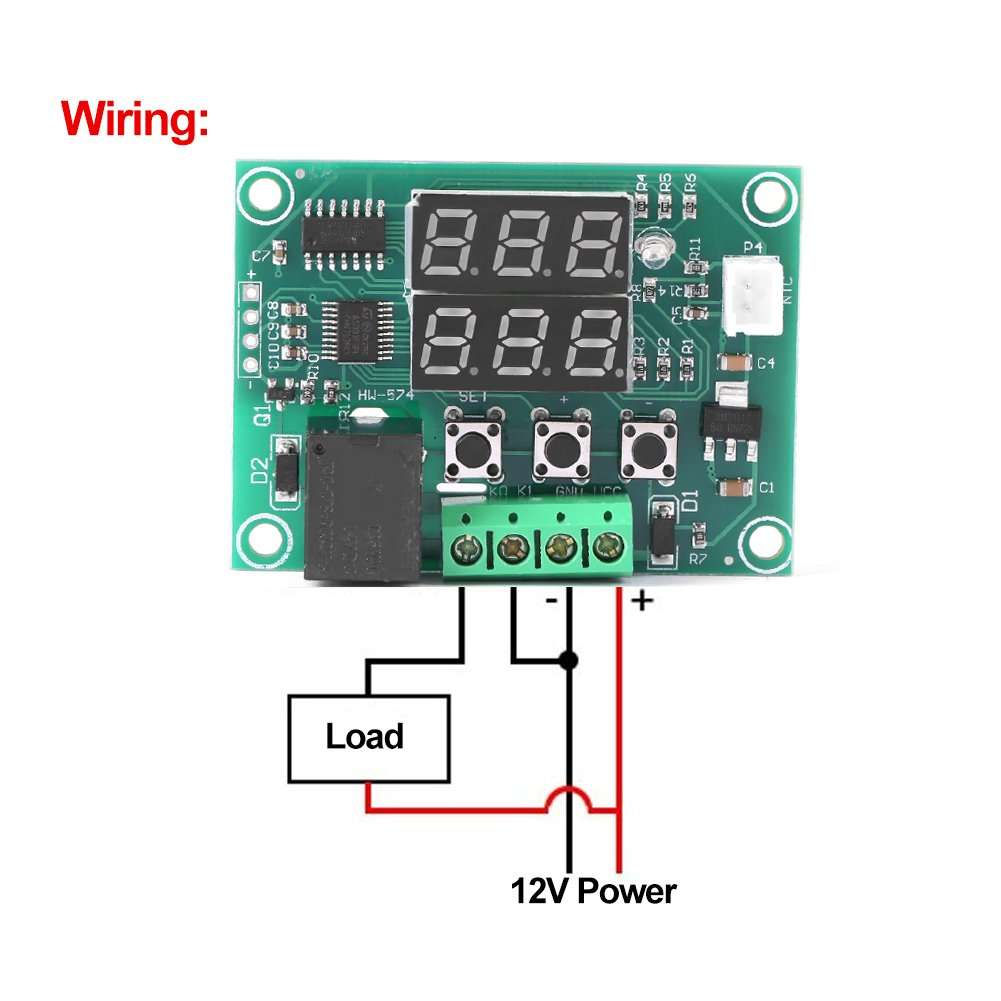

K0 K1 Terminal:
Thermostat output type is relay output, K0 and K1 is equivalent to a extension relay switch; 12V power supply the thermostat, sensor detects temperature, internal temperature control program control relay output and load (if the load is powered by AC power supply, it is safer to connect K0 and K1 to live wire)

Code

Function

Setting Range

Default

P0

Temperature Control Mode

H(hot)/C(cold)

C

P1

Return Difference Setting

0.1~30℃

2℃

P2

Temperature Correction

-10~10℃

0℃

P3

Delay Start

0~10 (min.)

0

P4

Temperature Alarm

-49~110℃

110℃

"SET" Button: Set switch
"+" Button: Increase temperature
"-" Button: Reduce temperature
to Factory Settings: Power on,  press and hold "+" and "-" buttons together for about 3 seconds.


Package Includes:

1 x Temperature Controller


Product Description


Specifications:


Control Range

-50℃~110℃

Control Exactness

0.1℃

Sensor Input

NTC10K water-resistant sensor L=0. 5M

Temperature Alarm

-49℃~110℃

Input Voltage

DC12V

Output Type

Relay output maximum. 10A

Return Difference Set

0.1~30℃

Delay Start

0~10minutes

Temperature Correction

-10℃~+10℃

Red Display
Measured Temperature
Green Display
Setting Temperature



Instruction:

K0 K1 Terminal:
Thermostat output type is relay output, K0 and K1 is equivalent to a extension relay switch; 12V power supply the thermostat, sensor detects temperature, internal temperature control program control relay output and load (if the load is powered by AC power supply, it is safer to connect K0 and K1 to live wire)

Code

Function

Setting Range

Default

P0

Temperature Control Mode

H(hot)/C(cold)

C

P1

Return Difference Setting

0.1~30℃

2℃

P2

Temperature Correction

-10~10℃

0℃

P3

Delay Start

0~10 (min.)

0

P4

Temperature Alarm

-49~110℃

110℃

"SET" Button: Set switch
"+" Button: Increase temperature
"-" Button: Reduce temperature
to Factory Settings: Power on,  press and hold "+" and "-" buttons together for about 3 seconds.


Package Includes:

1 x Temperature Controller
