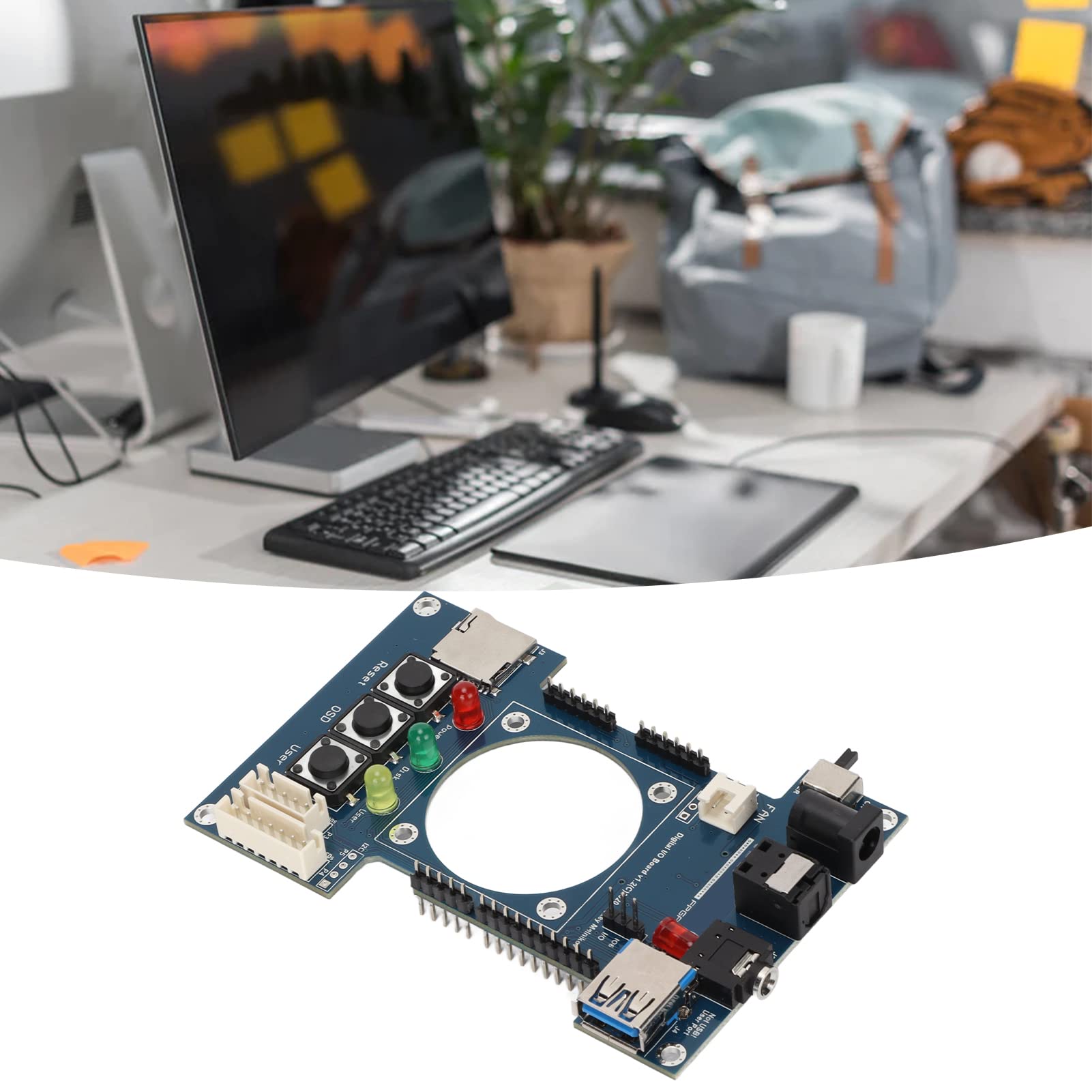

Digital IO Board Manual Soldering V1.2 for Mister FPGA 7 USB Port IO Board for Terasic DE10 Nano Accessories
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•WIDELY COMPATIBLE: Select IO to support the for Sega Mega Drive , for Genesis , forMaster System gamepad using the SNAC adapter board.
•DIFFERENT FUNCTION: 3 buttons different buttons with different functions, 3 status indicators. Auxiliary memory card (for some cores).
•EXPANSION BOARD: The for MiSTer FPGA Digital IO Board v1.2 is an optional extension that plugs into the for Terasic DE10 Nano SoC.
•OPTIONAL: For MiSTer IO Digital Board v1.2 includes a jumper for selecting 3.3v or IO on the user IO port.
•CAUTIONS: Digital IO module has an expansion port (in the form of a USB 3.0 port, but not USB!). With 3.5 mm jack for TOSLink.
