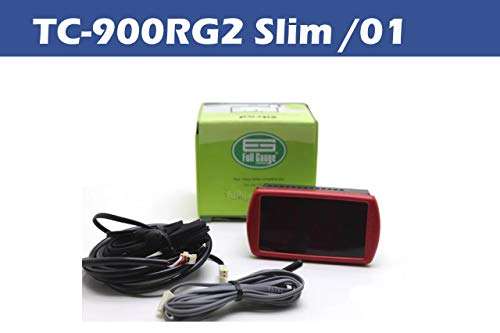

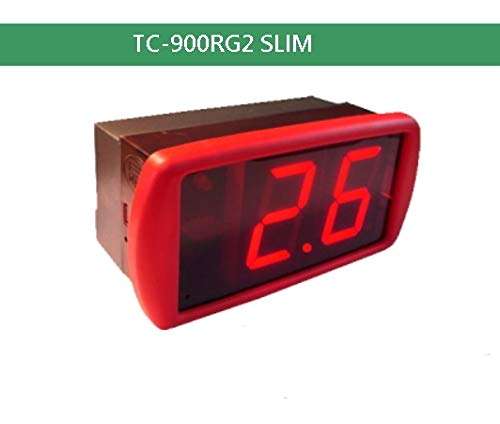

Digital Controller for Refrigeration and DEFROST - TC-900RG2 Slim

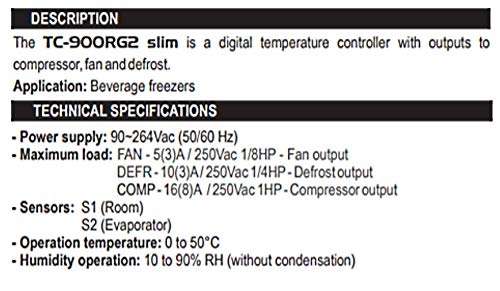

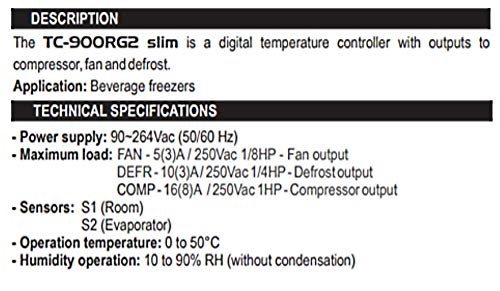

DIGITAL CONTROLLER FOR REFRIGERATION AND DEFROST 1. DESCRIPTION The is a digital temperature with outputs to compressor, fan and defrost. 2. Application Beverage freezers 3. TECHNICAL SPECIFICATIONS - Power supply: 90~264Vac (50/60 Hz) - Maximum load: FAN - 5(3)A / 250Vac 1/8HP - Fan output DEFR - 10(3)A/ 250Vac 1/4HP - Defrost output COMP - 16(8)A / 250Vac 1HP - Compressor output - Sensors: S1 (Room) S2 (Evaporator) RH (without condensation) - Operation temperature: 0 to 50°C - Humidity operation: 10 to 90% RH (without condensation)
