DFROBOT DC Motor Driver HAT via I2C | Support 2-Way DC Motor and DC Motor with Encoder |
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

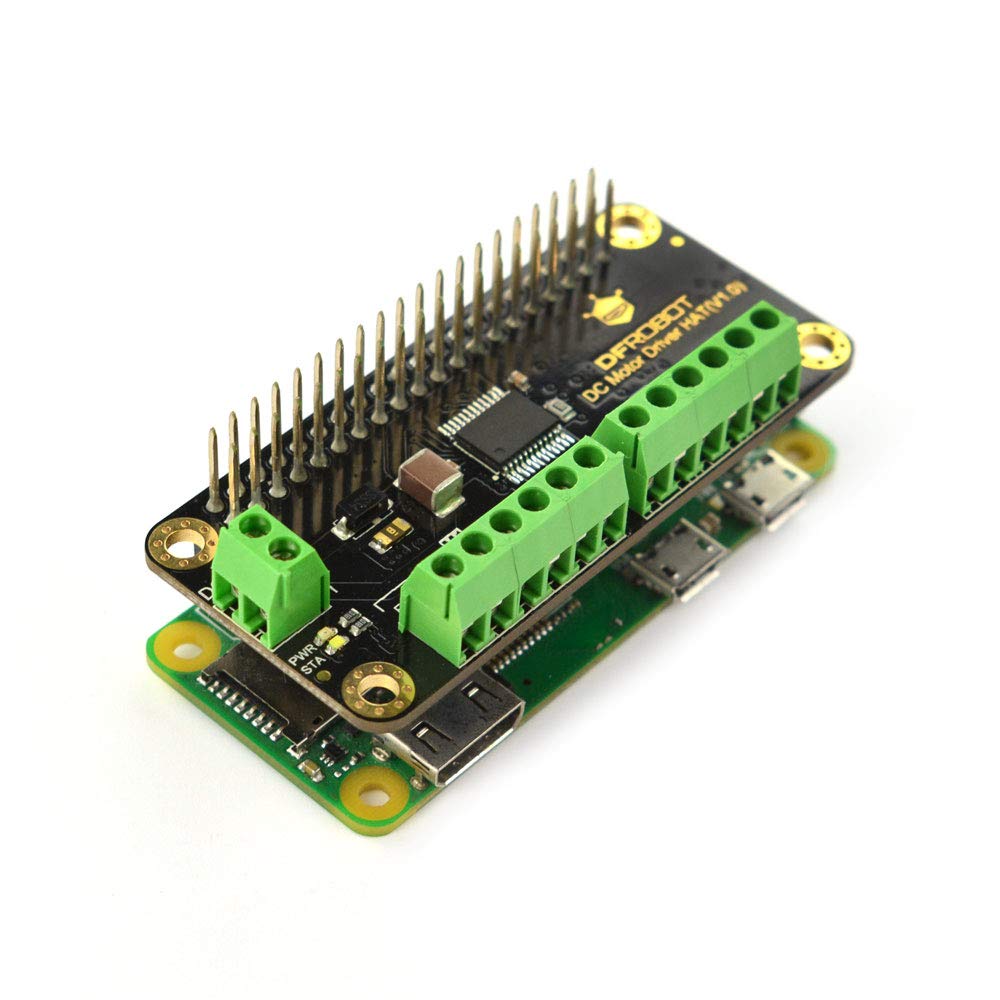

•This is a DC motor driver board with on-board encoder interface, which can drive 2-way DC motor and DC motor with encoder. It is easy to configure and drive motors.

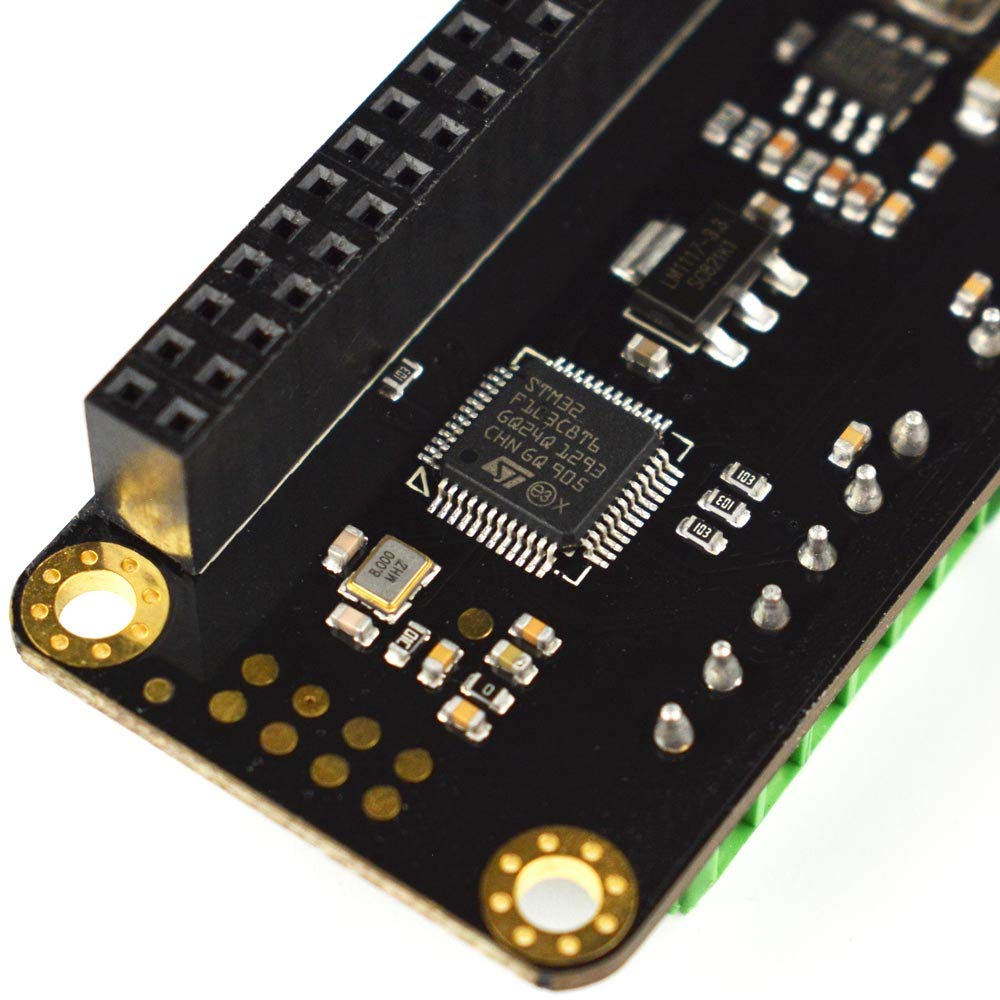

•The DC Motor Driver HAT adopts STM32 micro processor to analyze the command sent by the upper host, and then convert into motor drive signal after calculation. Besides that, a high-performance TB6612FNG motor drive chip is integrated on the module.
•The single channel continuous current is 1.2A and the peak current is up to 2A. The motor driver supports 7~12V wide input voltage.
•It can be used to make smart DIY car, balance car, DIY tank, mechanical fish, etc.
