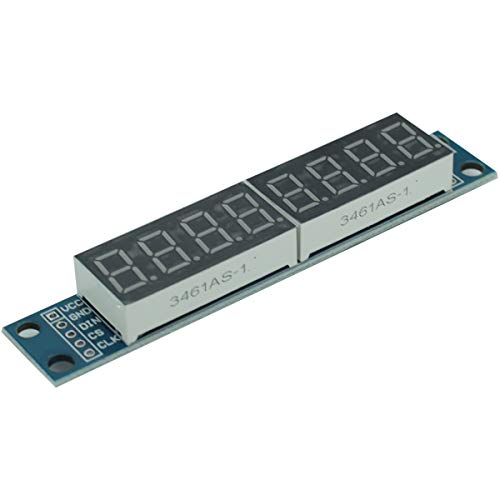

DEVMO 4pcs 8-Digit 7 Segment Module MAX7219 8 Bit Digital Segment Tube LED Display Module Supports Cascade Eight Bit Serial 3 IO Ports Compatible with Ar-duino MCU/51/AVR/STM32
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•MAX7219 is an integrated serial input / output common-cathode display driver, which connects your microprocessor to a 7-segment digital LED display with 8 digits; MAX7219 digital display control module, you can use it for Ar-duino.
•The module is compatible of 5V / 3.3V microcontroller; Only three IO ports are used to drive the eight digit display.
•Only three IO ports are used to drive the eight digit display. MAX7219 supports flicker free displays as well as cascading displays; PCV board four corners of the fixed copper stud, which can effectively precent short circuit accidents happen.

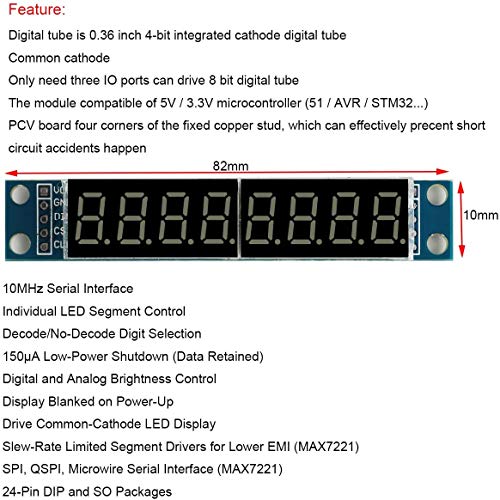

•Wiring instructions (a program, for example, you can pick any IO port definition can be modified in the program): VCC to 5V, GND to GND, DIN to P00, CLK to P02, CS to P01; Digital tube is 0.36 inch 4-bit integrated cathode digital tube; Common cathode.
•Note:VCC and GND do not reversed, it would burn the chip.51 MCU P0 port requires pull-up resistor, if your device does not have a pull-up resistor can be connected to other ports data lines.
