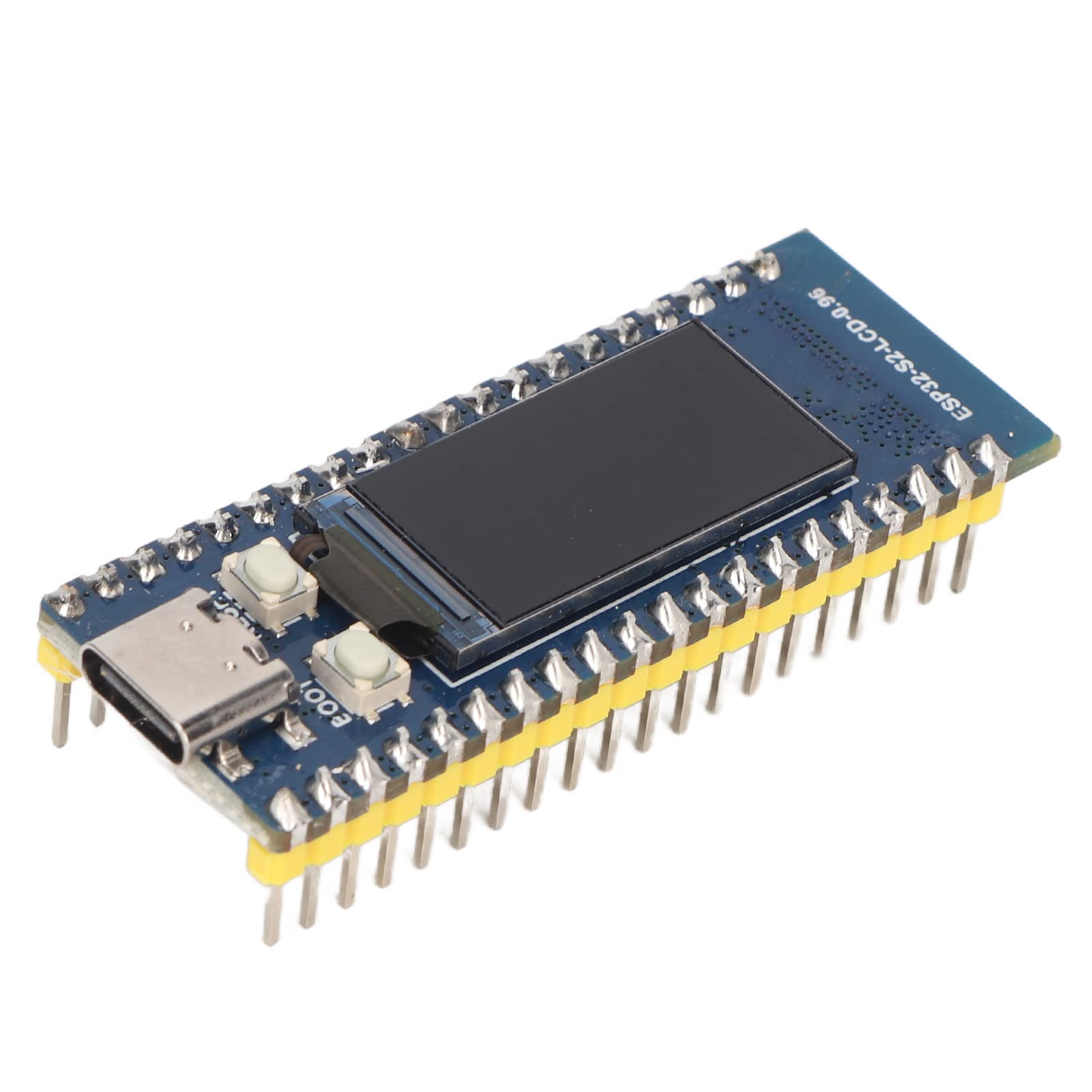

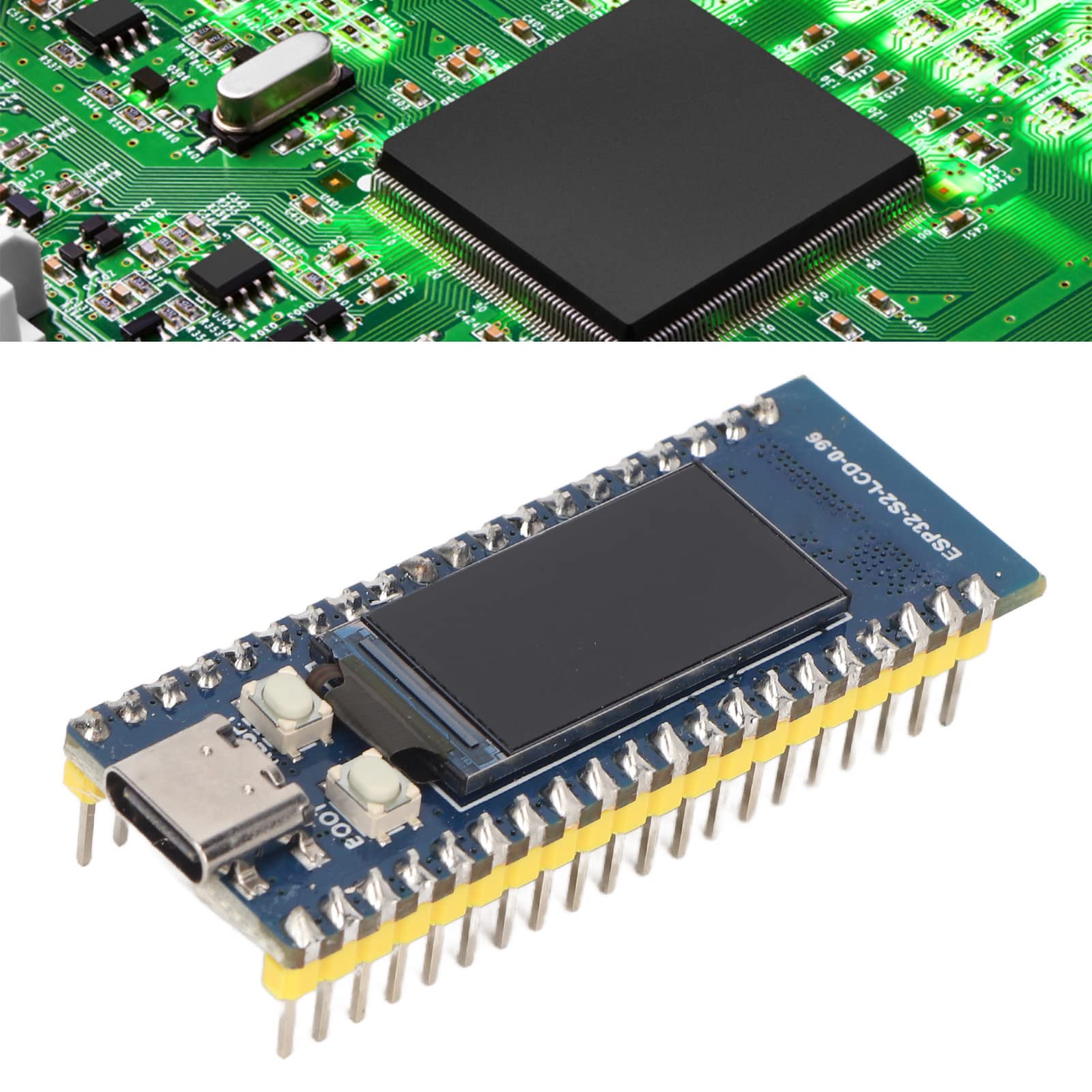

Development Board, 2.4 GHz WiFi Board 150Mbps Data Rate Stamp Hole Design Microcontroller Development Board with LCD Display for Raspberry Pi Pico
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

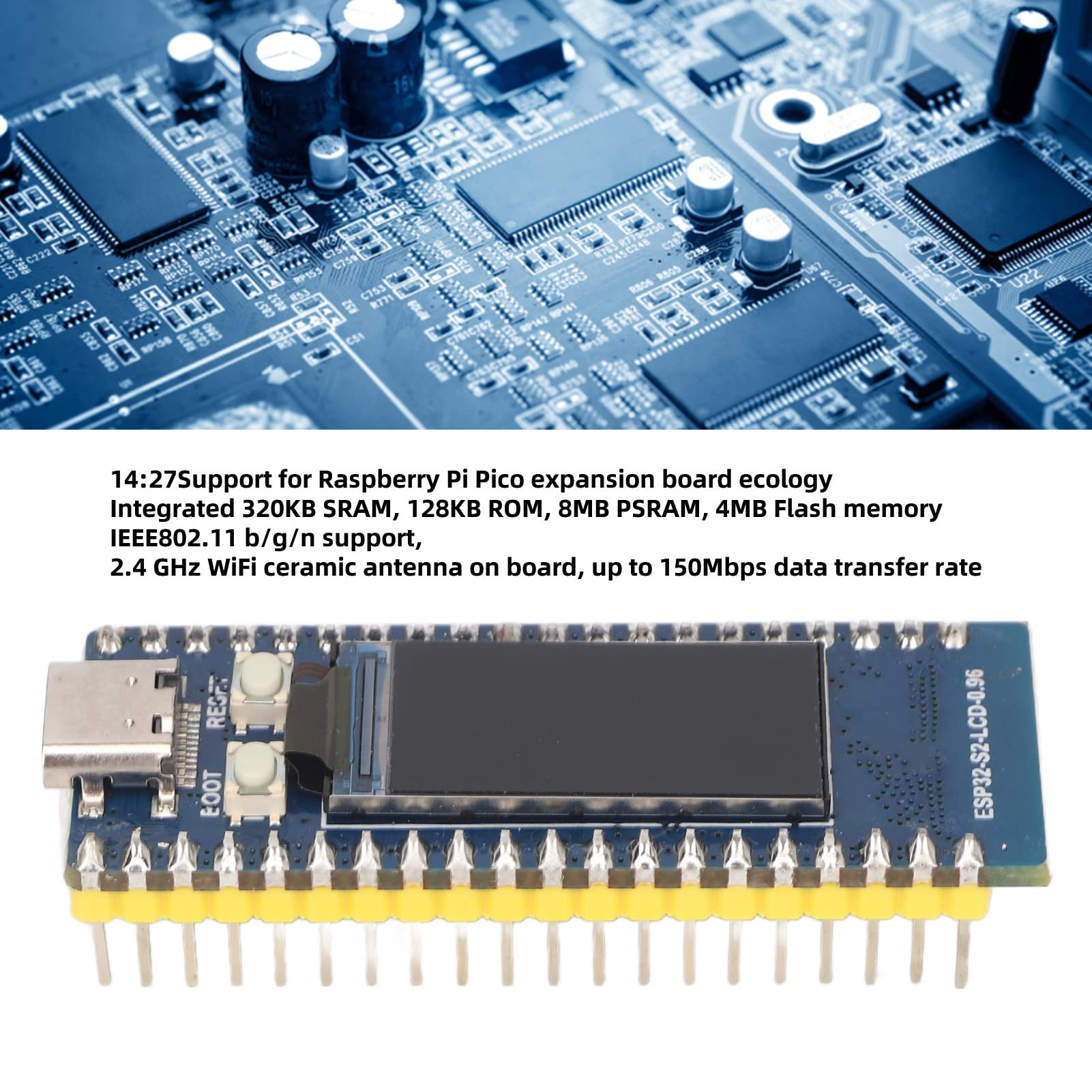

•HIGH SPEED: IEEE802.11 b g n support, on board 2.4 GHz WiFi ceramic antenna, up to 150Mbps data rate, single core 32 bit LX7 microprocessor ESP32 S2FH4, supports up to 240 MHz clock frequency.

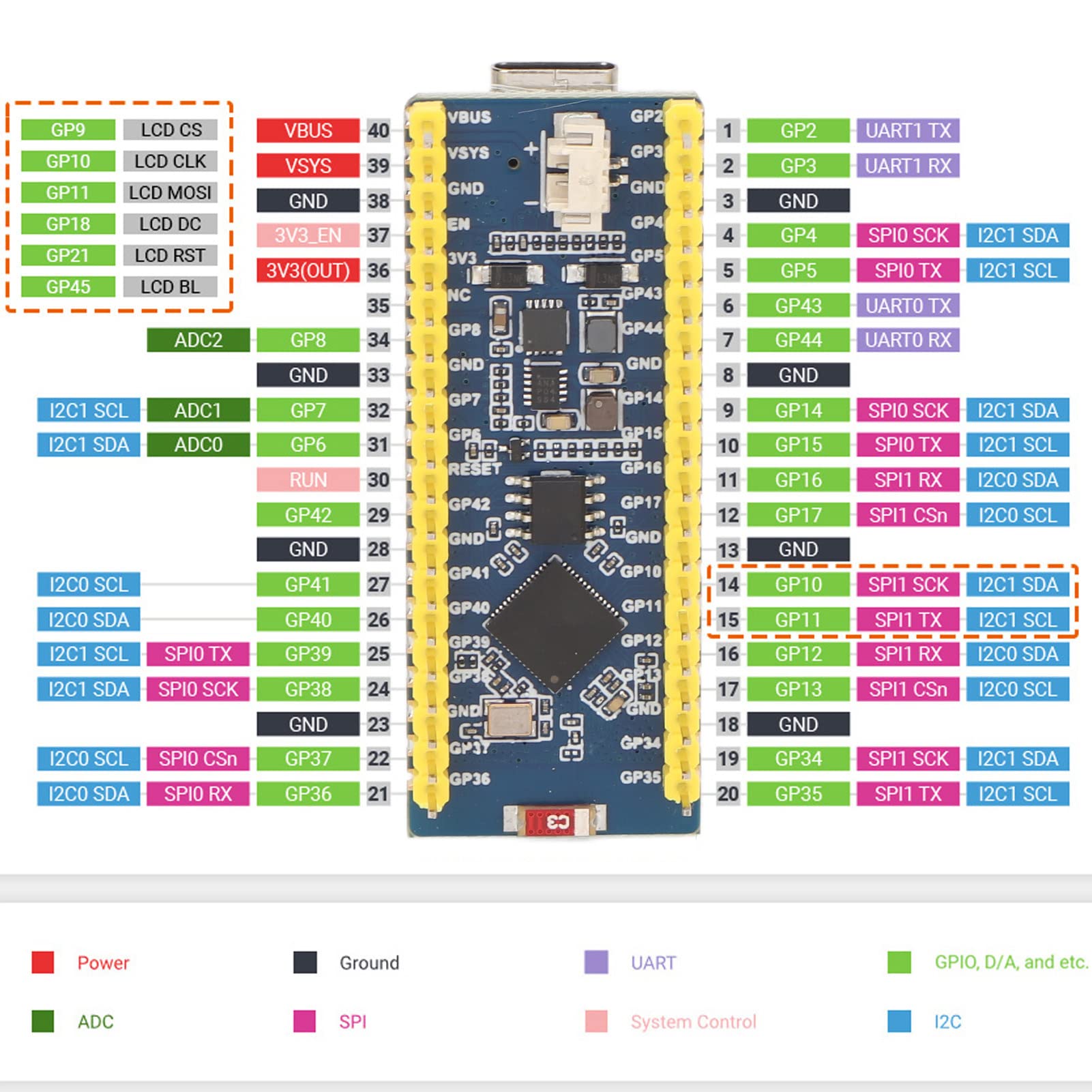

•MULTIPLE INTERFACES: On chip integration of full speed USB OTG, SPI, I2C, UART, ADC, D A, PWM, DVP 8 16 Camera interface, LCD interface (8 bit serial RGB 8080 6800), TWAI controller (ISO118981 compatible), capacitive sensing GPIO, temperature sensor and RMT (TX RX).
•HIGH EFFICIENCY: On board 1.8A current high efficiency step up DC TPS63000 power supply IC, on board single 3.7V Li ion battery charge discharge interface, suitable for mobile type IoT product design.

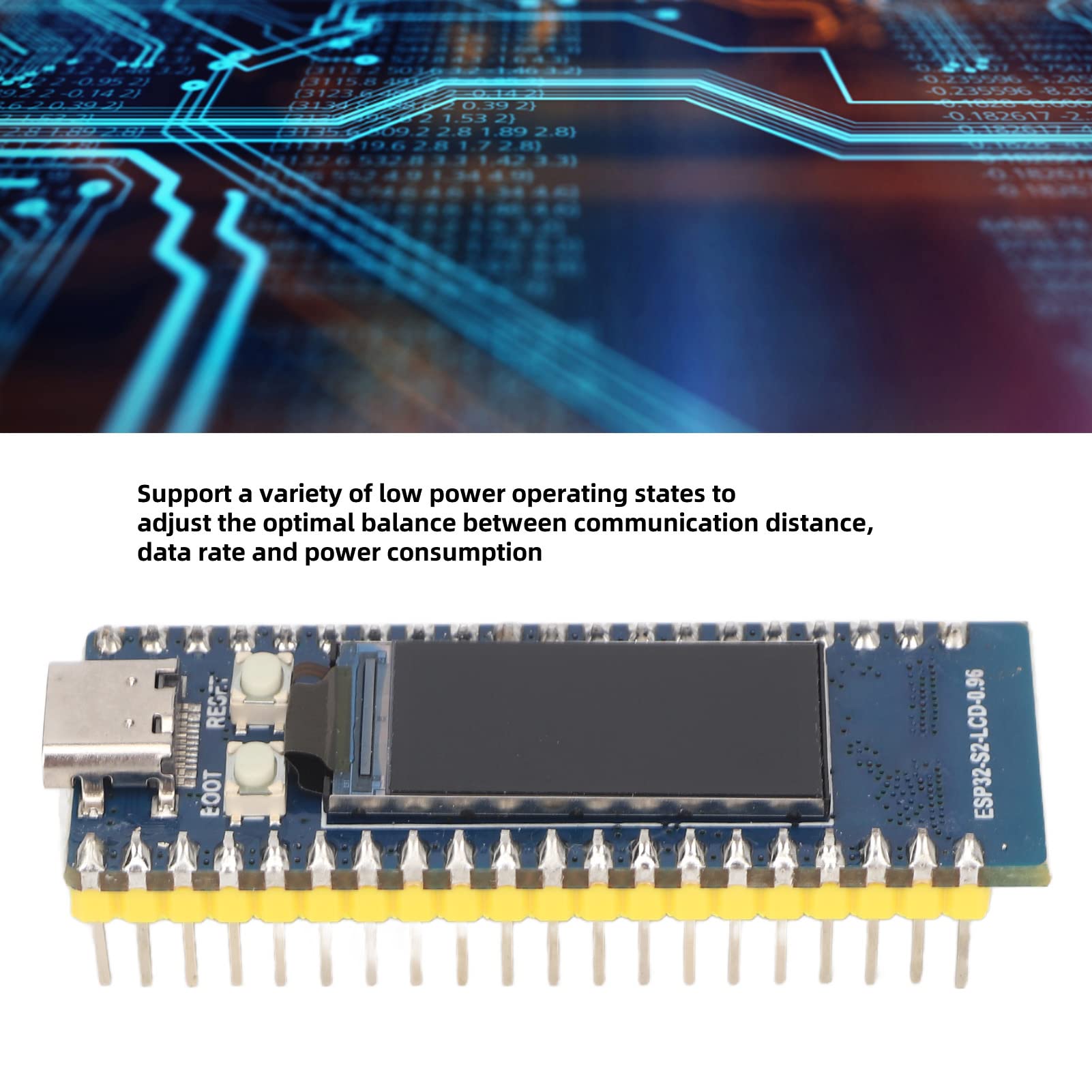

•LOW POWER CONSUMPTION: Support a variety of low power operating states, can adjust the best balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios.
•STAMP HOLE DESIGN: Can be directly soldered and integrated into user designed backplane, integrated 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory.
