DC-DC XL4015 5A High-Power Buck Converter, diymore 4PCS DC-DC 4~38V to 1.25-36V Adjustable Step Down Module with Heatsink
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

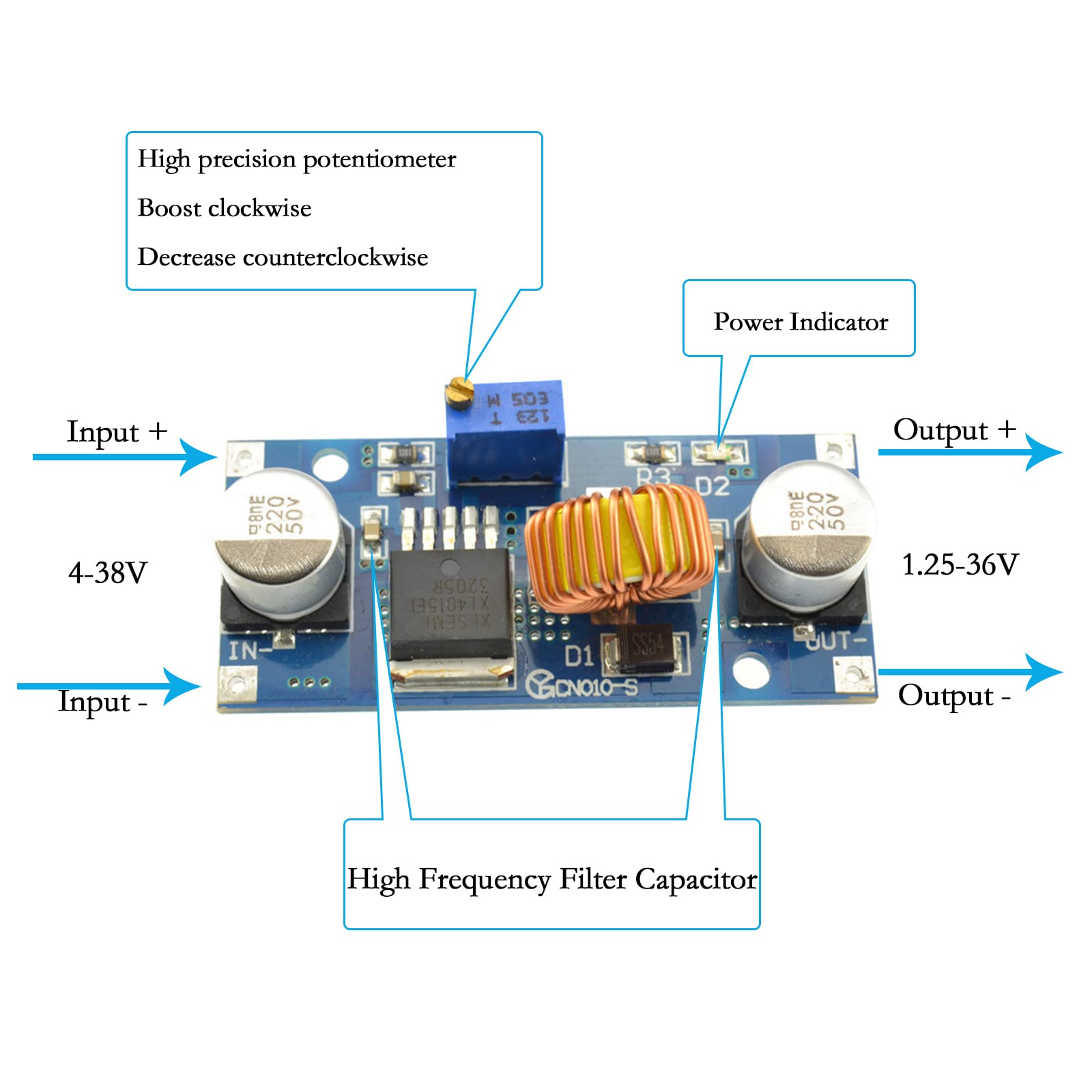

•XL4015 is a non-isolated voltage step down module. Input voltage: 4-38V; Output voltage: 1.25-36V; Output current: 0-5A, Recommended <4.5A.Output power: 75W; High conversion efficiency up to 96%

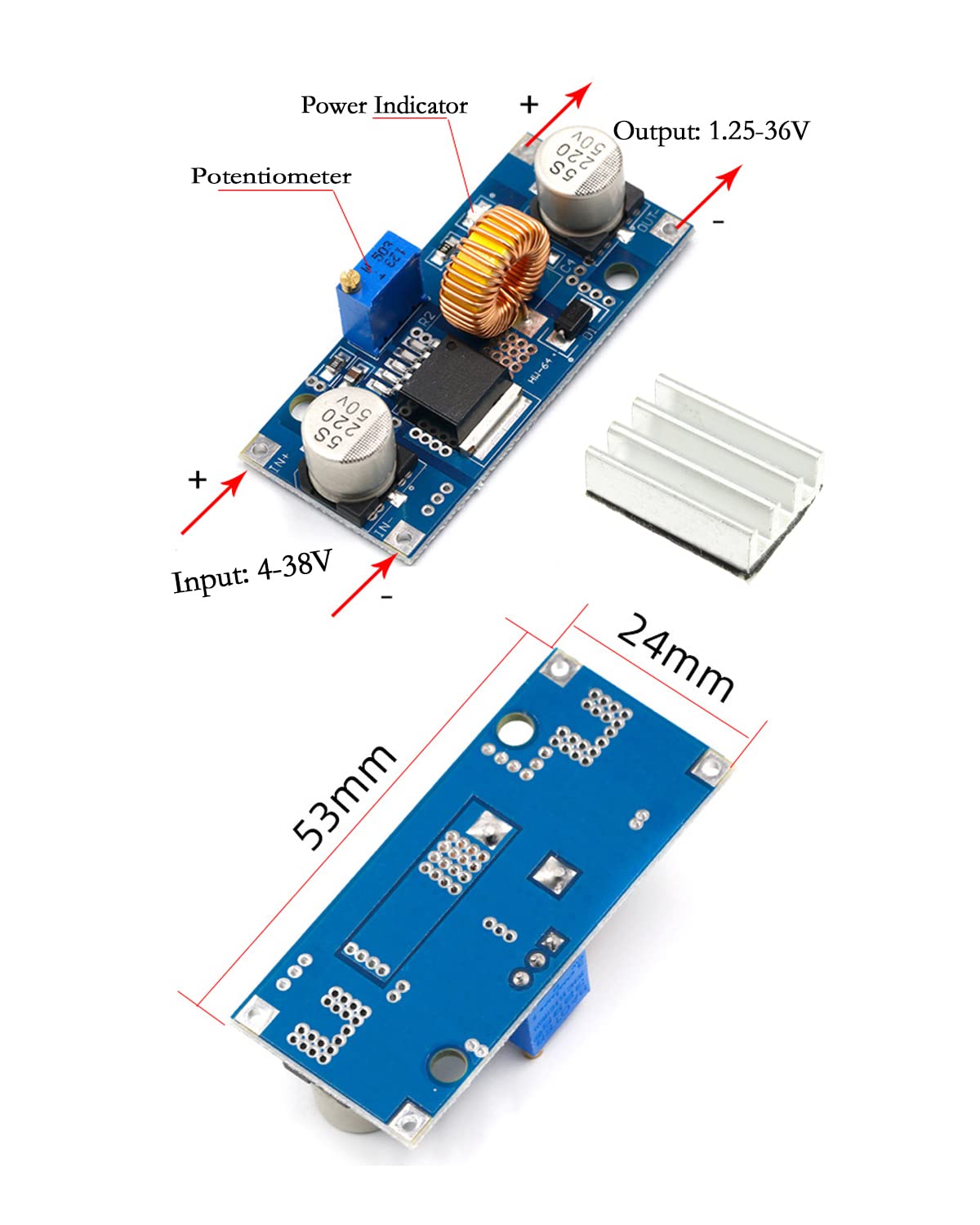

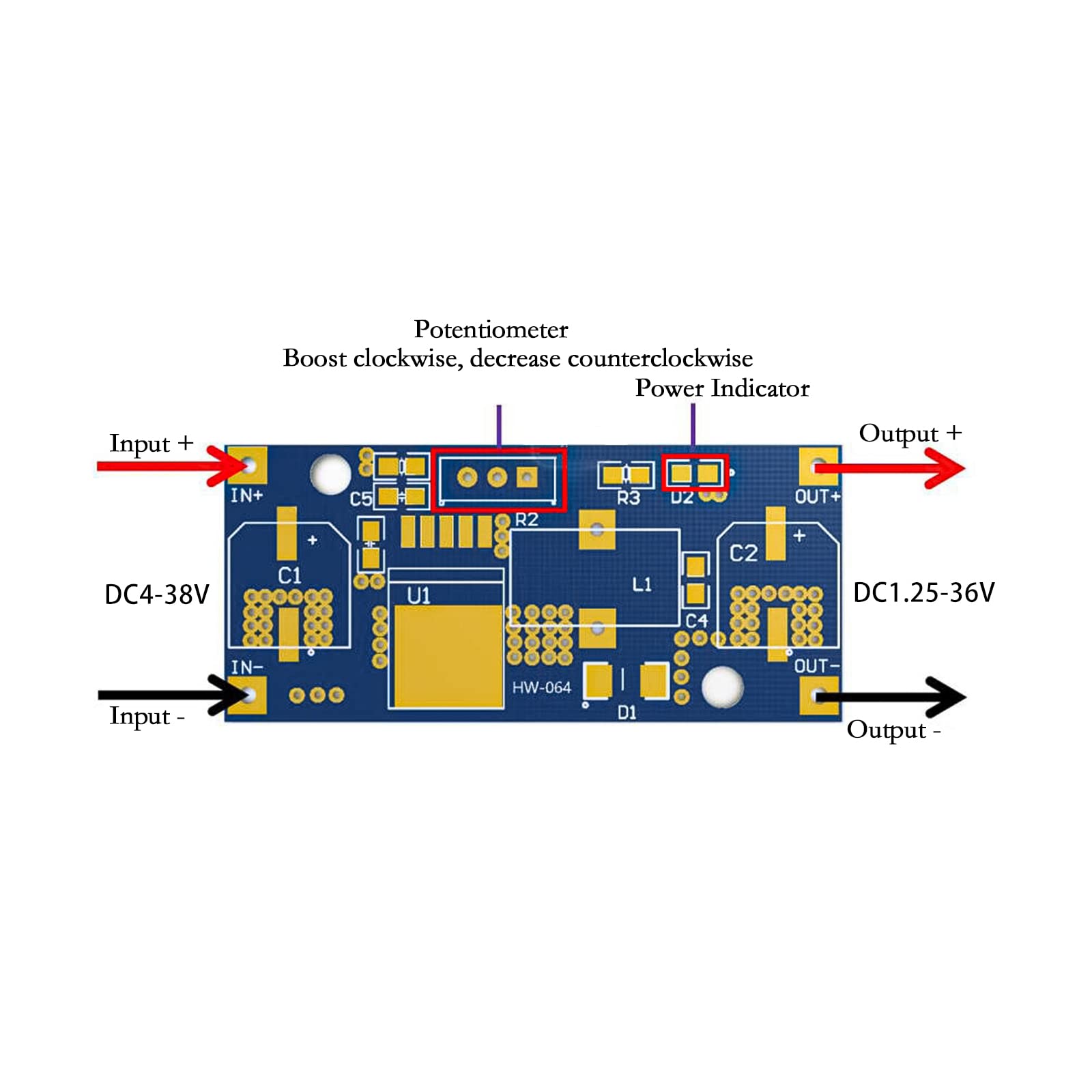

•Mounting dimensions: -IN solder pad hole to OUT- solder pad hole distance is 50mm. OUT- hole to OUT+ hole is 20.23mm. The diameter of the solder pad holes is .052". The 2 mounting hole diameters are .113". 1 mounting hole is 8.03 mm from OUT- hole center and 9.69mm from the short board edge. The second mounting hole is 9.16mm from the short board edge and 7.17 mm from IN+ pad hole center. Both mounting holes are 2.50 mm from the long side board edge. Board size: about 5.4x2.3x1.8CM

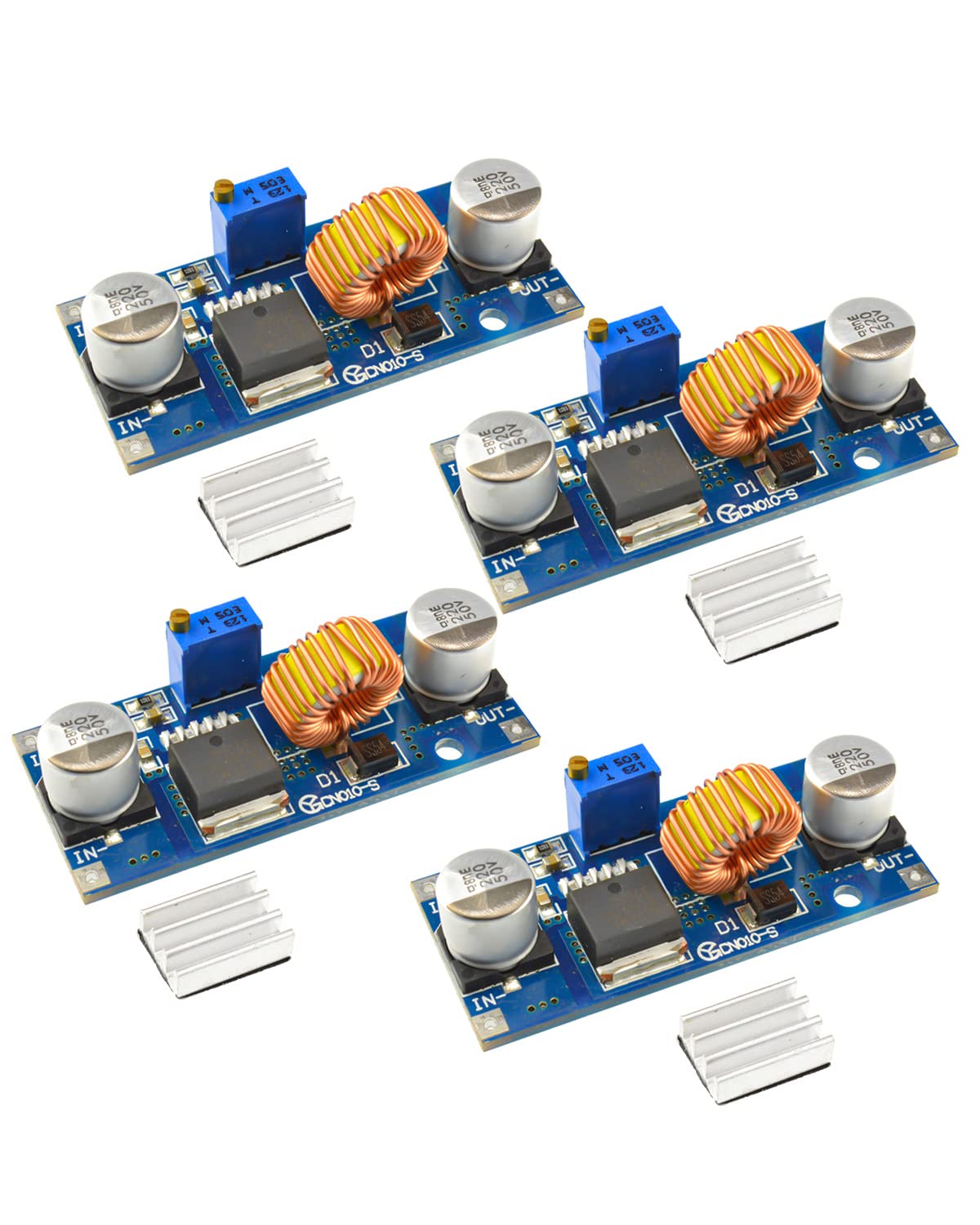

•Will come with heatsink(unassambled), there is double sided tape on the heatsink, just peel the sticker off of the included one and paste it on the chip. It is very easy to install
•Please Note: 5A is the maxium, If you did need to get the maximum amps, you'd better add a fan or thermally couple the entire back of the unit to something to dissipate the heat better
•Applications: The DC/DC buck module can be applied to fields in the input voltage is higher than the step-down output voltage, such as power transformers, DIY adjustable power supply, 24V vehicle laptop power supply 24V Car T of the power equipment industry buck, 12V switch 3.3V, 12V switch 5V, 24V switch 5V, 24V switch 12V, 36V to 24V and so on. If you need more information of XL4015, please kindly Google" XL4015 datasheet"
