CQRobot MCP23017 IO Expansion Board Compatible Raspberry Pi/Mi | Shop The World
From USA
NewCQRobot

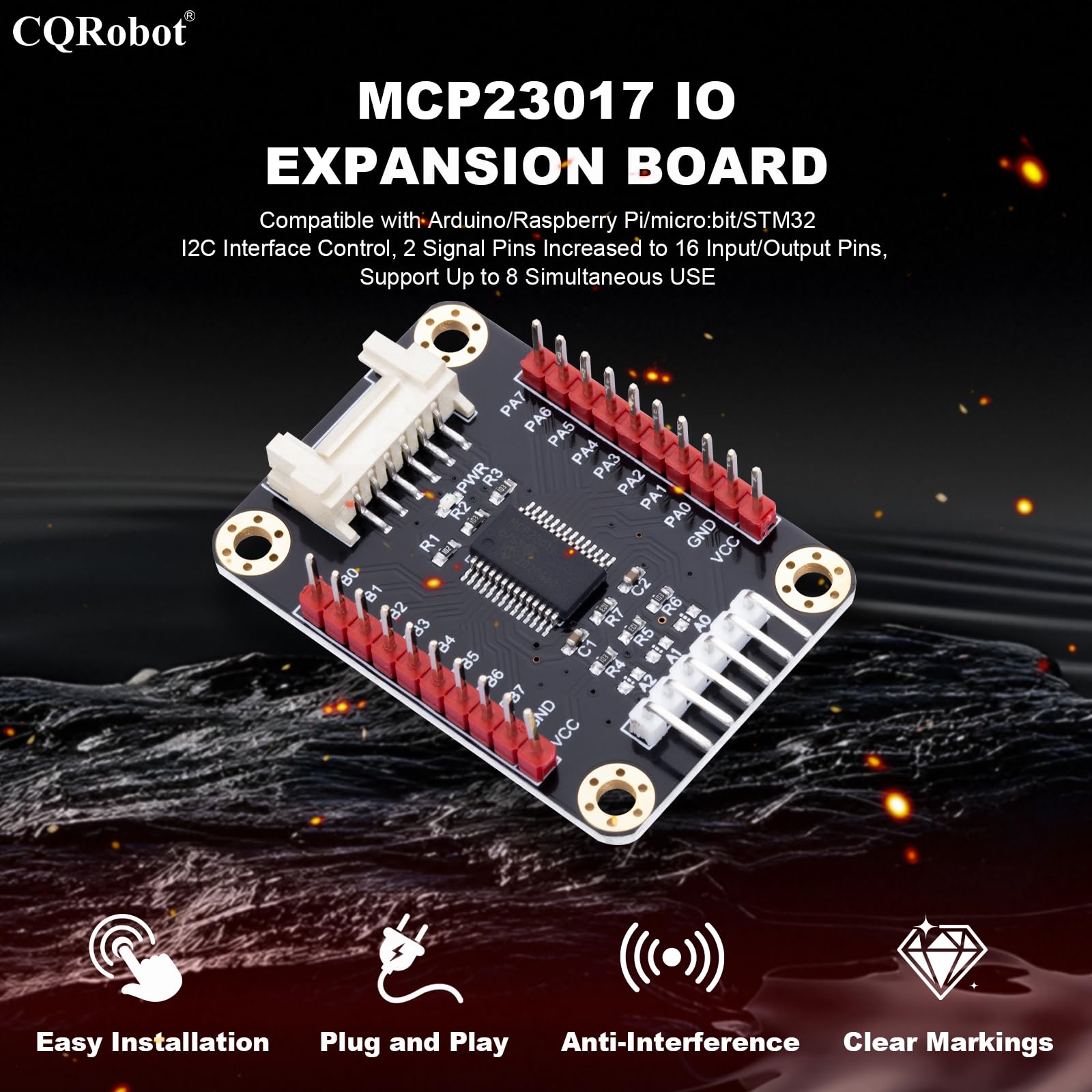

CQRobot MCP23017 IO Expansion Board Compatible with Raspberry Pi/Micro:bit/Arduino/STM32. I2C Interface Control, 2 Signal Pins Increase to 16 Input/Output Pins, Supports UP to 8 Simultaneous Uses.
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

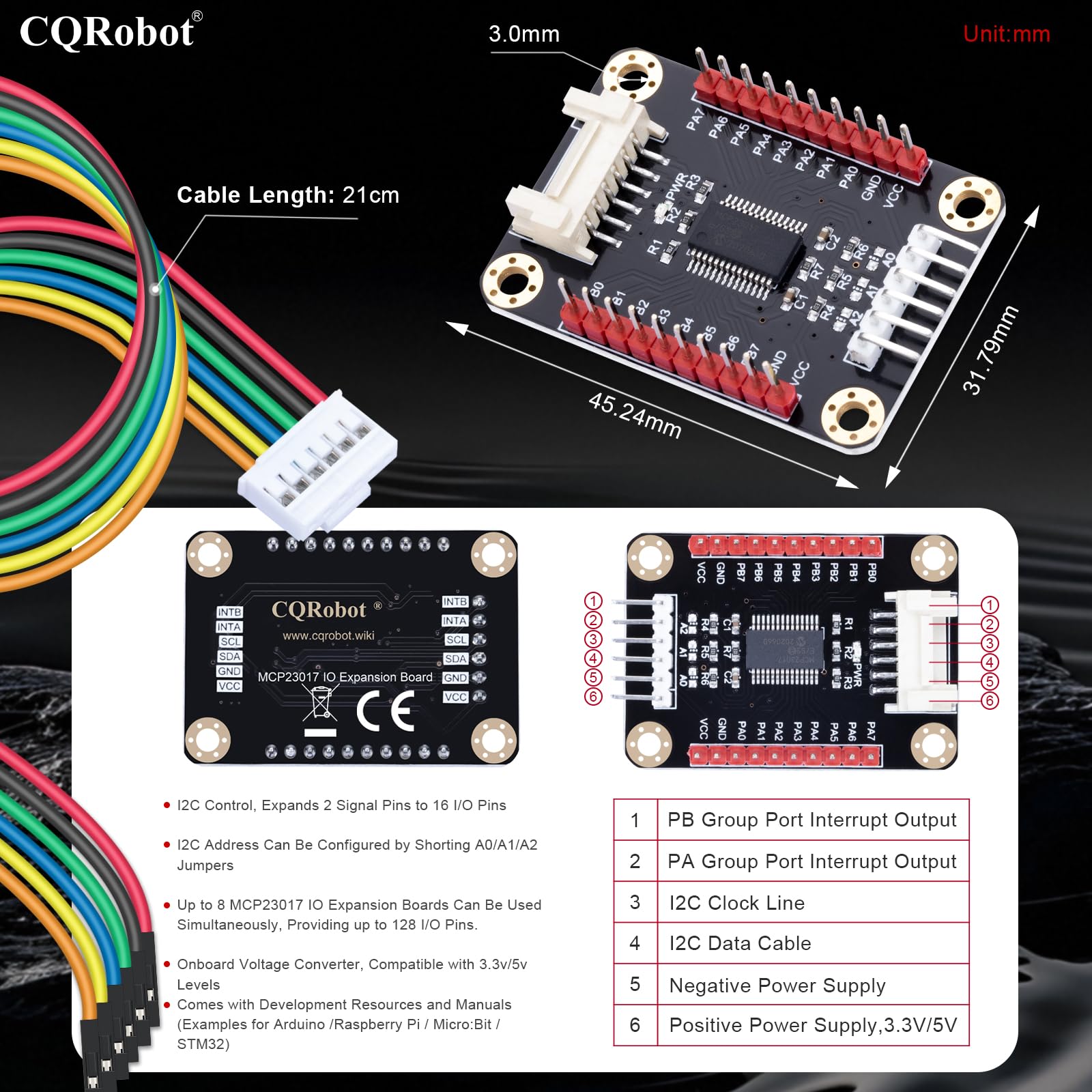

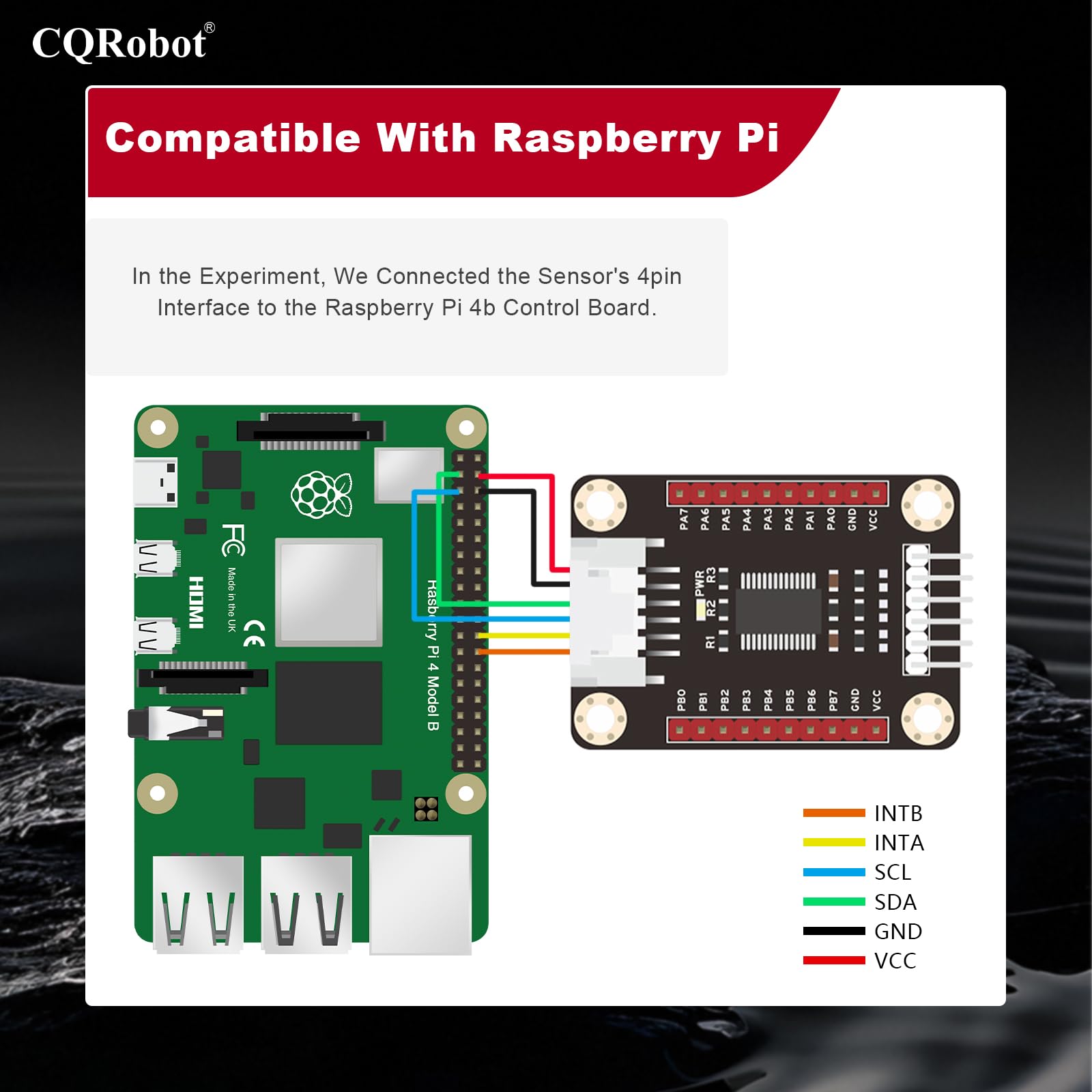

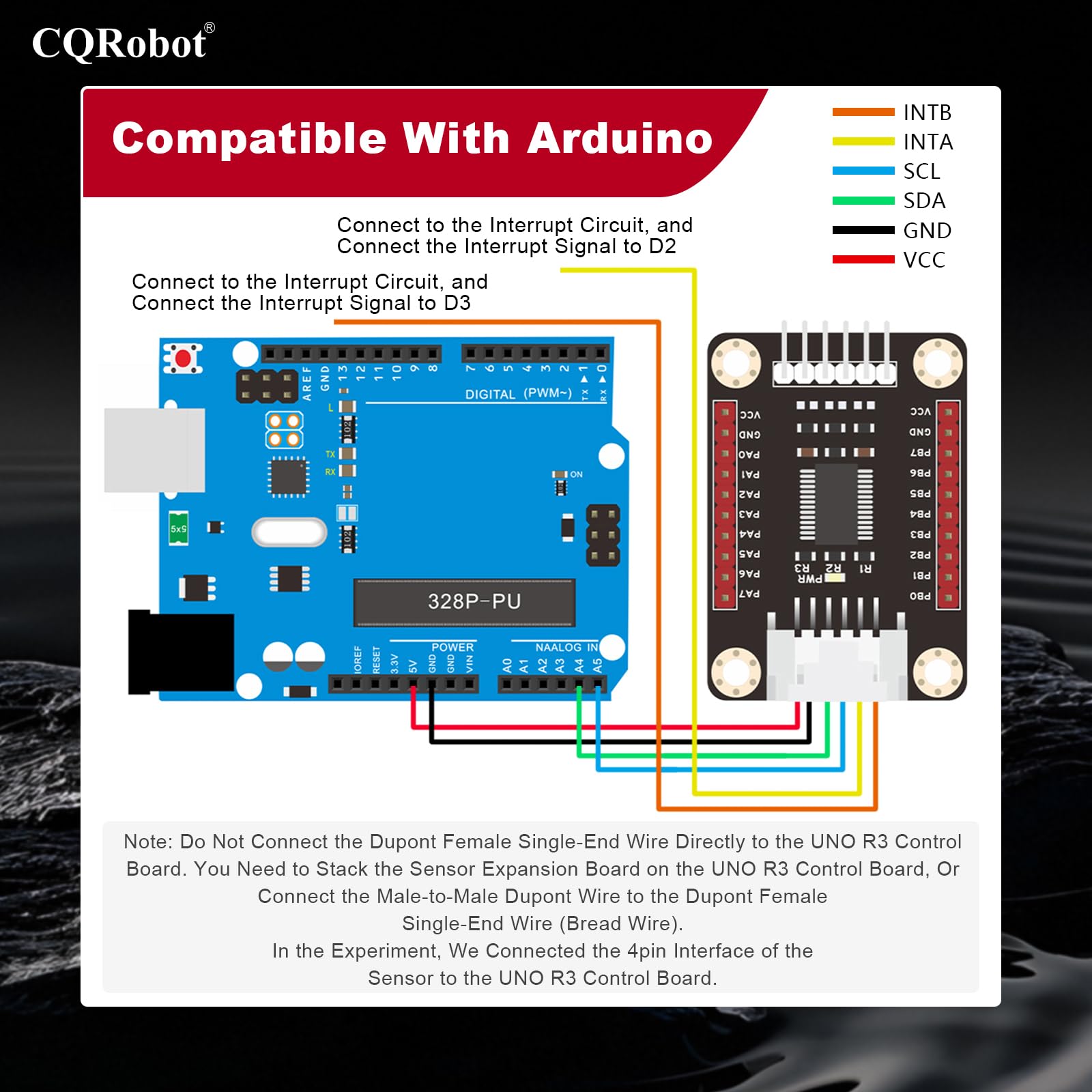

•MCP23017 IO Expansion Board Compatible with Arduino Motherboard, Raspberry Pi Motherboard, Micro:bit Motherboard and STM32 Motherboard.
•I2C controlled, expands 2 signal pins as 16 I/O pins.
•I2C address configurable by shorting the A0/A1/A2 jumpers.
•UP to 8 MCP23017 IO Expansion Board can be used at the same time, providing up to 128 I/O pins.
•Interface Wire: 22AWG environmentally friendly high temperature resistant silicone wire, JST-PA SMT 6-Pin to DuPont female single head, wire length 210mm.
