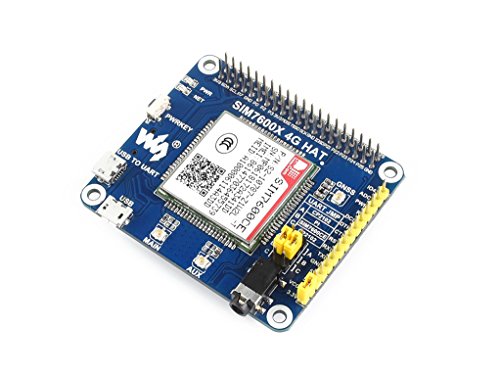

Coolwell Waveshare 4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi/Jetson Nano Based SIM7600G-H Support LTE CAT4 for Dial-up, Phone Call, SMS, MMS, Mail, TCP, UDP, DTMF, HTTP, FTP Global Position
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano; Breakout UART control pins, to connect with host boards like STM32

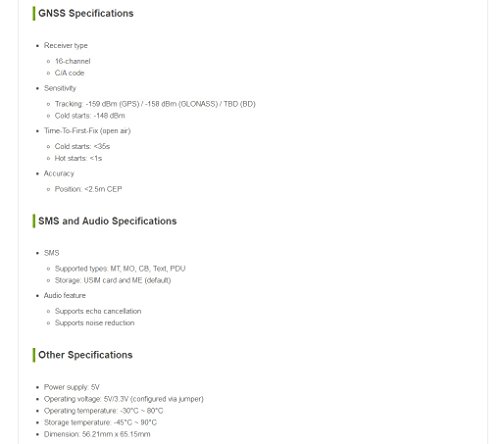

•Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.; Supports GPS, BeiDou, Glonass, LBS base station positioning;Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

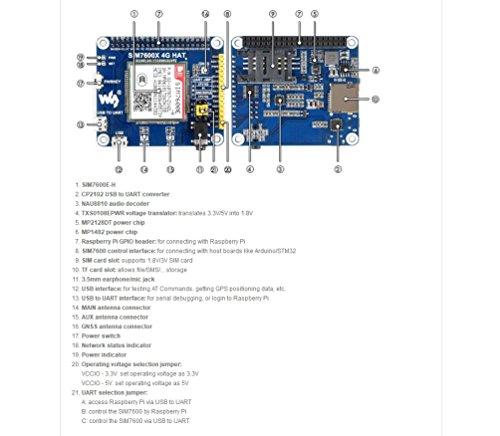

•Onboard USB interface, to test AT Commands, get GPS positioning data, and so on;Onboard CP2102 USB to UART converter, for serial debugging;Onboard audio jack and audio decoder for making telephone call;Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper

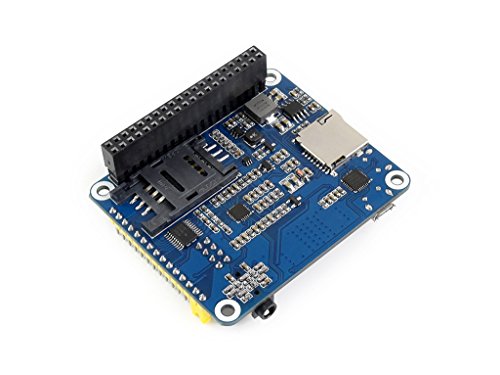

•SIM card slot, supports 1.8V/3V SIM card; TF card slot for storing data like files, messages, etc.;2x LED indicators, easy to monitor the working status; Baudrate: 300bps ~ 4Mbps (default: 115200bps);Autobauding baudrate: 9600bps ~ 115200bps;Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
