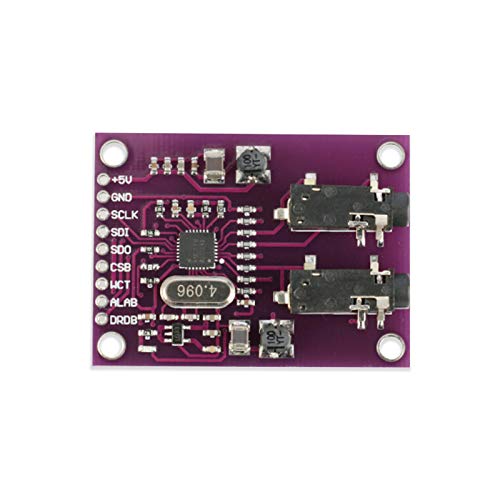

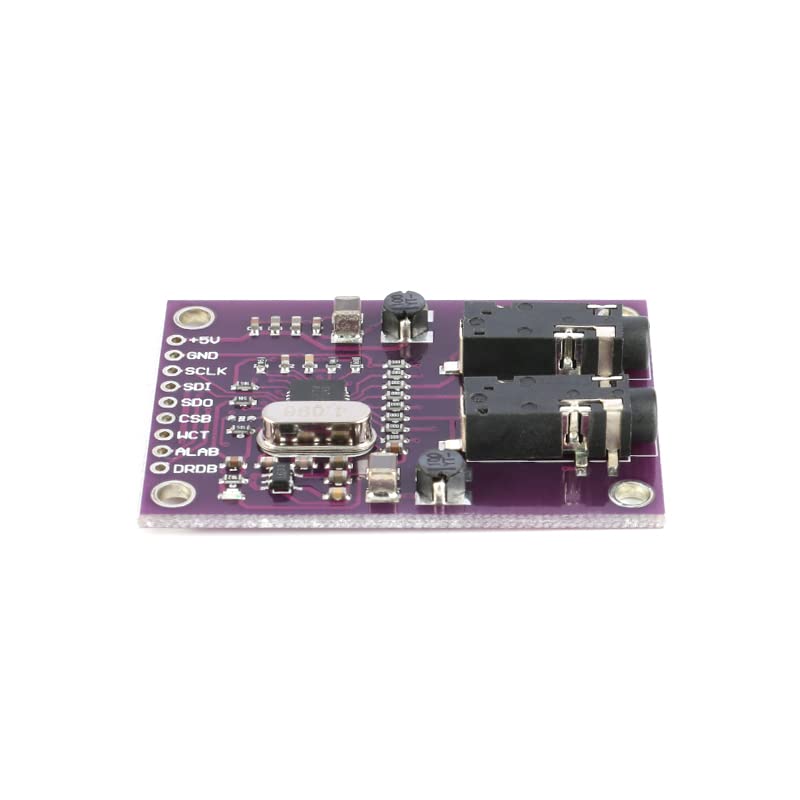

CJMCU-1293 ADS1293 Electrocardiogram Physiological Signal Measurement Module 3 Channel 24 Bit Analog Front End Module

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•With EMI Hardened Inputs, Low Power: 0.3mW/channel, Input-Referred Noise: 7μVpp (40Hz Bandwidth)
•3 High Resolution Digital Channels outputs
•Drive Amplifier, AC and DC Lead-Off Detection, Wilson and Goldberger Terminals, AL ARMB Pin for Interrupt Driven Diagnostics
•Input Bias Current: 175pA, Data Rate: Up to 25.6ksps, Differential Input Voltage Range: +400mV, Analog Supply Voltage: 2.7V to 5.5V, Digital I/O Supply Voltage: 1.65V to 3.6V
•Battery Voltage Monitoring, Built-In Oscillator and Reference, Flexible Power-Down and Standby Modes

From USA

NewJESSINIE

CJMCU-1293 ADS1293 Electrocardiogram Physiological Signal Measurement Module 3 Channel 24 Bit Analog Front End Module

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•With EMI Hardened Inputs, Low Power: 0.3mW/channel, Input-Referred Noise: 7μVpp (40Hz Bandwidth)
•3 High Resolution Digital Channels outputs
•Drive Amplifier, AC and DC Lead-Off Detection, Wilson and Goldberger Terminals, AL ARMB Pin for Interrupt Driven Diagnostics
•Input Bias Current: 175pA, Data Rate: Up to 25.6ksps, Differential Input Voltage Range: +400mV, Analog Supply Voltage: 2.7V to 5.5V, Digital I/O Supply Voltage: 1.65V to 3.6V
•Battery Voltage Monitoring, Built-In Oscillator and Reference, Flexible Power-Down and Standby Modes
