Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

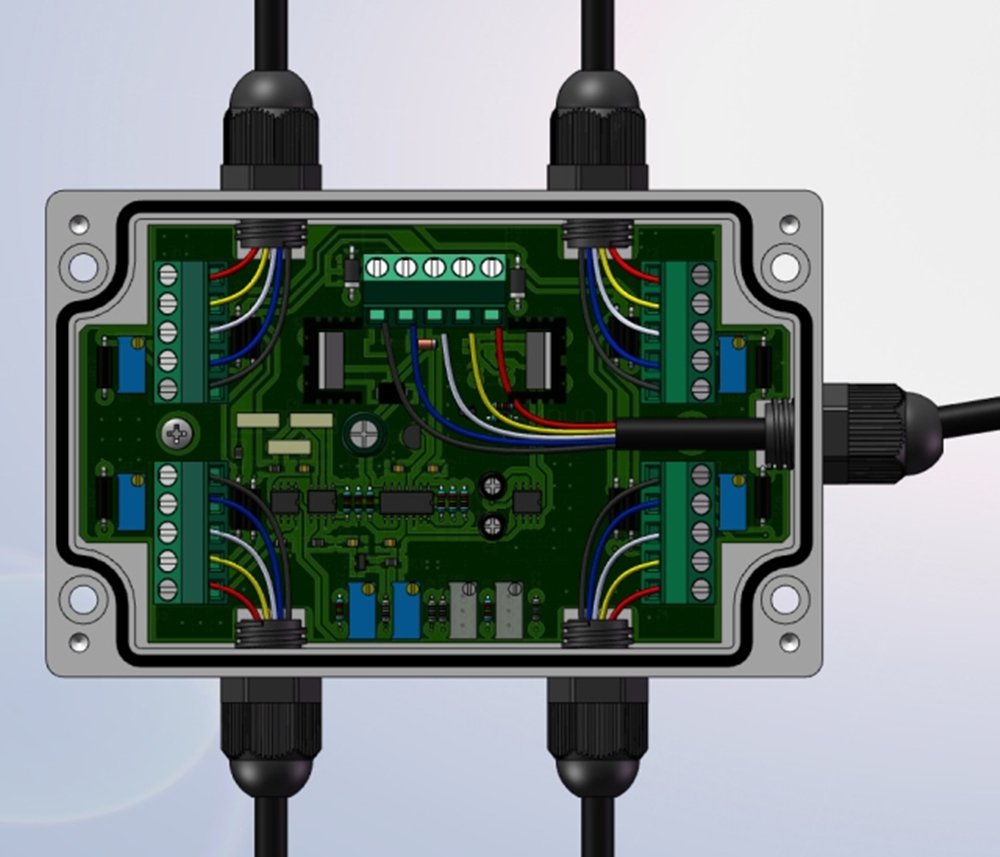

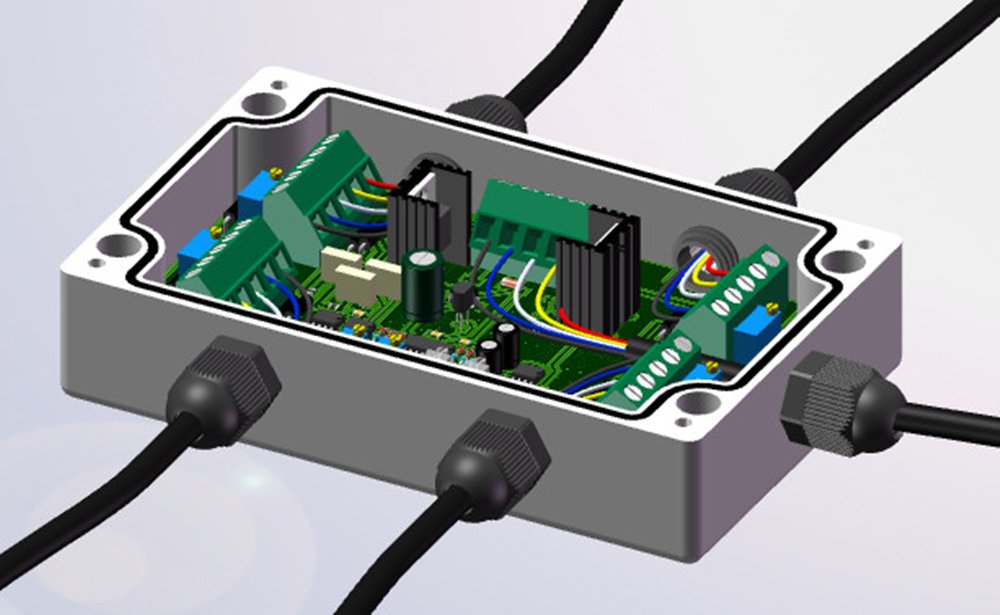

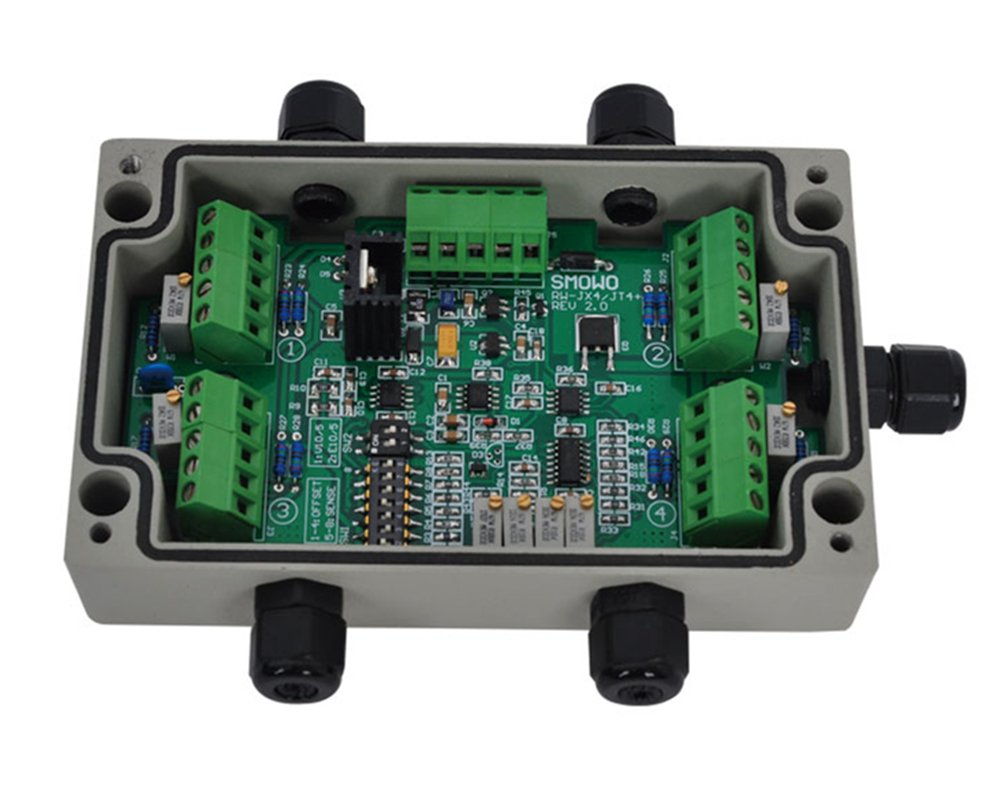

•<b>Brief Introduction:</b><br> Cast aluminum enclosure, waterproof design and strong sealing against harsh environment<br> Internal precision summing and amplifying circuit with high accuracy, low drift and long-term stability<br> Current and voltage output at the same and arbitrary choice through terminals<br>
•Built in low-pass filter with strong anti-interference ability<br> Strong loading capacity, enabling to connect 4 load cells at the same time<br> Wide range about power supply mode with input over-voltage and over-current protection and output short circuit protection<br><br>
•<b>Specification:</b><br> Applicable Sensitivity:1mV/V-3mV/V<br> Input Signal:mV×4<br> Output Signal :0-5V/0-10V&4-20mA<br> Accuracy :0.1%/0.05%<br> Power Supply: DC24V<br> Applicable Load Cell Excitation Voltage: 5-12V<br><br>
•Feature:Waterproof design and good sealing 24 bit ADC resolution Digital filter inside Direct output ADC result RS232 or RS485 interface Simple communication command Excellent temperature stability Application: All full bridge stain gauge load cells for weighing, tension, compression, torque, etc.
