CC2530 F256+PA Zigbee 3.0 2.4Ghz Wireless Module cdebyte E18-M | Shop The World
From USA
NewEBYTE

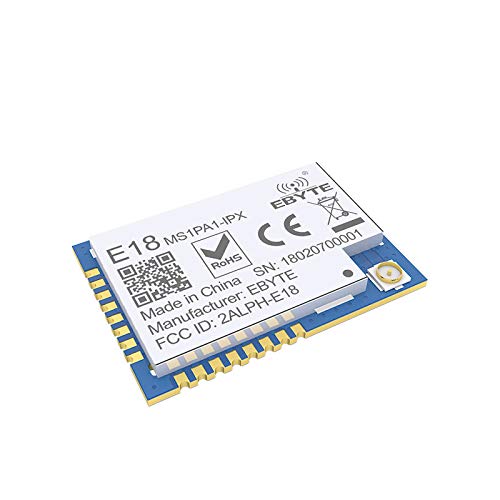

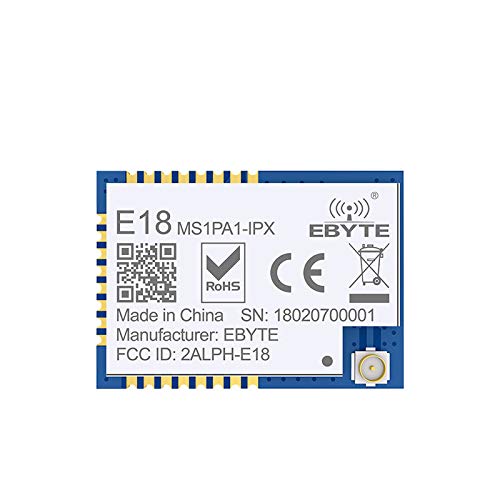

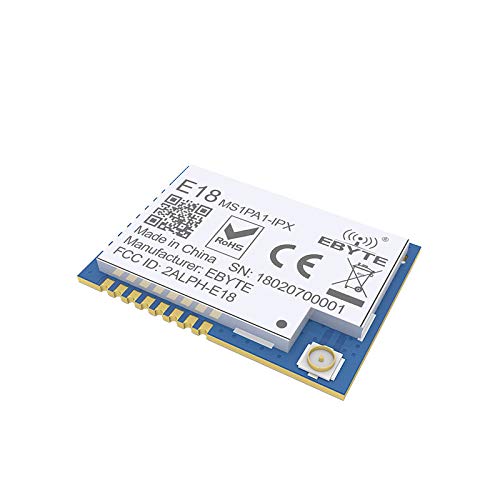

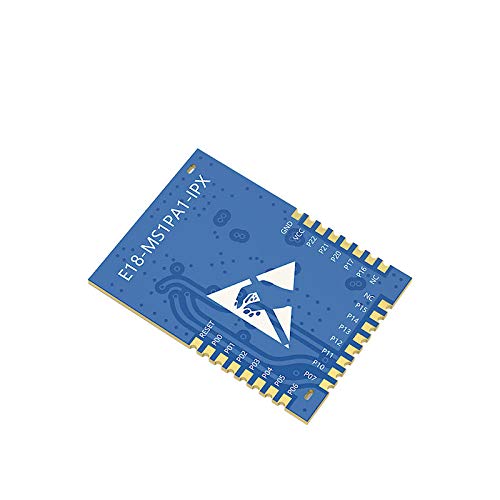

CC2530 F256+PA Zigbee 3.0 2.4Ghz Wireless Module cdebyte E18-MS1PA1-IPX Development Board IPEX IPX Data Transceiver
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Application：Smart homes and industrial sensors; Security system, positioning system; Wireless remote control, drone； Wireless game remote control； Health care products； Wireless voice, wireless headset； Automotive industry applications.
•The measured communication distance is up to 1000 m; Maximum transmission power of 100mW, software multi-level adjustable; Built-in ZigBee protocol stack; Factory-installed self-organizing network firmware, ready to use; Support peripherals such as ADC, PWM, GPIO; Support UART transparent transmission, easy to use; Built-in 32.768kHz clock crystal oscillator;
•Support the global license-free ISM 2.4GHz band; Rich resources, 256KB FLASH，8KB RAM；
•Built-in CC2592 RF range extender with integrated PA+LNA; Support 2.0V~3.6Vpower supply，power supply over 3.3Vcan guarantee the best performance; Industrial grade standard design, support -40 ~ 85 °C for working over a long time; IPEX interface for easy connection to coaxial cable or external antenna.
