CANADUINO 5 x Nano V3.0-100% Compatible Arduino - CH340 USB CA | Shop The World
From USA
NewCANADUINO

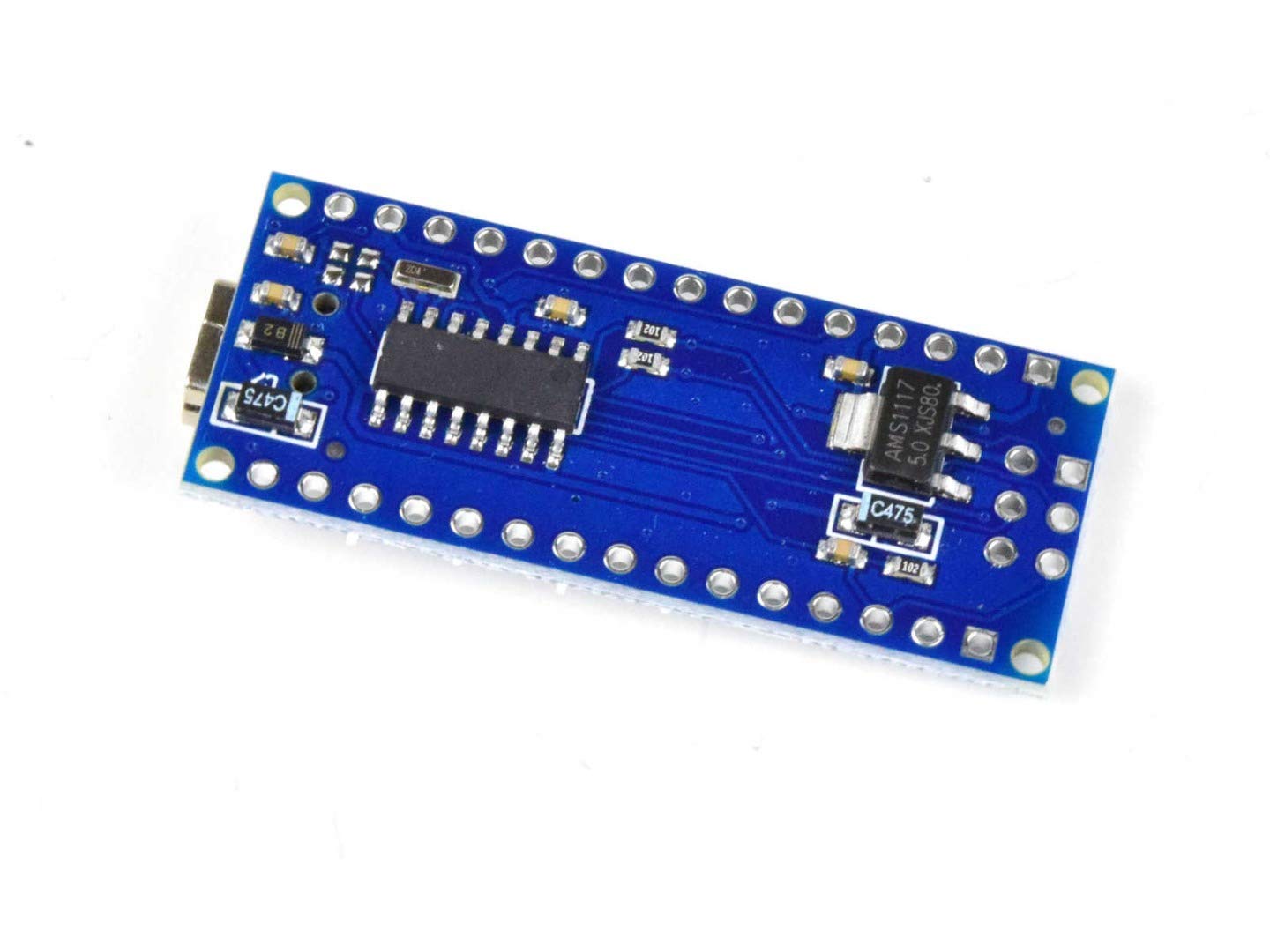

CANADUINO 5 x Nano V3.0-100% Compatible with Arduino - CH340 USB
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The Nano is a complete and breadboard-friendly Microcontroller Module based on the ATmega328; Nano V3 provides a Mini-USB Port for Programming, Power Supply and Serial Communication and 22 IO pins with digital, analog and PWM function; Please select "Old Bootloader" in Arduino IDE
•Logic Level 5 V; Flash Memory 32 KB; SRAM 2 KB; EEPROM 1 KB; Speed 16 MHz; Analog IN Pins 8; PWM OUT Pins 6; Total of IO Pins 22; max. Current per I/O Pin 40 mA; Power Supply 7-12 V; Current Consumption about 19 mA
•PCB Size 18 x 45 mm, Weight 7 g

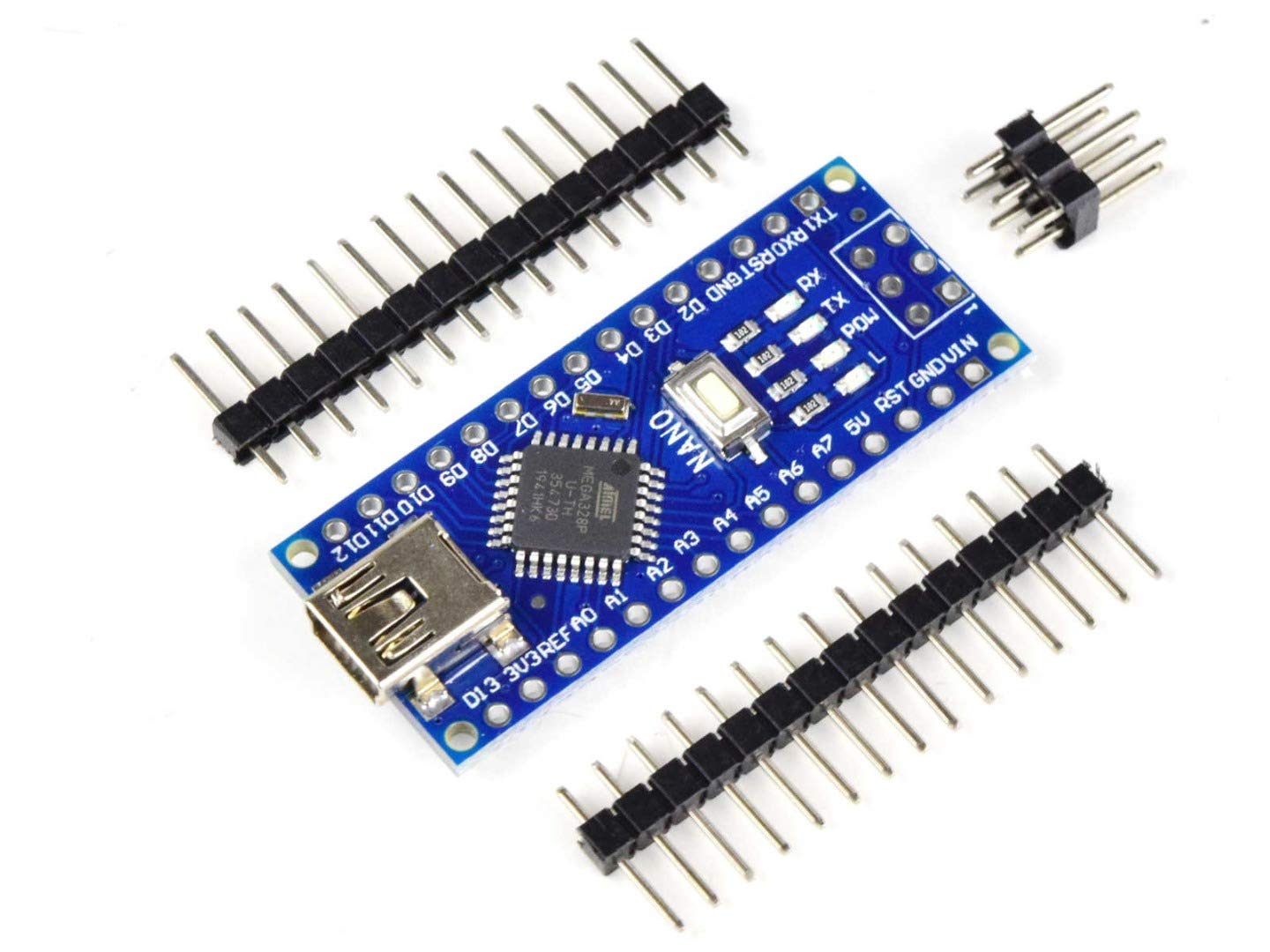

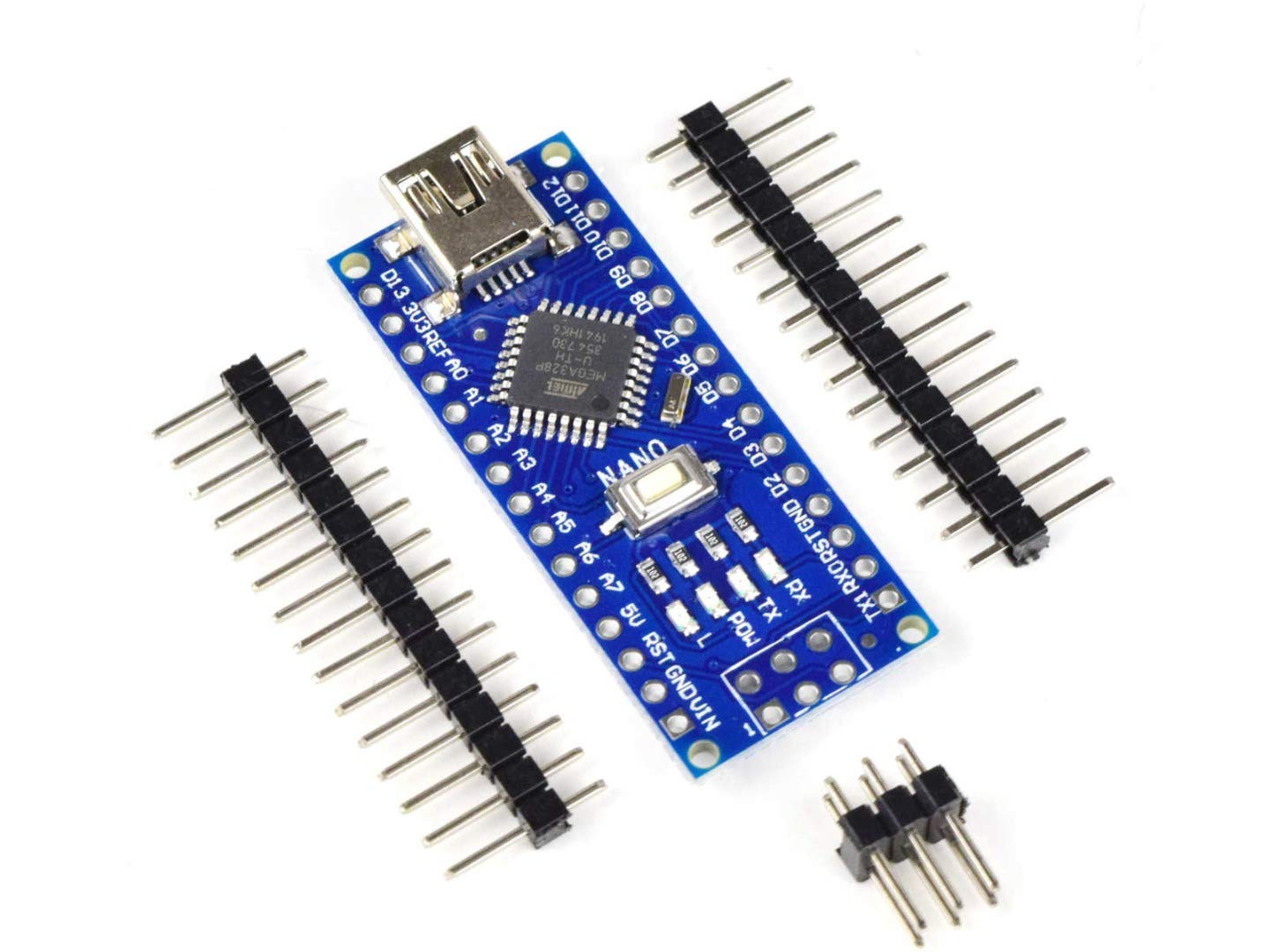

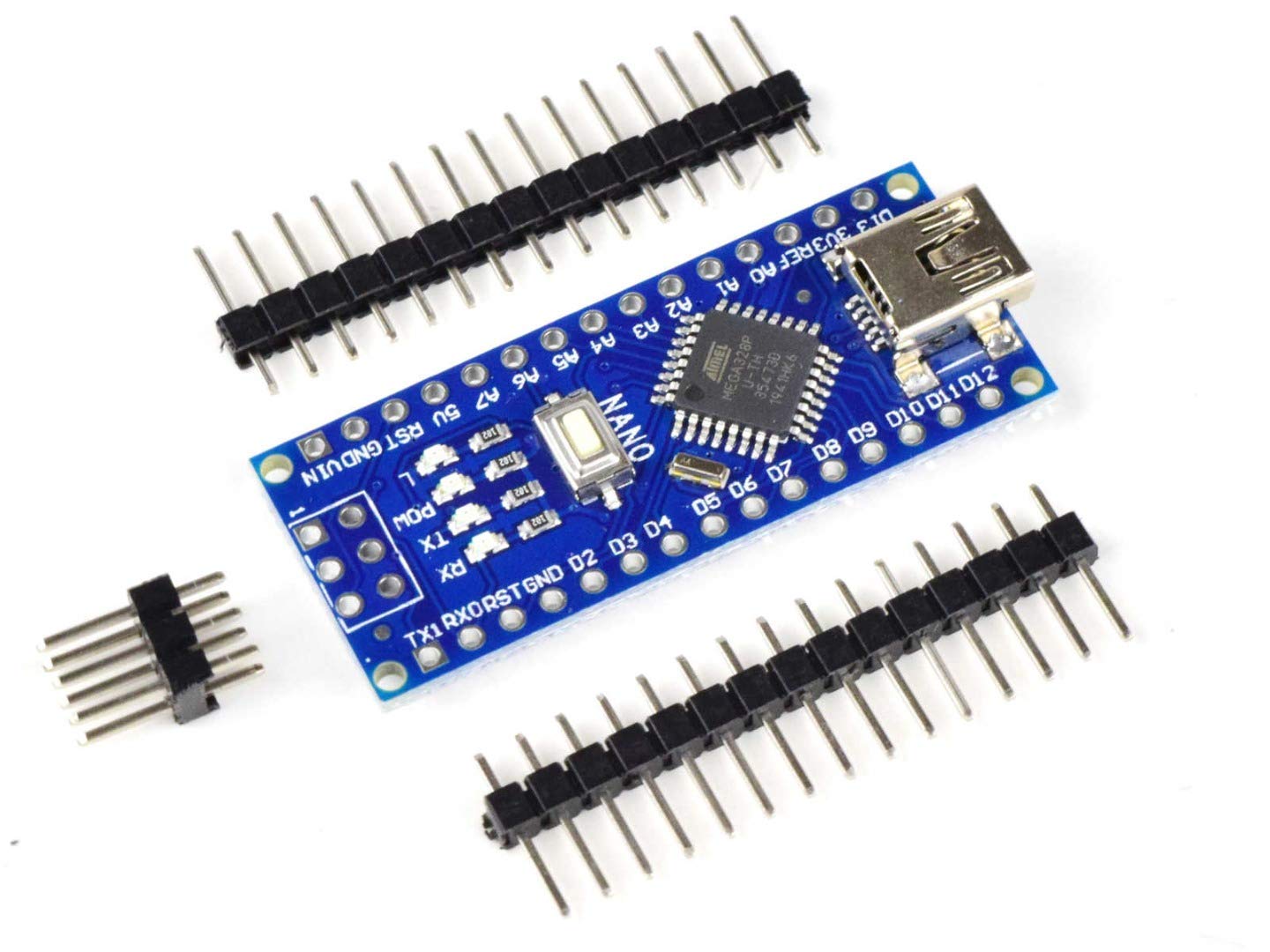

•Content: 5x Nano V3 Microcontroller Module; 10x Male Header 15 Pins; 3x Male ICSP Header 2x3 Pins (Headers not assembled)
•For Downloads, Links and Customer Support please visit UNIVERSAL-SOLDER Website.
