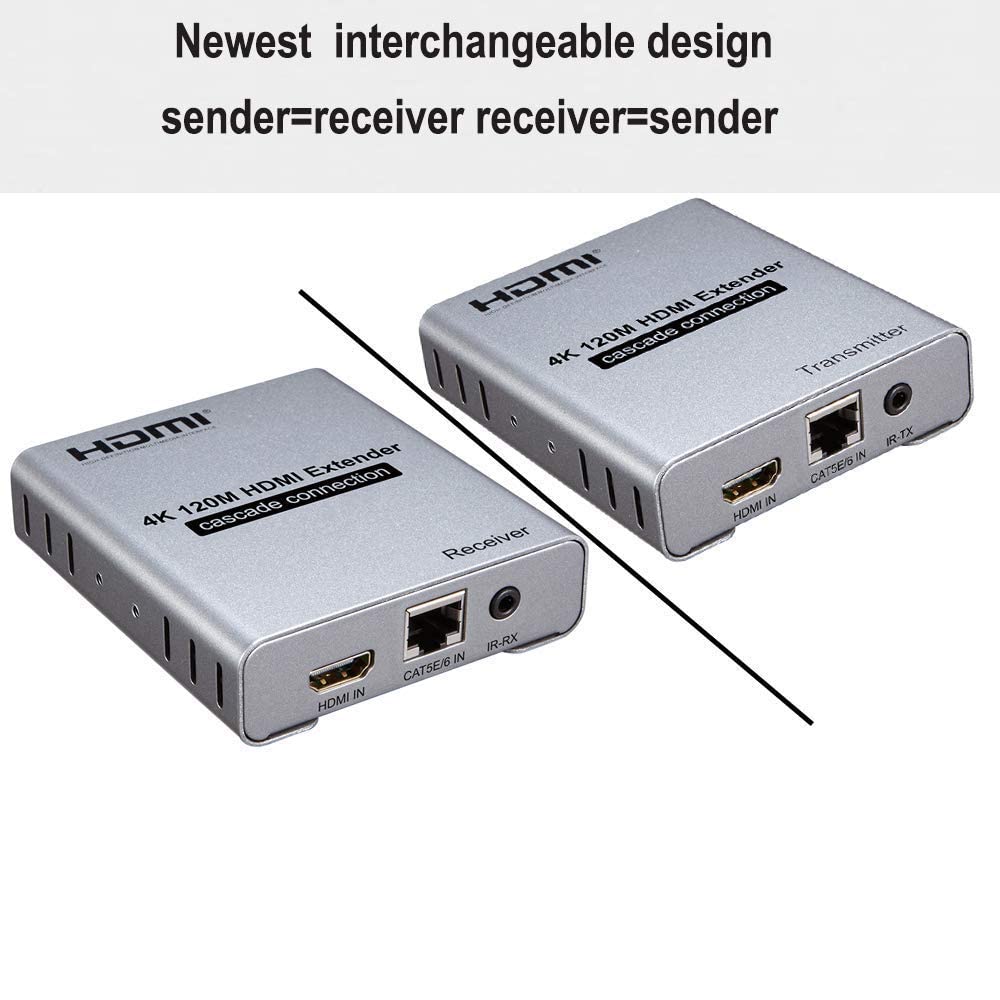

BUYFLUX 120M 4K HDMI Extender Cascade Connection Via Cat5e CAT6 RJ45 Ethernet Network Cable TX RX Kit for PS4, DVD Player, TV Box, PC to TV.
•Connect the HDMI receiver to the HDTV display with HDMI cable.
•Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.
•Connect the “IR receiver “into “IR-TX” port on transmitter, and “IR transmitter ” into the “IR-RX” on receiver, and make sure the IR transmitter aim at IR receiver of the controlled device if you need the IR control function.

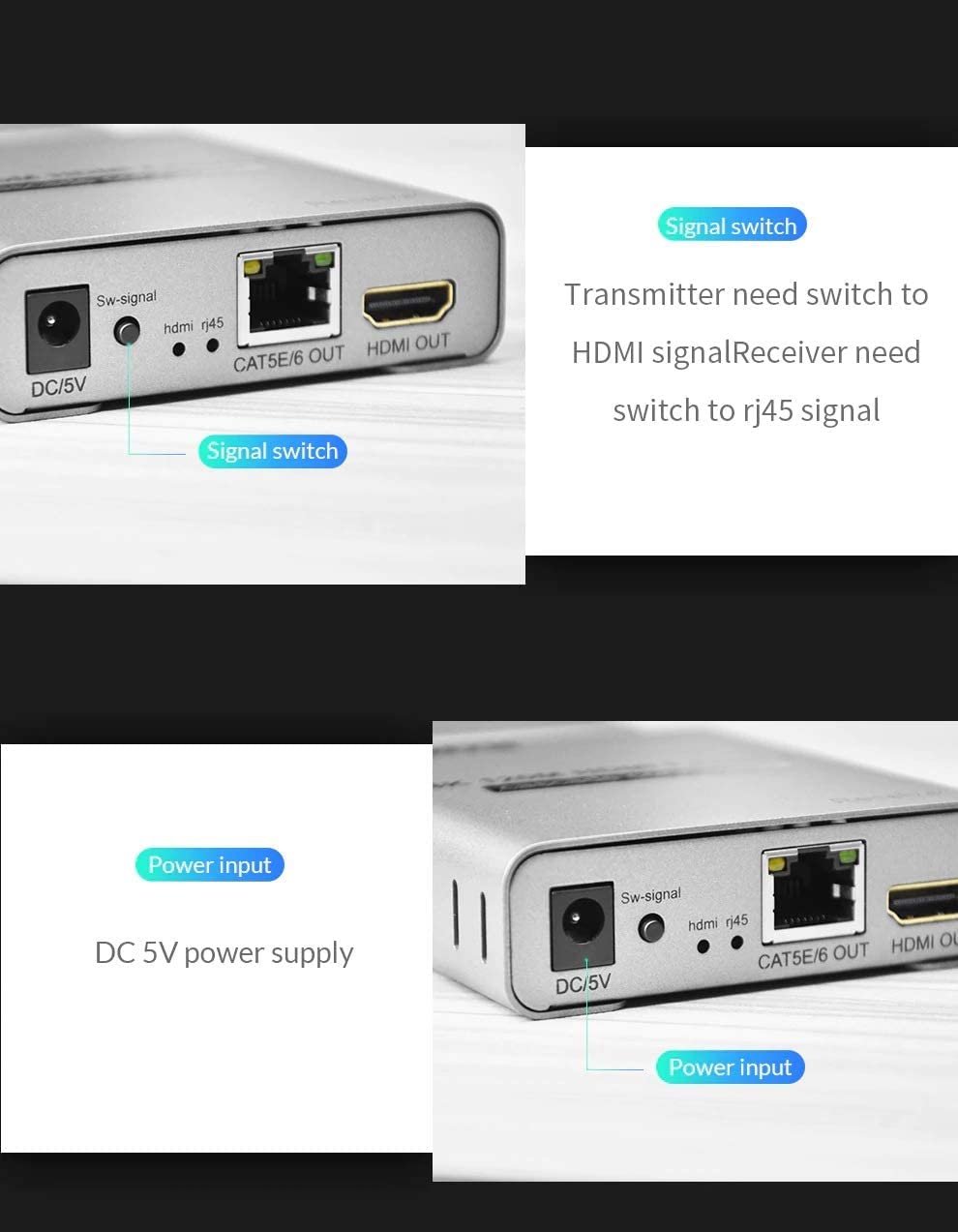

•Connect two pieces of 5V power supply to the transmitter and receiver, power supply for the equipment and the LED indicator light on. When status lamp on and flicker, equipment starts normal.

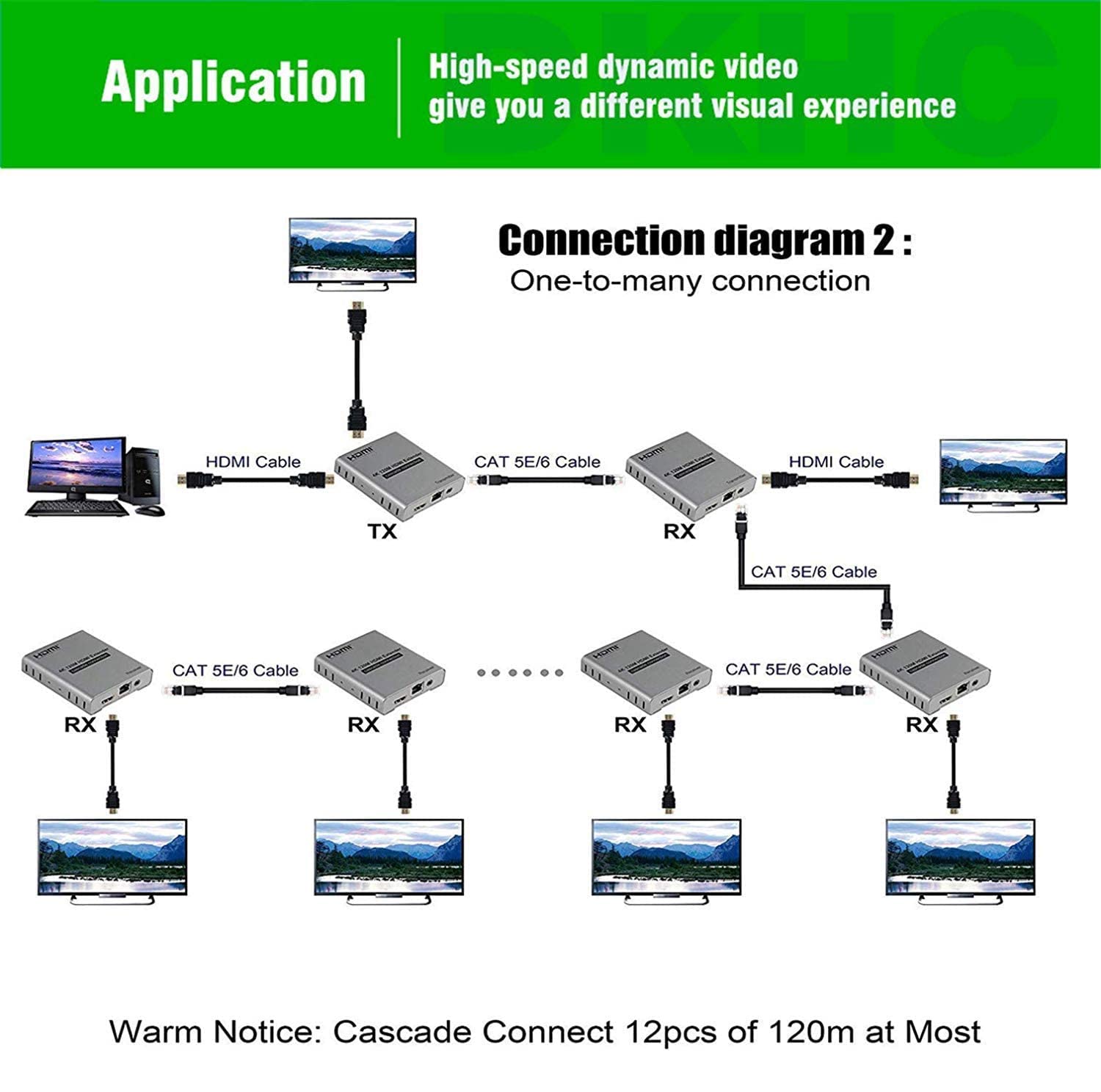

•Multipoint to multipoint match setting: when multipoint to multipoint connecting and multiple TX and multiple RX connect to the switch, the IP extender can match based on “SET” setting (eg: “SET” of TX is 0001, “SET” of RX is 0001
