NewBside ACM91 TRMS AC/DC Clamp Meter Auto-Ranging 6000 Counts 0.001A Current Frequency Temperature

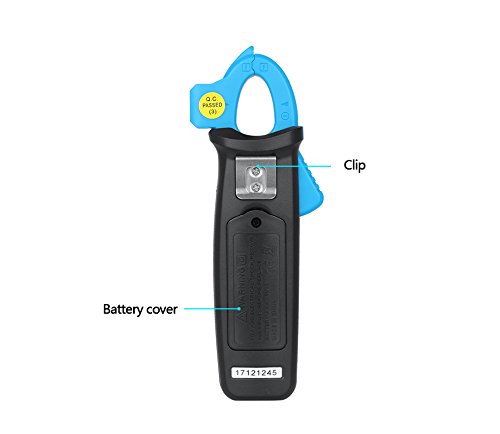

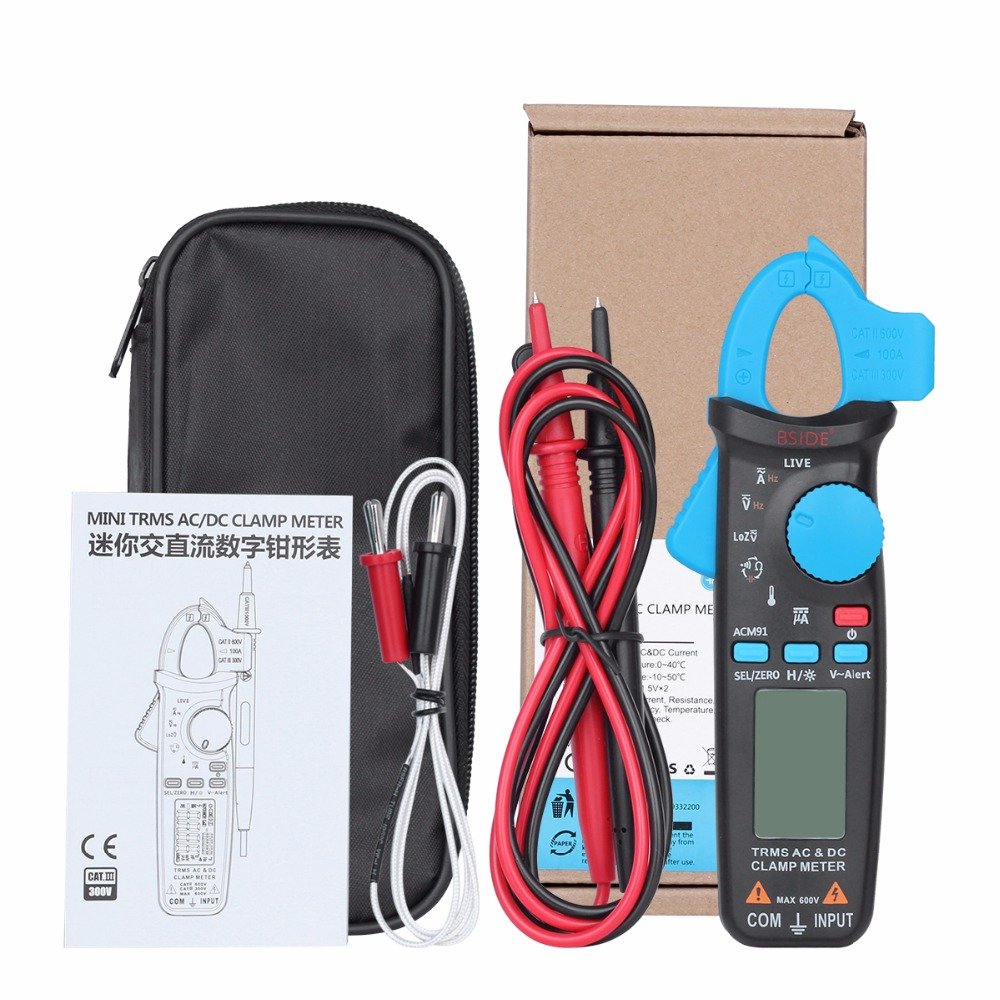

Bside ACM91 TRMS AC/DC Clamp Meter Auto-Ranging 6000 Counts 0.001A Current Frequency Temperature Tester with Pocket Clip
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Features: Measure both DC current and AC current (minimum 1mA by jaws) Measure microamps A (minumum 0.1A by terminals) Measure AC and DC voltage Measure frequency Low impedance voltage measurement Measure resistance, continuity and capacitance Measure temperature Live check function V-alert measurement Clamp on frequency function Auto range Data hold Auto power off Back light Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
•ver-voltage protection class CAT III 300V, CAT II 600V, pollution degree II Specifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A (3.0%+5counts) DC current(uA):0-200uA 0.1uA (0.8%+5counts) AC current: 6A/60A/100A 0.001A/0.01A/0.1A (2.5%+5counts) DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V (1.0%+3counts) AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V (1.0%+3counts) Low impedance LOZ: Max 600V Resolution 0.1V Resistance: 600/6k/60k/600k/6M ohm
•.1/0.001K/0.01K/0.1K/0.001M ohm (1.0%+3counts) 60Mohm 0.01Mohm (1.2%+20counts) Capacitance: 600uF/6000uF 0.1uF/1uF (4.0%+3counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz (1.0%+5counts) Frequencyby jaws): 60Hz/1000Hz 0.1Hz/1Hz (1.0%+5counts) Buzzer: If the resistance is less than 30, the continuity beeper sounds. Temperature: -20C~500C 1C/2F (2.0%+2counts) Jaw Capacity: 20mm Power: 1.5V (AAA) x 2 (not included) Size: 179mm x 67mm x 36 mm Weight: 137g
